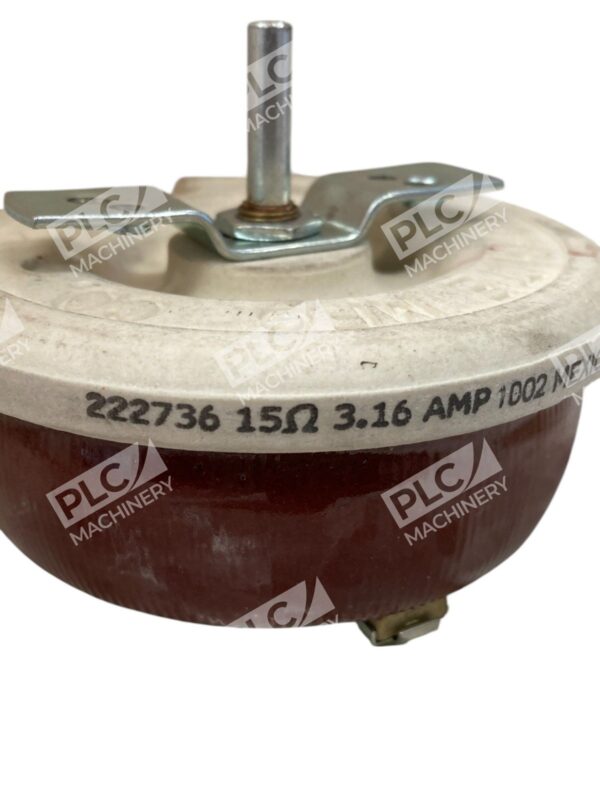

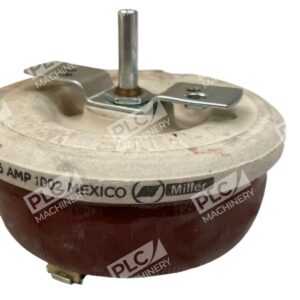

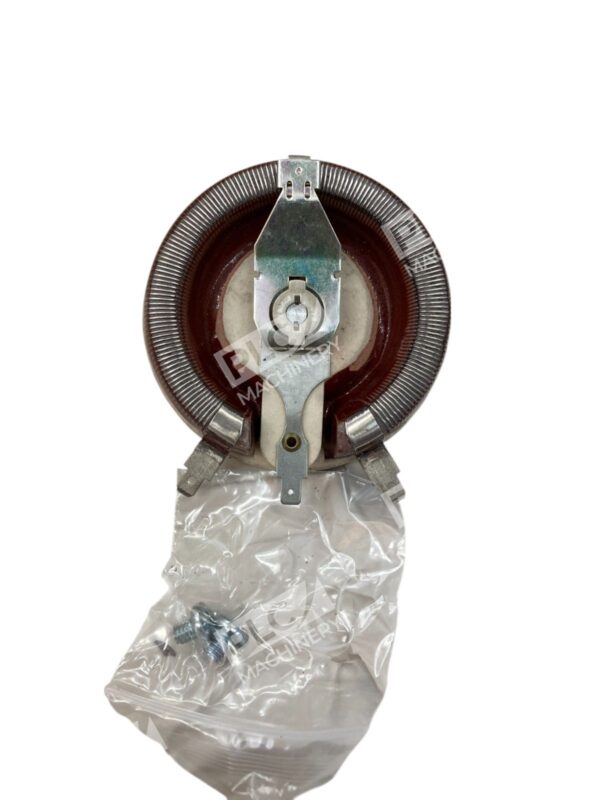

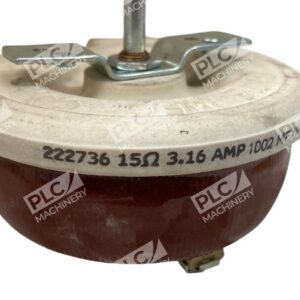

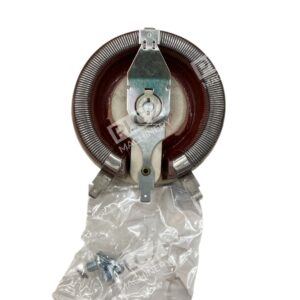

Miller Ohmite 15Ω 3.16A Rheostat 222736
The Miller Ohmite 15Ω 3.16A Rheostat 222736 is a high-quality variable resistor designed for precise control over electrical resistance in various applications. This rheostat is part of Ohmite’s RL Series, known for its durability and reliable performance.
Key Features
- Resistance Value: 15 ohms
- Power Rating: 150 watts
- Current Rating: 3.16 amperes
- Voltage Rating: Up to 1200 Vrms
- Resistance Tolerance: ±10%
- Mounting Type: Panel mount
- Termination Style: Solder lug
- Shaft Diameter: 6.35 mm
- Shaft Length: 8.73 mm
- Core Type: Open
- Dimensions: 101.6 mm x 50.8 mm
Construction and Design
The RL Series rheostats are constructed with a ceramic body and high-grade resistance alloy winding, ensuring high reliability and smooth operation over extended periods. The vitreous enamel or silicone ceramic coating provides enhanced durability and resistance to environmental factors. The metal spring contact arm and metal graphite composition contribute to the rheostat’s consistent performance.
Applications
This rheostat is suitable for various applications, including:
- Motor speed controls
- Equipment requiring variable resistance settings
- Dimmer switches
Its robust design and high power rating make it ideal for use in industrial and commercial settings where precise control over electrical resistance is essential.
Compliance and Certifications
The Miller Ohmite 15Ω 3.16A Rheostat 222736 complies with RoHS standards, ensuring it meets environmental and safety regulations. Additionally, Ohmite is ISO 9001:2015 certified, reflecting their commitment to quality management systems.
For more detailed specifications and information, refer to the product datasheet available on the manufacturer’s website.
