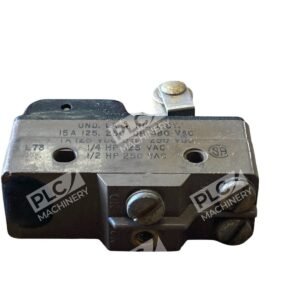

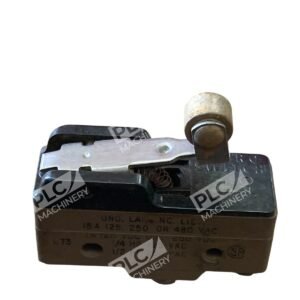

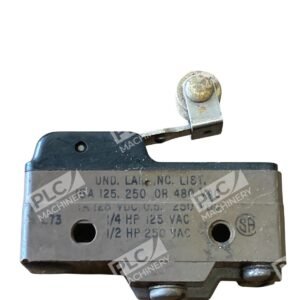

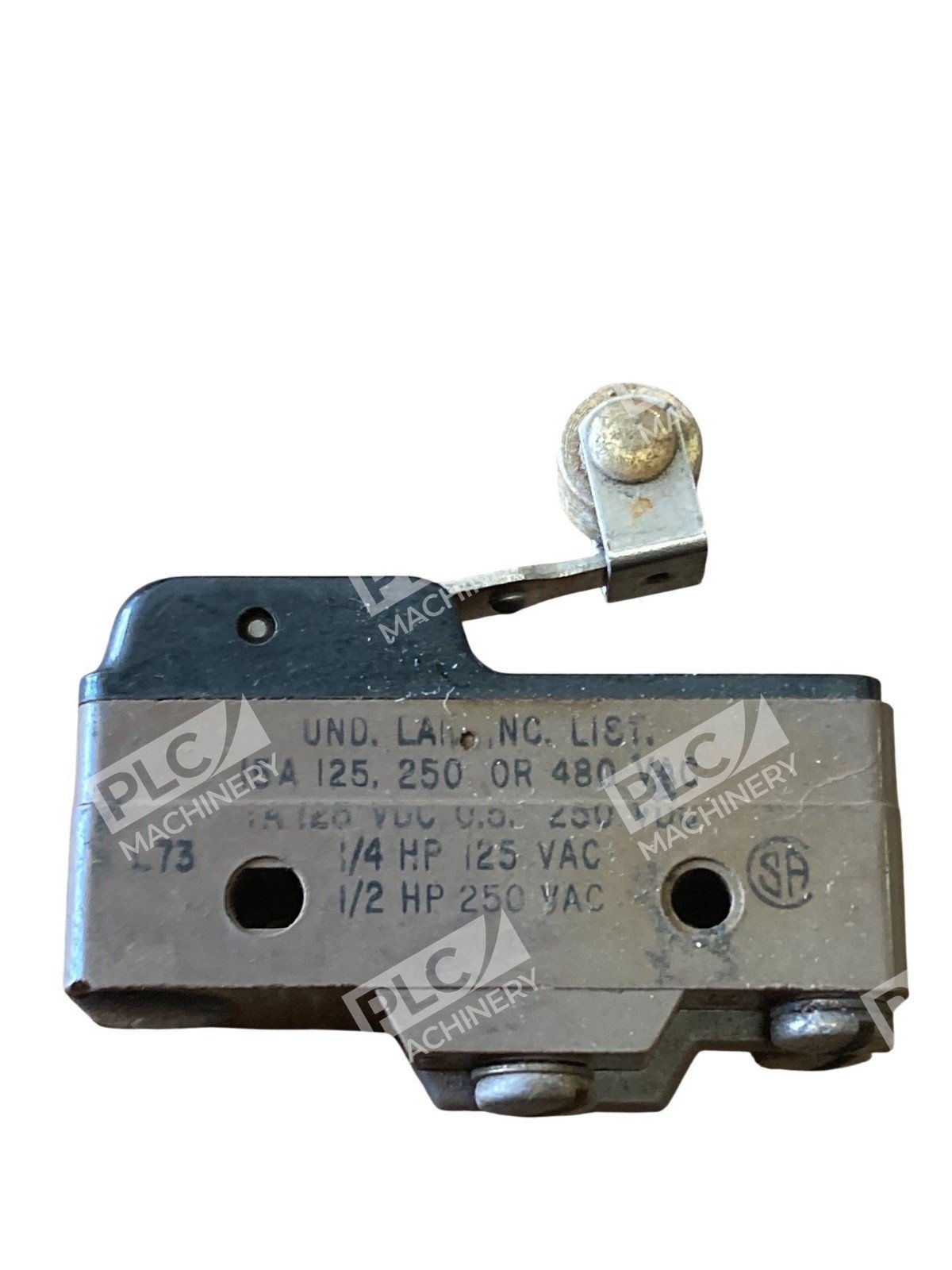

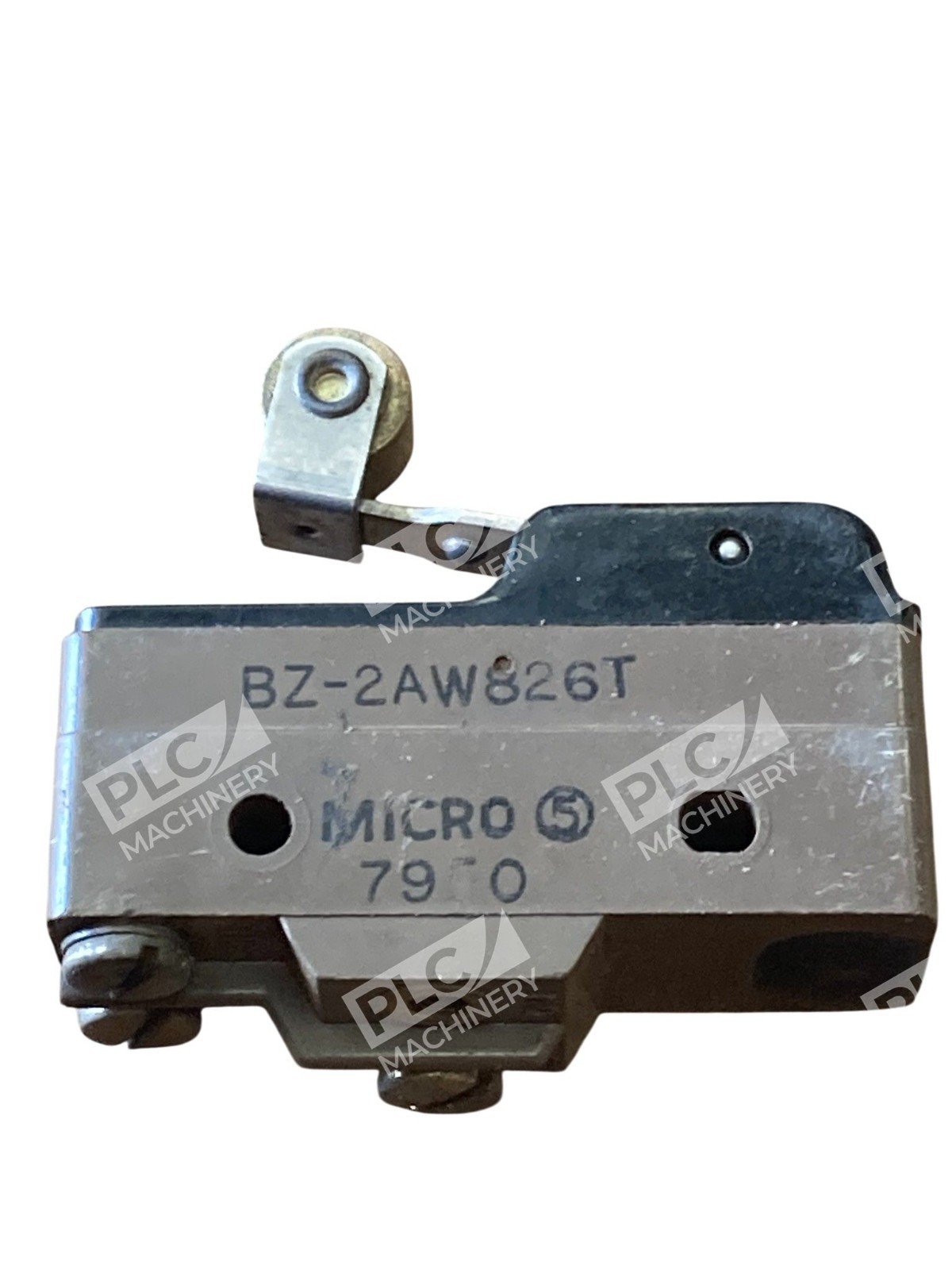

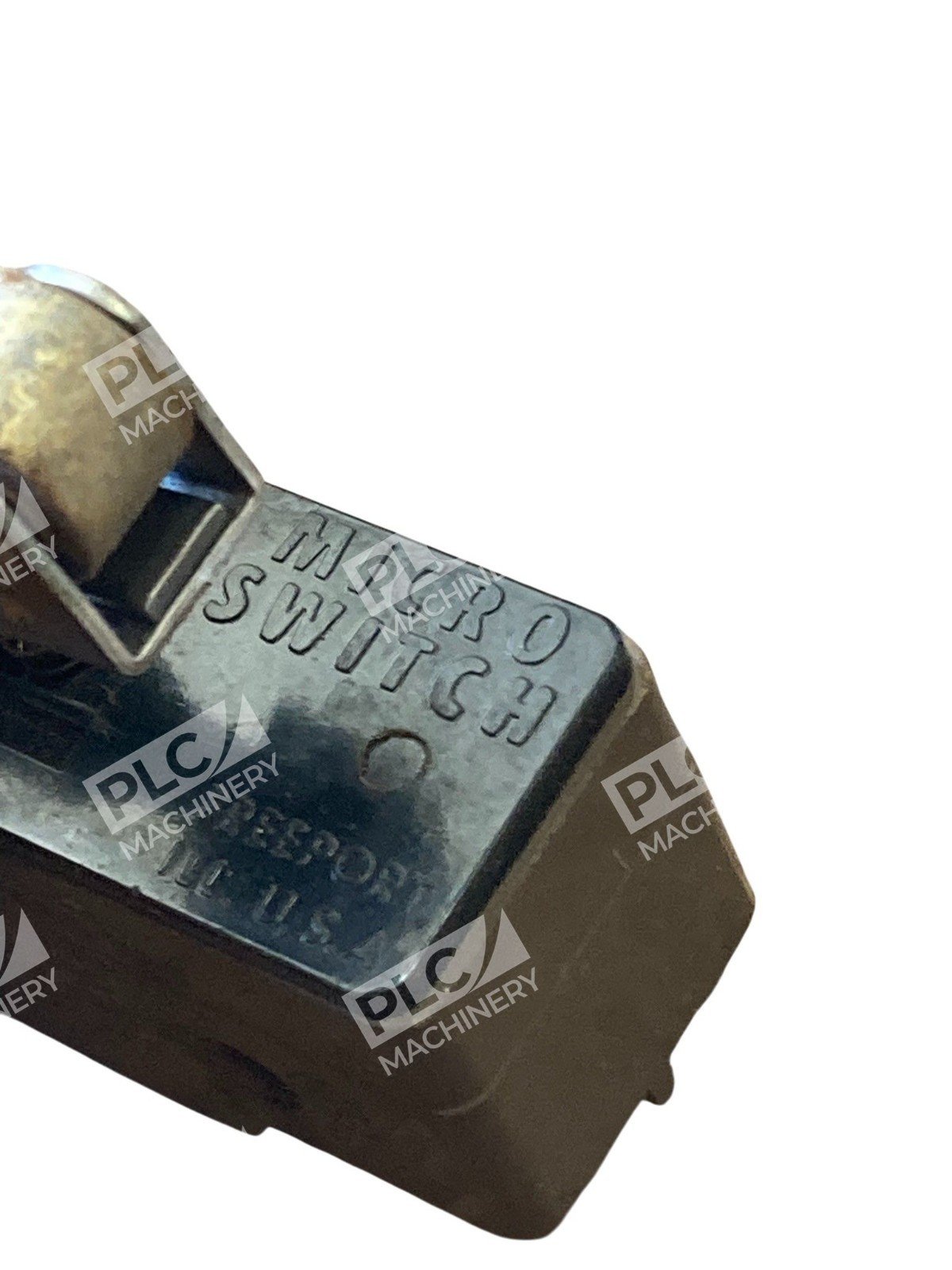

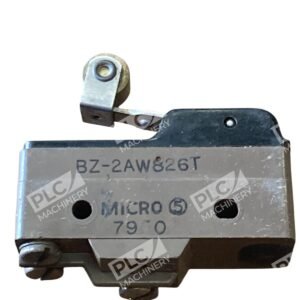

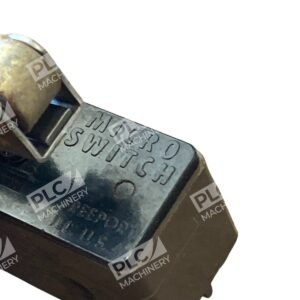

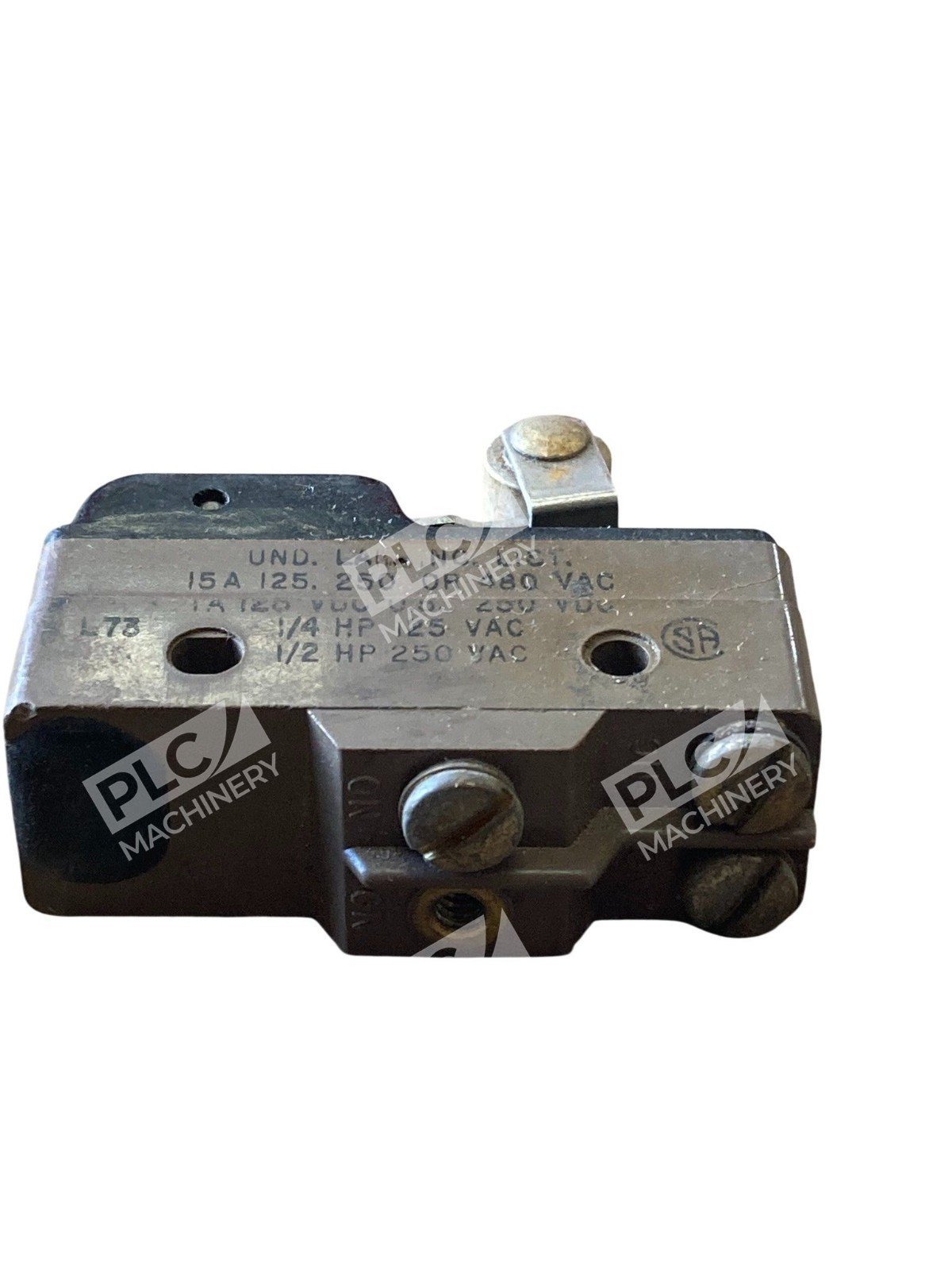

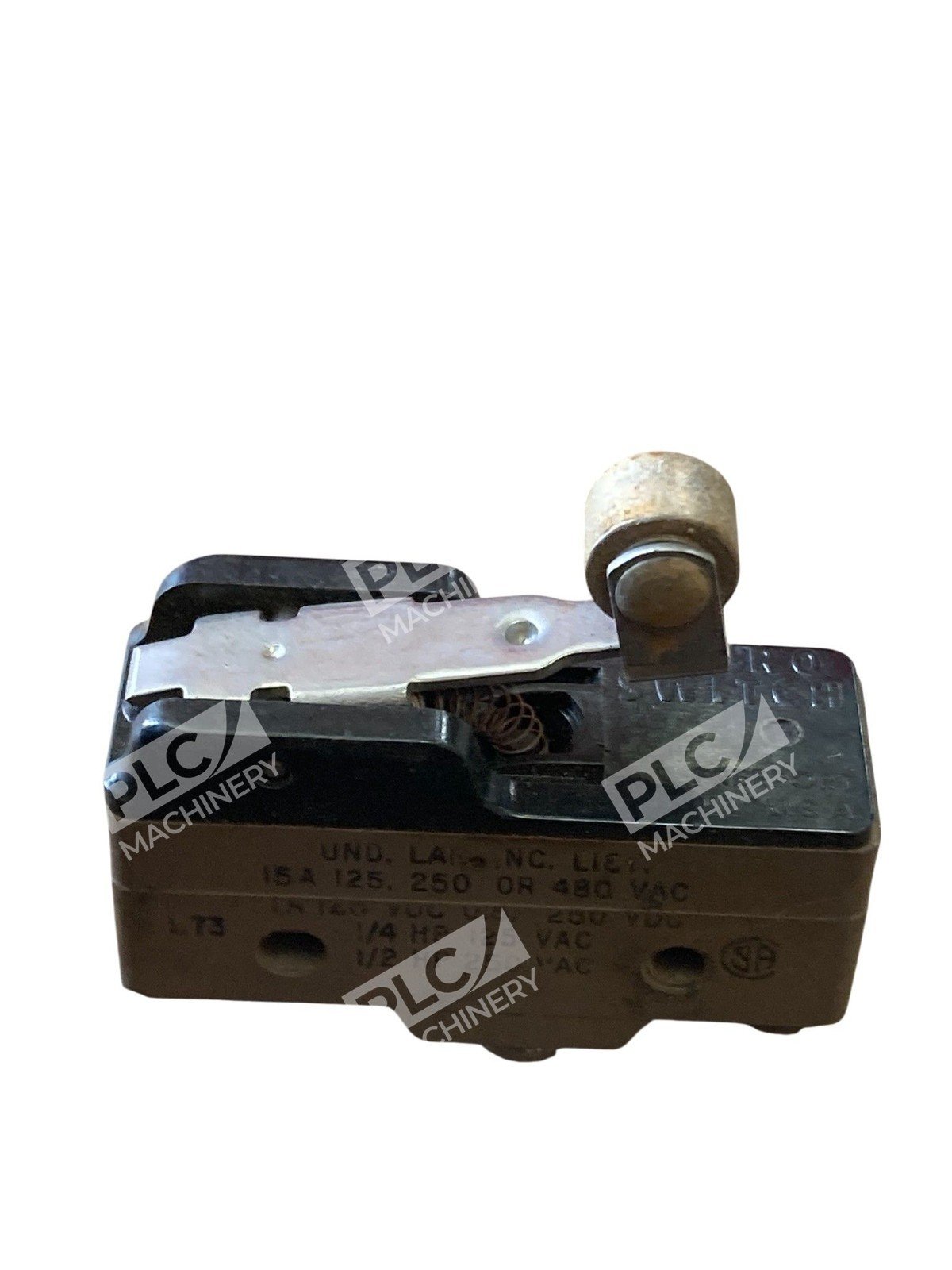

The Honeywell MICRO SWITCHâ„¢ BZ-2AW826T is a premium large basic switch designed for precision on/off applications, presence detection, and manual operator interfaces. Its robust construction and reliable performance make it suitable for various industrial and commercial uses.
Key Features
- Actuator: Roller Lever
- Contact Configuration: Double Pole Double Throw (DPDT)
- Electrical Rating: 15 A at 250 VAC
- Operating Temperature Range: -55°C to 85°C
- Mechanical Life: Up to 20 million cycles at 95% survival rate
- Housing Material: Phenolic
- Mounting: Threaded with elongated mounting holes for easier, more accurate installation
Applications
The BZ-2AW826T switch is ideal for use in:
- Irrigation systems
- Semi-trailer trucks
- Timing devices
- Office equipment
- Test instruments
- Medical and dental equipment
- HVAC equipment
- Manually operated devices
Specifications
- Operating Force: 1.67 N (6.0 oz) max
- Release Force: 0.42 N (1.5 oz) min
- Overtravel: 2.39 mm (0.094 in) min
- Differential Travel: 0.08 mm to 0.51 mm (0.003 in to 0.020 in)
- Actuator Length: 26.06 mm (1.026 in)
- Contact Material: Silver
- Dielectric Strength: 2000 V between each terminal and ground
- Insulation Resistance: 100,000 MΩ
The Honeywell BZ-2AW826T switch combines durability with precise operation, making it a reliable choice for demanding applications requiring consistent performance.
