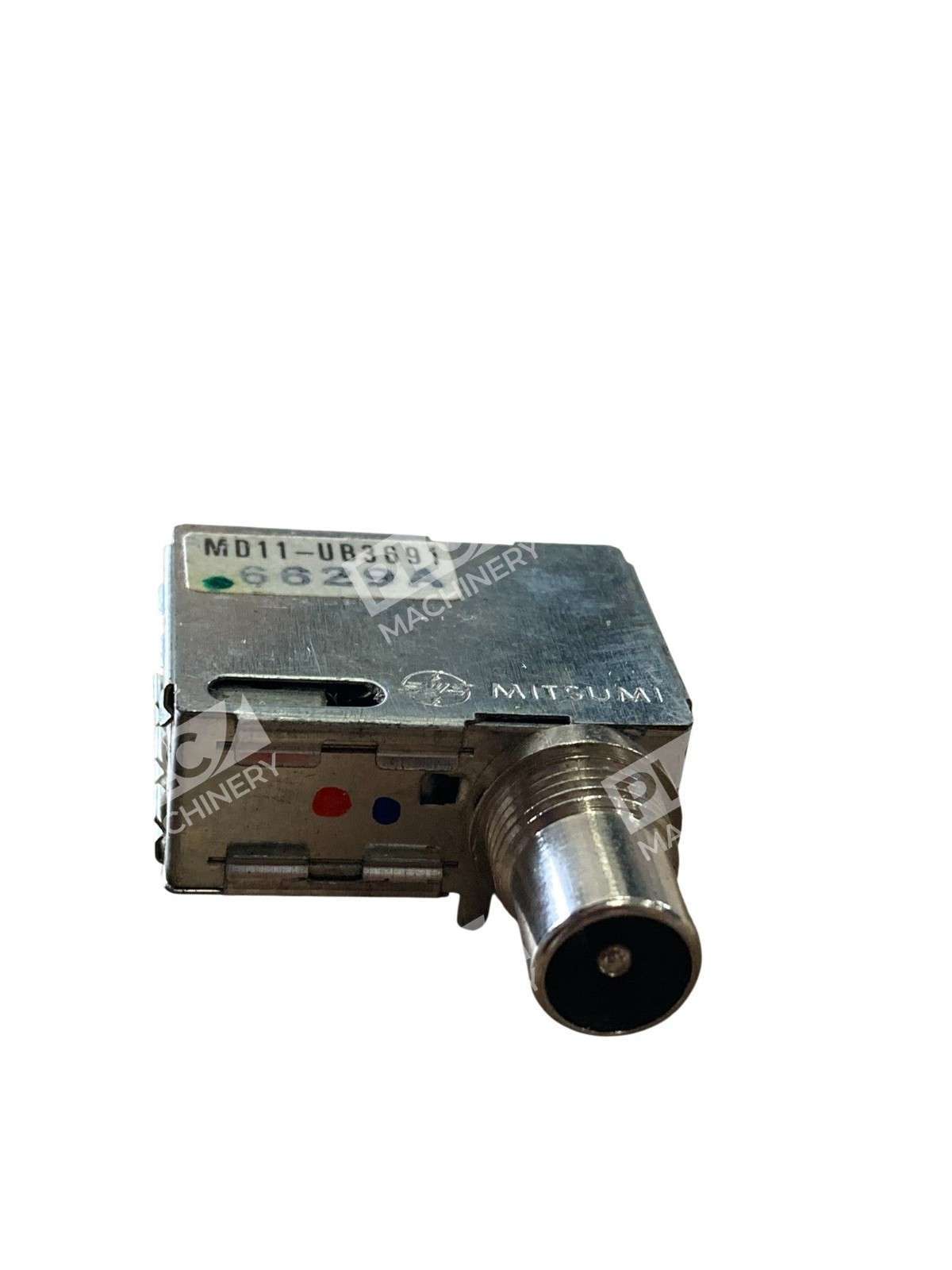

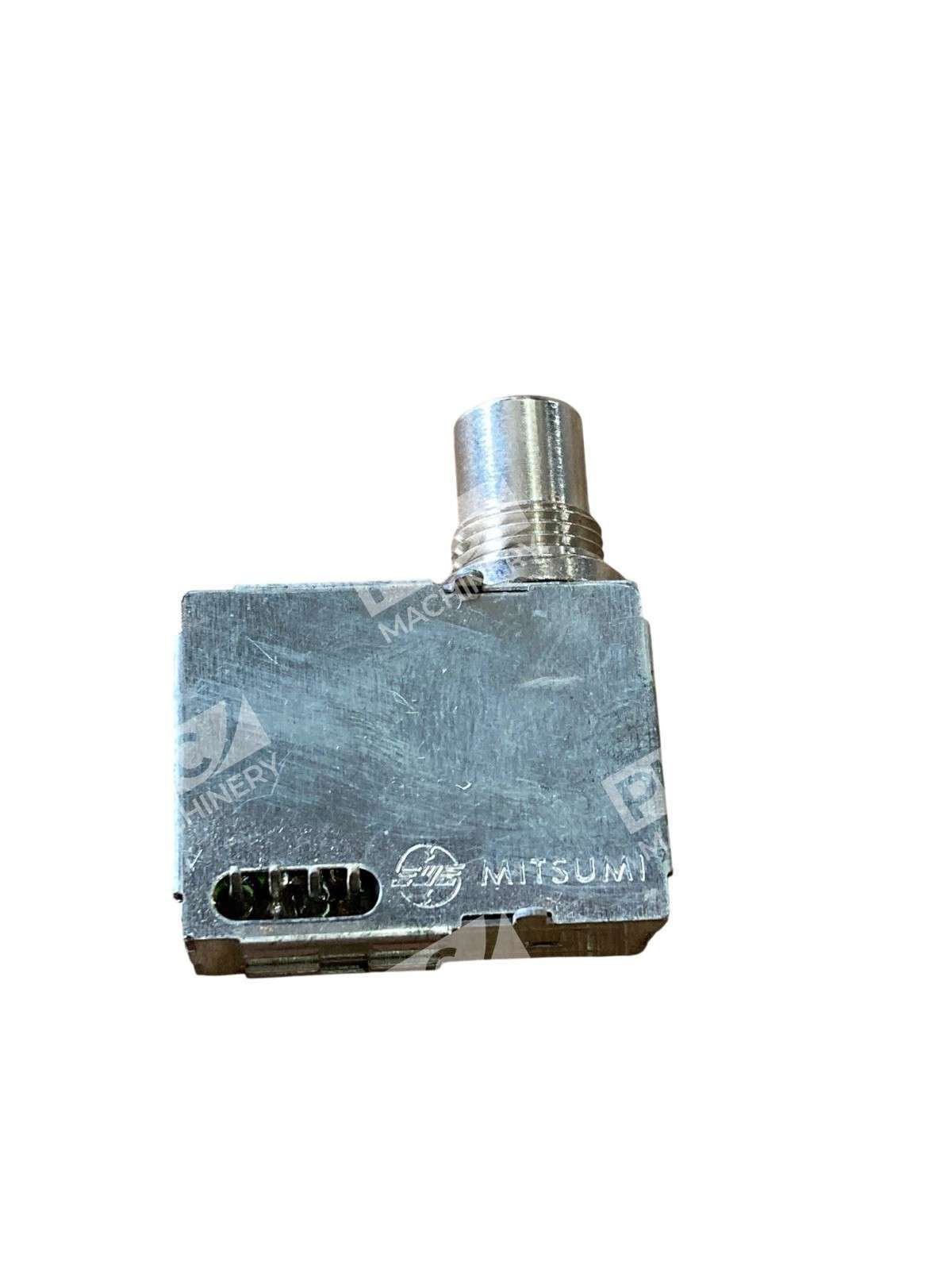

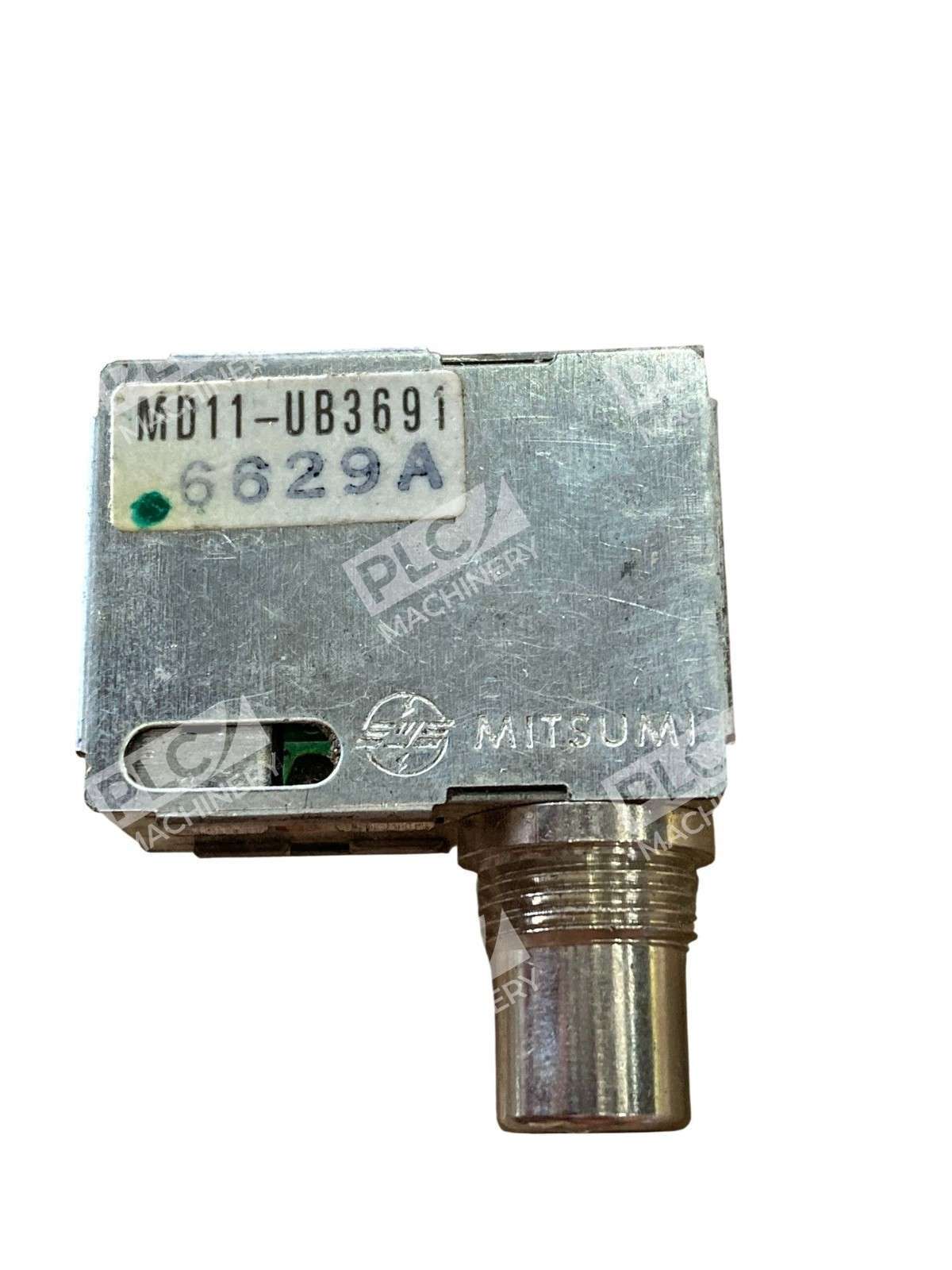

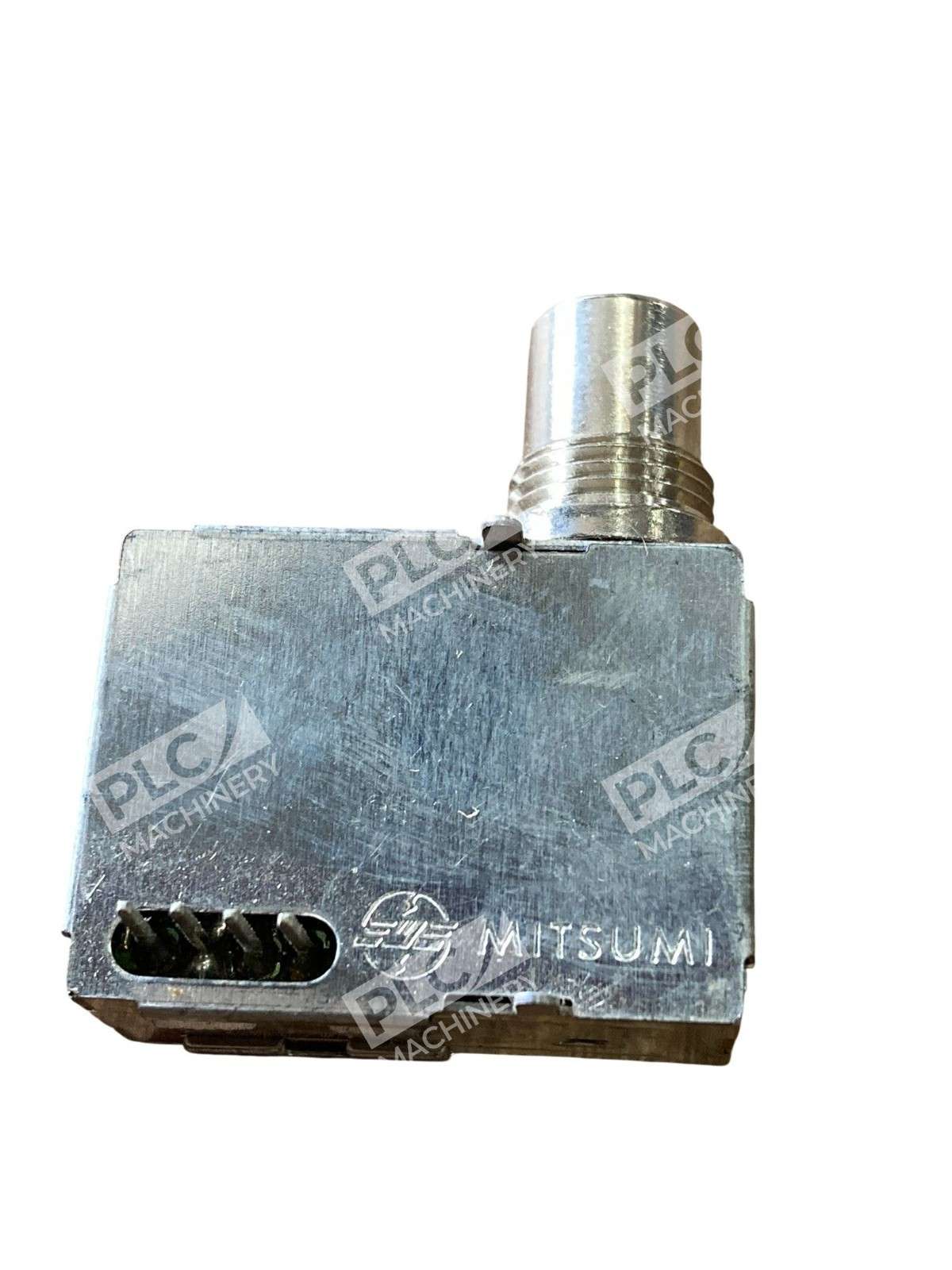

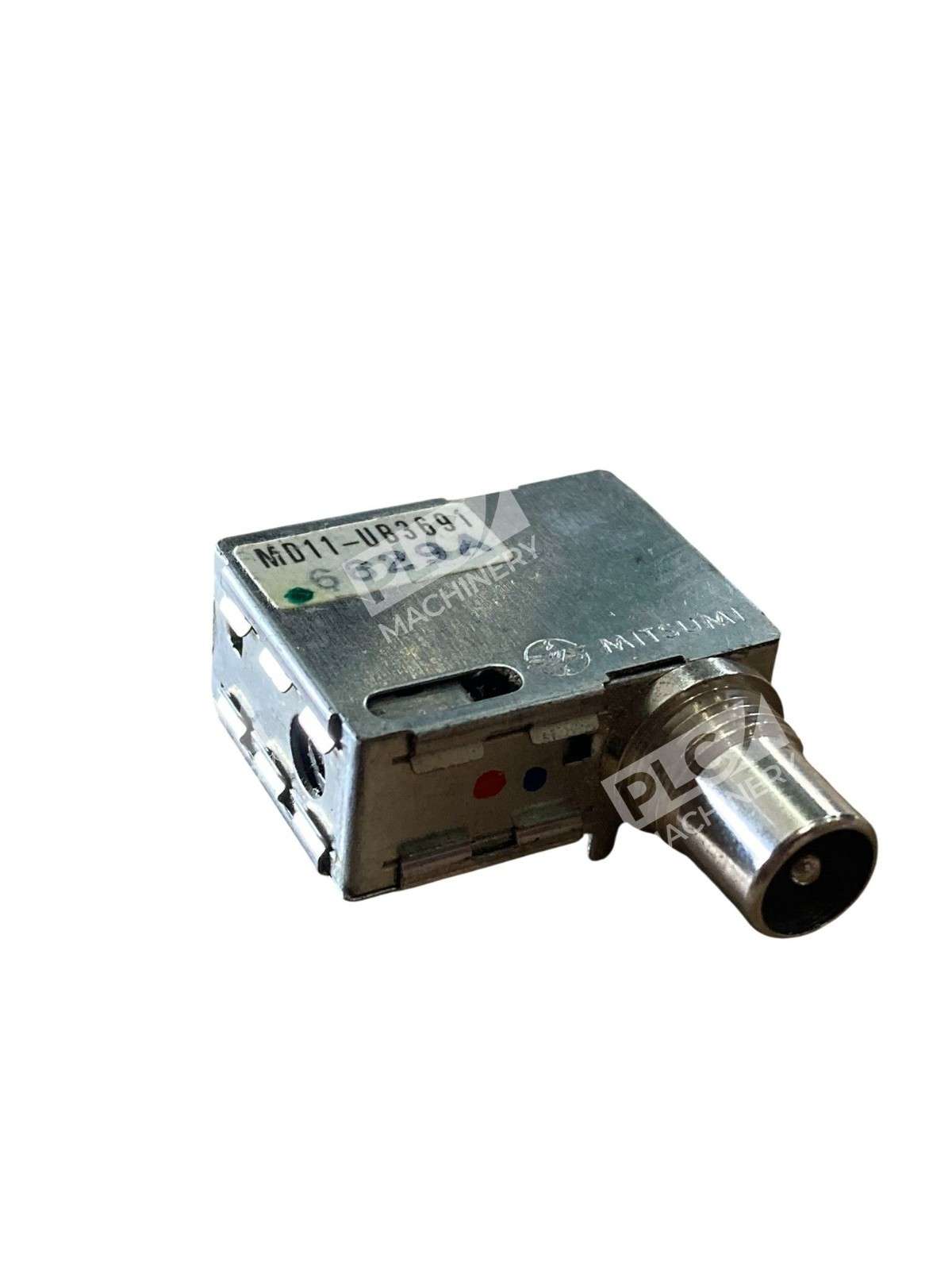

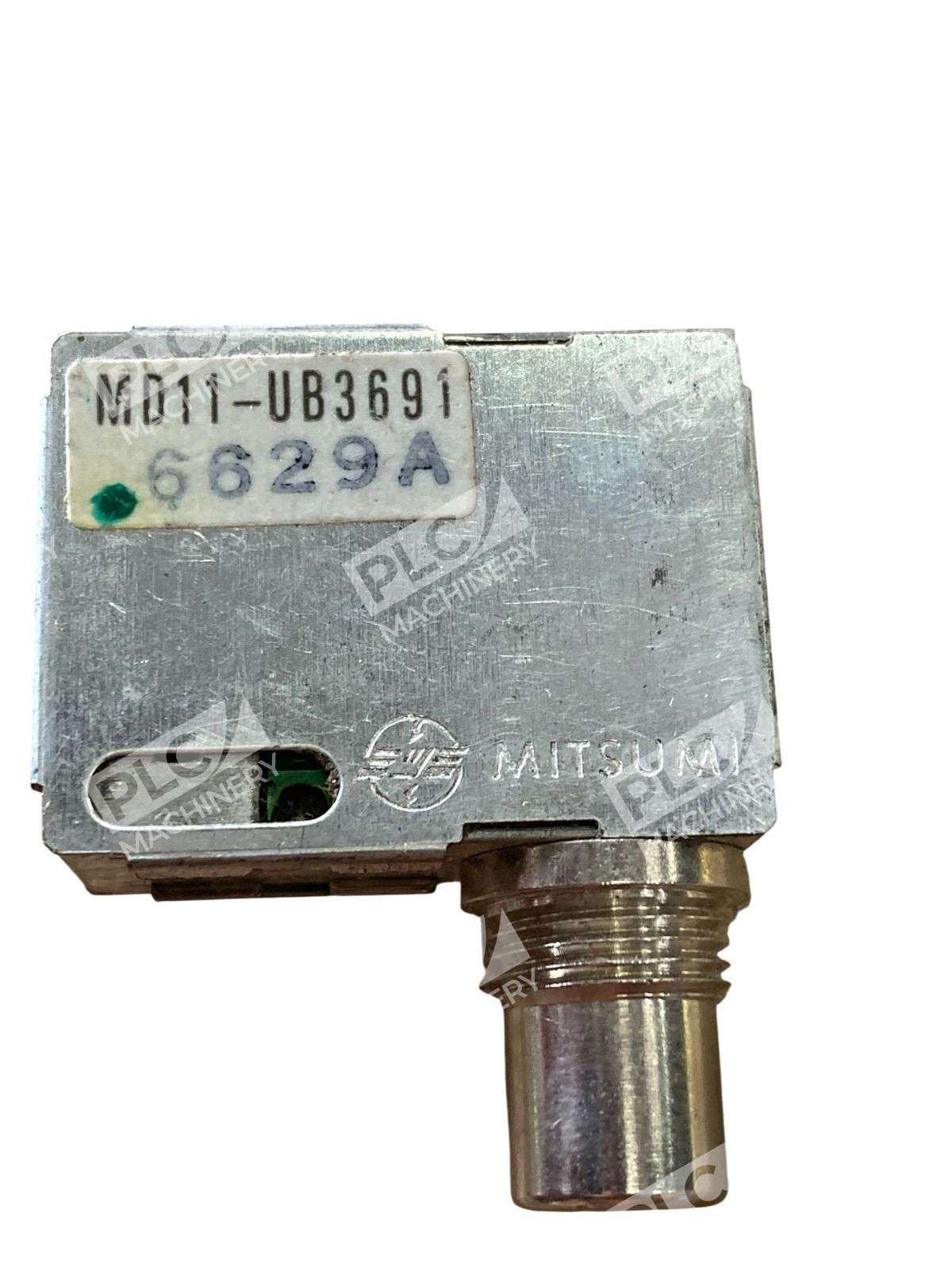

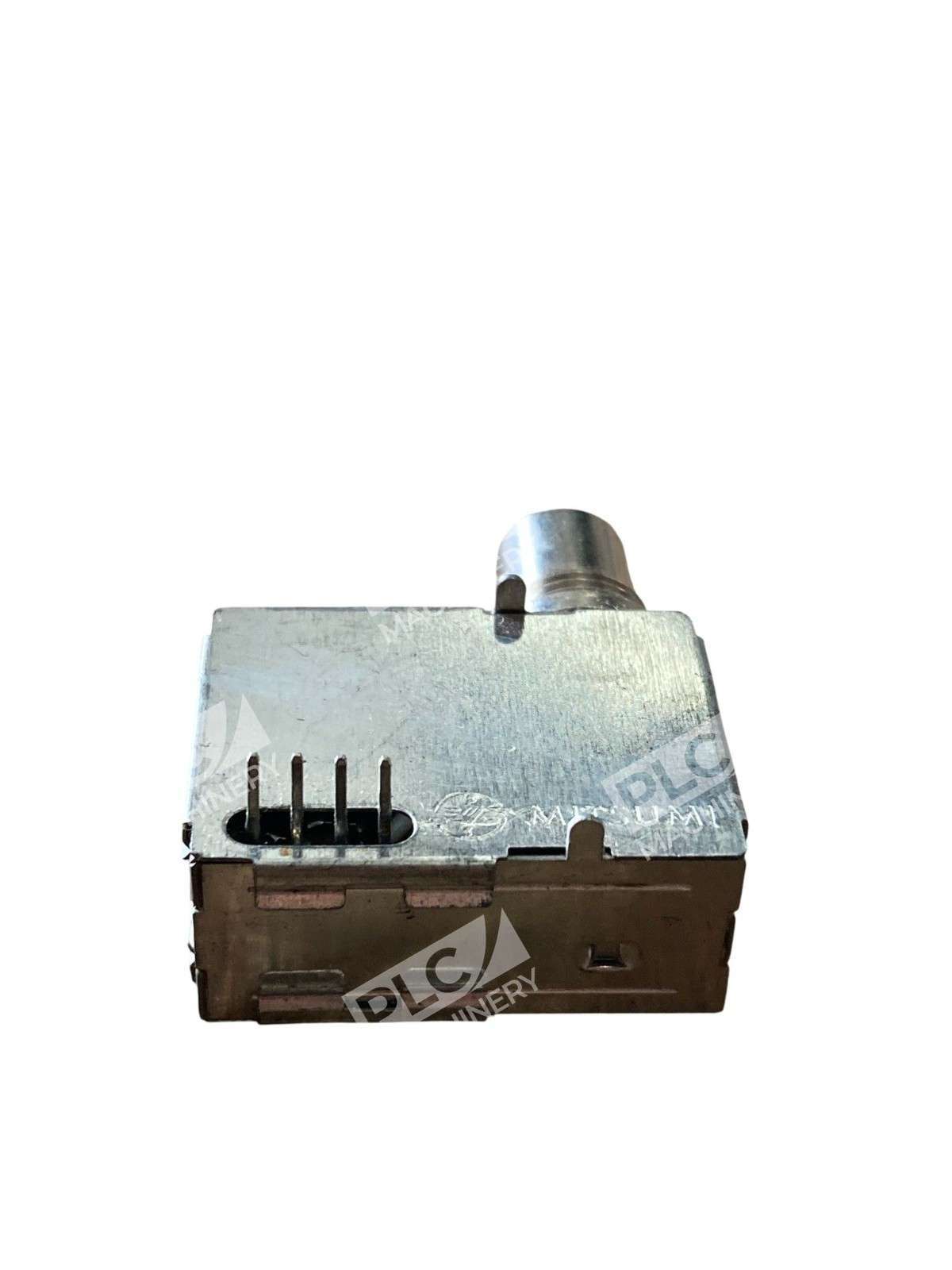

The Mitsumi MD11-UB3691 RF Modulator TV Tuner Module is a compact and efficient solution designed to convert composite video and audio signals into RF signals, enabling seamless integration with television systems lacking direct AV input capabilities. Key Features Composite Video and Audio Input: Accepts standard composite video and audio signals, facilitating compatibility with a wide range of multimedia devices. RF Output: Transmits modulated signals via coaxial output, allowing connection to television sets through standard RF inputs. Channel Selection: Equipped with adjustable channel settings, enabling users to select the desired output channel for optimal reception. Compact Design: Its small form factor ensures easy integration into existing setups without occupying significant space. Power Efficiency: Engineered for low power consumption, promoting energy efficiency during operation. Applications The Mitsumi MD11-UB3691 is ideal for: Connecting DVD players, gaming consoles, or other AV devices to older television models that lack composite input options. Integrating with VCRs or other recording equipment to modulate signals for broadcast over RF channels. Utilizing in custom AV installations where RF signal distribution is required. Installation and Usage To set up the Mitsumi MD11-UB3691: Connect the composite video and audio outputs from your source device to the corresponding input terminals on the modulator. Attach the coaxial cable from the modulator’s RF output to the television’s antenna input. Select the desired output channel on the modulator to match an unused channel on your television. Tune your television to the chosen channel to receive the modulated signal. Ensure all connections are secure and that the modulator is powered appropriately to achieve optimal performance. Technical Specifications Input Signal: Composite video and audio Output Signal: RF signal via coaxial output Channel Range: Adjustable to standard RF channels Power Requirements: Specified voltage and current as per manufacturer guidelines Dimensions: Compact module size suitable for integration The Mitsumi MD11-UB3691 RF Modulator TV Tuner Module offers a reliable and straightforward solution for integrating modern AV devices with traditional television systems, ensuring continued usability and enhanced viewing experiences.
