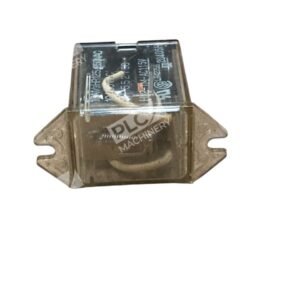

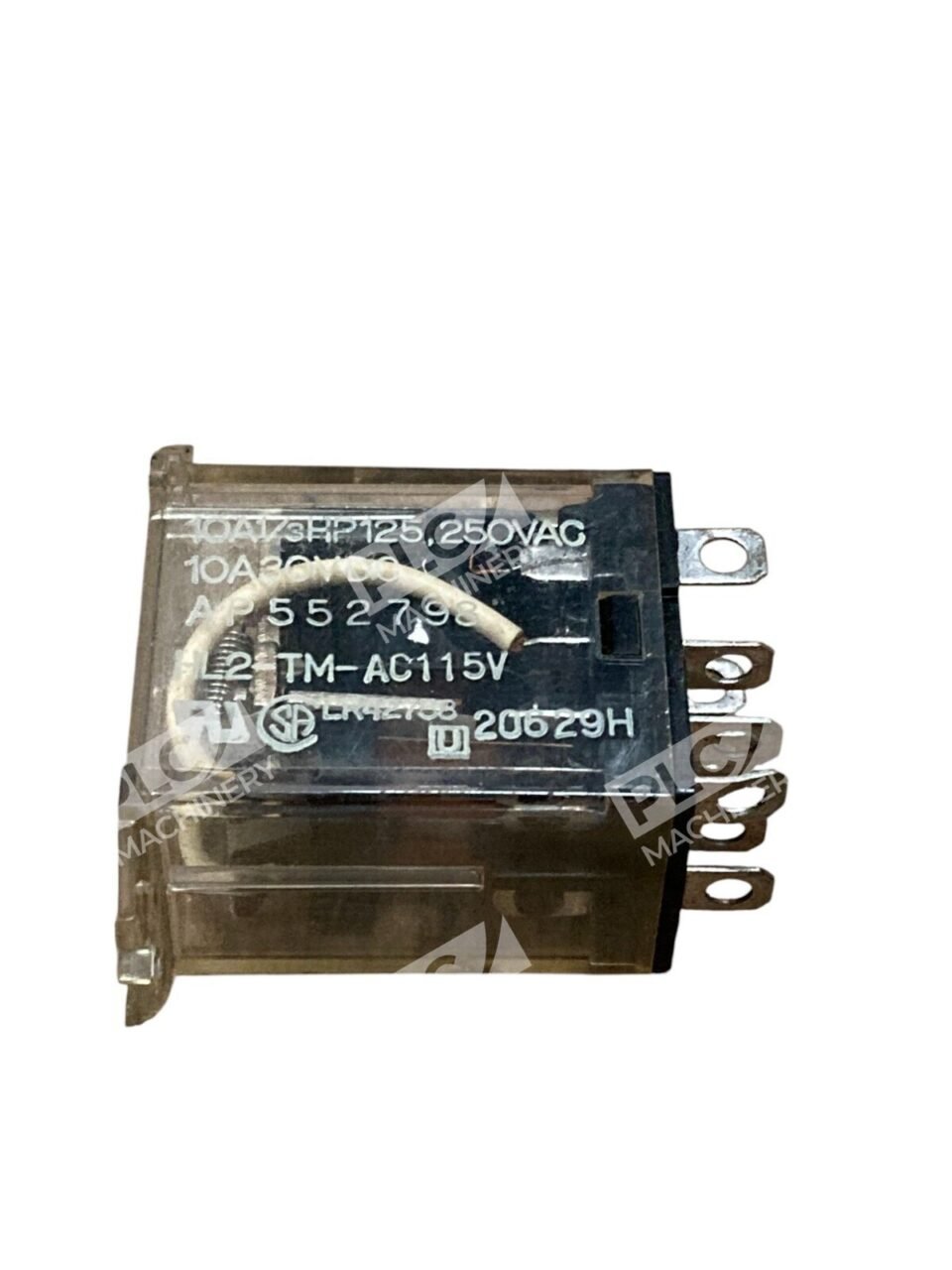

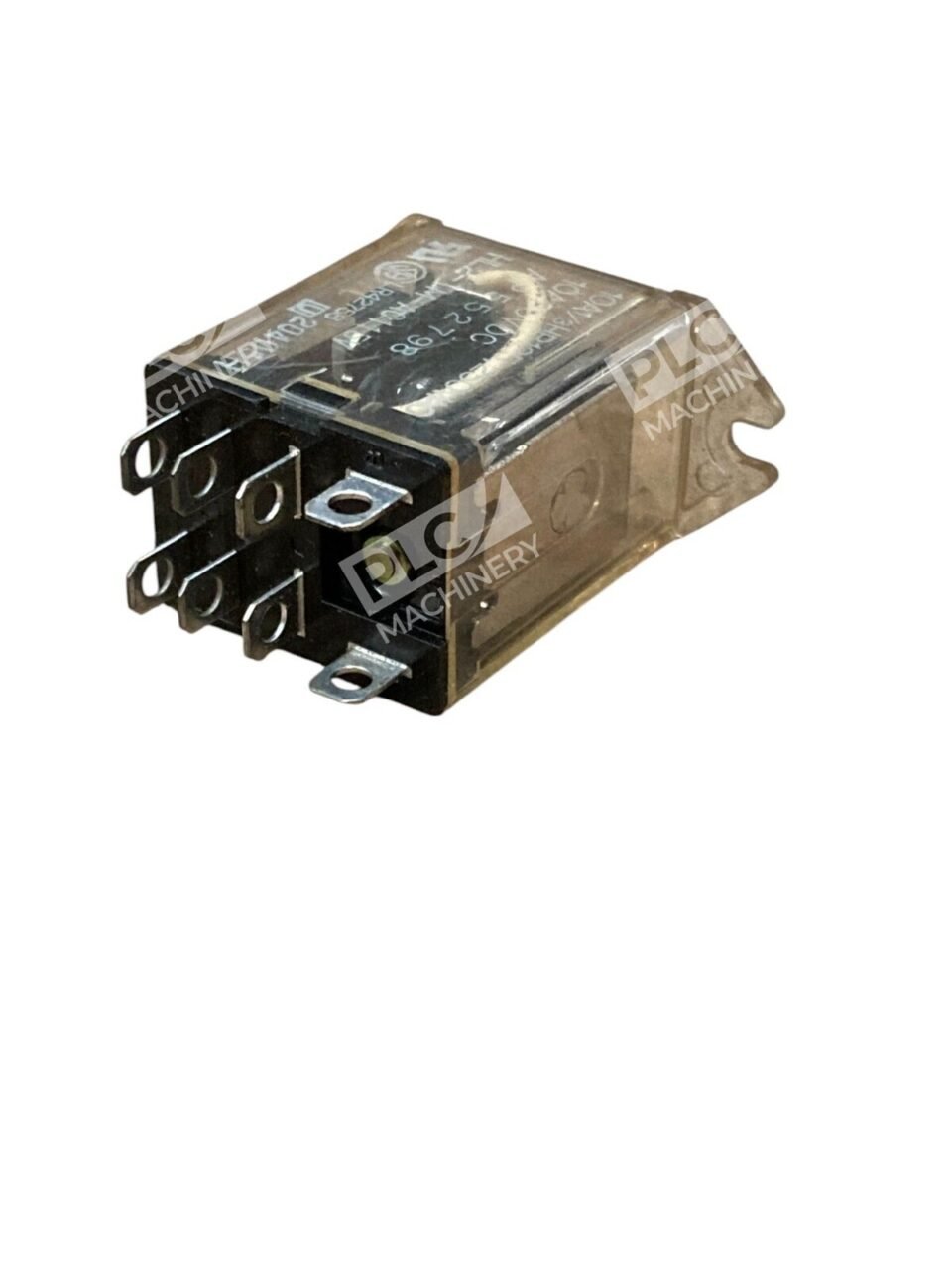

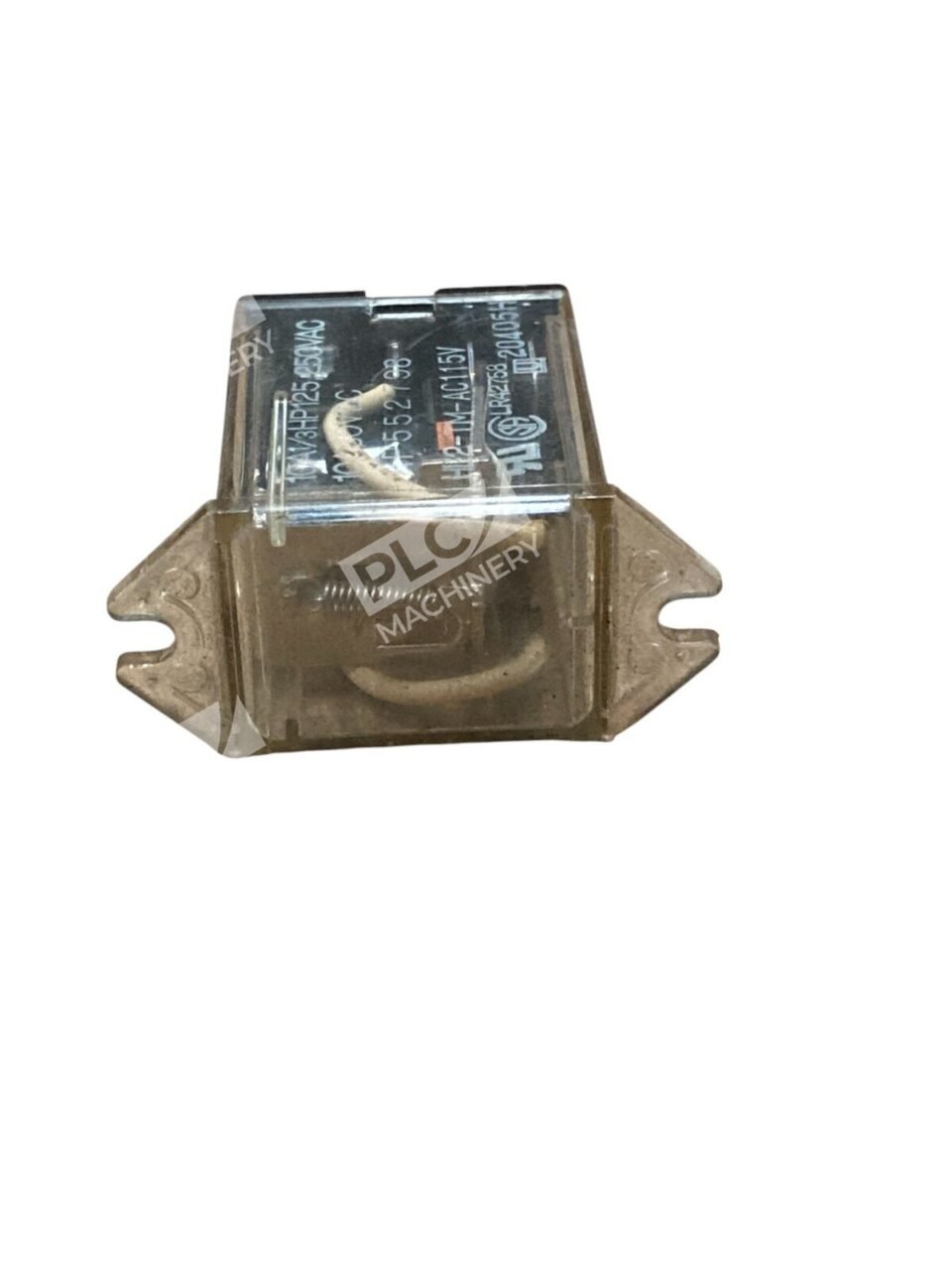

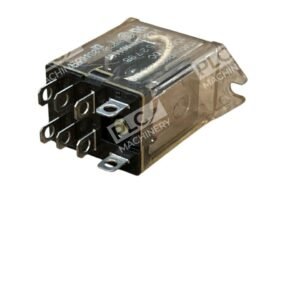

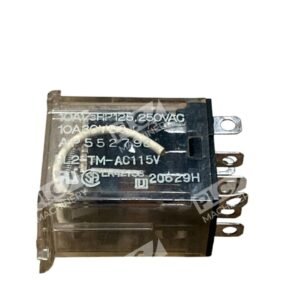

Matsushita HL2-TM-AC115V Control Relay for Ultra Gas Boilers 115V 10A
The Matsushita HL2-TM-AC115V is a high-capacity, general-purpose control relay designed to meet the demanding requirements of Ultra Gas Boilers. Operating at 115V AC with a 10A contact rating, this relay ensures reliable performance in various industrial applications.
Key Features
- Contact Configuration: Double Pole Double Throw (DPDT) (2 Form C) for versatile switching capabilities.
- Coil Voltage: 115V AC, suitable for standard power systems.
- Contact Rating: 10A, accommodating substantial electrical loads.
- Mounting Type: Chassis mount design for secure and stable installation.
- Termination Style: Quick Connect terminals (0.187″ or 4.7mm) for efficient and reliable wiring connections.
- Operating Temperature Range: -50°C to 70°C, ensuring functionality in diverse environmental conditions.
- Operate and Release Times: Both set at 10ms, facilitating prompt response in control systems.
- Contact Material: Silver alloy, providing excellent conductivity and durability.
Applications
Specifically engineered for integration with Ultra Gas Boilers, the HL2-TM-AC115V relay is also suitable for various industrial control systems requiring dependable switching operations. Its robust design and high electrical capacity make it an ideal choice for applications demanding consistent performance.
Compliance and Standards
This relay adheres to industry standards, ensuring safety and reliability in its operation. Its design and construction meet the rigorous requirements necessary for industrial applications.
For detailed specifications and installation guidelines, please refer to the product datasheet or contact the manufacturer directly.
