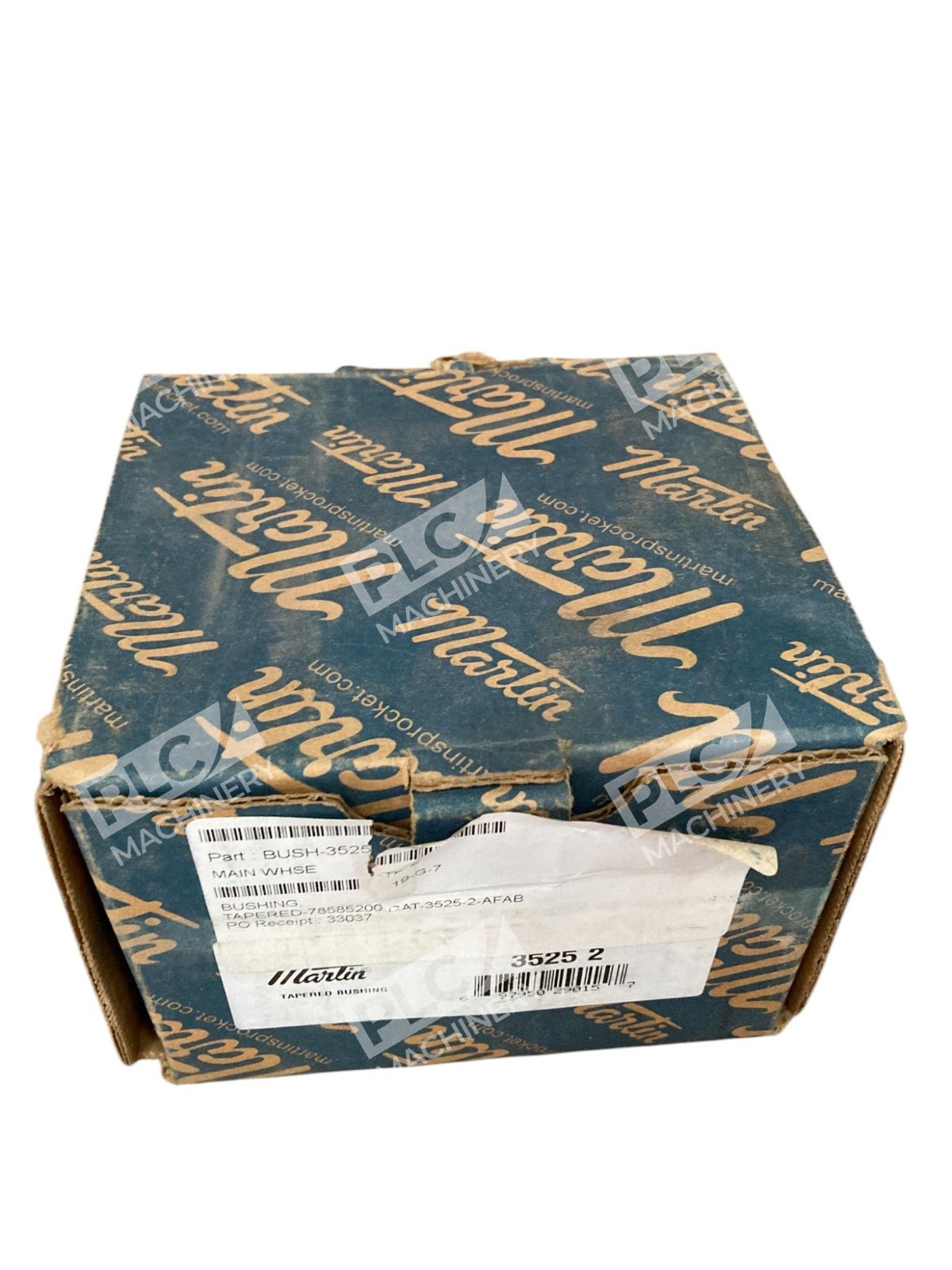

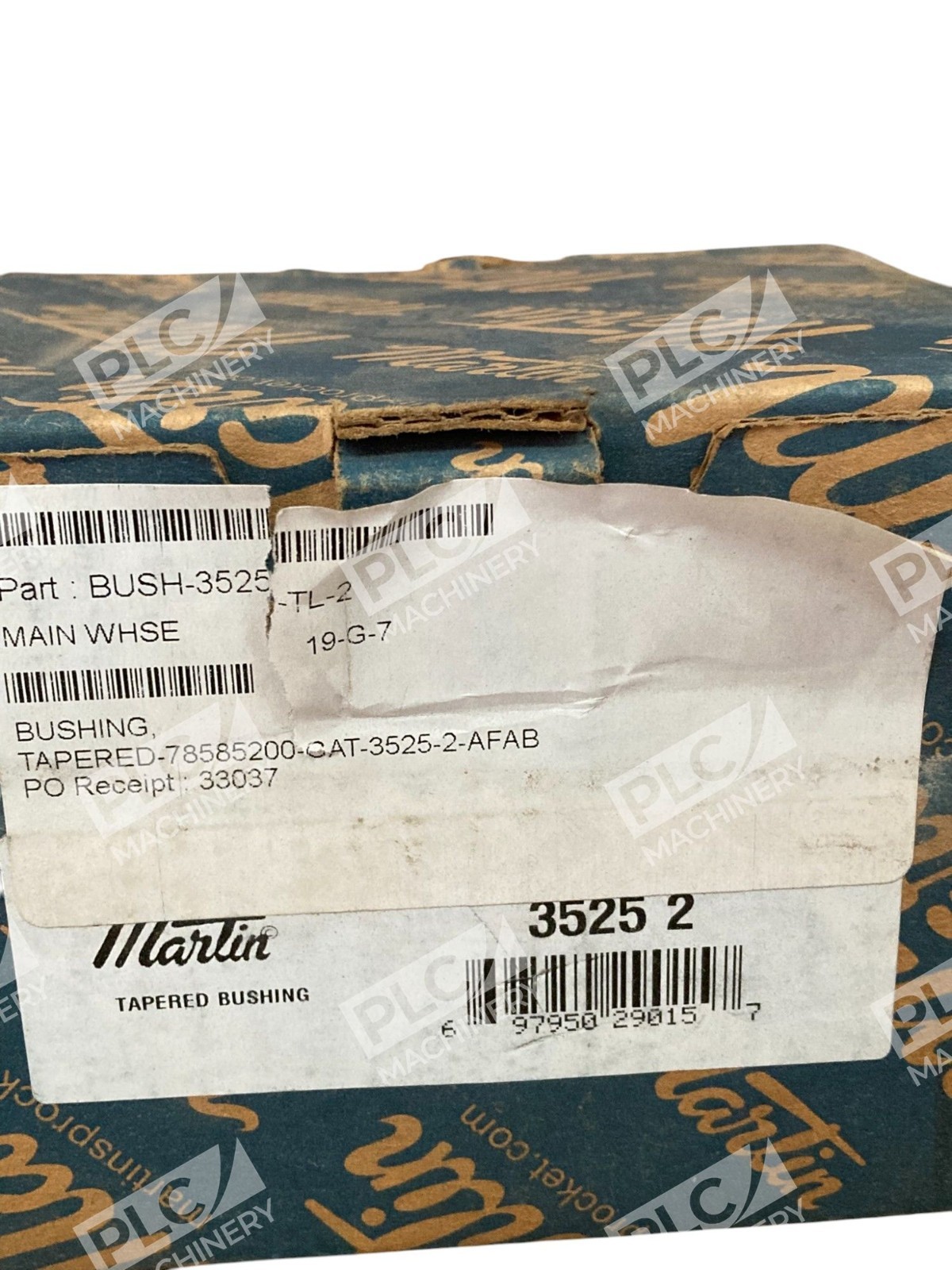

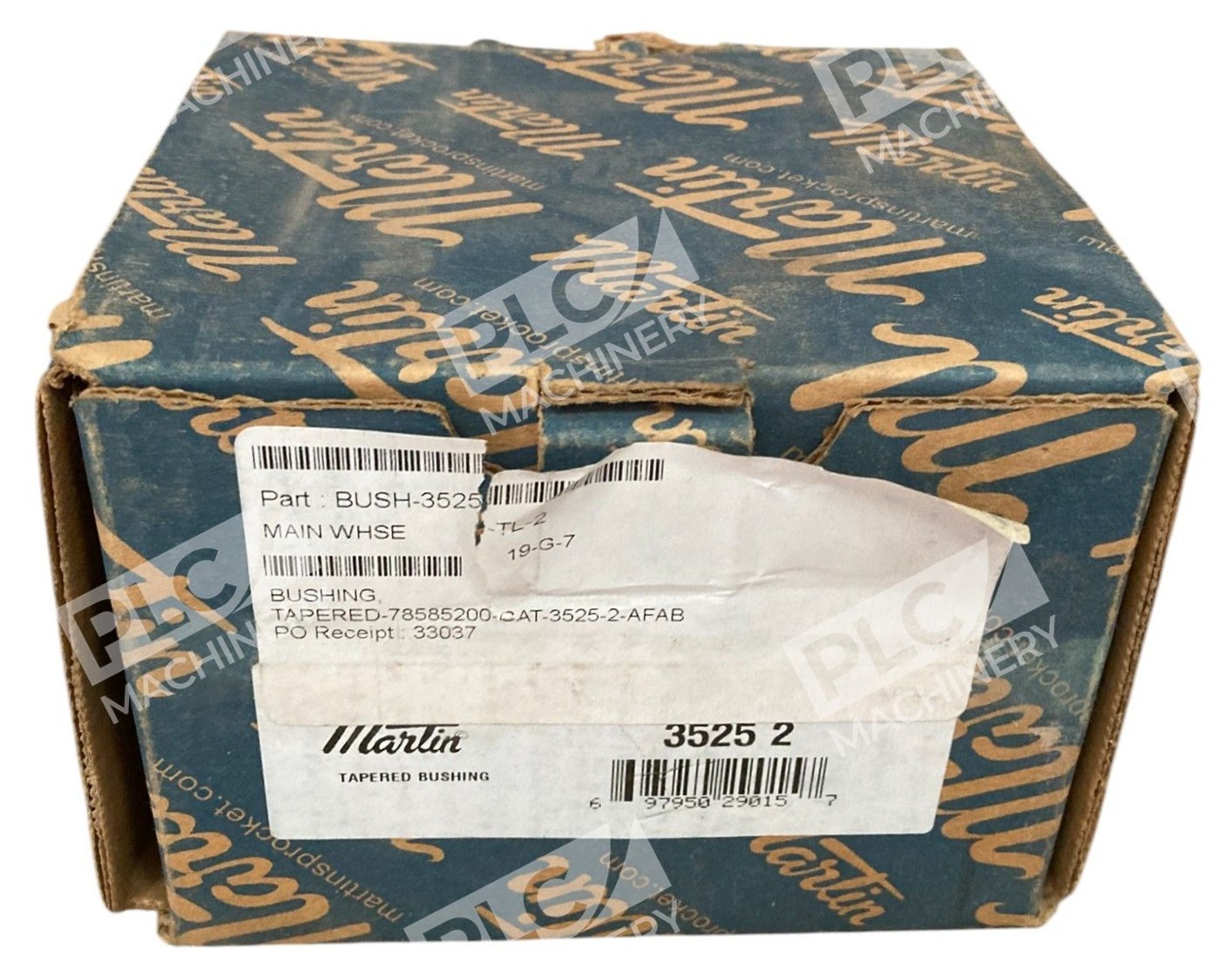

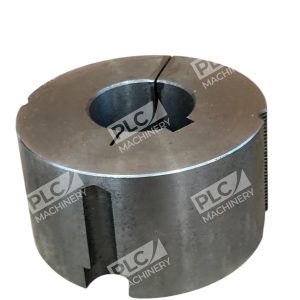

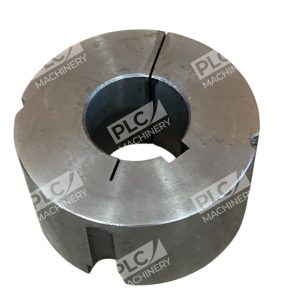

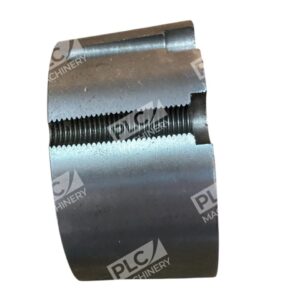

Martin 3525 2 Taper Lock Bushing
The Martin 3525 2 Taper Lock Bushing is a precision-engineered component designed to provide a secure and efficient method for mounting pulleys, sprockets, and other power transmission products onto shafts. Its robust construction and standardized design ensure reliable performance across various industrial applications.
Key Features
- Bore Diameter: 2 inches
- Outside Diameter: 5 inches
- Overall Length: 2.5 inches
- Material: High-quality cast iron
- Keyway Size: 1/2 x 1/4 inches
- Number of Bolt Holes: 3
- Cap Screw Size: 1/2 x 1-1/2 inches
- Bolt Circle Diameter: 4.83 inches
- Taper: 8 degrees
- Torque Rating: 44,800 in-lb
Design and Compatibility
The 3525 series Taper Lock Bushing is engineered for flush mounting, eliminating the need for a flange. This design allows for a compact and streamlined installation, making it suitable for applications where space is limited. The bushing’s precise machining ensures a consistent finish and high quality, meeting or exceeding industry standards. Additionally, it is interchangeable with other manufacturers’ taper bushings, offering flexibility in various mechanical setups.
Applications
This bushing is ideal for use in mechanical power transmission systems, including conveyors, fans, and pumps. Its robust design and high torque capacity make it suitable for demanding industrial environments where reliable shaft attachment is critical.
Installation and Maintenance
The Martin 3525 2 Taper Lock Bushing is designed for easy installation and removal, facilitating quick maintenance and reducing downtime. Its standardized dimensions and compatibility with various components ensure a hassle-free integration into existing systems.
For detailed installation instructions and safety guidelines, please refer to the manufacturer’s documentation.
