Martin Sprocket 2012-1-1/2 Taper Bushing 2012 1 1/2

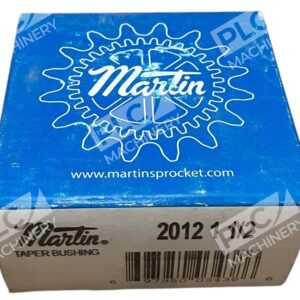

Martin Sprocket 2012-1-1/2 Taper Bushing

The Martin Sprocket 2012-1-1/2 Taper Bushing is a precision-engineered component designed to facilitate secure and efficient mounting of sprockets, pulleys, and other power transmission products onto shafts. Its robust construction and standardized design ensure reliable performance across various industrial applications.

Key Features

• Bore Diameter: 1.5000 inches
• Outside Diameter: 2.75 inches
• Length Through Bore: 1.25 inches
• Keyway Size: 3/8 x 3/16 inches
• Number of Bolt Holes: 2
• Screw Thread Size: 7/16-14 inches
• Screw Length: 7/8 inches
• Material: High-quality steel
• Weight: Approximately 1.10 lbs

Design and Compatibility

The 2012 series Taper Bushing is engineered for flush mounting applications, featuring a no-flange design that allows for a compact and streamlined assembly. Its tapered construction ensures a tight and secure fit on the shaft, minimizing slippage and enhancing torque transmission efficiency. This bushing is compatible with a range of sprockets and pulleys that require a 2012 series bushing, making it a versatile choice for various mechanical setups.

Installation and Maintenance

Installation of the Martin 2012-1-1/2 Taper Bushing is straightforward, involving the alignment of the bushing with the component hub and the shaft, followed by the tightening of the set screws to the recommended torque of 280 in-lbs. For removal, the set screws are inserted into the designated removal holes and tightened alternately to release the bushing from the component. Regular inspection and maintenance are recommended to ensure optimal performance and longevity.

Applications

This taper bushing is suitable for a wide range of industrial applications, including conveyor systems, material handling equipment, and other machinery requiring reliable power transmission components. Its standardized dimensions and robust construction make it an ideal choice for engineers and maintenance professionals seeking dependable and interchangeable bushing solutions.

By integrating the Martin Sprocket 2012-1-1/2 Taper Bushing into your machinery, you can achieve enhanced performance, reduced downtime, and increased operational efficiency.
