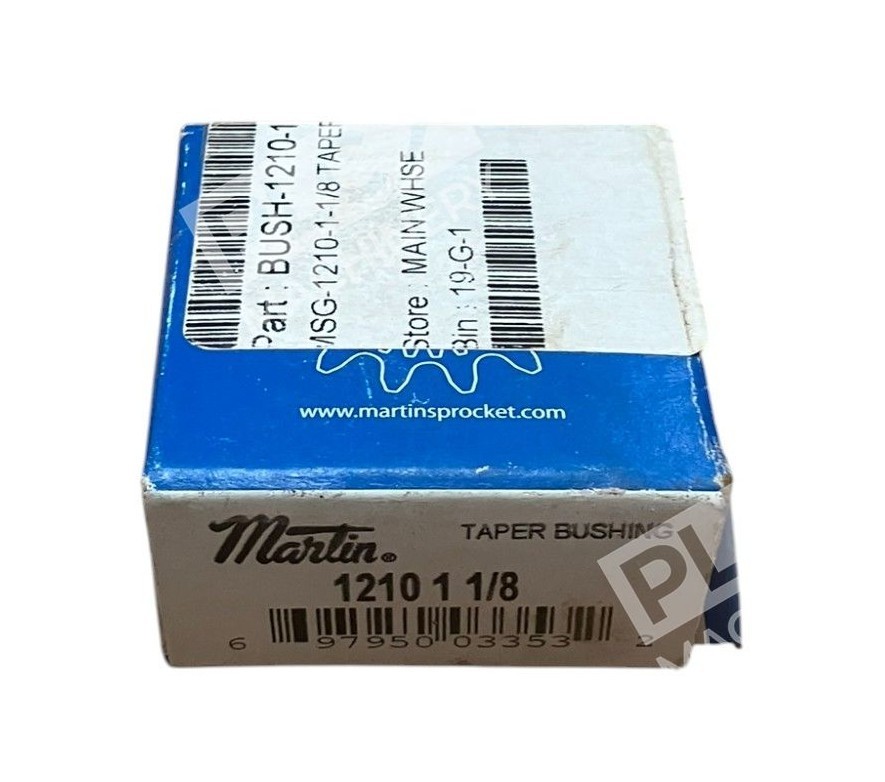

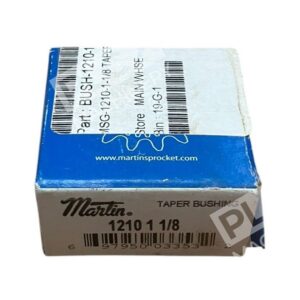

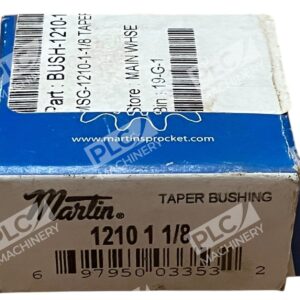

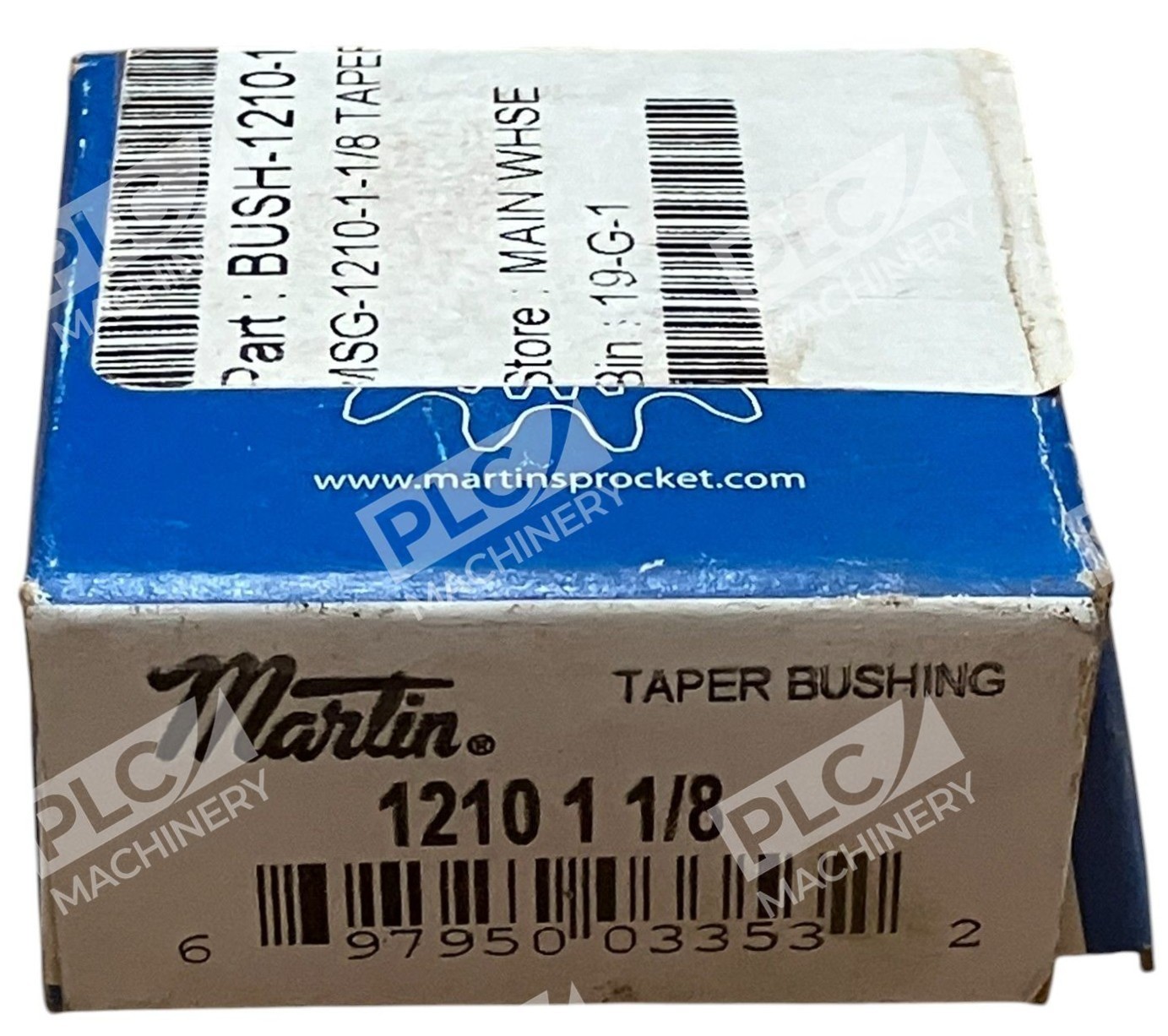

Martin Sprocket 1210-1-1/8 Taper Bushing 1210 1 1/8

Martin Sprocket 1210-1-1/8 Taper Lock Bushing

The Martin Sprocket 1210-1-1/8 Taper Lock Bushing is a precision-engineered component designed to provide a secure and efficient method for mounting sprockets, sheaves, and pulleys onto shafts. Its tapered, non-flanged split design ensures a tight fit, enhancing the performance and longevity of mechanical systems.

Key Specifications

• Bore Diameter: 1-1/8 inches
• Outside Diameter: 1-7/8 inches
• Hub Diameter: 2-7/8 inches
• Overall Length: 1 inch
• Taper Angle: 8 degrees
• Bolt Circle Diameter: 1-3/4 inches
• Number of Bolt Holes: 2
• Screw Size: 3/8-16 x 5/8 inches
• Torque Rating: 3600 in-lb
• Keyway Size: 1/4 x 1/8 inches
• Material: High-quality steel

Features and Benefits

• Flush Mounting Design: The bushing is designed for flush mounting without a flange, allowing for a compact and streamlined installation.
• High Clamping Force: Utilizes screws to tighten onto the shaft, providing excellent clamping force and reducing the risk of slippage.
• Interchangeability: Compatible with other manufacturers’ taper bushings, offering flexibility in various applications.
• Precision Machining: Manufactured with precise machining processes to ensure consistent finish and high quality, meeting or exceeding industry standards.
• Durability: Constructed from high-quality steel, ensuring strength and longevity in demanding industrial environments.

The Martin Sprocket 1210-1-1/8 Taper Lock Bushing is an essential component for achieving reliable and efficient power transmission in mechanical systems, offering ease of installation and robust performance.
