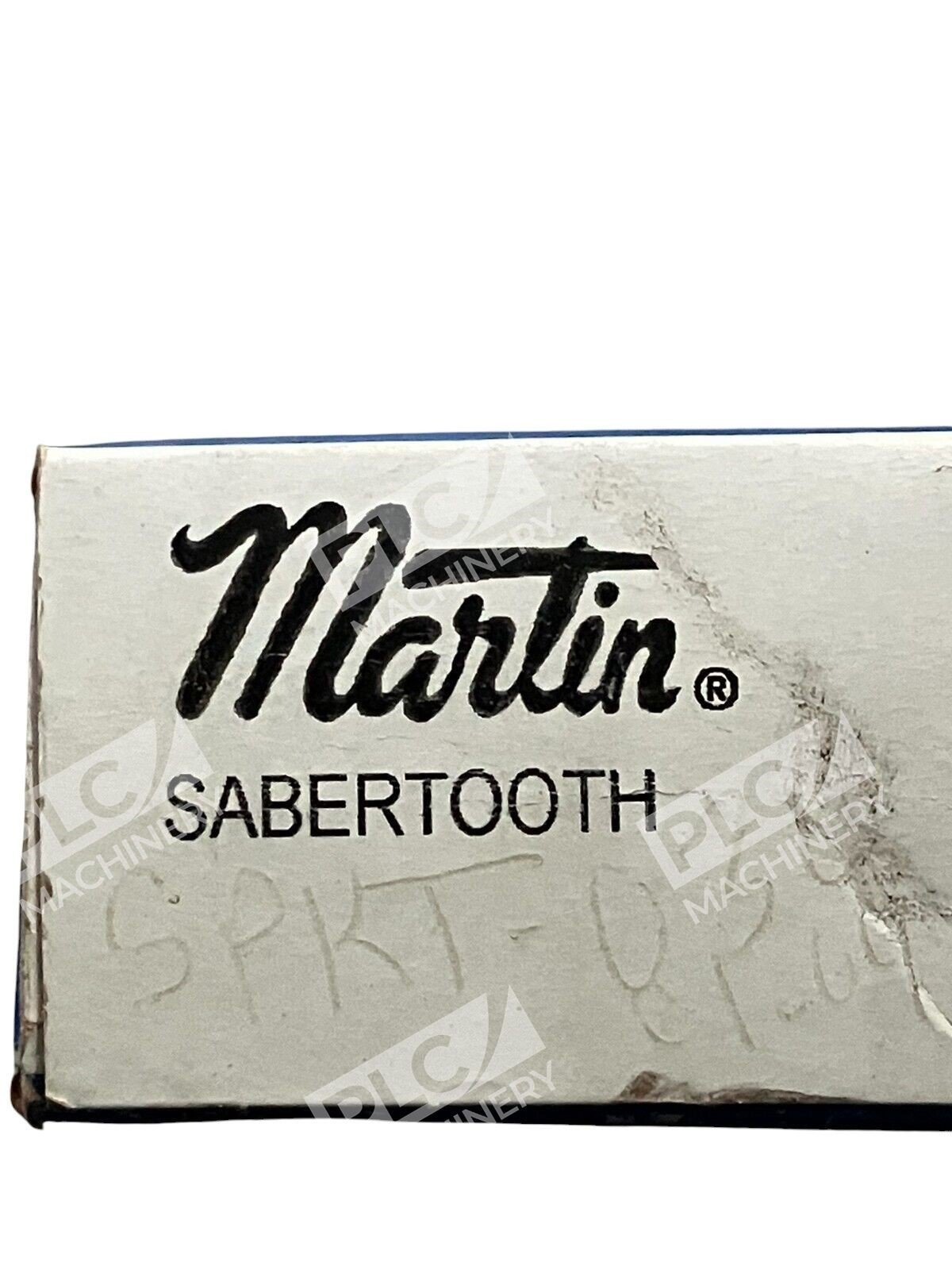

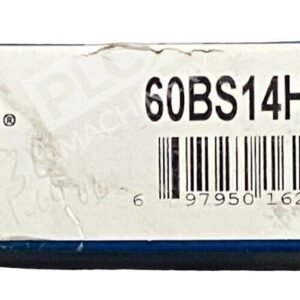

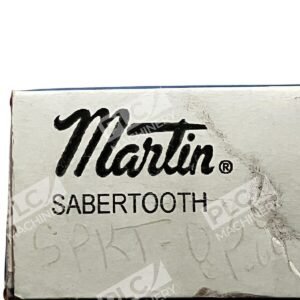

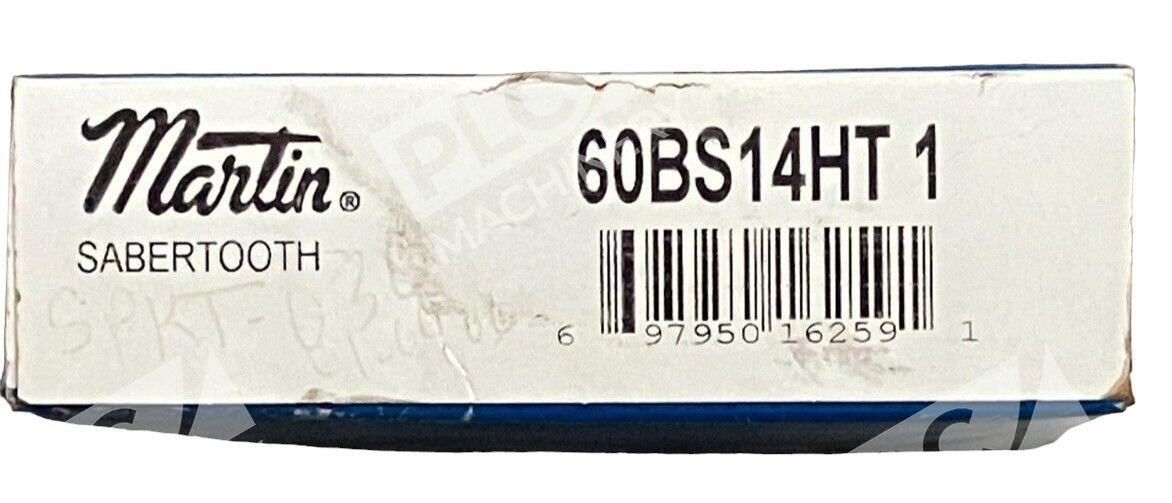

Martin 60BS14HT 1″ Bore Sabertooth Sprocket
The Martin 60BS14HT 1″ Bore Sabertooth Sprocket is a precision-engineered component designed for optimal performance in power transmission applications. Manufactured from high-carbon steel, this sprocket ensures durability and reliability in demanding industrial environments.
Key Features
- Hardened Teeth: Enhanced depth and location of heat treatment increase the lifespan of the sprocket, providing superior wear resistance.
- Finished Bore: Comes with a 1-inch bore diameter, complete with keyways and setscrews, facilitating easy installation and secure attachment to shafts.
- Precision Machining: Bores are concentric to the pitch line, minimizing run-out and ensuring smooth operation.
- ANSI Standard Compliance: Tolerances meet or exceed ANSI standards, guaranteeing compatibility and performance consistency.
Specifications
- Chain Size: #60 (3/4-inch pitch)
- Number of Teeth: 14
- Outside Diameter: 3.736 inches
- Pitch Diameter: 3.371 inches
- Hub Diameter: 2.595 inches
- Length Through Bore: 1.25 inches
- Keyway Size: 1/4 x 1/8 inches
- Set Screw Size: 0.313-18 x 0.313 inches
Designed with the keyway on the centerline of the tooth, the Martin 60BS14HT 1″ Bore Sabertooth Sprocket ensures efficient power transmission and ease of maintenance, making it an ideal choice for various industrial applications.
