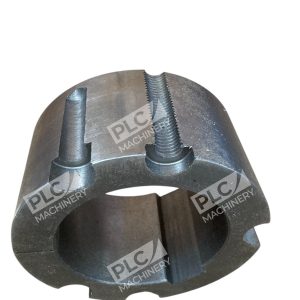

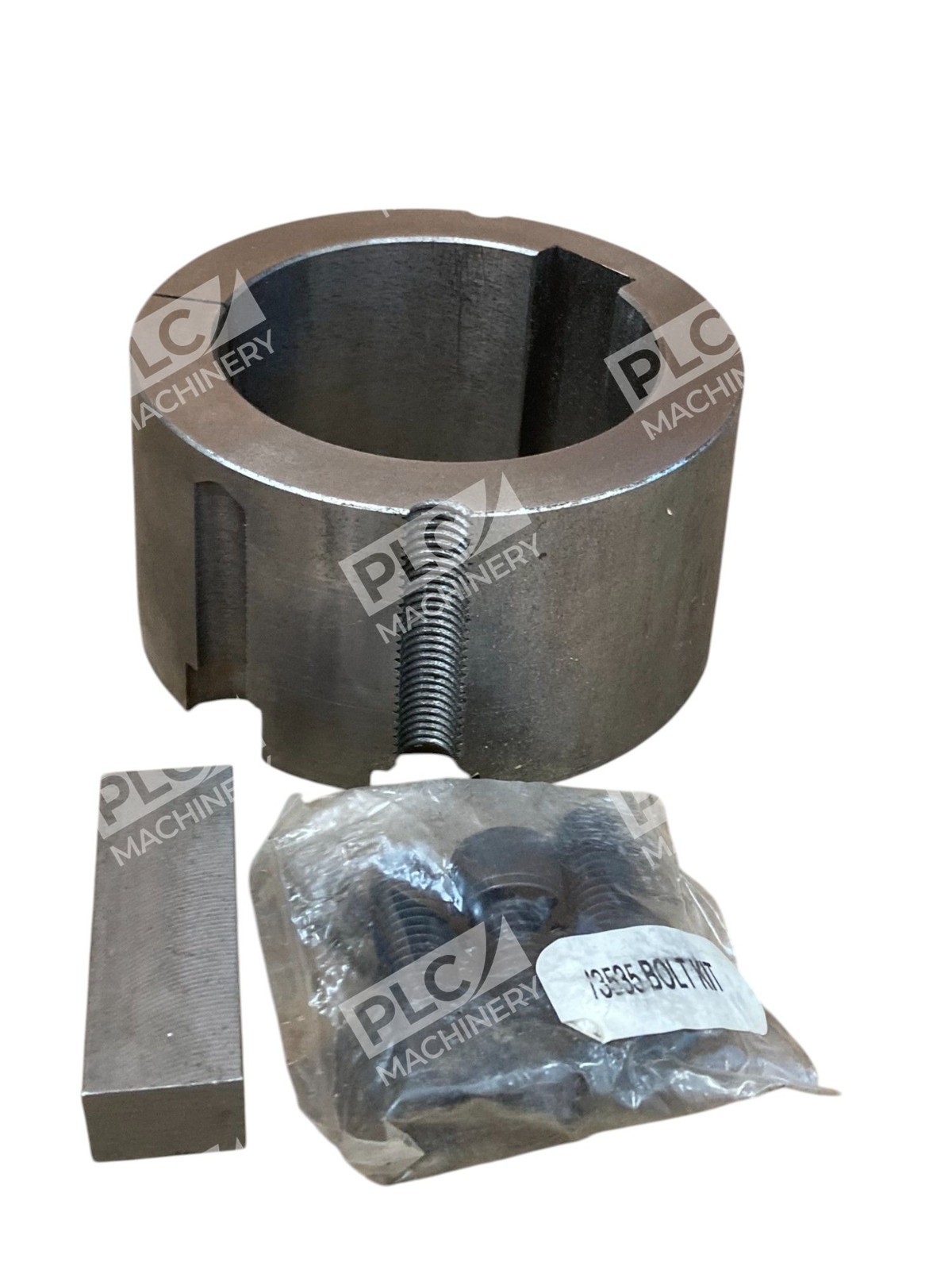

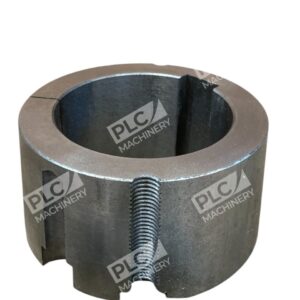

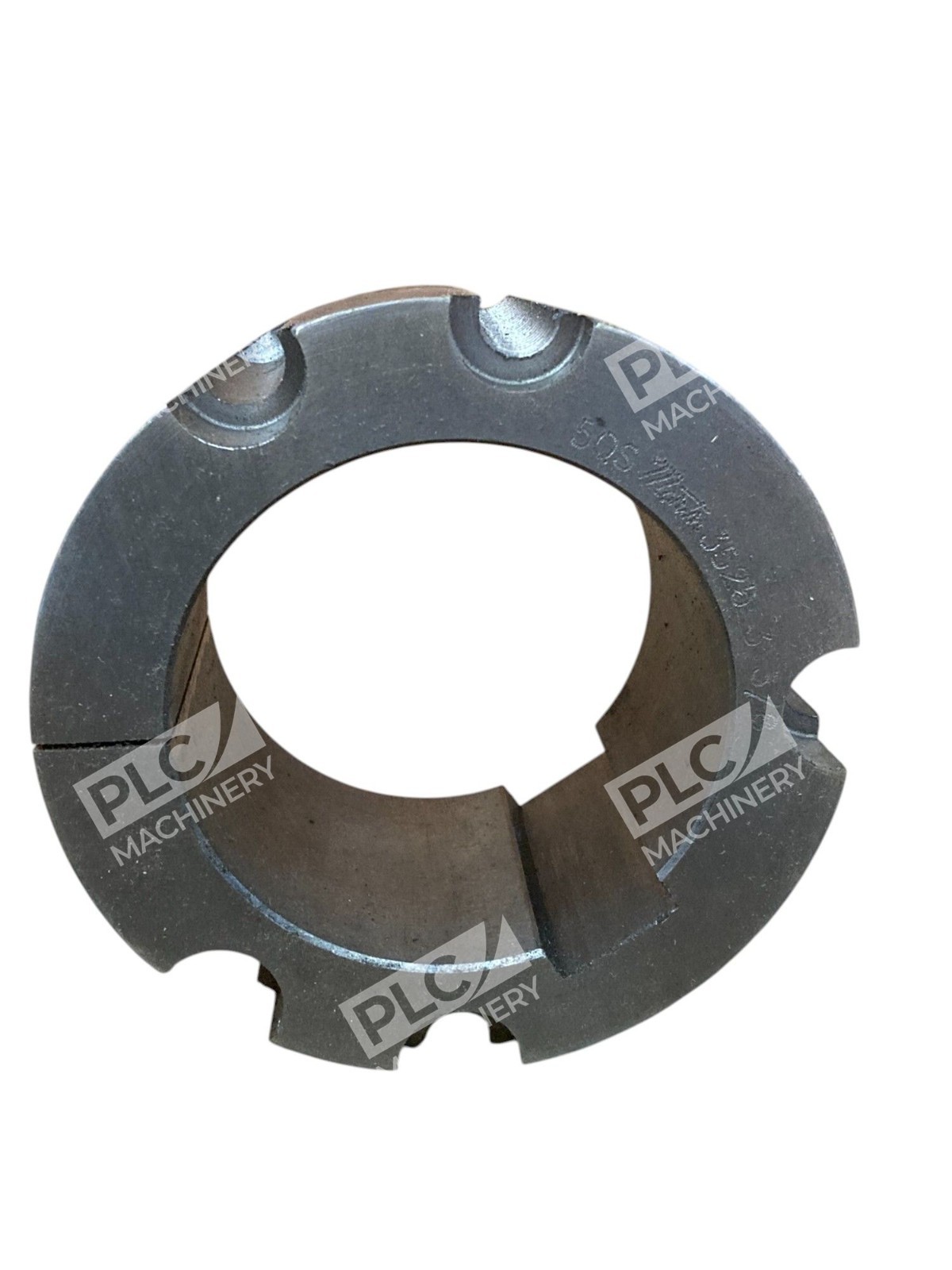

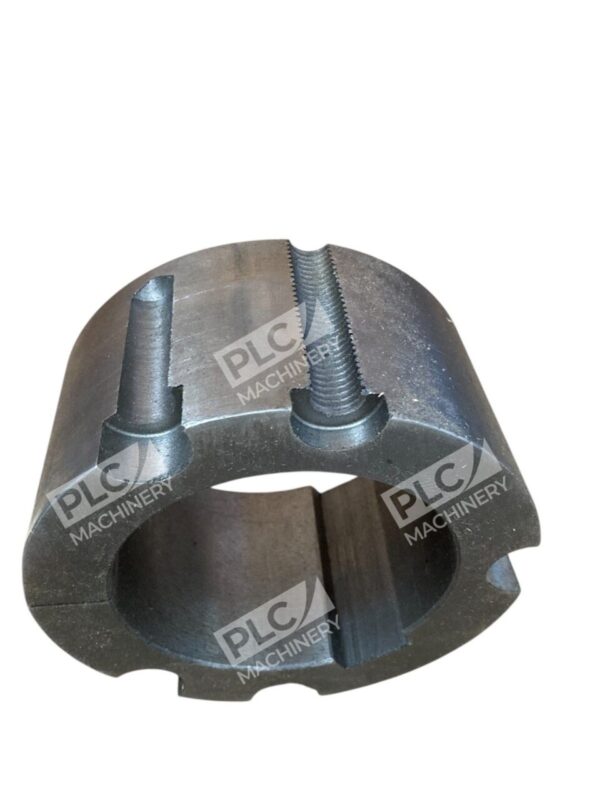

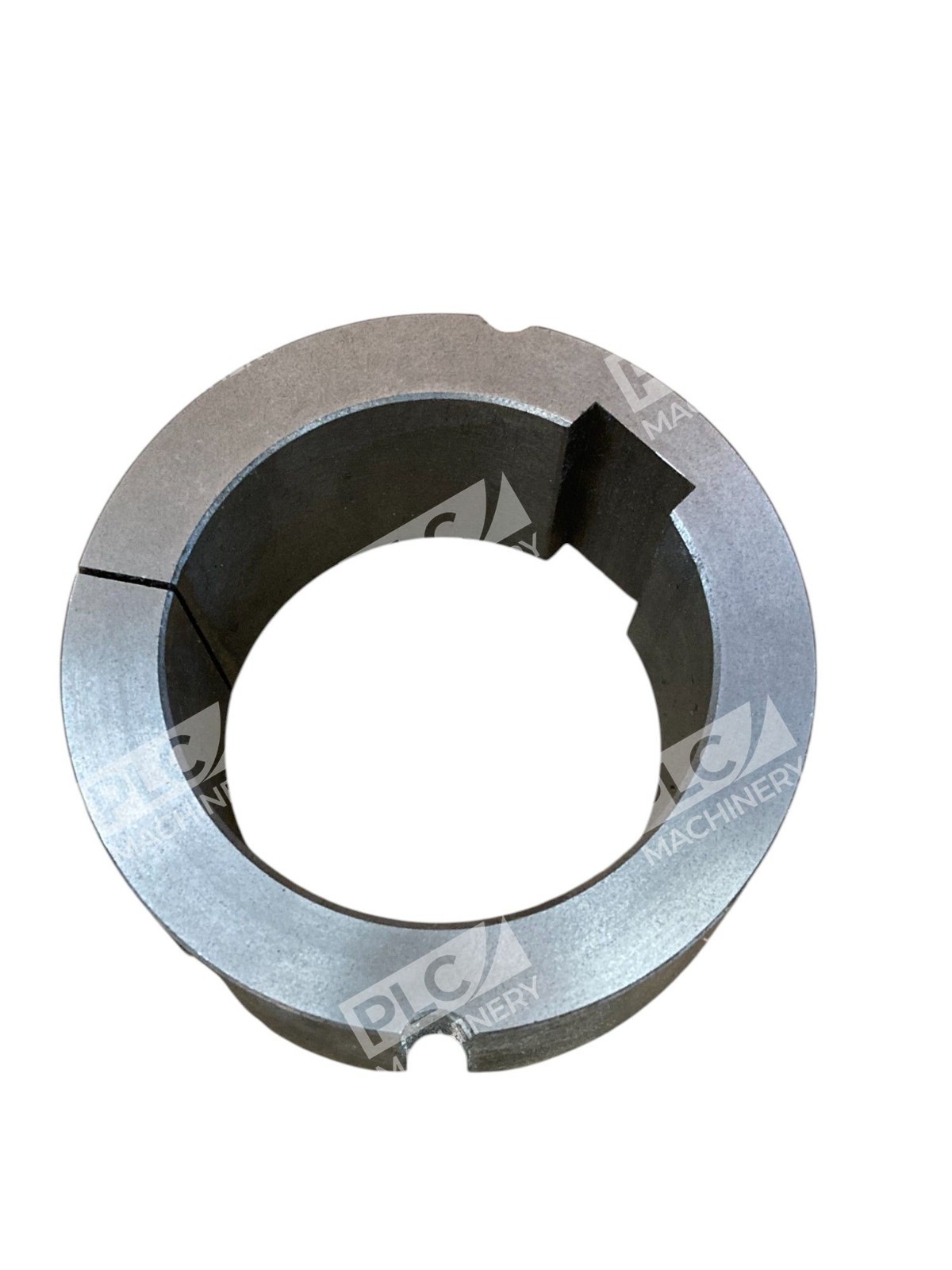

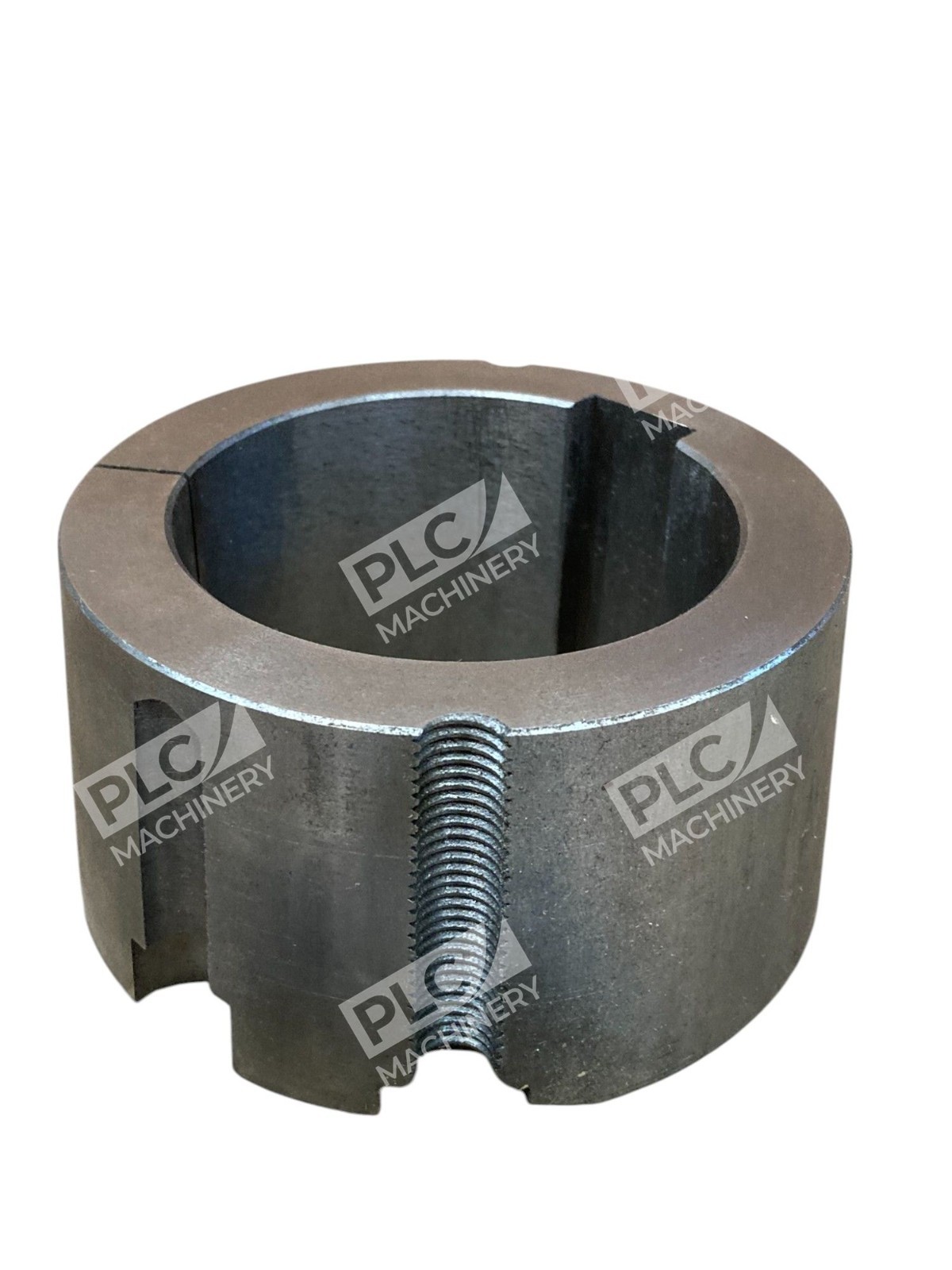

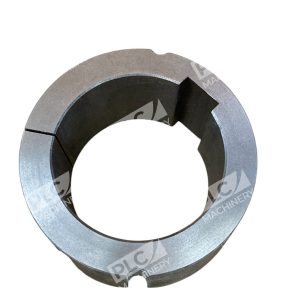

The Martin 3525 3-3/8 Taper Lock Bushing is a precision-engineered component designed to provide a secure and efficient method for mounting pulleys, sprockets, and other power transmission products onto shafts.
Key Features
- Bore Diameter: 3-3/8 inches
- Barrel Diameter: 5 inches
- Overall Length: 2-1/2 inches
- Material: Durable cast iron construction

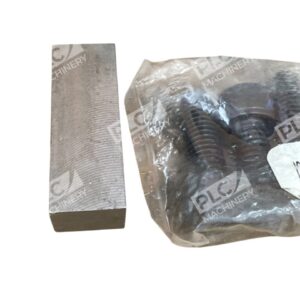

- Keyway Size: 7/8 x 1/4 inches
- Taper: 8 degrees
- Number of Bolt Holes: 3

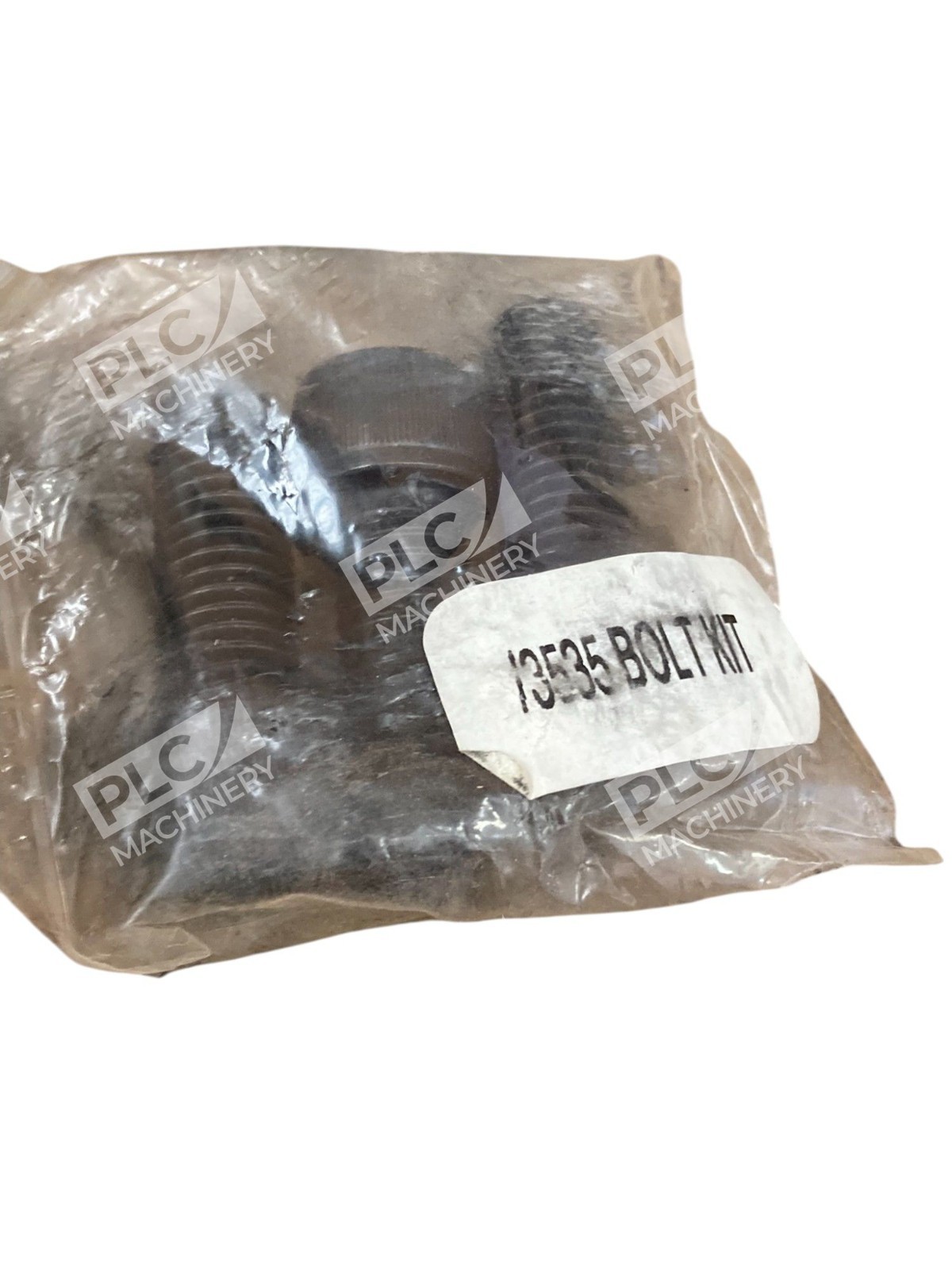

- Screw Size: 1/2 x 1-1/2 inches
- Torque Rating: 44,800 in-lb
Design and Compatibility
The 3525 series Taper Lock Bushing is engineered for flush mounting, eliminating the need for a flange. Its precise machining ensures a consistent finish and high-quality performance. This bushing is interchangeable with other manufacturers’ taper bushings, offering flexibility in various applications.
Applications
Ideal for use in power transmission systems, the Martin 3525 3-3/8 Taper Lock Bushing is suitable for mounting components such as pulleys and sprockets onto shafts, ensuring a secure and reliable connection.
Installation
The bushing’s tapered, non-flanged split design utilizes screws to tighten onto the shaft, providing excellent clamping force. This design enhances the connection’s strength compared to standard bored-to-size products that rely solely on a keyway and setscrew.
With its robust construction and precise design, the Martin 3525 3-3/8 Taper Lock Bushing is a reliable choice for various industrial applications requiring secure shaft connections.
