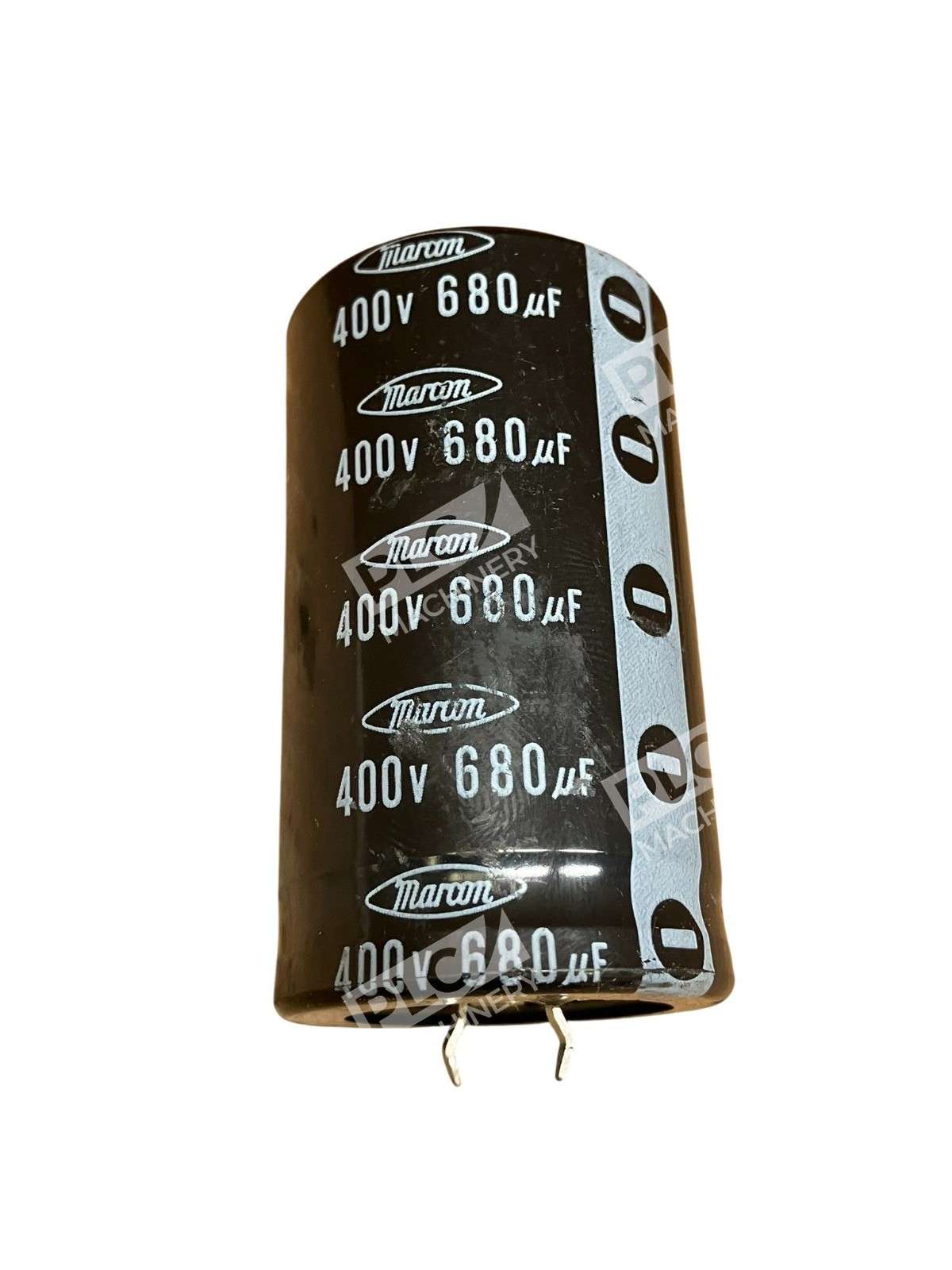

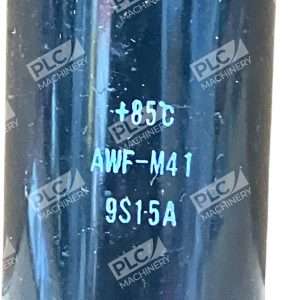

Marcon AWF-M41 400V 680µF Snap-In Aluminum Electrolytic Capacitor 9S15A
The Marcon AWF-M41 is a high-performance snap-in aluminum electrolytic capacitor designed for demanding applications requiring high capacitance and voltage ratings. With a capacitance of 680µF and a voltage rating of 400V, this capacitor is suitable for various industrial and power management systems.
Key Features
- High Capacitance and Voltage Rating: Offers 680µF capacitance at 400V, ideal for energy storage and filtering applications.
- Snap-In Design: Facilitates easy and secure PCB mounting, enhancing assembly efficiency.
- Temperature Resilience: Operates effectively within a wide temperature range, ensuring reliability in diverse environments.
- Long Lifespan: Engineered for durability, providing extended operational life in continuous use scenarios.
Applications
The Marcon AWF-M41 capacitor is well-suited for applications such as:
- Industrial power supplies
- Inverters and converters
- Uninterruptible power supplies (UPS)
- Audio equipment
- General-purpose electronic circuits
Specifications
- Capacitance: 680µF
- Voltage Rating: 400V
- Mounting Type: Snap-In
- Operating Temperature Range: -40°C to +105°C
- Capacitance Tolerance: ±20%
- Leakage Current: I = 0.02CV or 3mA, whichever is greater (after 5 minutes at 20°C)
- Dissipation Factor (tan δ): 0.15 at 120Hz, 20°C
- Endurance: 2000 hours at 105°C with rated ripple current
The Marcon AWF-M41 400V 680µF Snap-In Aluminum Electrolytic Capacitor 9S15A combines high capacitance, robust voltage handling, and reliable performance, making it a valuable component for various electronic applications.
