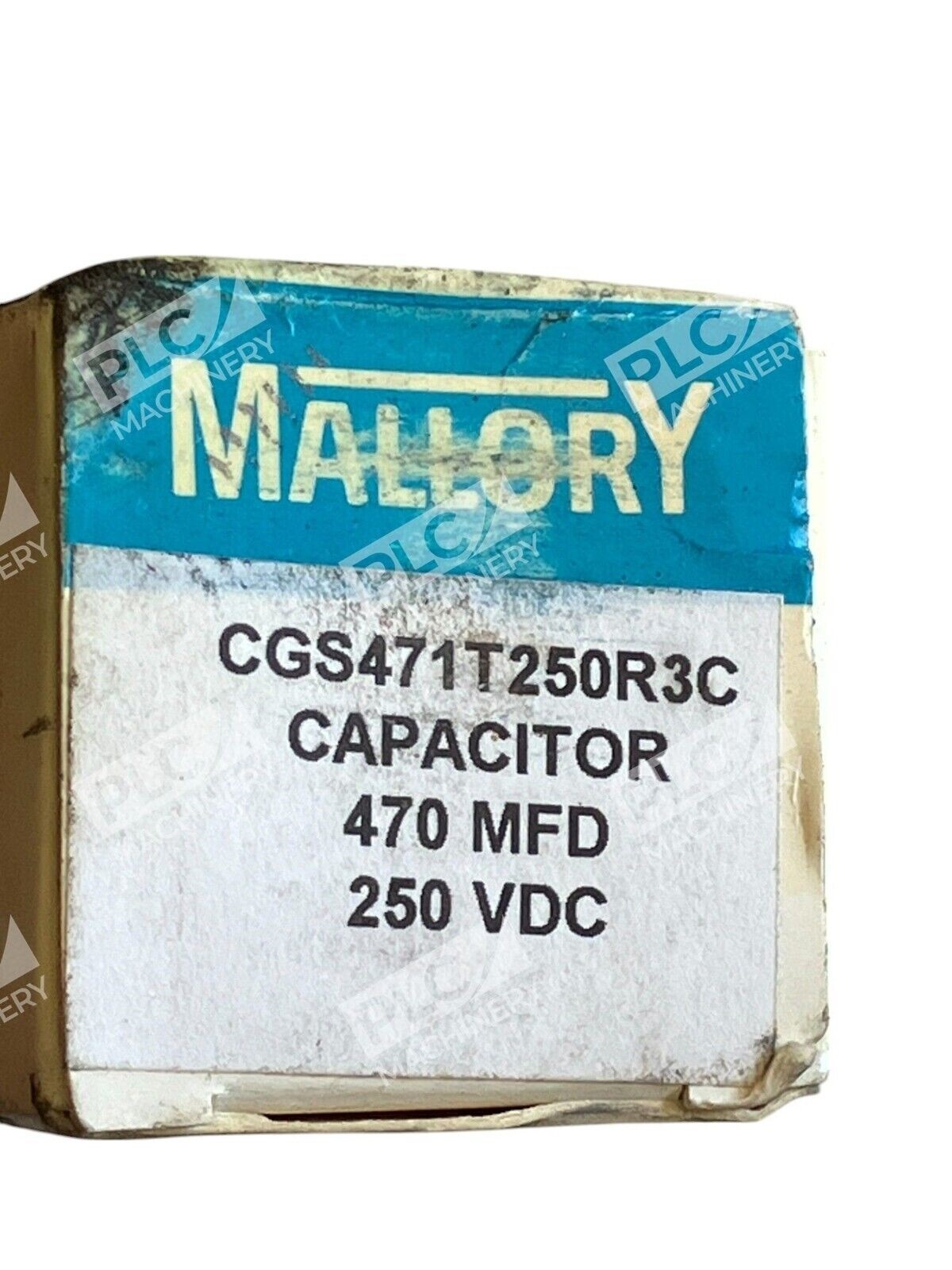

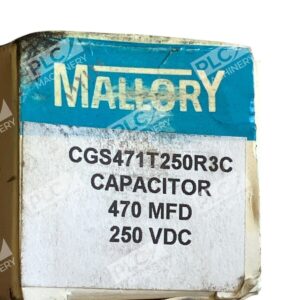

Mallory 470MFD 250VDC Capacitor CGS471T250R3C
The Mallory CGS471T250R3C is a high-quality aluminum electrolytic capacitor designed for demanding applications requiring reliable performance and durability. With a capacitance of 470 microfarads (µF) and a voltage rating of 250 volts DC (VDC), this capacitor is well-suited for various industrial and electronic uses.
Key Features
- Capacitance: 470 µF
- Voltage Rating: 250 VDC
- Capacitance Tolerance: -10% to +50%
- Terminal Type: Screw terminals for secure and stable connections
- Operating Temperature Range: -40°C to 85°C
- Equivalent Series Resistance (ESR): 0.439 ohms at 120Hz
- Ripple Current: 1.5A at 120Hz
- Dimensions: Diameter of 35mm and height of 79.4mm
- Lead Spacing: 12.7mm
- Lifetime: 2000 hours at 85°C
Applications
This capacitor is ideal for use in power supply filtering, energy storage, and other applications where high capacitance and voltage ratings are required. Its robust construction and reliable performance make it suitable for both commercial and industrial environments.
Additional Information
The Mallory CGS471T250R3C is part of the CGS series, known for its high capacitance and voltage ratings, making it a preferred choice for applications demanding high energy storage and filtering capabilities.
