Magnetrol Kotron 82CE RF Level Transmitter
The Magnetrol Kotron 82CE RF Level Transmitter is a compact and cost-effective solution for continuous level monitoring across a wide range of applications. Utilizing advanced surface mount technology within an encapsulated module, it ensures stable and accurate measurements in various materials.
Key Features
- Output Signal: Provides a 4–20 mA isolated output signal, with an optional reversed 20–4 mA output.
- Power Supply: Operates on a 24 VDC current loop for both power and signal transmission; a 120/240 VAC option is available for four-wire applications.
- Measurement Range: Supports a minimum span of 50 pF and a maximum span of 4000 pF.

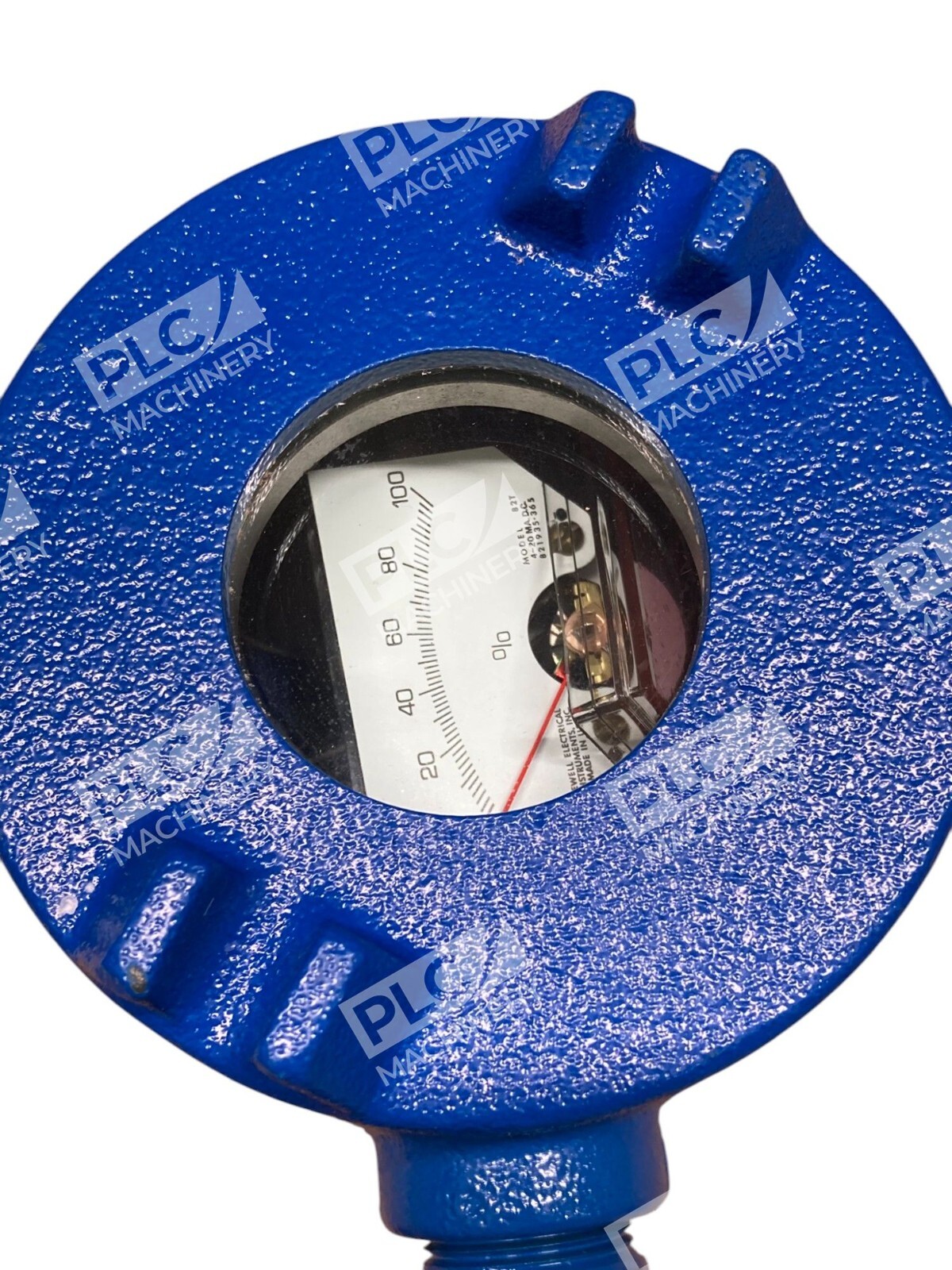

- Calibration: Features integral metering points for local measurement of the 4–20 mA loop current without interrupting the two-wire circuit.
- Indicator: Equipped with a power indicator LED that varies in brightness corresponding to level changes.
- Repeatability: Offers ±0.25% repeatability, ensuring consistent performance.
- Safety Certifications: FM, CSA, and ATEX listed as intrinsically safe when used with an approved barrier; CSA explosion-proof designs are also available.
- Probe Options: Compatible with a full range of rigid and flexible sensing probes, accommodating pressures up to 5000 psig (345 bar) and temperatures up to +1000°F (+538°C).
- Input Voltage: Accepts an input voltage range of 14 to 40 VDC at the transmitter terminals.
Applications
The Kotron 82CE is versatile and suitable for various applications, including:
- Continuous level monitoring
- Liquid-liquid interface level measurement
- Clean or dirty liquids
- Viscous liquids
- Light slurries
- High-temperature liquids
- Hydrocarbons and solvents
- Acids and corrosive liquids
- Food and beverage industries
Operating Principle
The Kotron 82CE operates on the principle of capacitance measurement. As the level of the medium in the tank changes, the capacitance between the sensing probe and the ground reference (e.g., tank wall) varies. This change is converted into a proportional 4–20 mA output signal, providing accurate and reliable level measurement.
With its robust design and advanced features, the Magnetrol Kotron 82CE RF Level Transmitter is an ideal choice for industries requiring precise and dependable level monitoring solutions.
