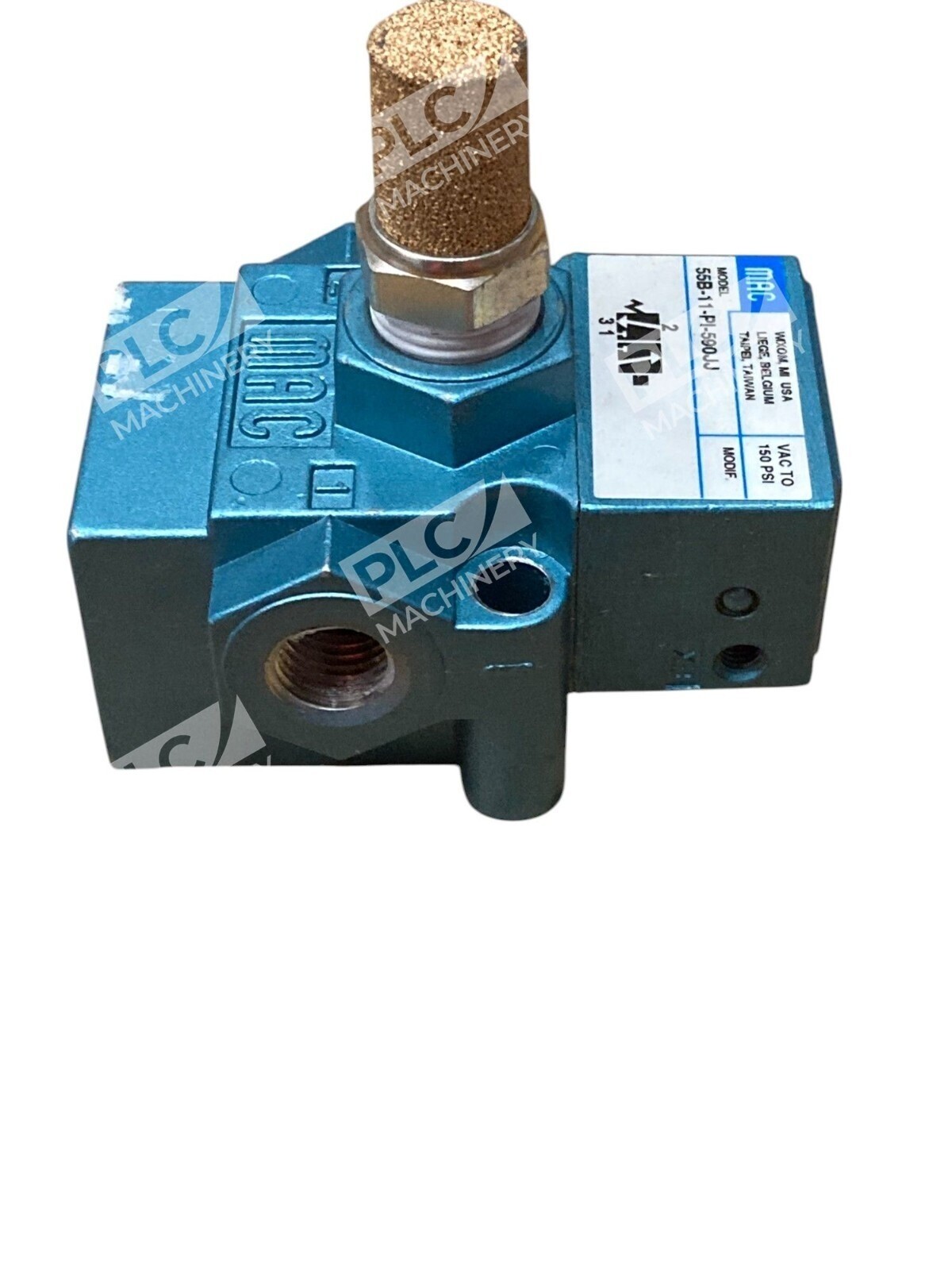

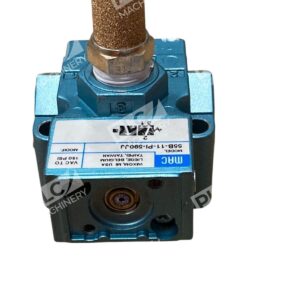

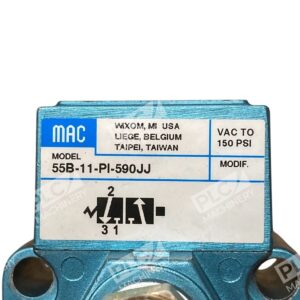

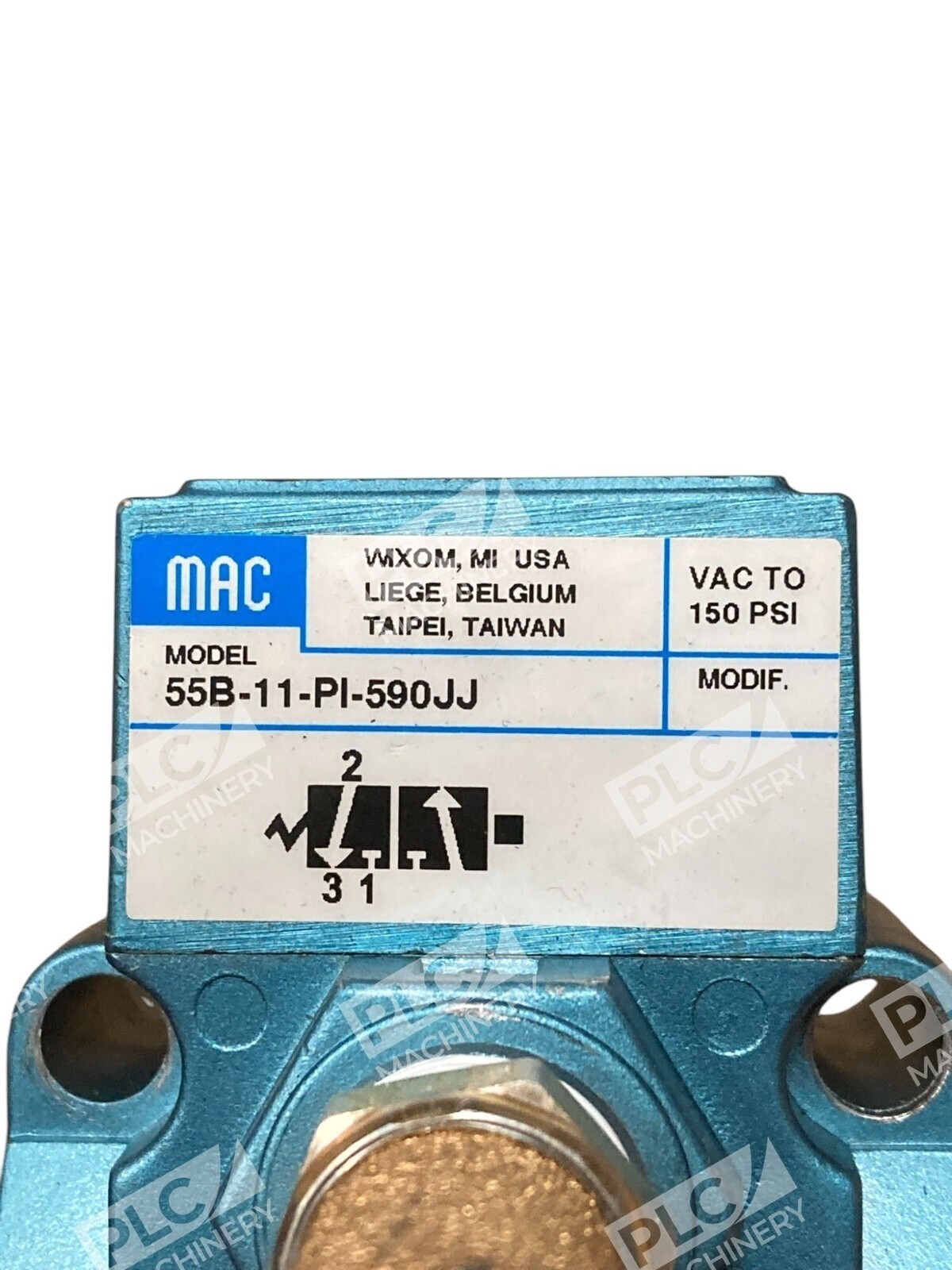

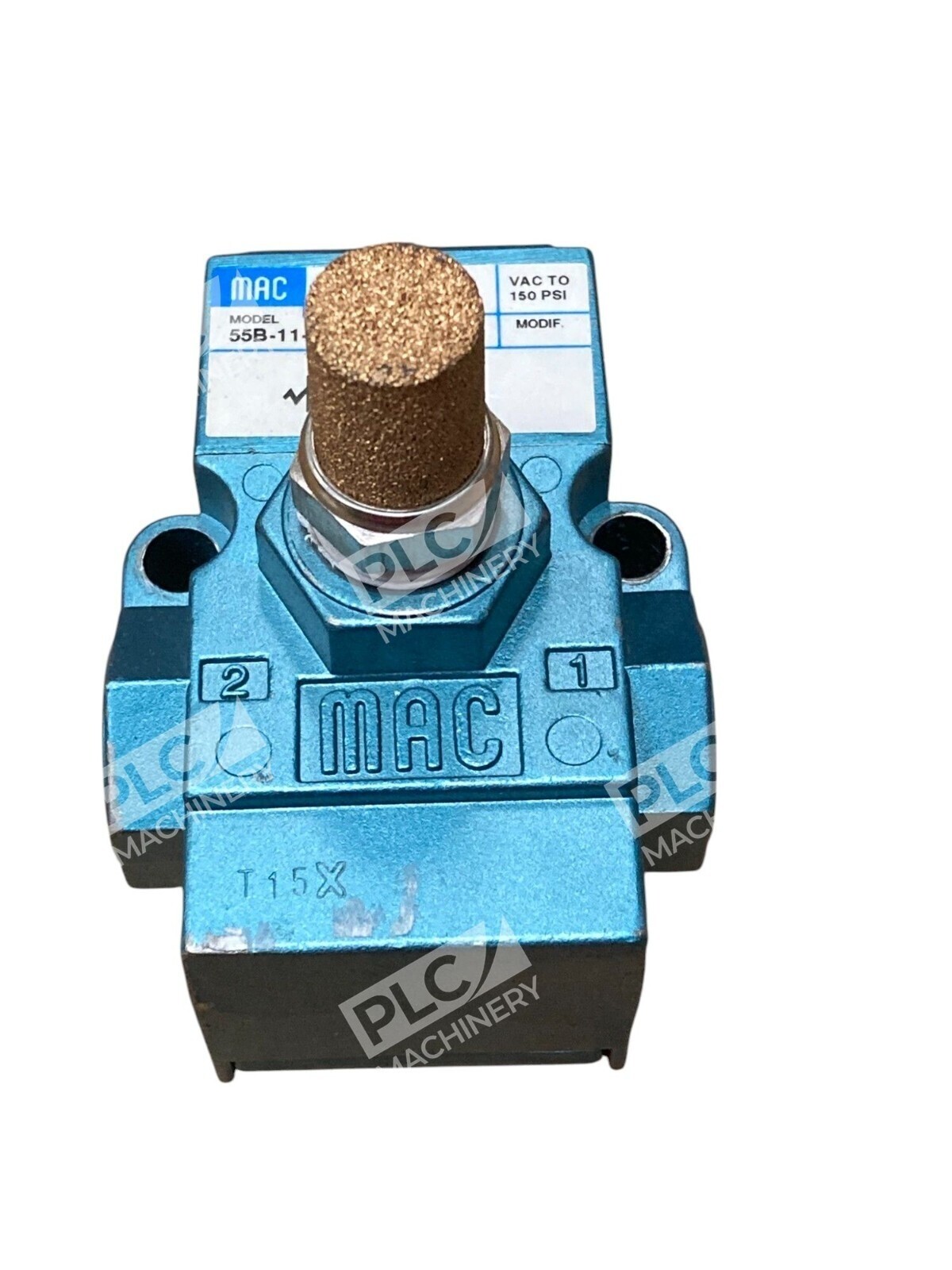

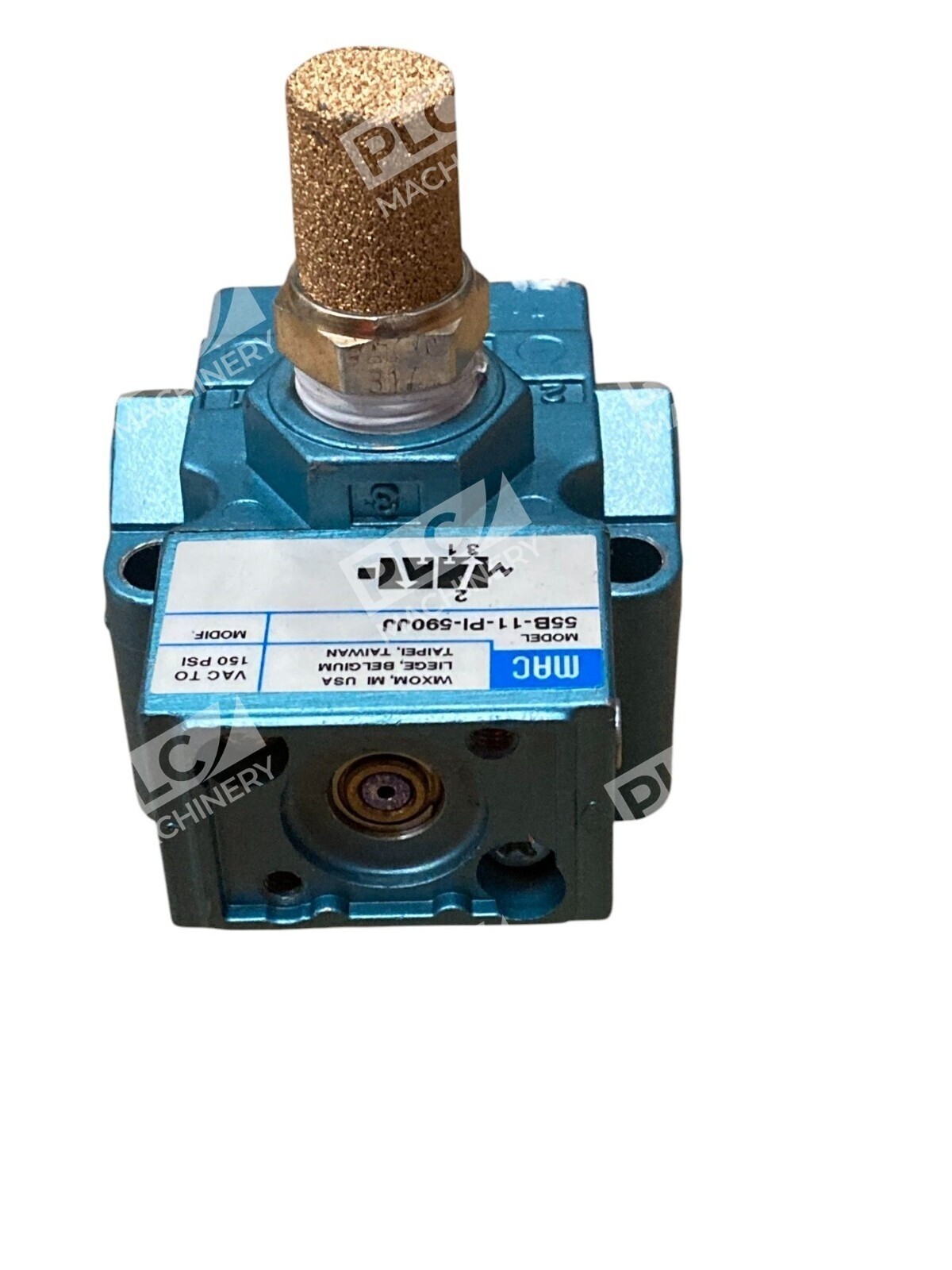

MAC Solenoid Valve 55B-11-PI-590JJ
The MAC 55B-11-PI-590JJ is a high-performance solenoid valve from the 55 Series, designed to deliver reliable and efficient control in pneumatic systems. This 3-way, normally closed valve is engineered for versatility and durability, making it suitable for a wide range of industrial applications.
Key Features
- Valve Type: 3-way, normally closed
- Port Size: 1/4-inch NPTF
- Operation: Internal pilot air
- Electrical Specifications: 24 VDC, 2.5 watts
- Pressure Range: 30 to 150 PSI
- Connector Type: Square connector (male only)
- Manual Operator: None
Design and Performance
The 55 Series features a balanced spool design piloted by a small direct-operated balanced poppet valve. This configuration ensures high shifting forces and consistent response times, regardless of inlet pressure fluctuations. The valve’s design allows for conversion to external pilot operation by rotating the adaptor between the pilot and main valve bodies, enhancing its adaptability to various system requirements.
Applications
With its robust construction and flexible design, the MAC 55B-11-PI-590JJ is ideal for applications requiring precise control of pneumatic systems. Its ability to operate within a wide pressure range and its adaptability make it a valuable component in automation, manufacturing, and other industrial settings.
Additional Information
The valve weighs approximately 0.80 lbs, facilitating easy integration into existing systems without adding significant weight. Its compact size, combined with high flow capacity, ensures efficient performance in space-constrained environments.
For more detailed information on the 55 Series and its various configurations, please refer to the manufacturer’s product pages.
