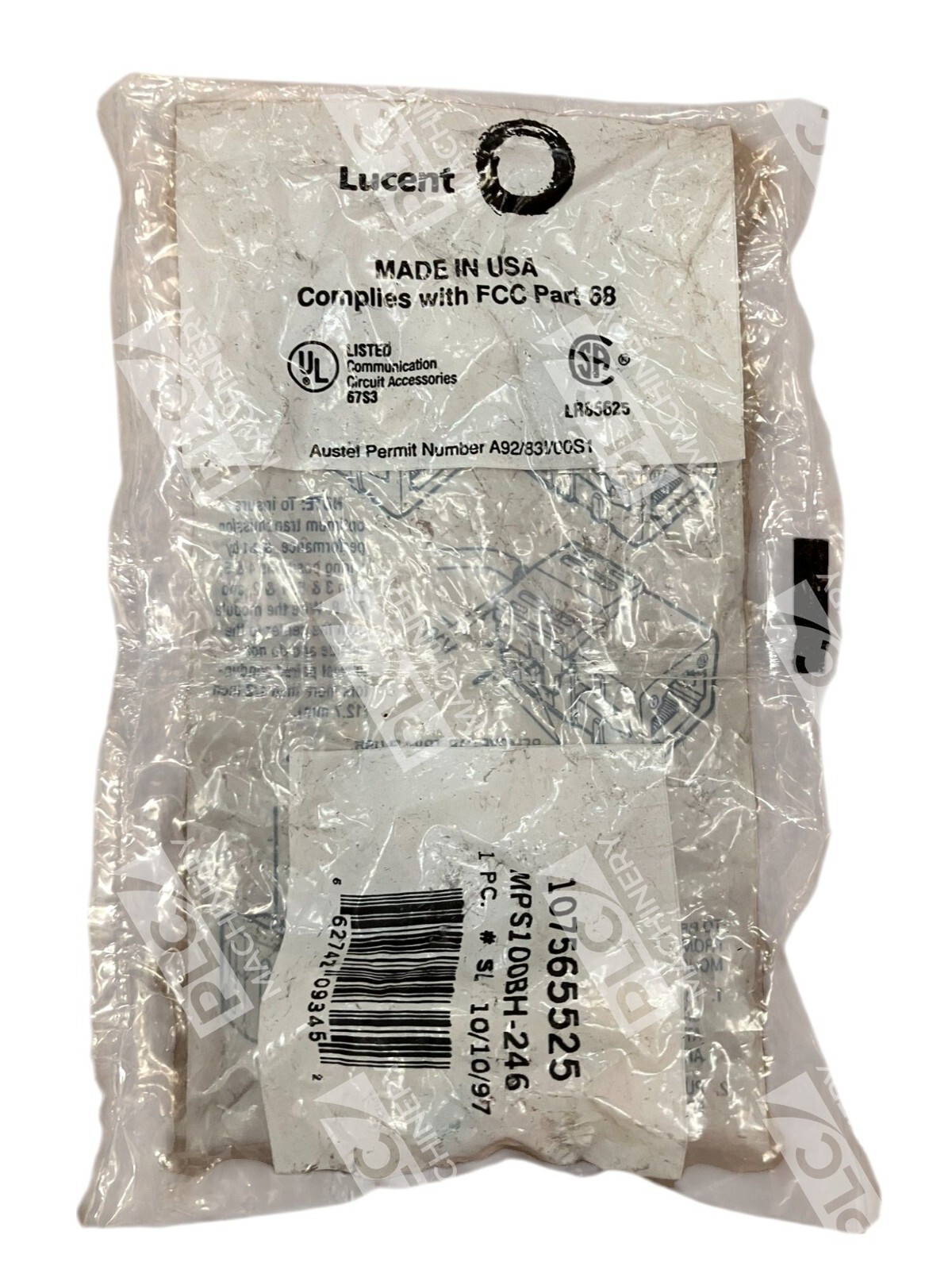

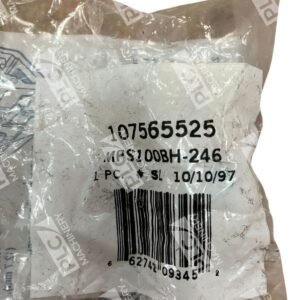

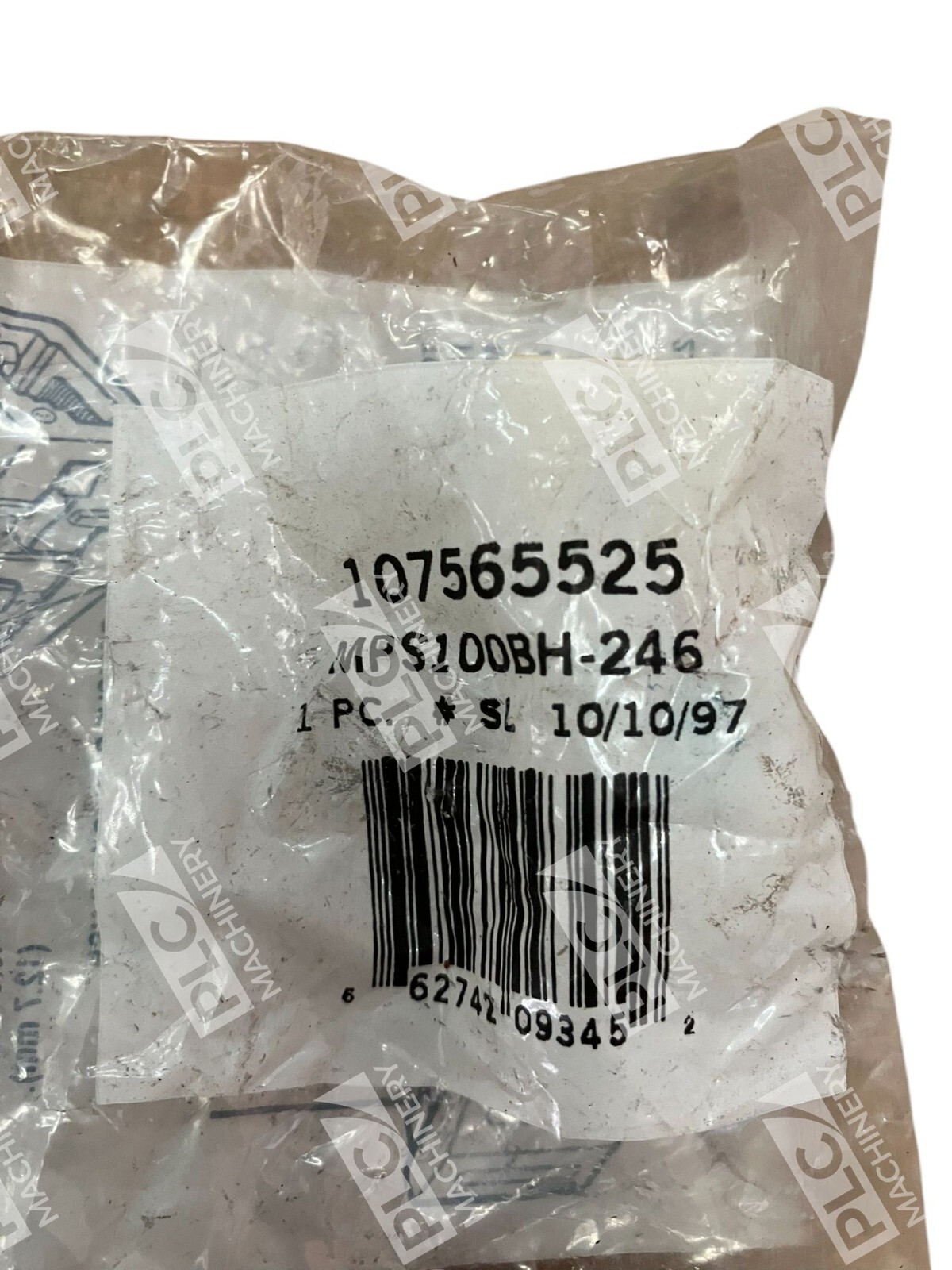

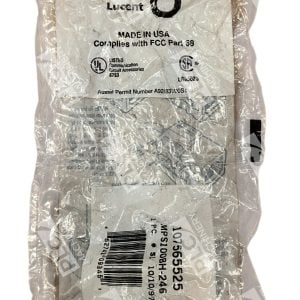

Lucent 107565525 Conductor Jack MPS100BH-246 (lot of 5)

Lucent 107565525 Conductor Jack MPS100BH-246 (Lot of 5)

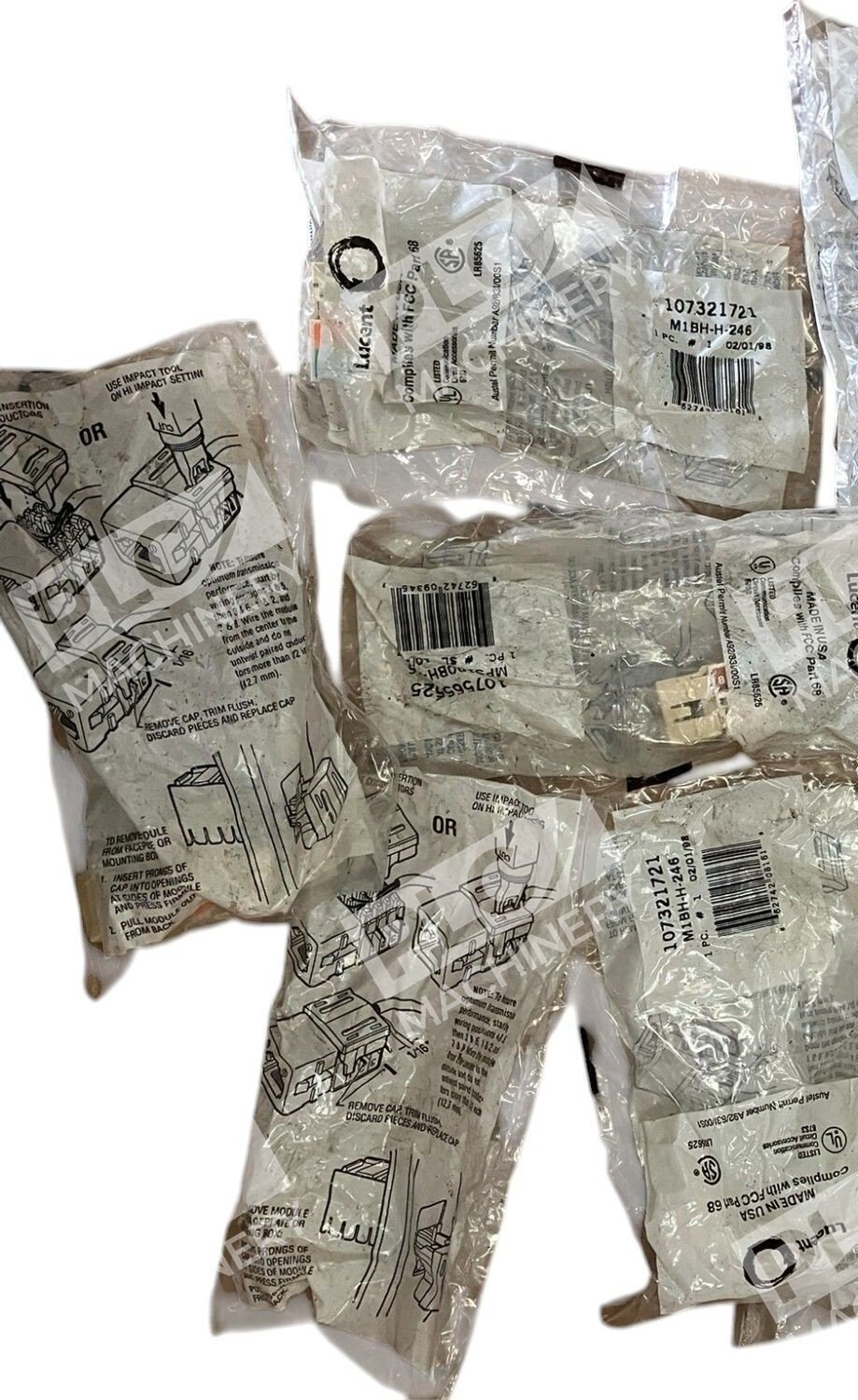

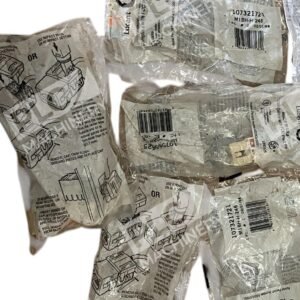

The Lucent 107565525 Conductor Jack MPS100BH-246 is a high-quality modular jack designed for seamless integration into various networking environments. This product is offered in a lot of five units, ensuring consistency and reliability across multiple installations.

Key Features

• Category 5e Compliance: Meets or exceeds ANSI/TIA Category 5e standards, ensuring optimal performance for high-speed data transmission.
• Unshielded Design: Ideal for standard networking applications where shielding is not required, providing flexibility and ease of installation.
• Color-Coded for Easy Identification: The MPS100BH-246 model is available in various colors, such as white, black, blue, orange, and yellow, facilitating quick identification and organization within complex cabling systems.
• Versatile Mounting Options: Compatible with M-series faceplates, surface-mount boxes, consolidation point boxes, and modular panels, offering adaptability to various installation scenarios.
• Universal Wiring Compatibility: Supports both T568A and T568B wiring configurations, accommodating diverse networking standards.
• Durable Construction: Features IDC connector terminations on the rear, allowing for quick and easy installation of 22 to 24 AWG cables. The low-profile rear protective strain relief cap safeguards against contamination and secures the connection.

Specifications

• Dimensions:
  • Height: 19.4 mm (0.764 in)
  • Width: 21.08 mm (0.83 in)
  • Depth: 30.2 mm (1.189 in)
• Compatible Conductor Gauge:
  • Solid: 22 AWG to 24 AWG
  • Stranded: 22 AWG to 24 AWG
• Electrical Performance:
  • Contact Resistance: Maximum 100 mOhm
  • Current Rating: 1.5 A at 20°C (68°F)
  • Dielectric Withstand Voltage: 1,000 Vac (contact-to-contact)
  • Insulation Resistance: Minimum 500 MOhm
• Environmental Specifications:
  • Operating Temperature: -10°C to +60°C (+14°F to +140°F)
  • Storage Temperature: -40°C to +70°C (-40°F to +158°F)
  • Relative Humidity: Up to 95%, non-condensing
  • Flammability Rating: UL 94 V-0

The Lucent 107565525 Conductor Jack MPS100BH-246 is engineered to deliver reliable and efficient connectivity for your networking needs, making it a valuable addition to any structured cabling system.
