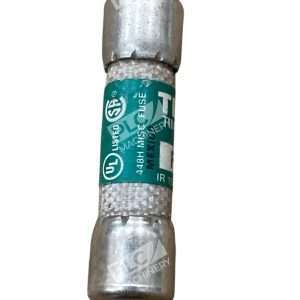

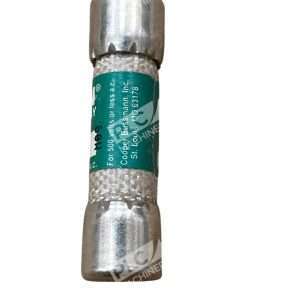

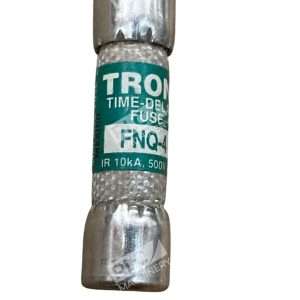

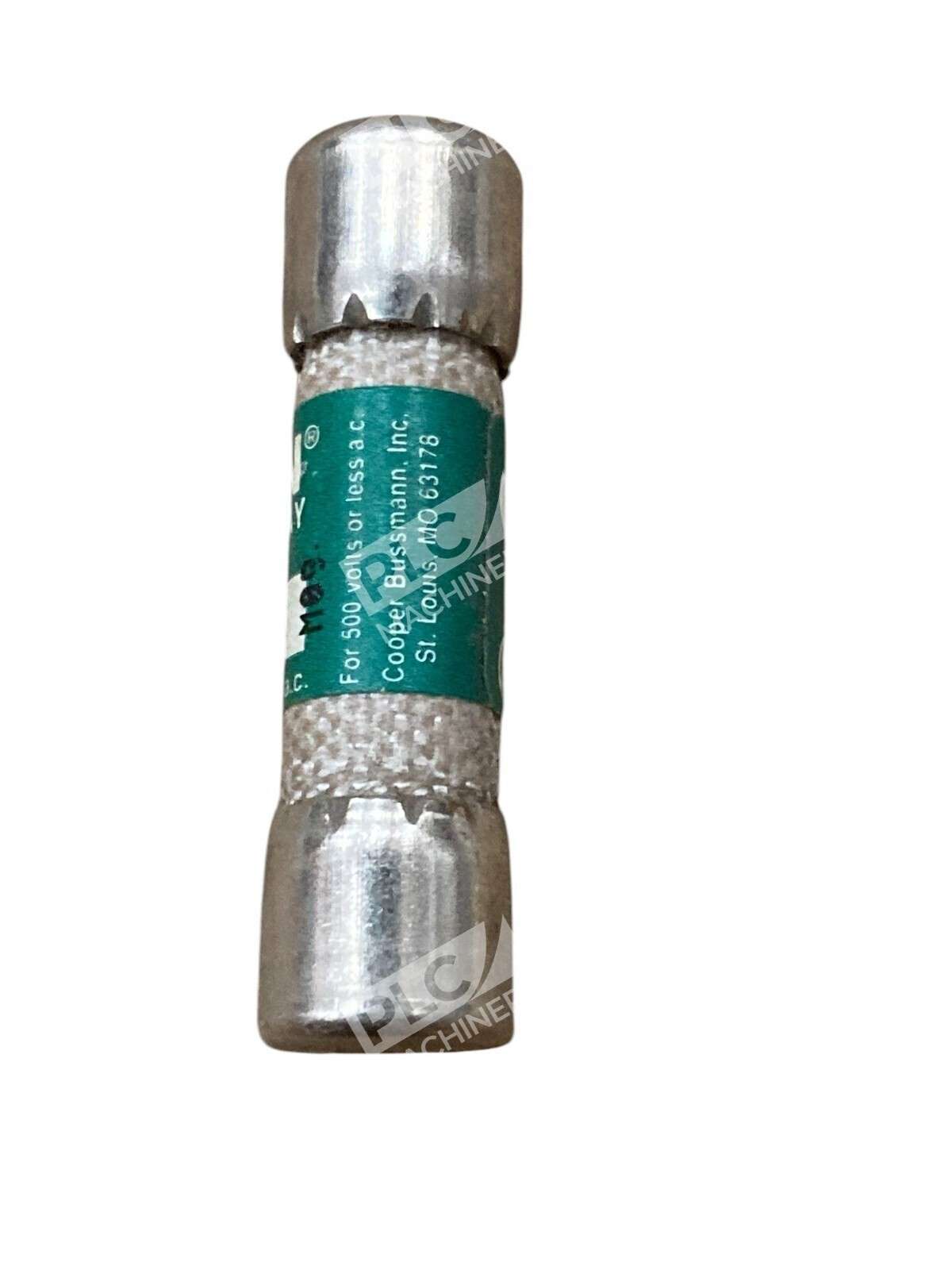

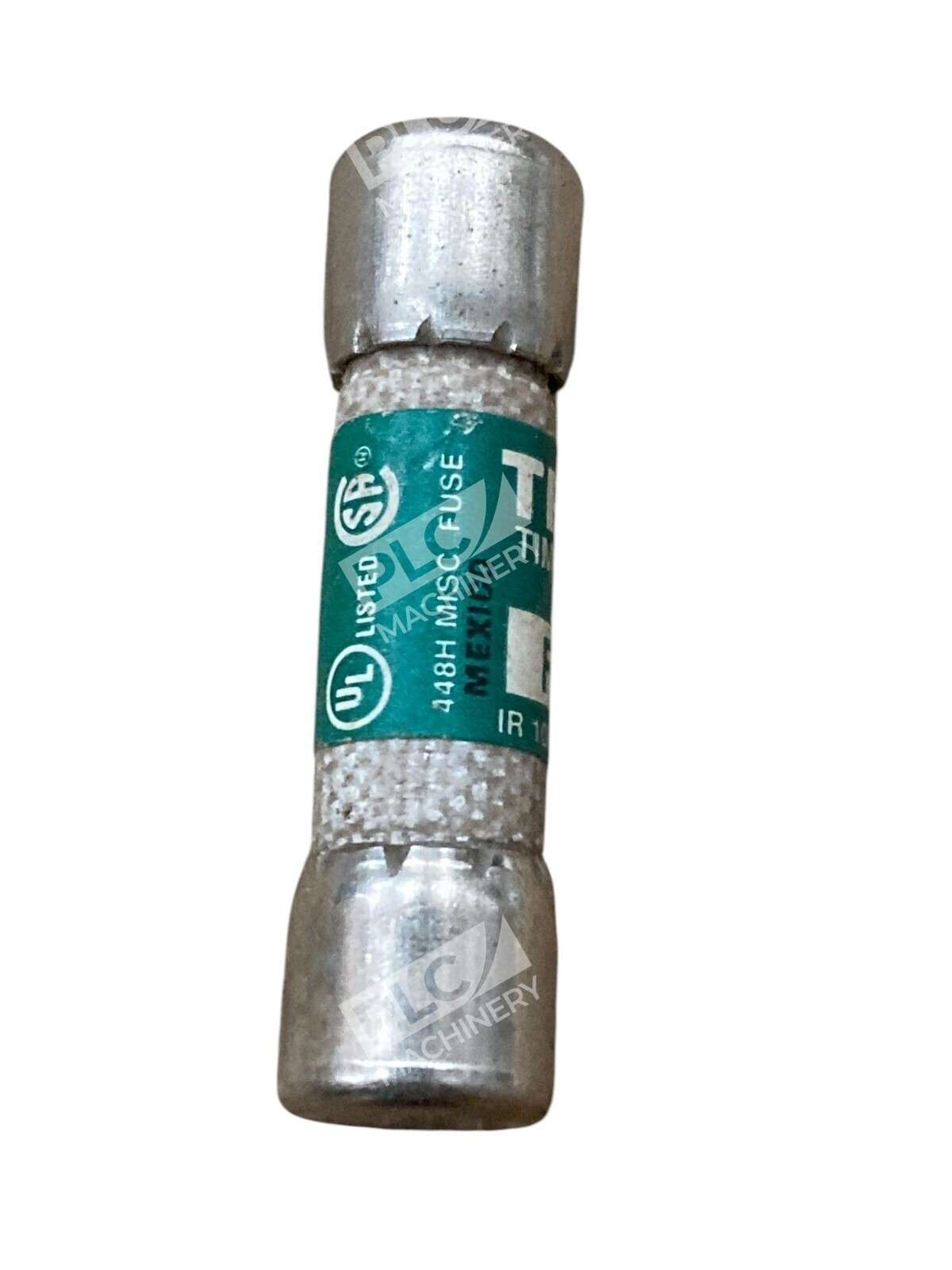

The Bussmann FNQ-1-1/4 is a time-delay Class CC fuse rated at 1.25 amperes and 500 volts AC, designed to provide reliable overcurrent protection in industrial applications.
Key Features
- Time-Delay Functionality: Allows for temporary inrush currents without nuisance tripping, making it ideal for circuits with high starting currents.
- High Interrupting Rating: Capable of interrupting fault currents up to 10,000 amperes at 500 volts AC, ensuring robust protection against short circuits.
- Compact Design: With dimensions of 13/32 inches in diameter and 1-1/2 inches in length, it fits standard fuse holders, facilitating easy installation.
- Durable Construction: Constructed with a fiberglass body, offering enhanced durability and resistance to environmental factors.
- Compliance and Standards: Meets UL 248-14 and CSA Class 1422-01 standards, ensuring adherence to industry safety and performance requirements.
Applications
The FNQ-1-1/4 fuse is suitable for various industrial applications, including:
- Protection of control transformers.
- Safeguarding lighting circuits.
- Securing meter circuits.
- General-purpose overcurrent protection in industrial equipment.
Specifications
- Current Rating: 1.25 A
- Voltage Rating: 500 V AC
- Interrupting Rating: 10 kA at 500 V AC
- Body Material: Fiberglass
- Dimensions: 13/32 in. diameter x 1-1/2 in. length
- Standards Compliance: UL 248-14, CSA Class 1422-01
This lot includes eight FNQ-1-1/4 fuses, providing a comprehensive solution for maintaining and protecting multiple circuits within your industrial setup.
