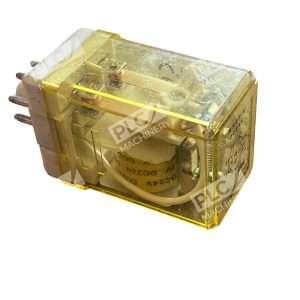

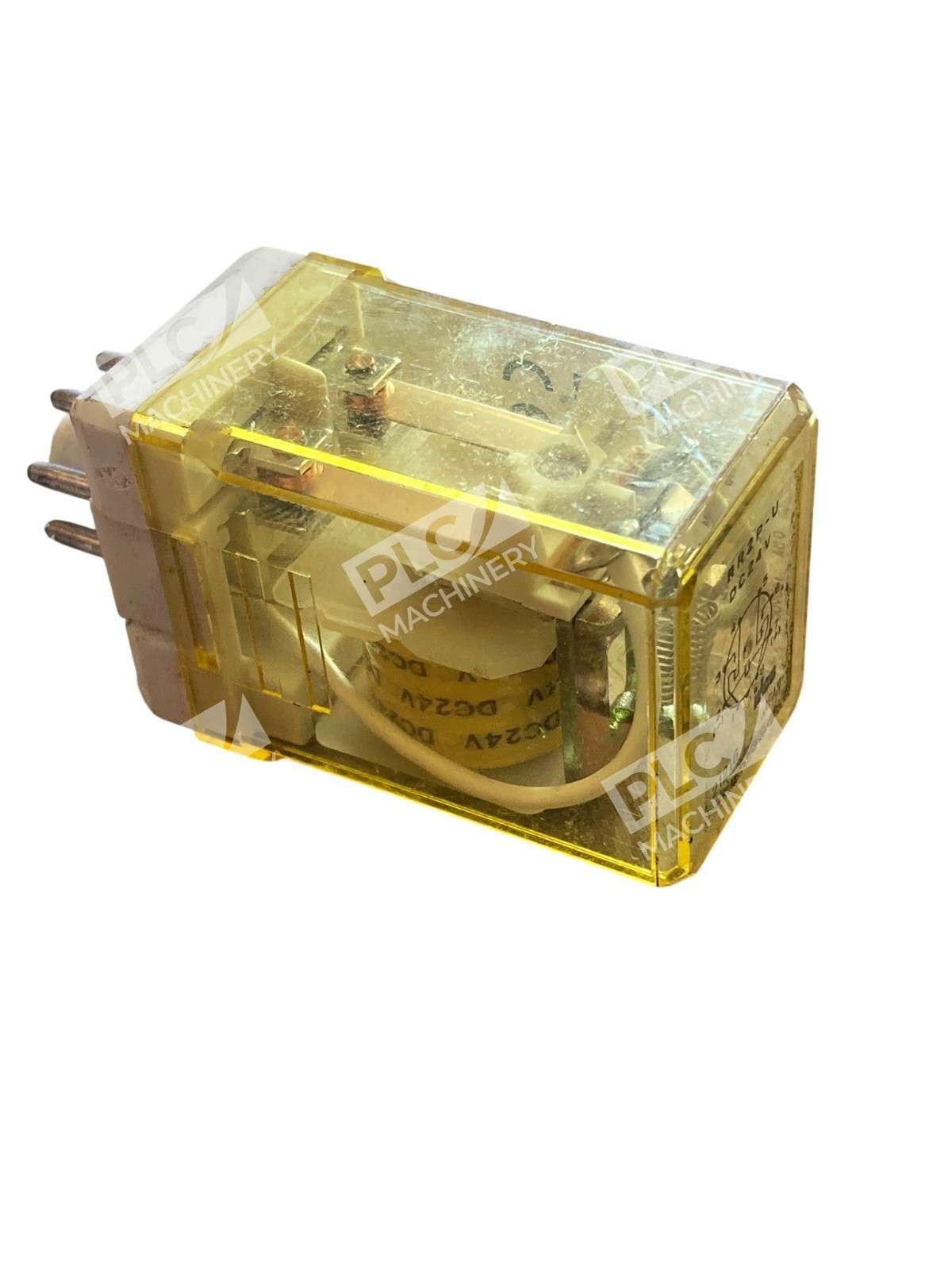

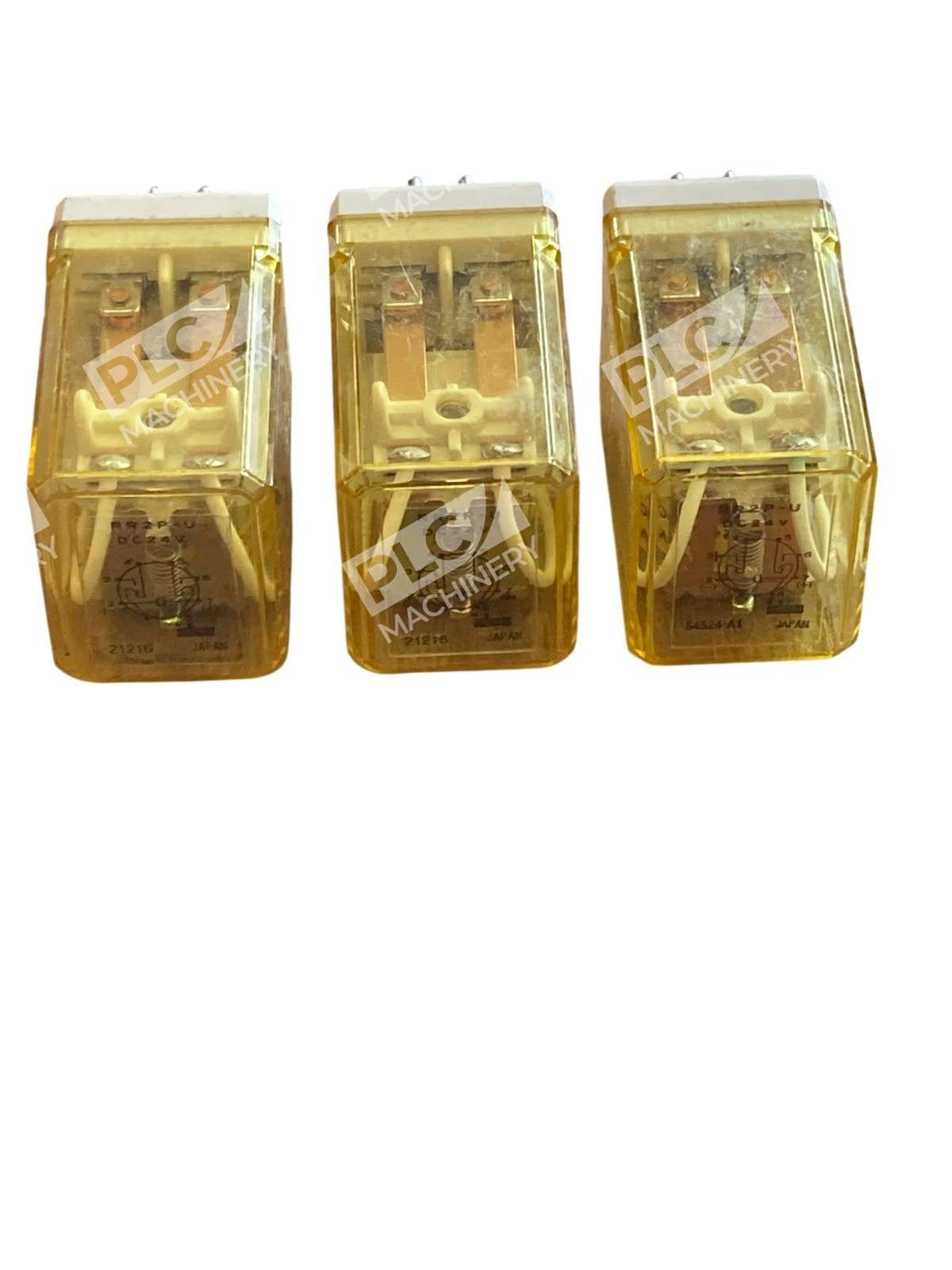

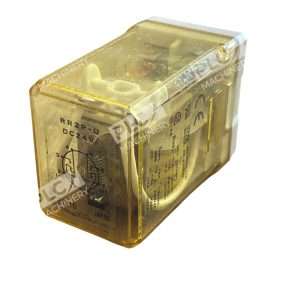

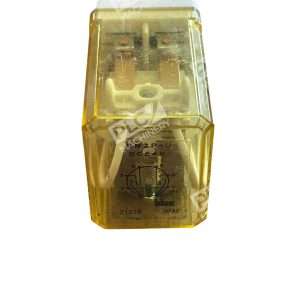

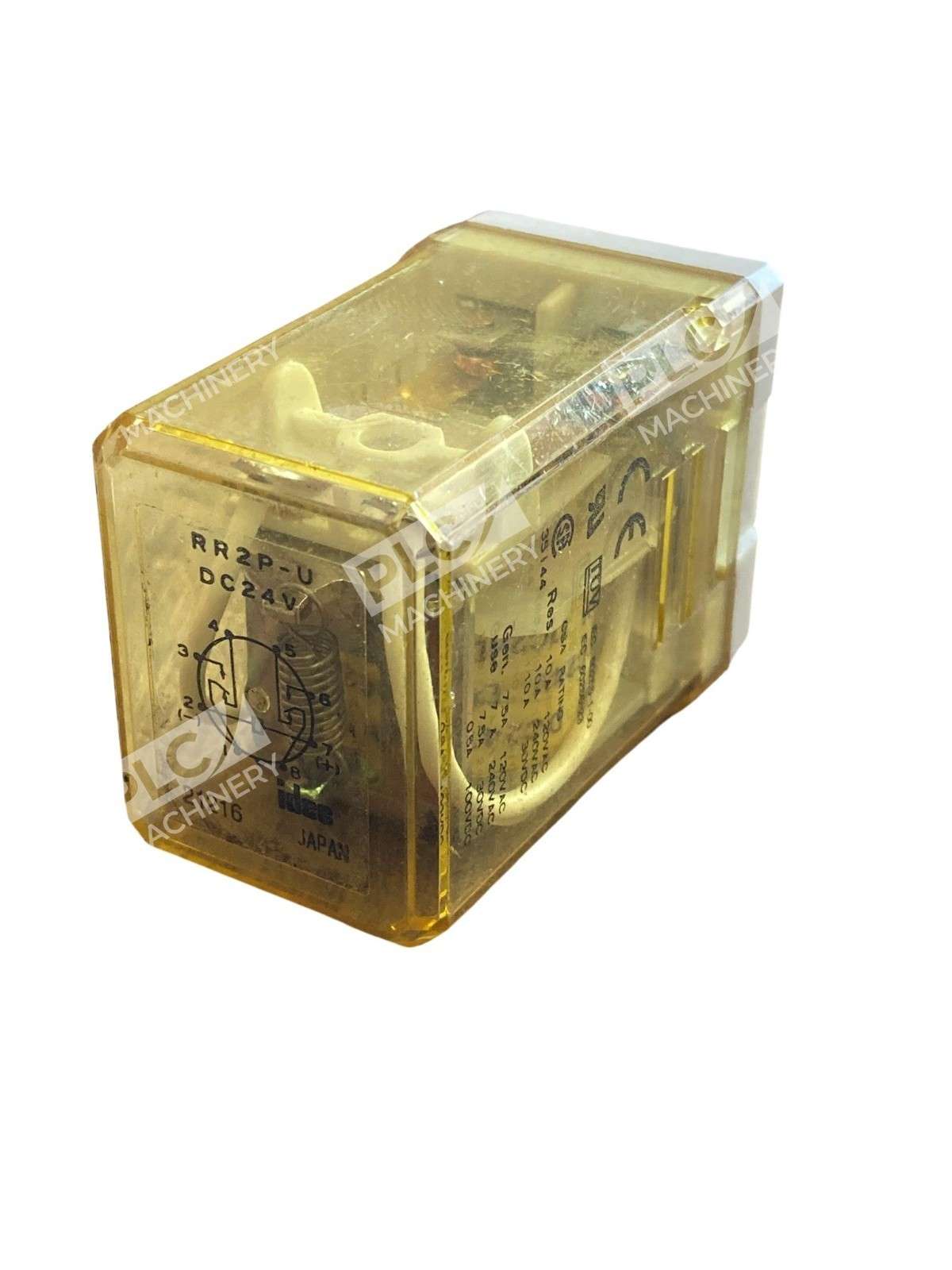

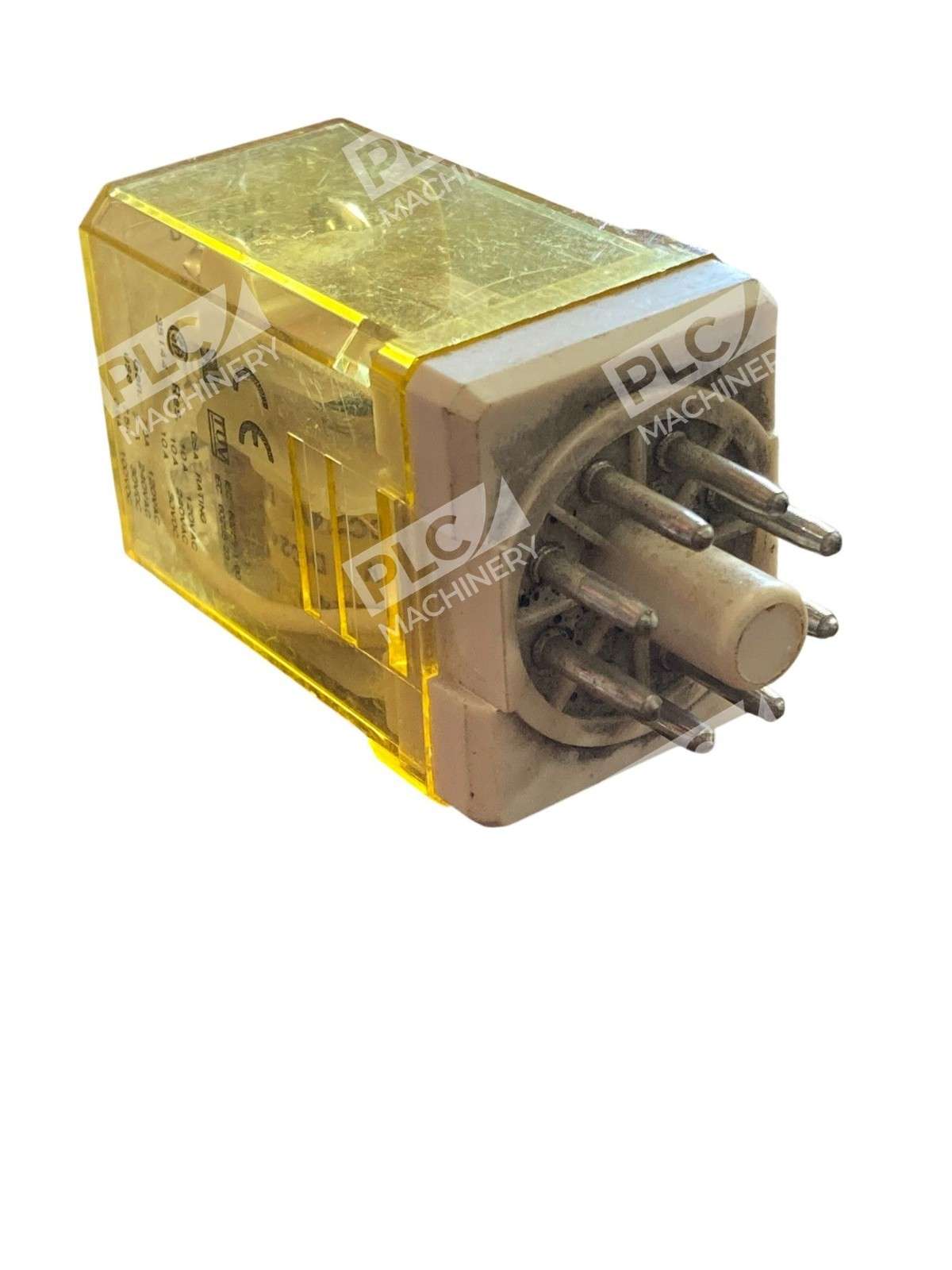

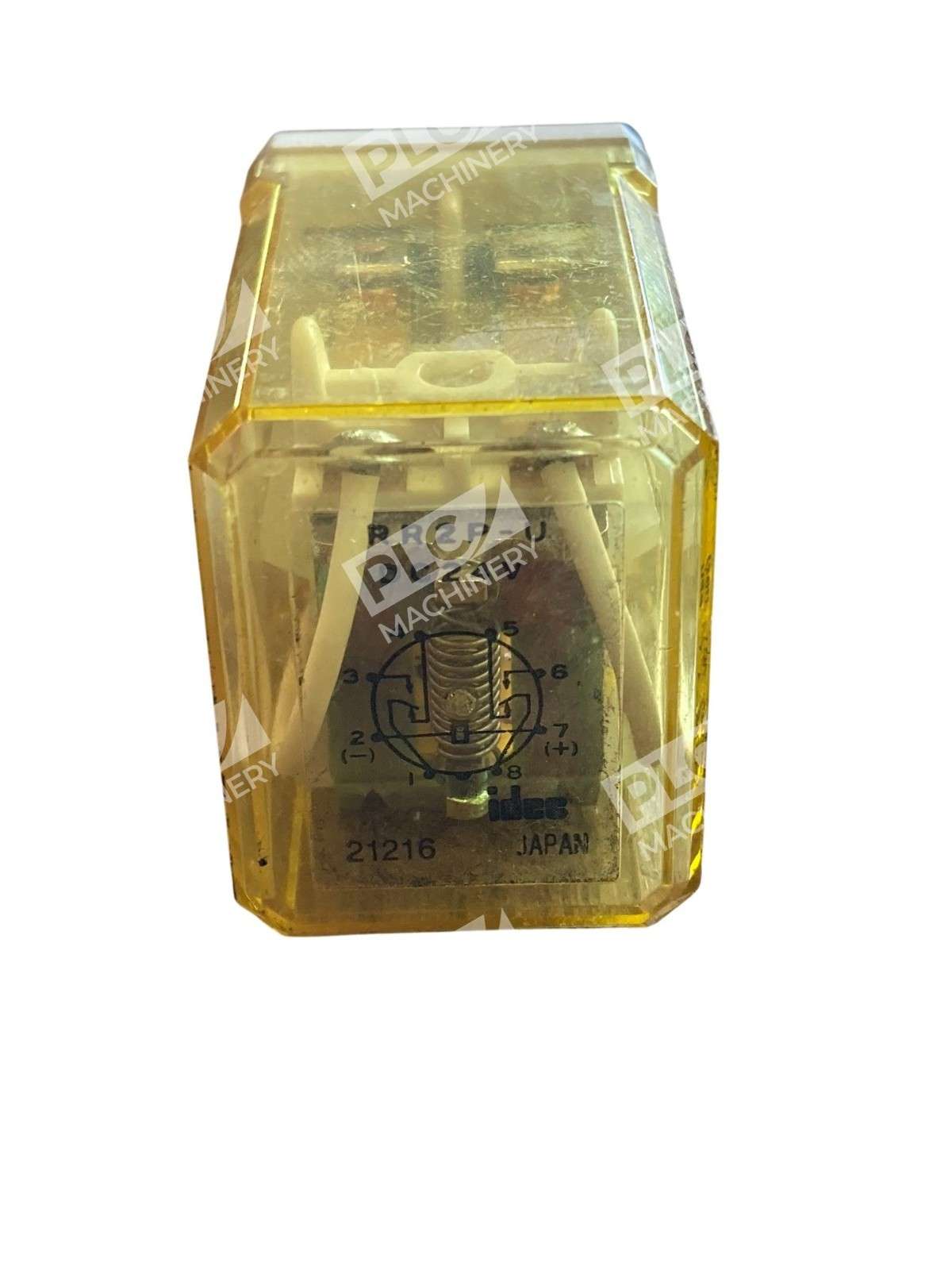

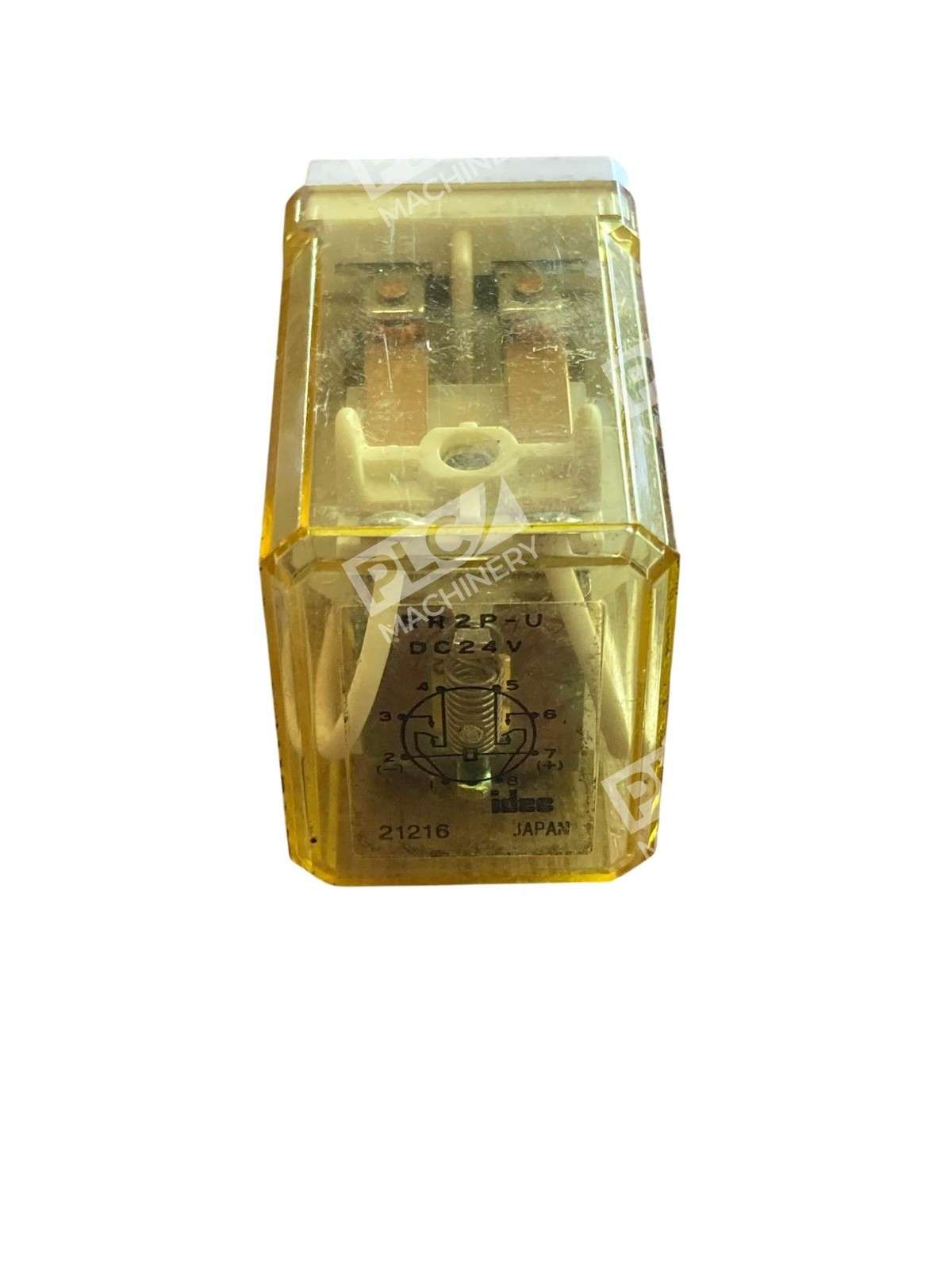

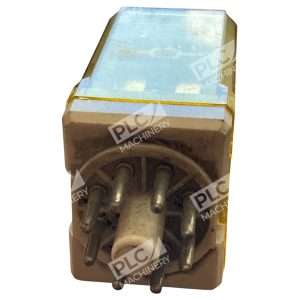

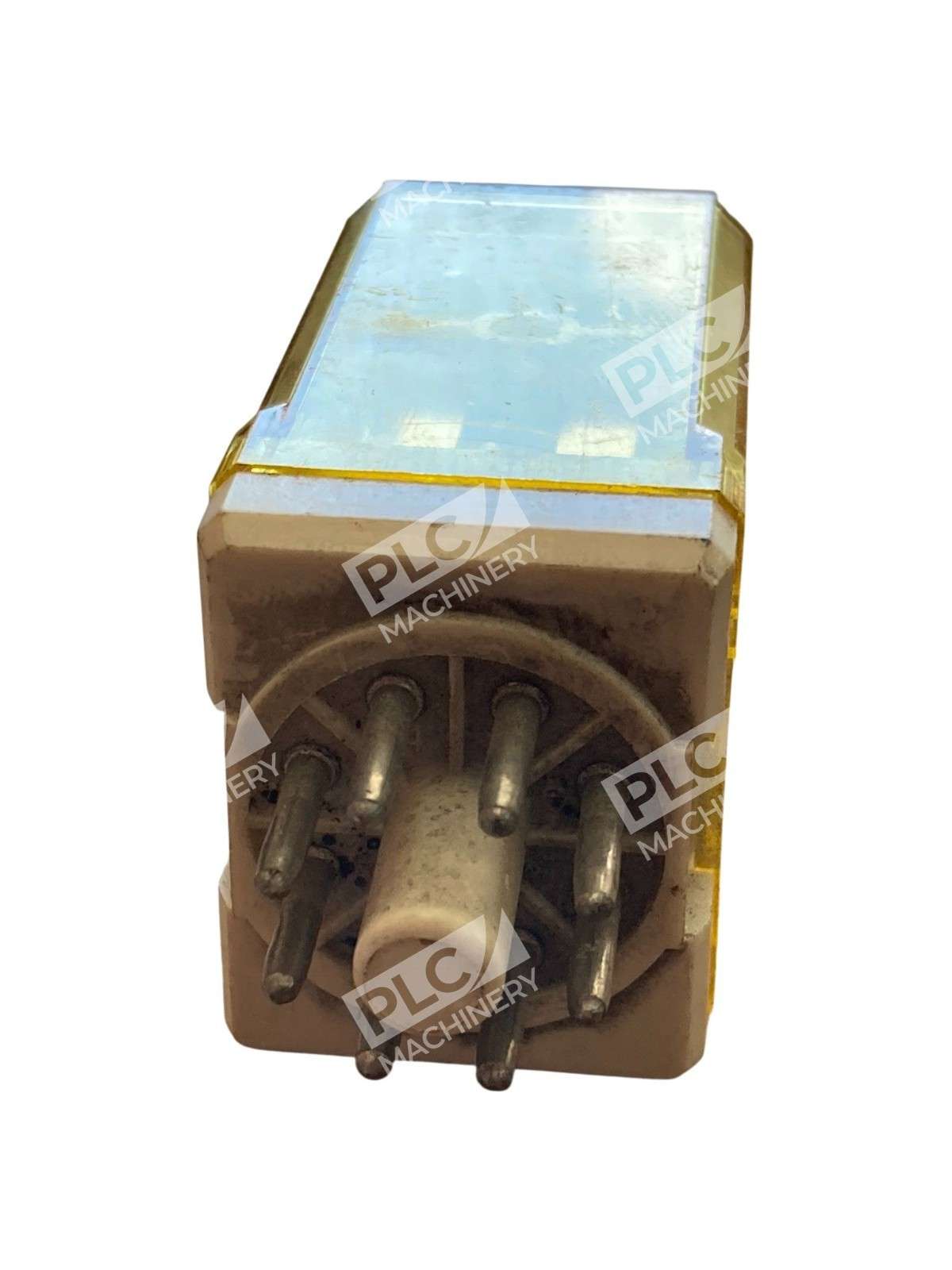

The IDEC RR2P-U Power Relay is a robust and reliable component designed for industrial applications, offering efficient switching capabilities for various electrical loads.
Key Features
- High Reliability and Longevity: Engineered for durability, the RR2P-U relay ensures consistent performance over extended periods.

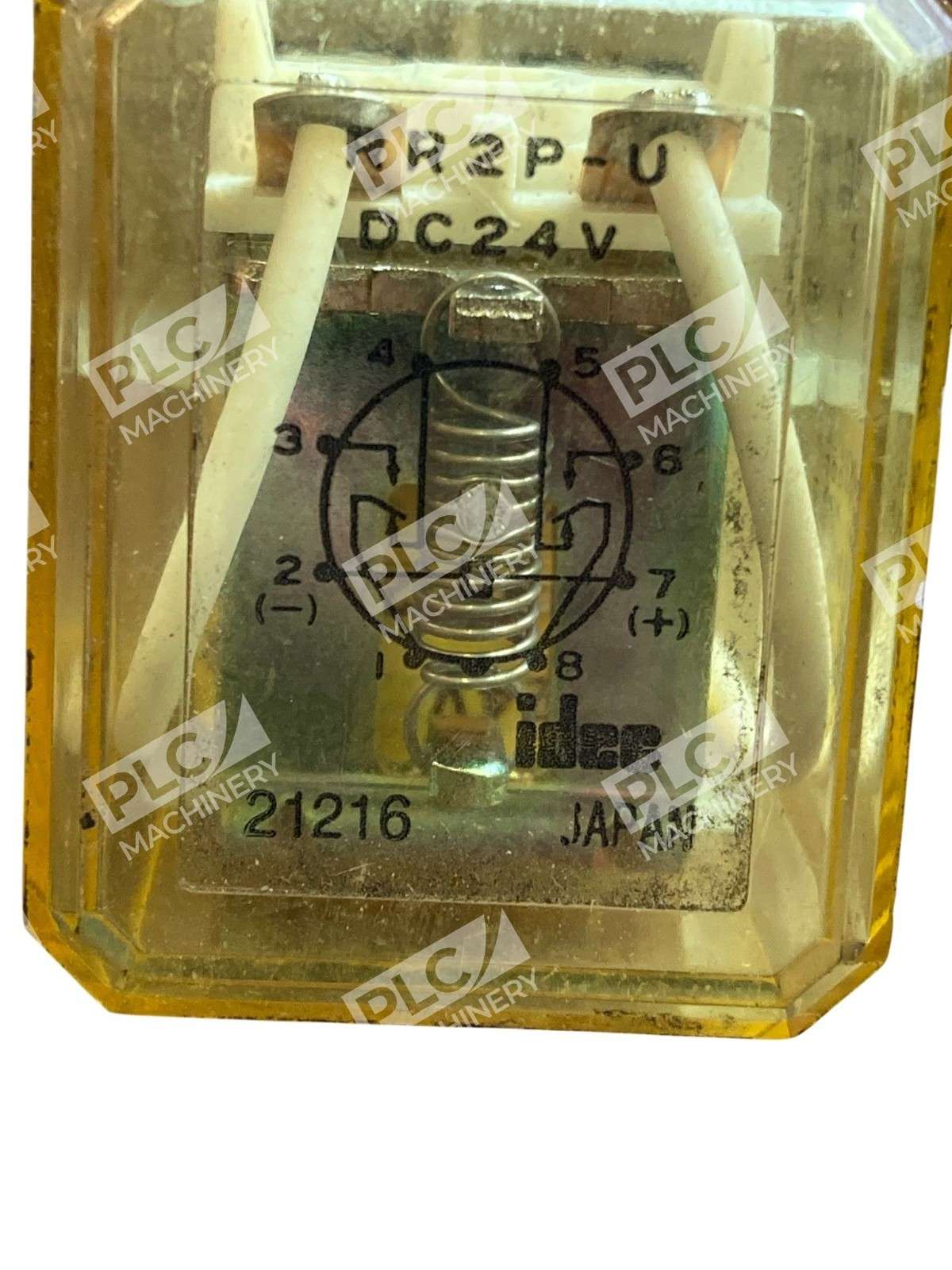

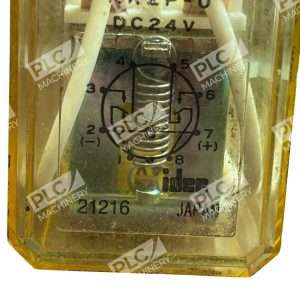

- Versatile Contact Configuration: Equipped with Double Pole Double Throw (DPDT) contacts, it provides flexibility in circuit design and application.
- Substantial Current Handling: Capable of managing up to 10 Amps, making it suitable for a wide range of industrial equipment.

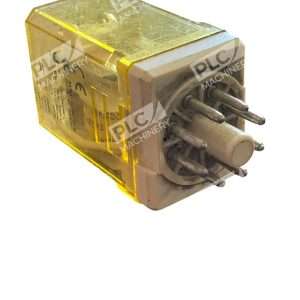

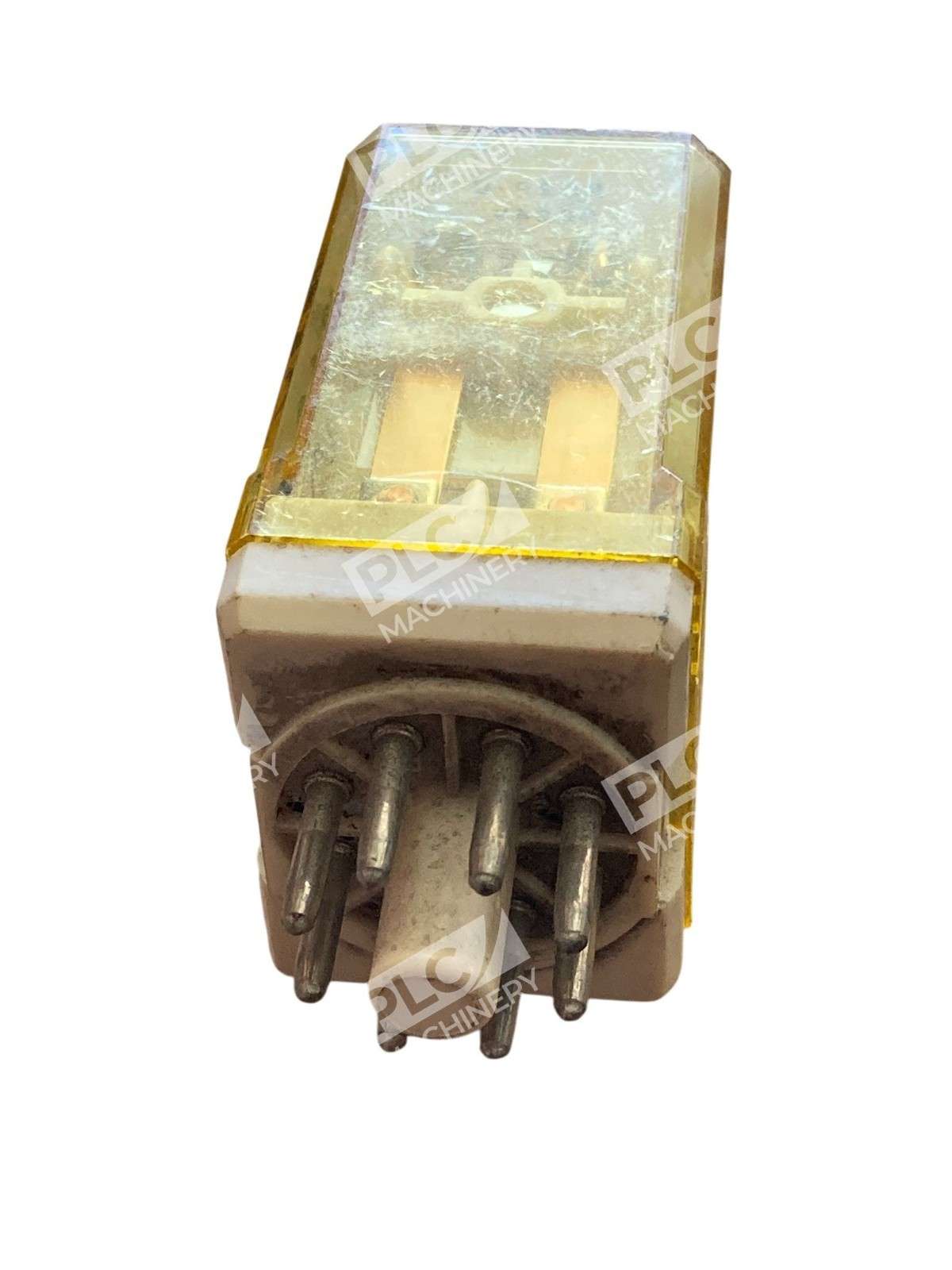

- Flexible Mounting Options: Designed for plug-in mounting, facilitating easy installation and maintenance.
- Wide Coil Voltage Range: Available in various coil voltages, including 24V DC and 120V AC, to accommodate different system requirements.
Specifications
- Contact Rating (Resistive Load):
- 10A at 110V AC
- 7.5A at 220V AC
- 10A at 30V DC
- Contact Material: Silver alloy, ensuring excellent conductivity and durability.
- Operating Temperature Range: -25°C to 40°C, suitable for various environmental conditions.
- Mechanical Life: Up to 10 million operations, highlighting its durability.
- Electrical Life: Approximately 200,000 operations at rated load, ensuring reliable performance.
- Dimensions: 35.6 mm (H) x 28.6 mm (W), compact for easy integration into control panels.
Applications
The IDEC RR2P-U Power Relay is ideal for use in various industrial settings, including:
- Control panels
- Automation systems
- Instrumentation equipment
- Power distribution units
Its robust design and versatile features make it a valuable component for engineers and technicians seeking reliable relay solutions.
