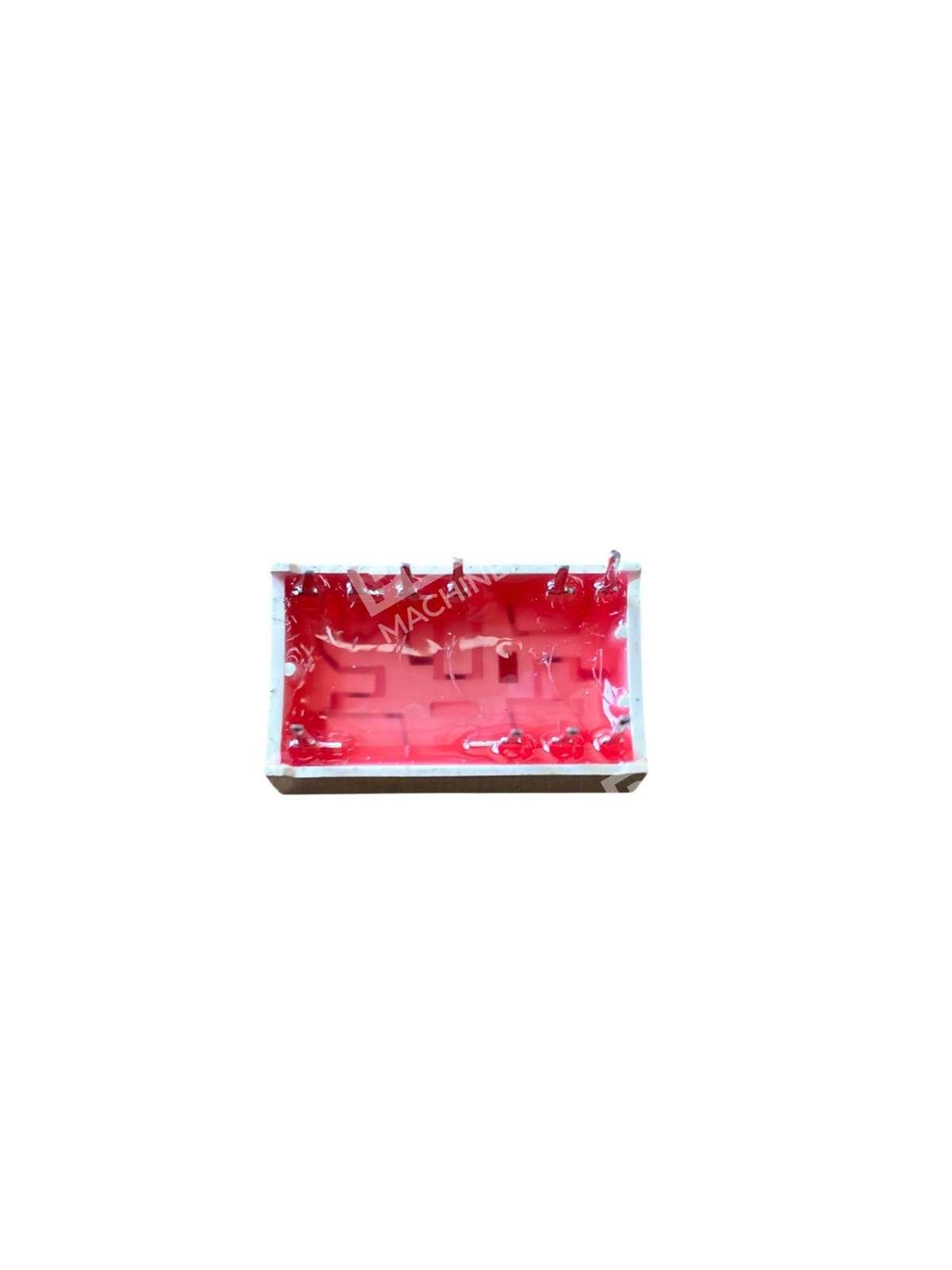

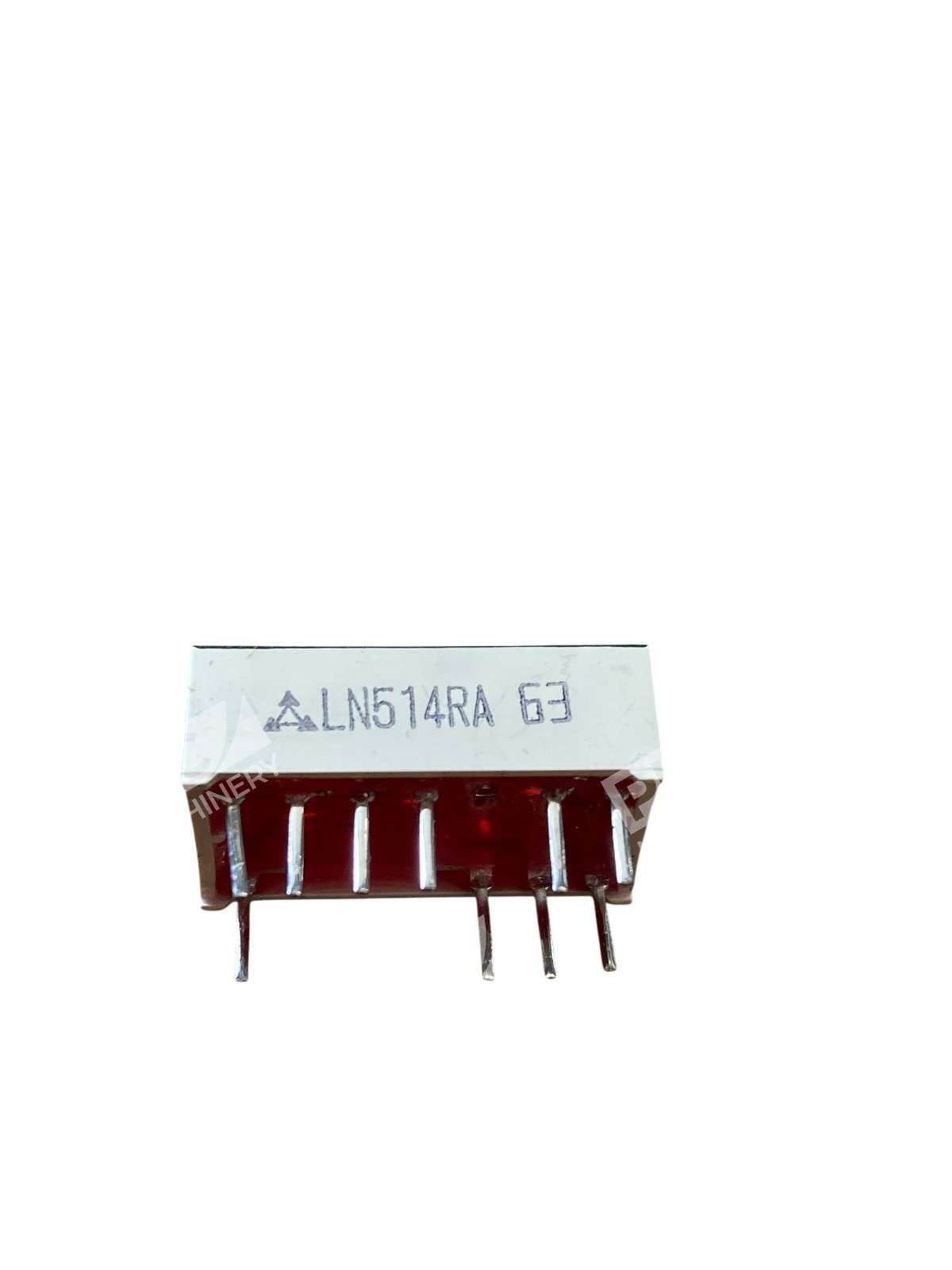

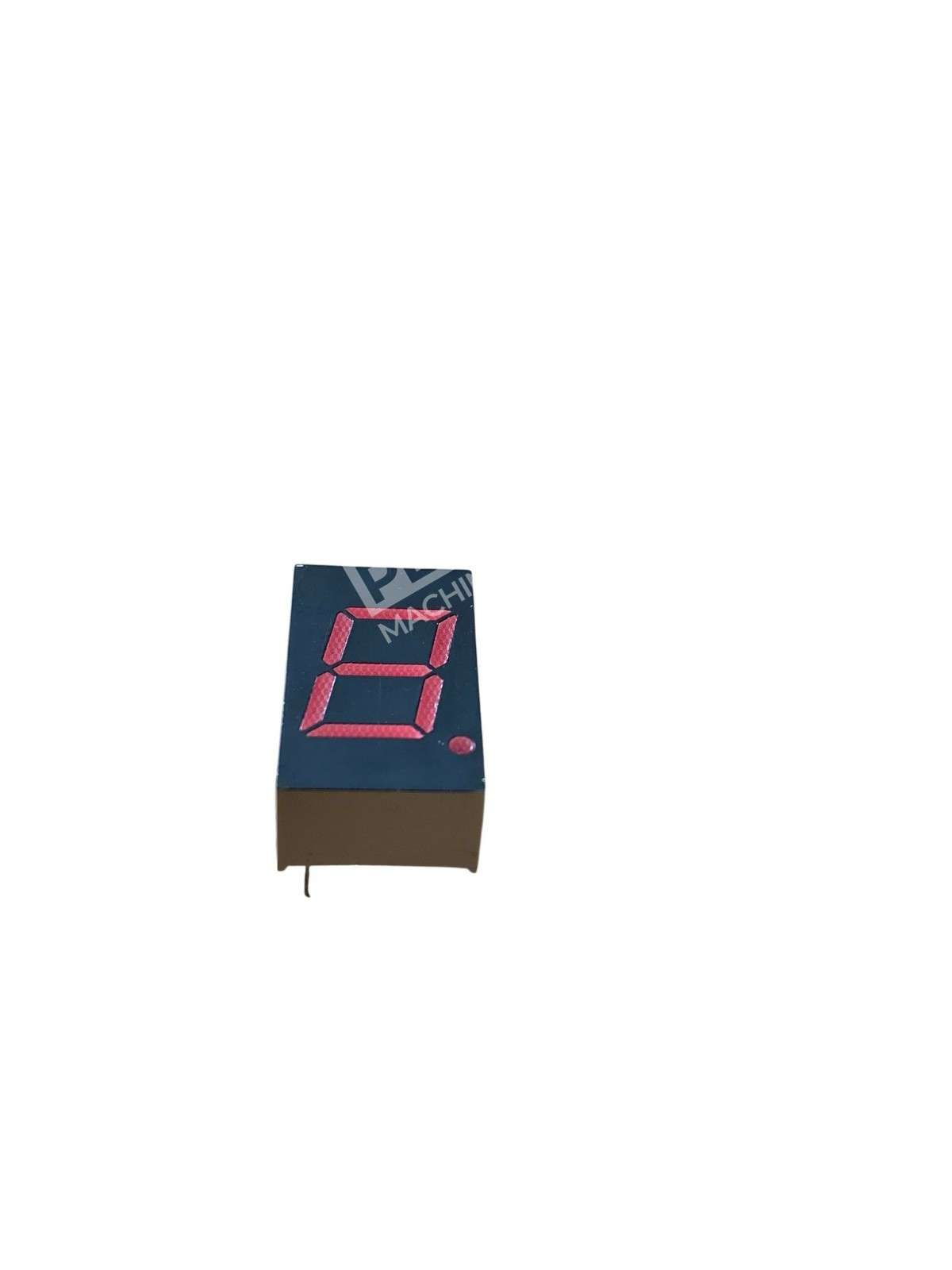

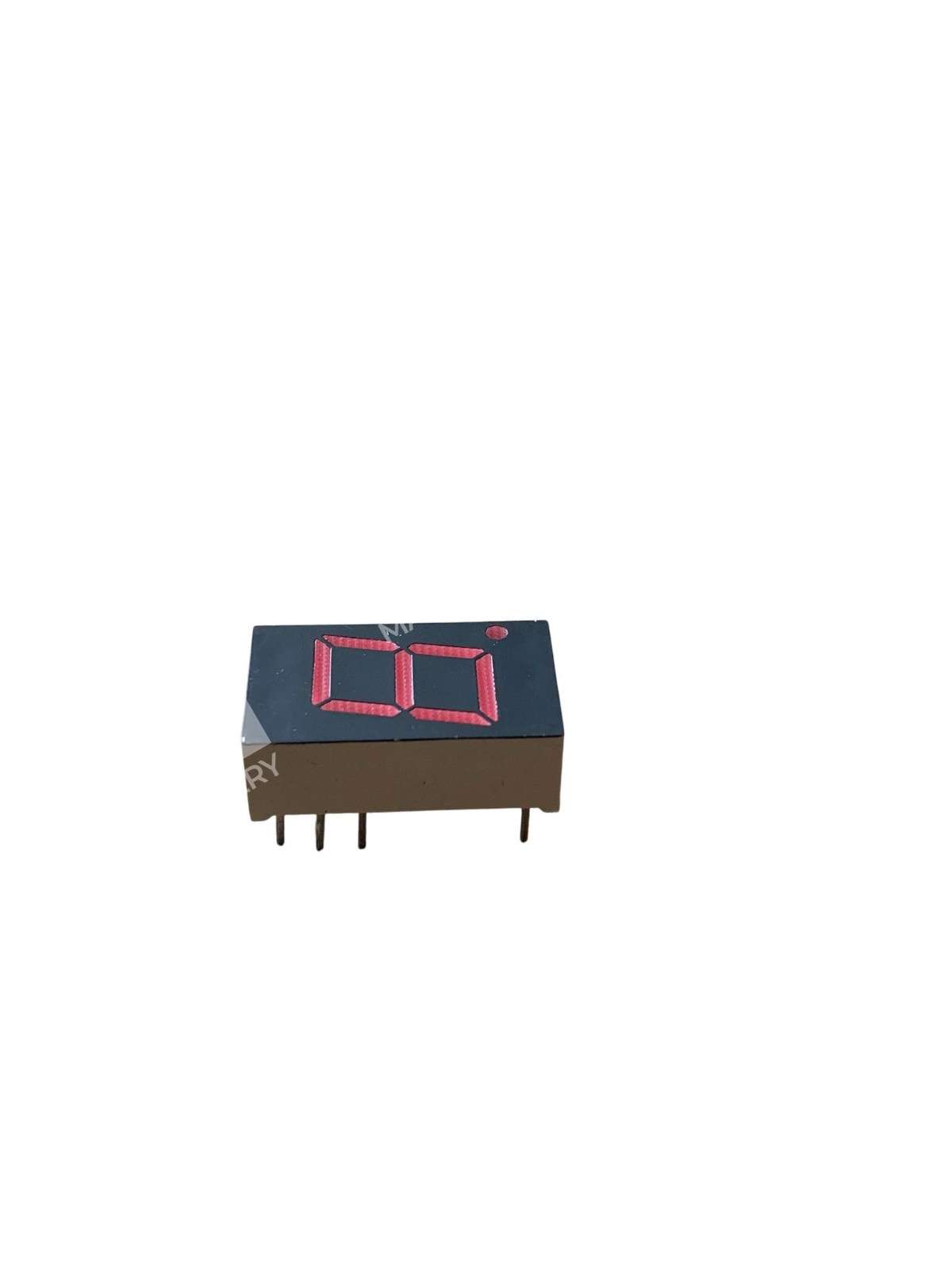

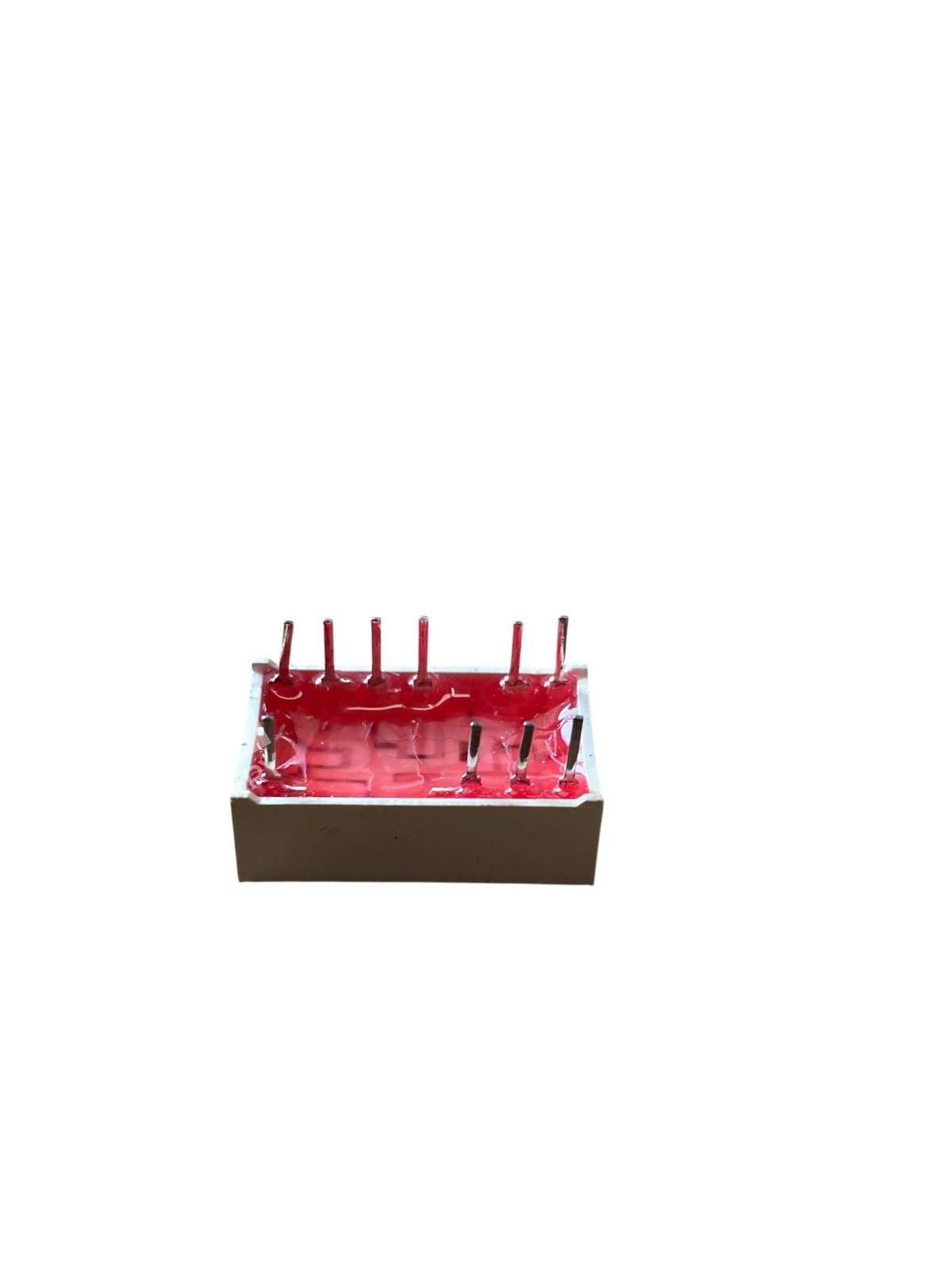

Dan-Mar LN514RA Red 7-Segment LED Display The Dan-Mar LN514RA is a single-digit, 7-segment LED display designed for clear and efficient numeric readouts in various electronic applications. Featuring a vibrant red illumination, this component ensures high visibility and readability. Key Features Digit Size: 0.43 inches (11.00mm) Display Type: 7-segment Color: Red Common Pin Configuration: Common Anode Forward Voltage (Typical): 2.2V Test Current: 20mA Millicandela Rating: 0.45mcd Peak Wavelength: 700nm Power Dissipation (Maximum): 60mW Package Type: 14-DIP Dimensions: 0.748″ H x 0.433″ W x 0.256″ D (19.00mm x 11.00mm x 6.50mm) Applications The LN514RA is ideal for use in: Industrial control systems Instrumentation panels Consumer electronics Digital clocks and timers Process control displays Its compact size and efficient power consumption make it suitable for devices requiring clear numeric displays in limited spaces. Technical Specifications Parameter Value Digit Size 0.43″ (11.00mm) Display Type 7-Segment Color Red Common Pin Common Anode Forward Voltage (Vf) (Typ) 2.2V Current – Test 20mA Millicandela Rating 0.45mcd Wavelength – Peak 700nm Power Dissipation (Max) 60mW Package / Case 14-DIP Size / Dimension 0.748″ H x 0.433″ W x 0.256″ D (19.00mm x 11.00mm x 6.50mm) The Dan-Mar LN514RA combines reliability and performance, making it a valuable component for a wide range of electronic display applications.
