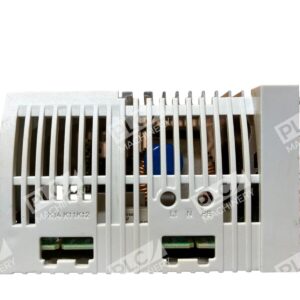

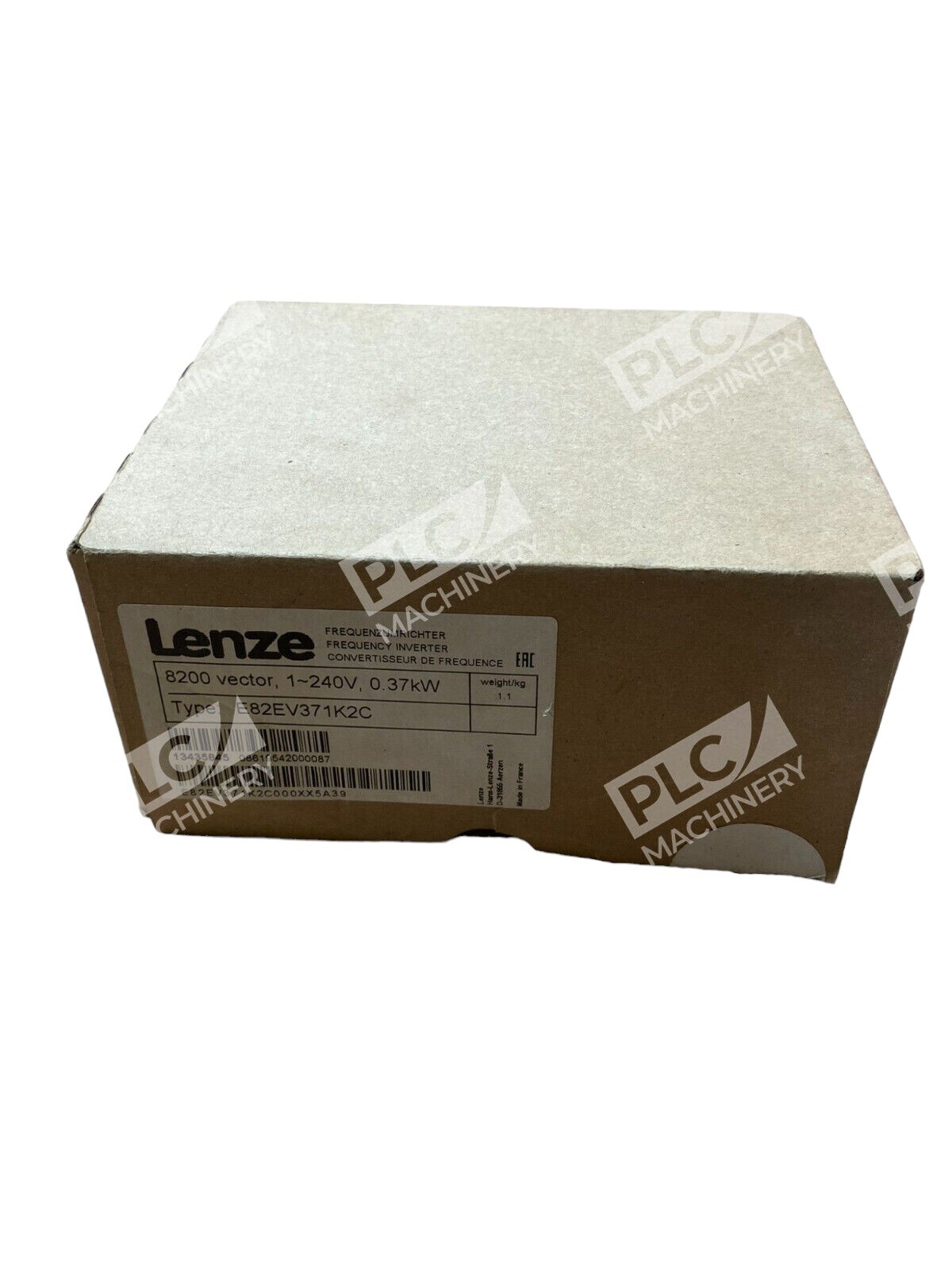

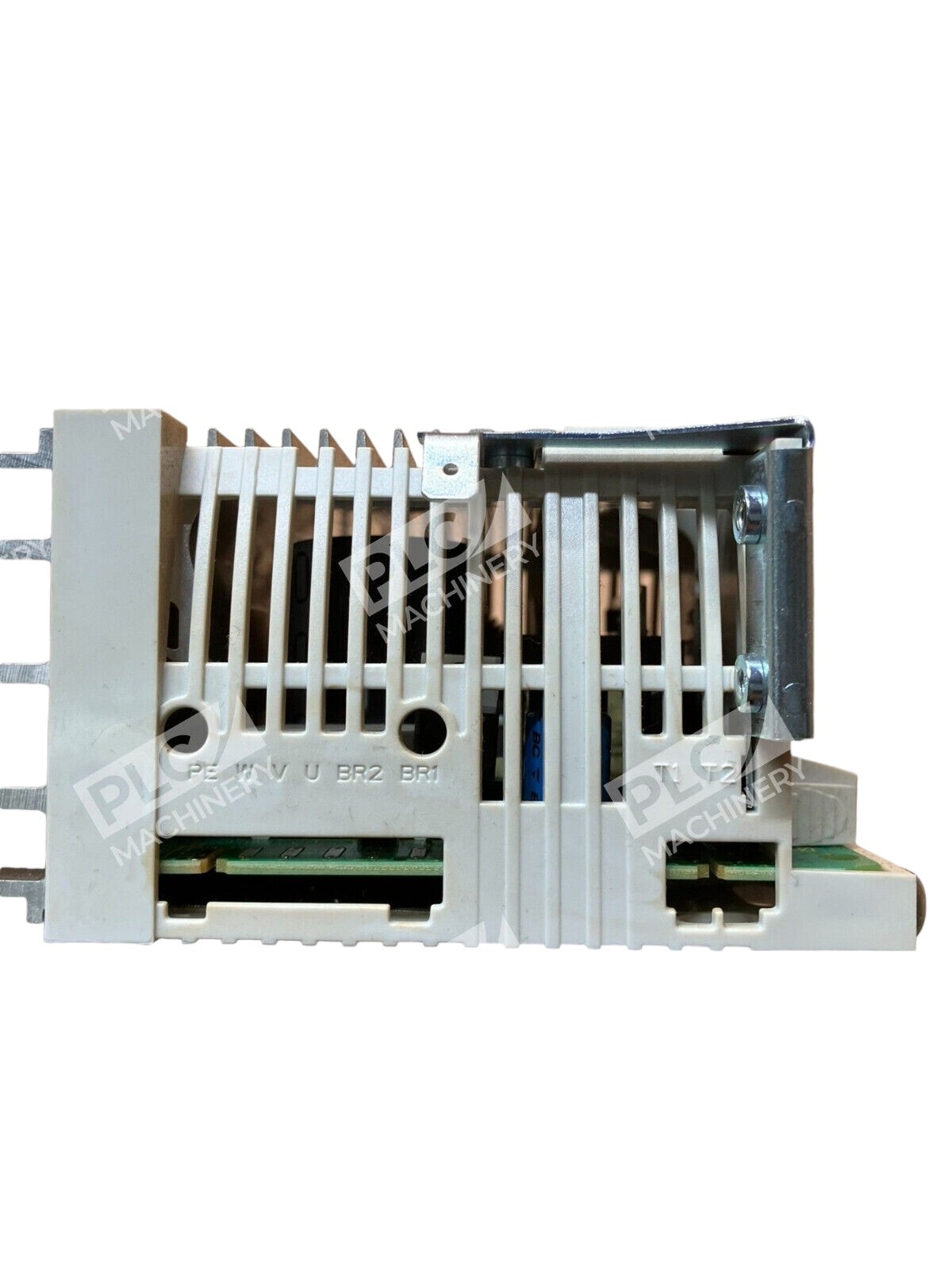

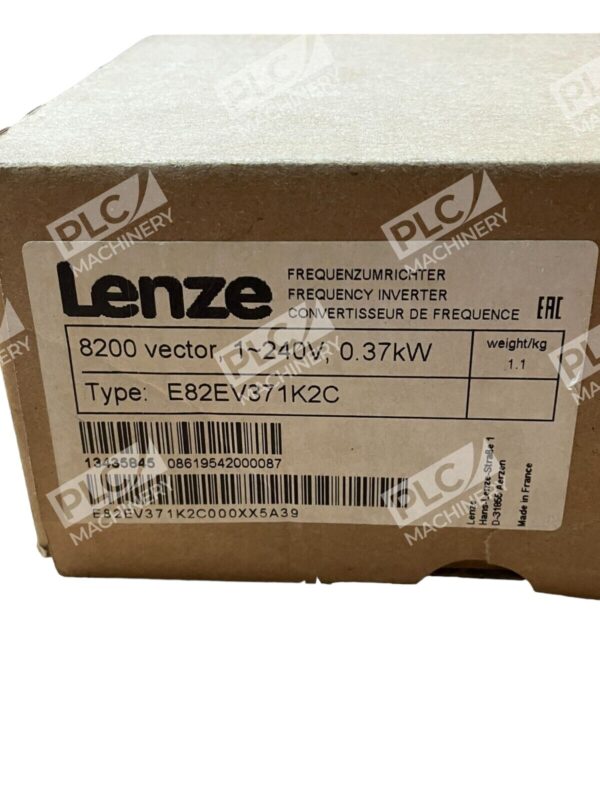

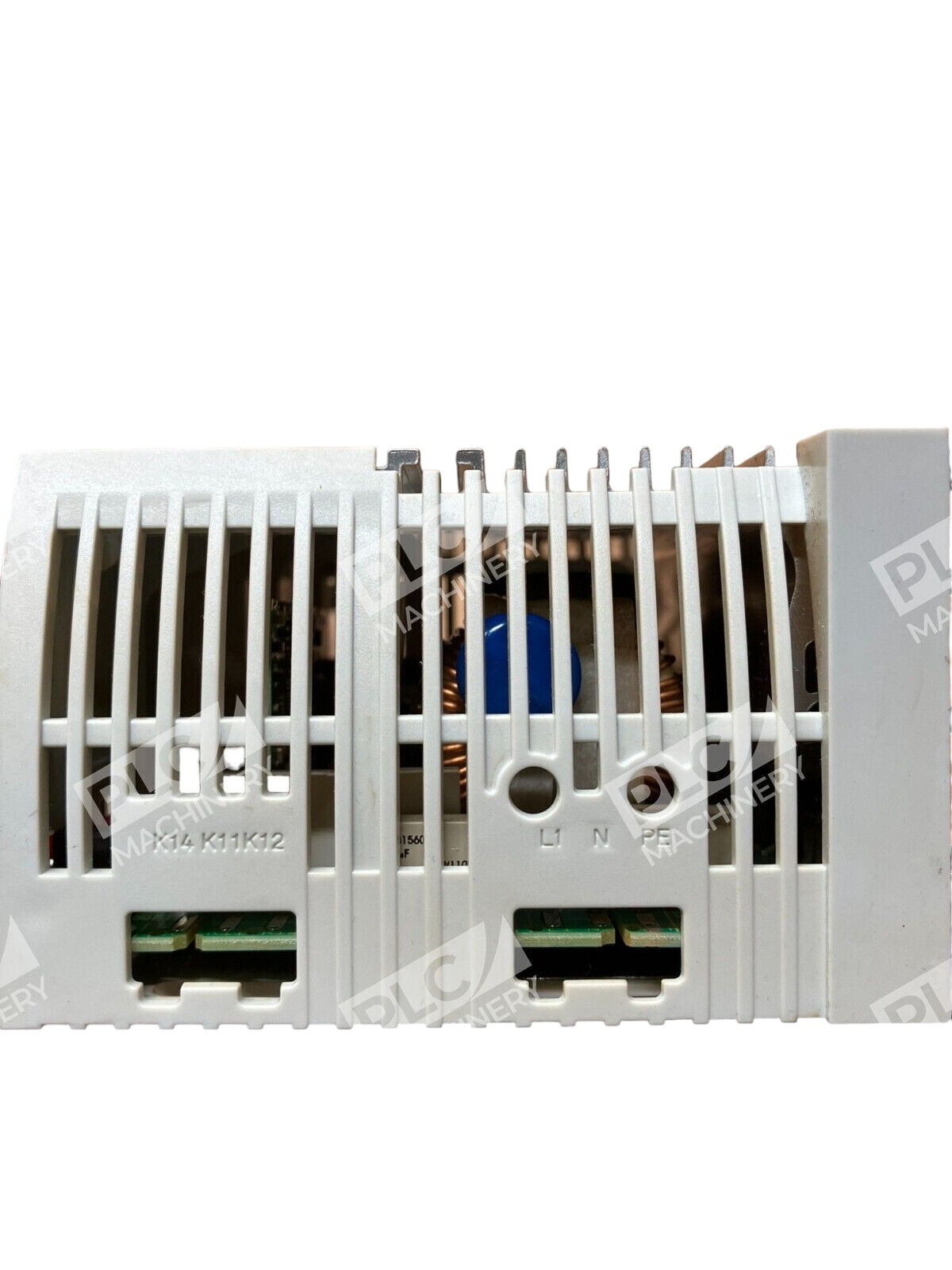

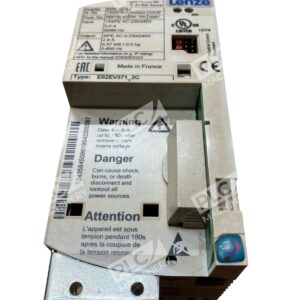

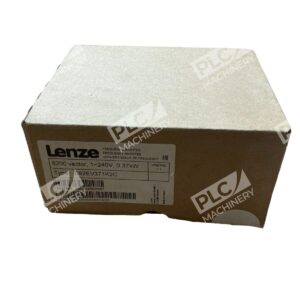

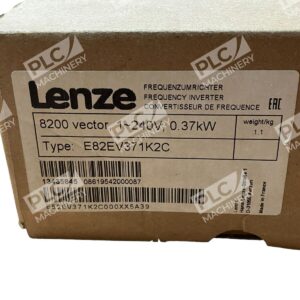

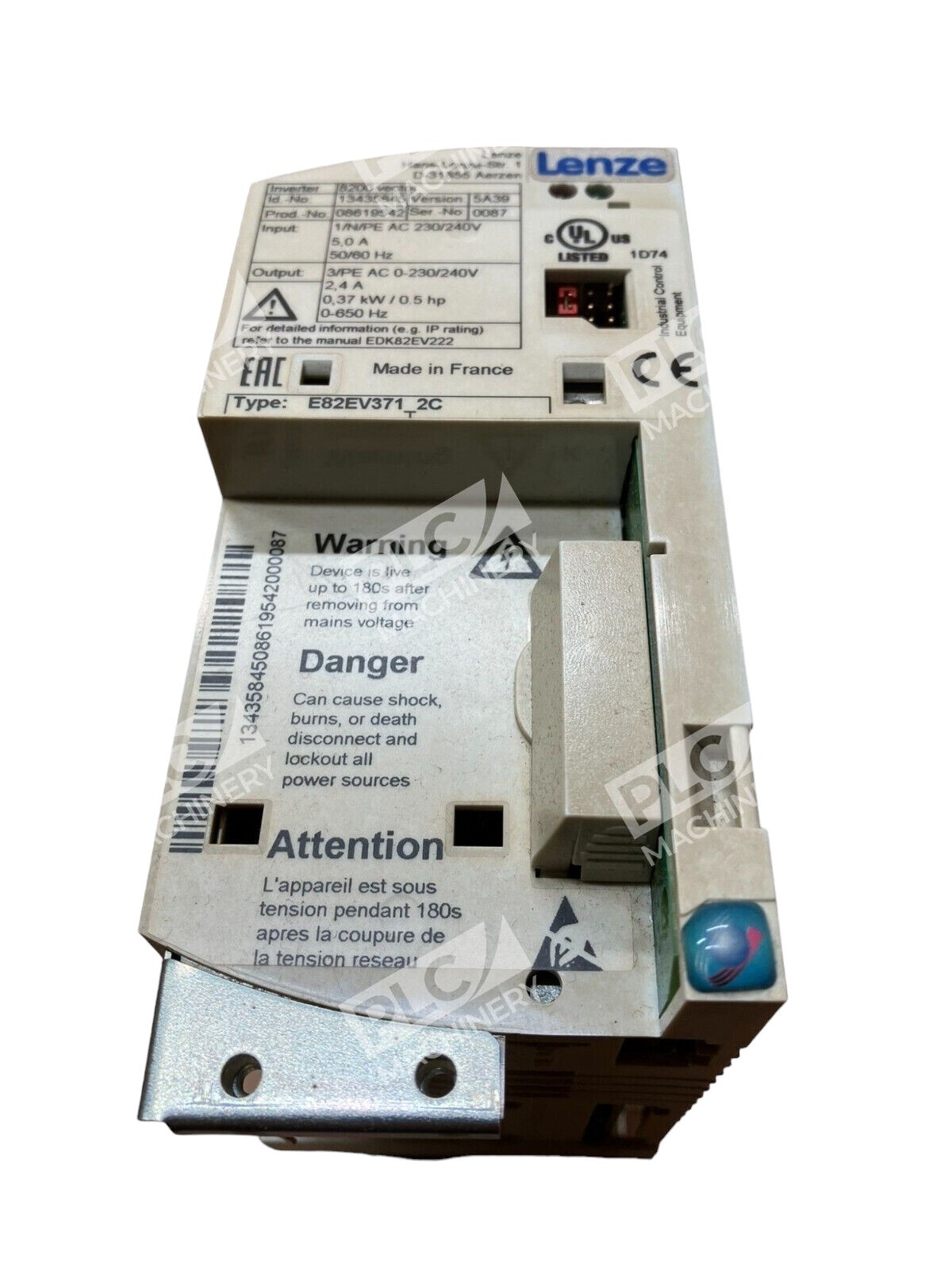

Lenze E82EV371K2C Frequency Inverter

Lenze E82EV371K2C Frequency Inverter

The Lenze E82EV371K2C is a versatile frequency inverter from the 8200 series, designed to provide precise motor control in various industrial applications. Its compact design and advanced features make it an ideal choice for efficient and reliable performance.

Key Features

• Power Output: Delivers 0.37 kW (0.5 HP) of power, suitable for small to medium-sized motors.
• Input Voltage: Operates on a single-phase supply voltage ranging from 180 to 264 VAC, accommodating standard 230V systems.
• Control Methods: Supports both linear and quadratic V/F control, allowing adaptation to different load characteristics.
• Input/Output Configuration: Equipped with 5 digital inputs, 1 analog input, 1 digital output, 1 analog output, and 1 relay output, offering flexible integration options.
• Output Frequency: Provides an output frequency range of 0 to 650 Hz, enabling precise speed control.
• Protection Rating: Features an IP20 protection rating, suitable for installation in controlled environments.
• Operating Temperature: Designed to function efficiently within a temperature range of -10°C to +55°C.
• Mounting: Supports DIN rail mounting, facilitating easy installation in control cabinets.

Dimensions and Weight

• Height: 120 mm
• Width: 60 mm
• Depth: 140 mm
• Weight: 0.8 kg

Additional Features

• Modular Design: The inverter’s modular structure allows for customization with pluggable function modules, enabling integration with various fieldbus systems such as AS Interface, CAN, CANopen, DeviceNet, Ethernet, Interbus, and Profibus.
• User-Friendly Interface: An optional XT keypad provides a clear menu structure and user-guided commissioning, simplifying operation and parameterization.
• Compliance: Meets international standards including CE, UL 508, EN 60529, EN 60721-3-3, EN 61800-5-1, and EN 61800-3, ensuring reliability and safety.

The Lenze E82EV371K2C frequency inverter combines compact design with advanced functionality, making it a reliable solution for precise motor control in various industrial settings.
