Lectrohm Resistor 200Ohm

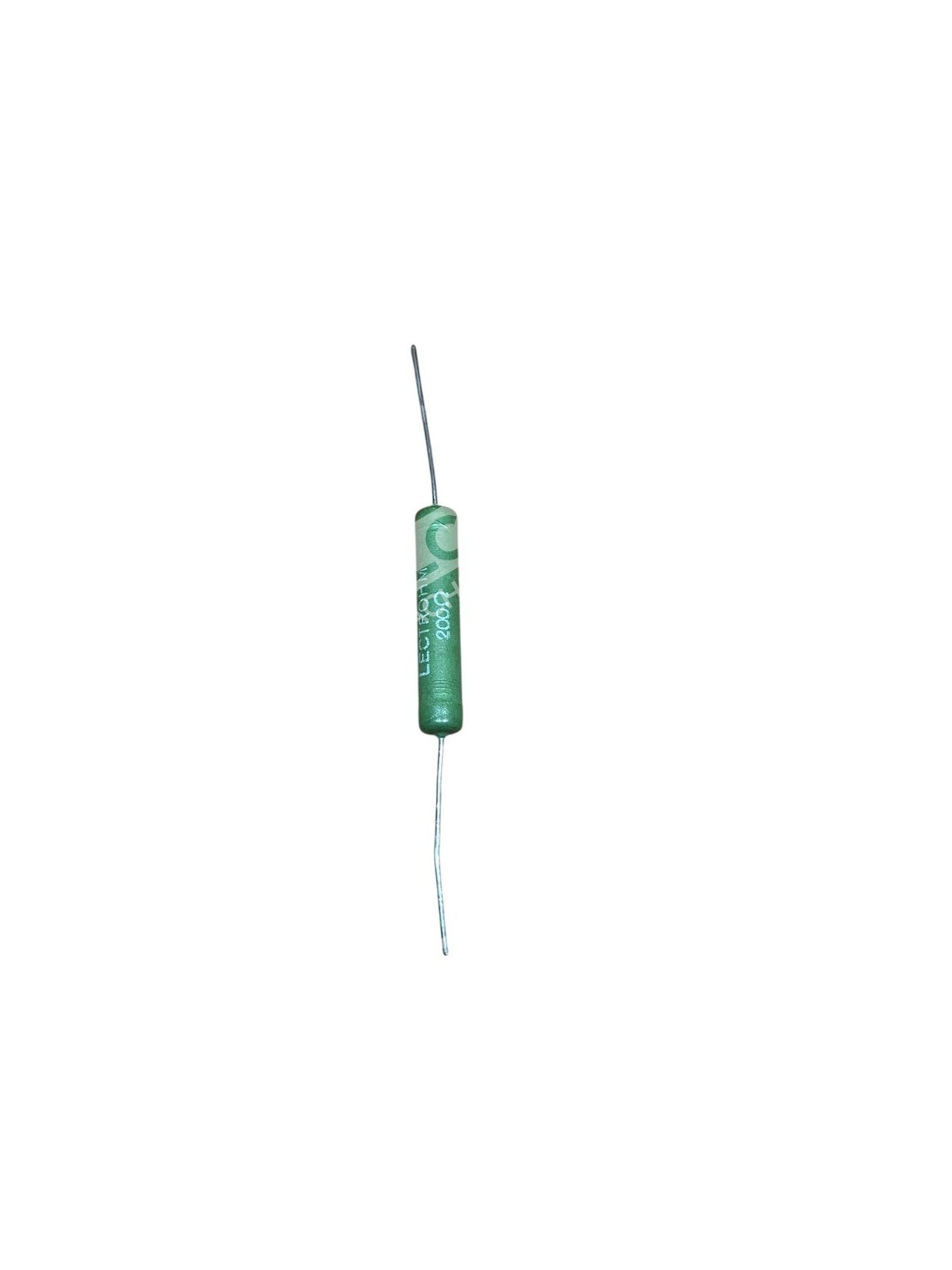

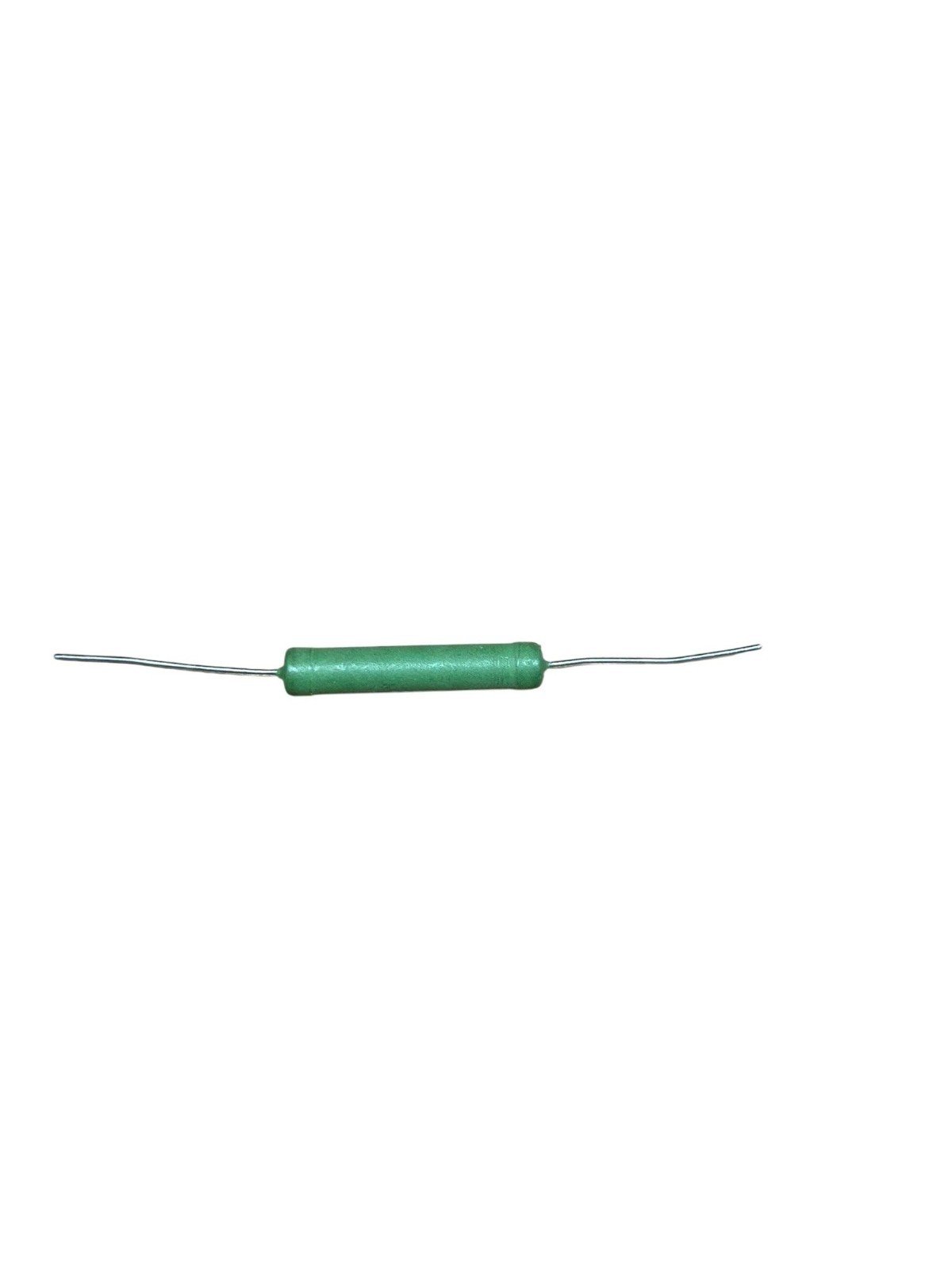

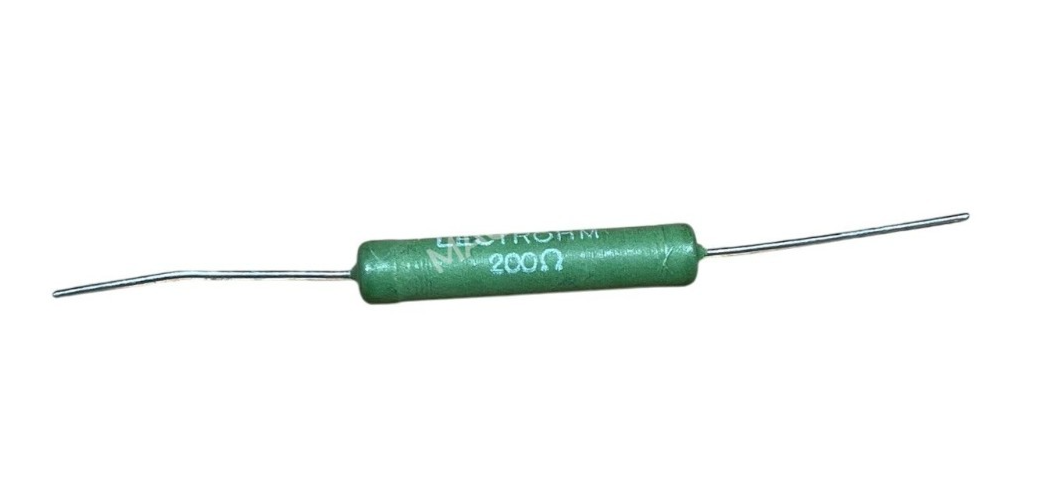

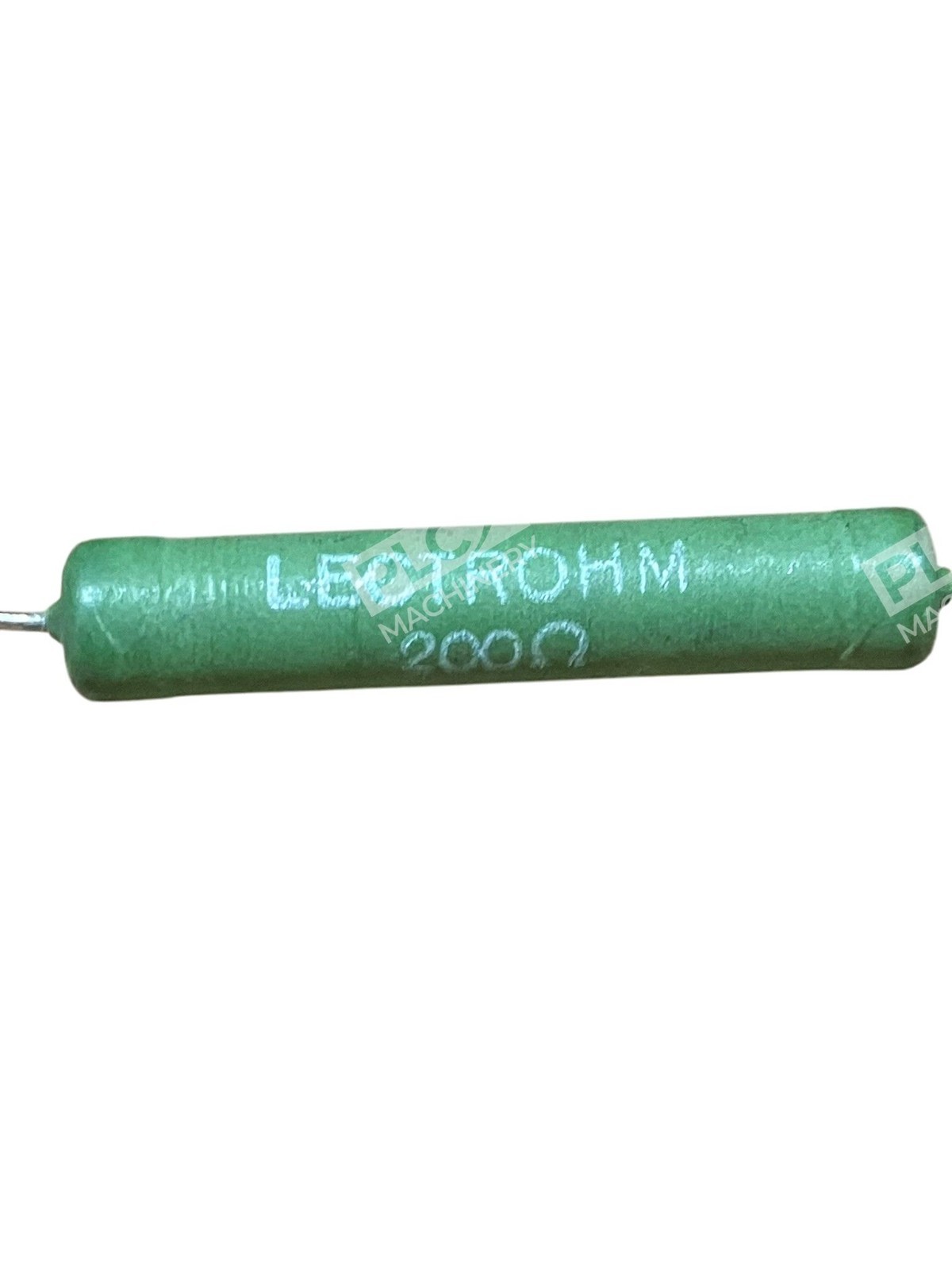

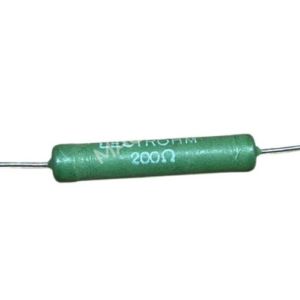

Lectrohm 200 Ohm Resistor

The Lectrohm 200 Ohm Resistor is a high-quality component designed for precision applications in electronic circuits. With a resistance value of 200 ohms, it effectively limits current flow, ensuring optimal performance and protection for various devices.

Key Features

• Resistance Value: 200 ohms
• Power Rating: 1 watt
• Tolerance: ±5%
• Temperature Coefficient: ±100 ppm/°C
• Construction: Wirewound
• Mounting Type: Through-hole
• Termination Style: Axial leads

Applications

This resistor is suitable for a wide range of applications, including:

• Voltage regulation
• Current limiting
• Signal conditioning
• Timing circuits
• Load testing

Physical Dimensions

• Length: 9.5 mm
• Diameter: 3.5 mm
• Lead Diameter: 0.6 mm

Environmental Specifications

• Operating Temperature Range: -55°C to +155°C
• Storage Temperature Range: -55°C to +155°C

The Lectrohm 200 Ohm Resistor is engineered to deliver reliable performance in demanding environments, making it an ideal choice for both commercial and industrial applications.
