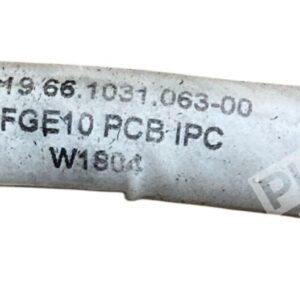

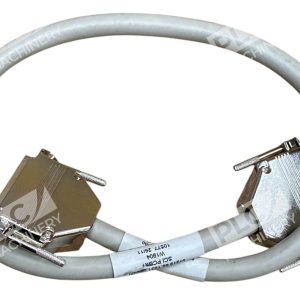

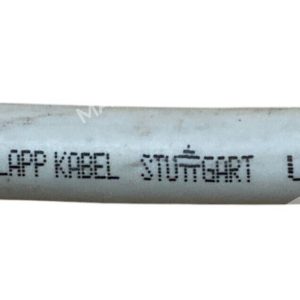

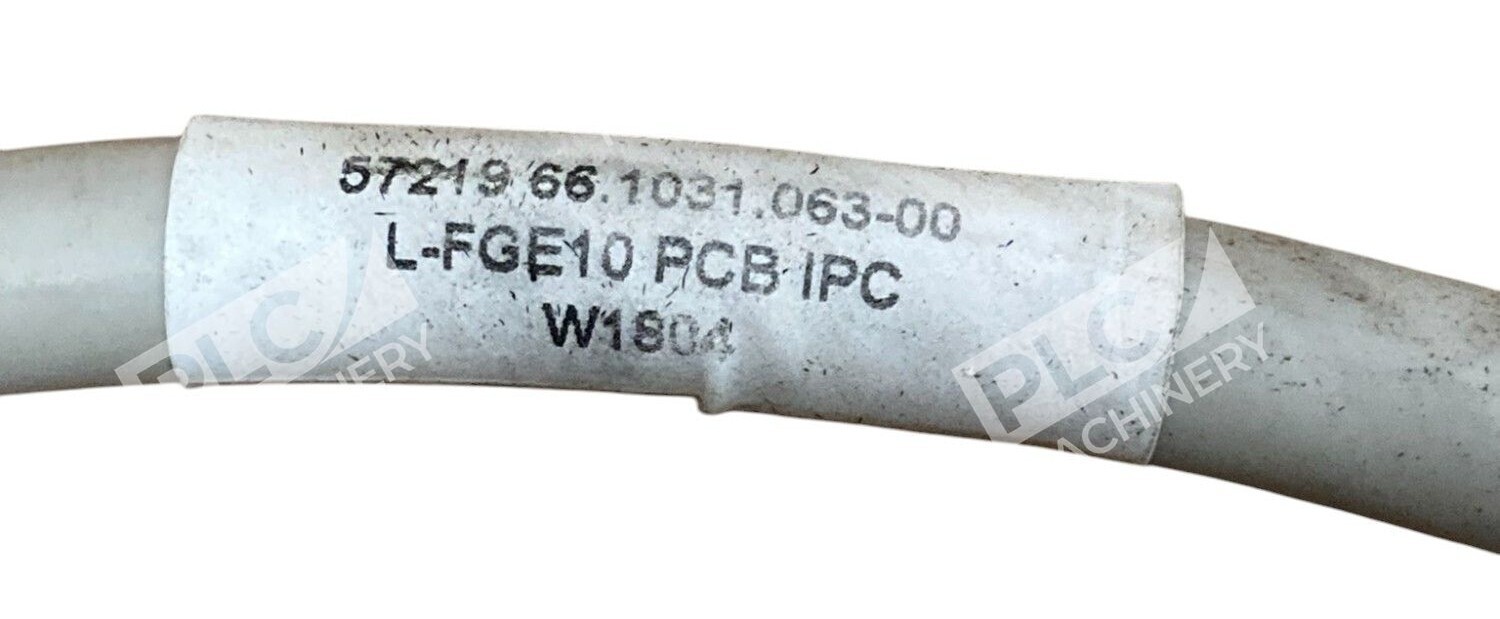

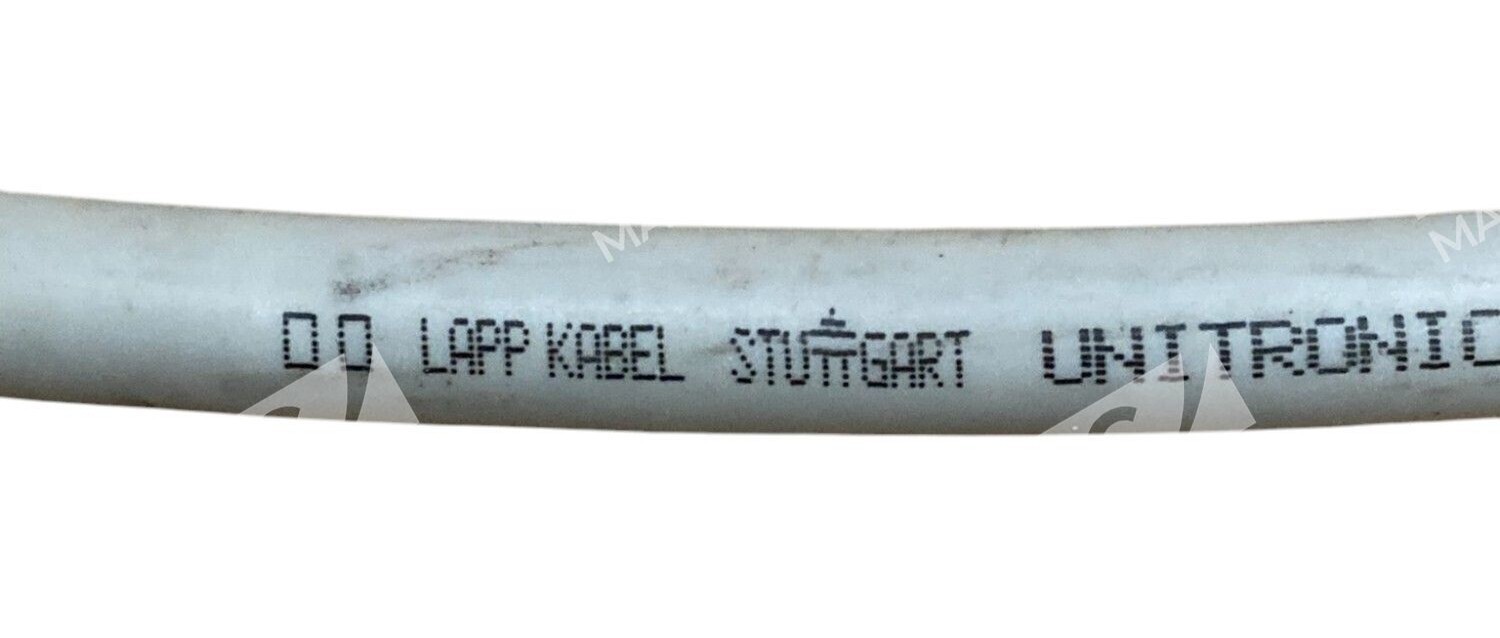

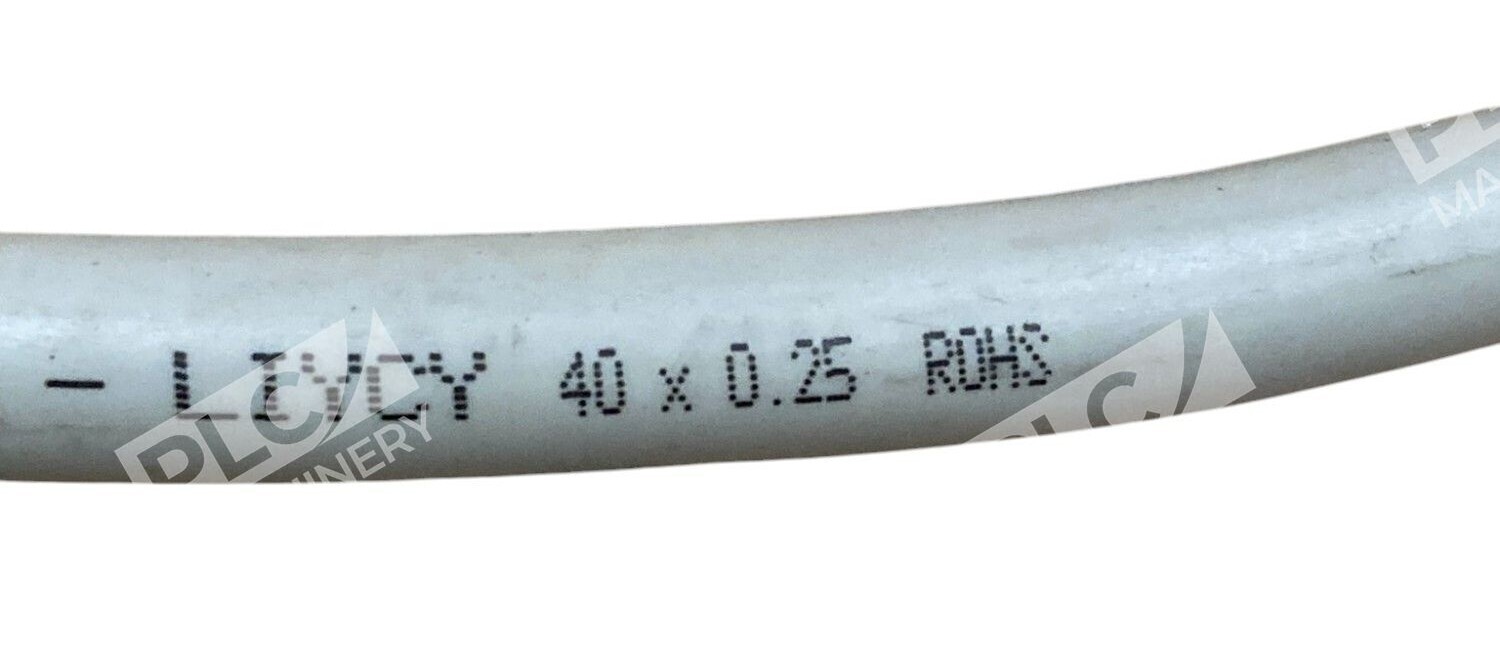

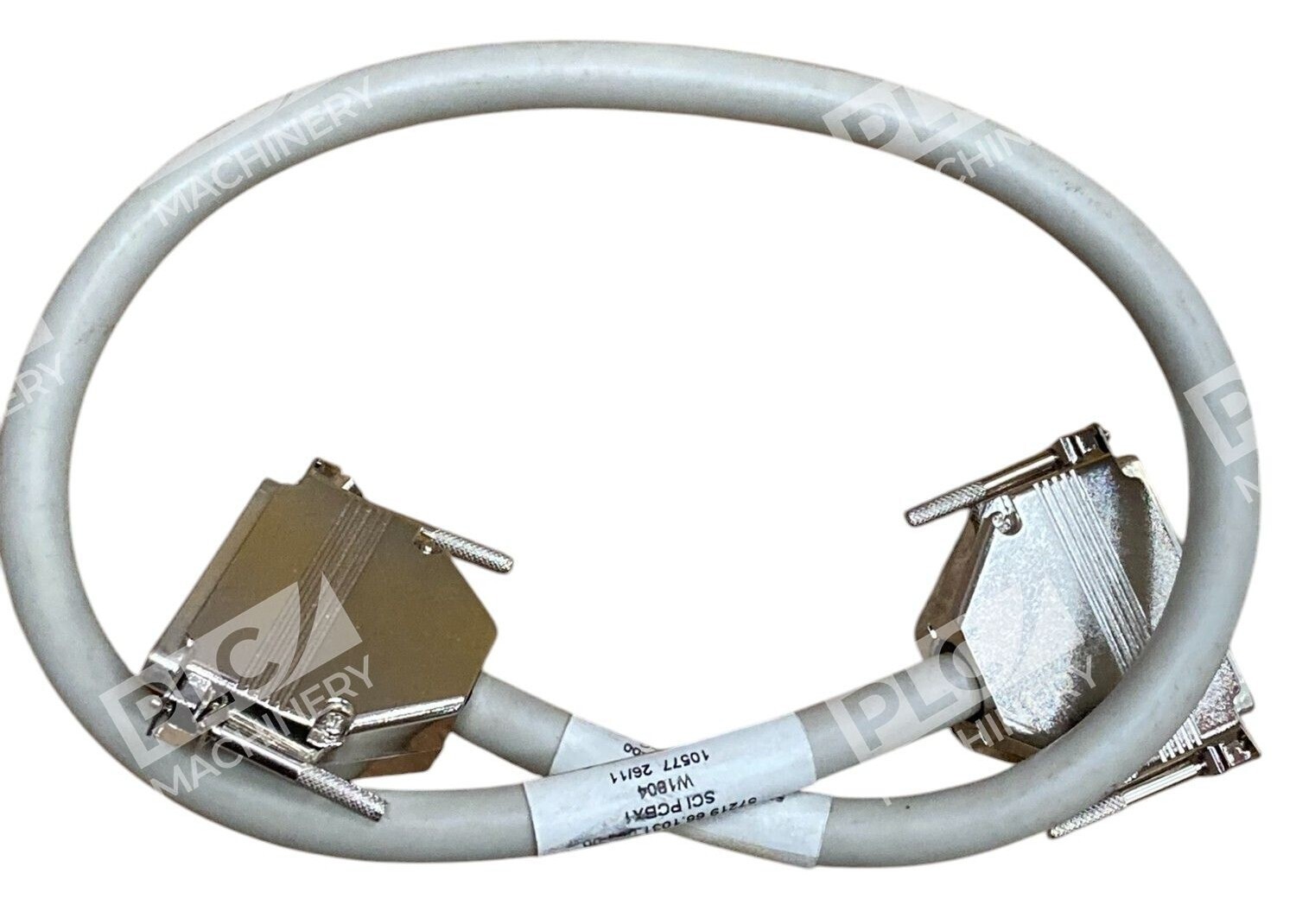

Lapp Kabel Unitronic L-FGE10 PCB IPC 57219 Cable 66.1031.063-00

The Lapp Kabel Unitronic L-FGE10 PCB IPC 57219 Cable 66.1031.063-00 is a high-quality data transmission cable designed for reliable performance in various industrial applications.

Key Features

• Conductor Material: Bare copper strands ensure excellent electrical conductivity and flexibility.
• Core Insulation: Polypropylene (PP) insulation provides robust protection and durability.
• Outer Sheath: Constructed with a black thermoplastic elastomer (TPE) outer sheath, offering resistance to oils, chemicals, and UV exposure.
• Shielding: Features tinned copper braiding for effective electromagnetic interference (EMI) protection.

Electrical Specifications

• Operating Voltage: Rated for a maximum operating voltage of 300 V.
• Test Voltage: Conductor to conductor test voltage of 1.5 kV.

Mechanical Properties

• Flexibility: Suitable for occasional flexing applications with a minimum bending radius of 10 times the outer diameter.
• Temperature Range: Operates efficiently in temperatures ranging from -40°C to +80°C for fixed installations.

Certifications and Standards

• Flame Retardance: Complies with IEC 60332-1-2 standards for flame retardancy.
• Halogen-Free: Meets IEC 60754-1 standards, ensuring safety in case of fire.
• Oil Resistance: Certified according to EN 50363-10-2 for oil resistance.

This cable is ideal for use in control, regulating, and measurement circuits, especially in environments requiring resistance to mechanical stress, oils, and chemicals. Its robust design ensures reliable data transmission in demanding industrial settings.
