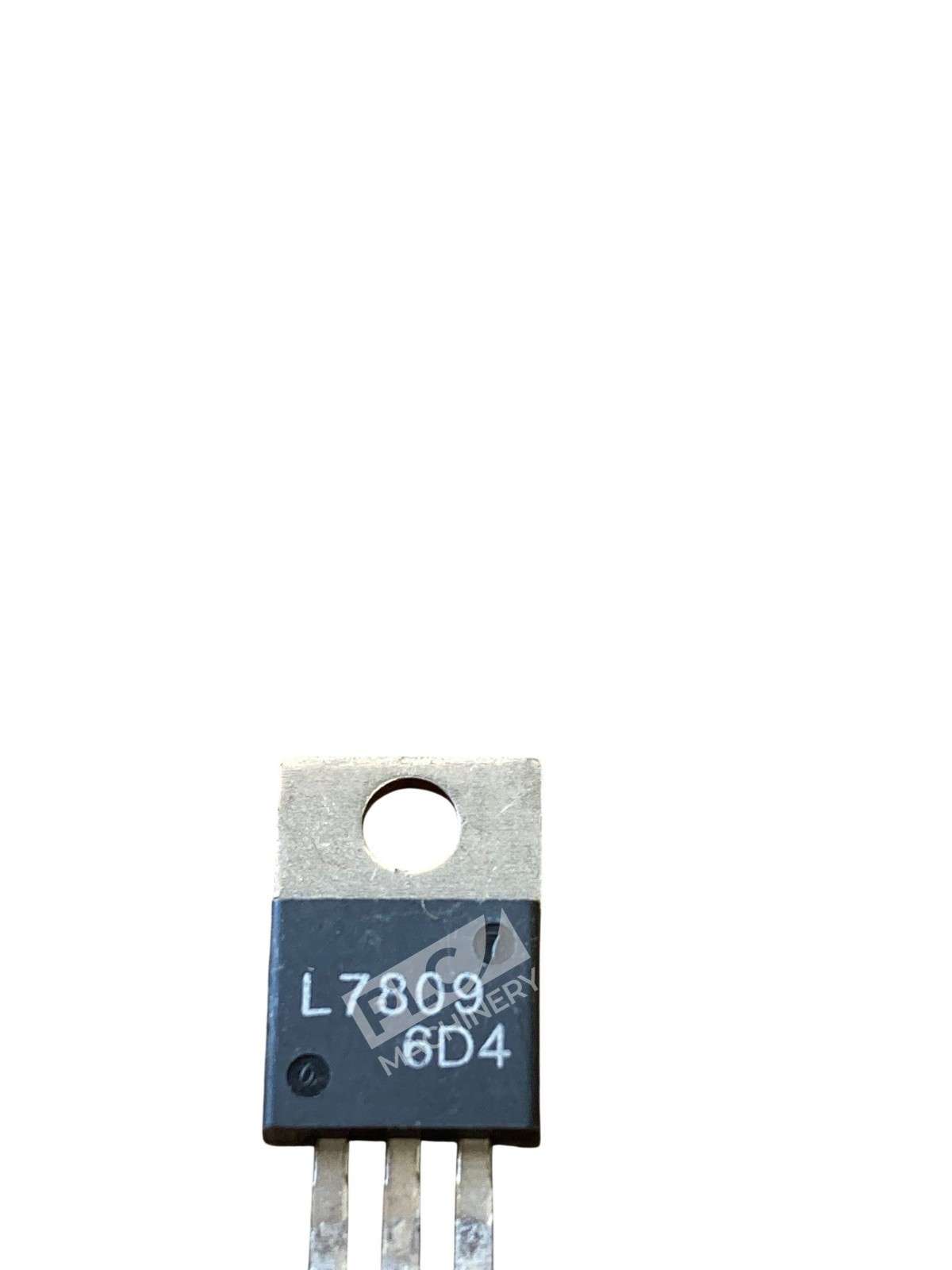

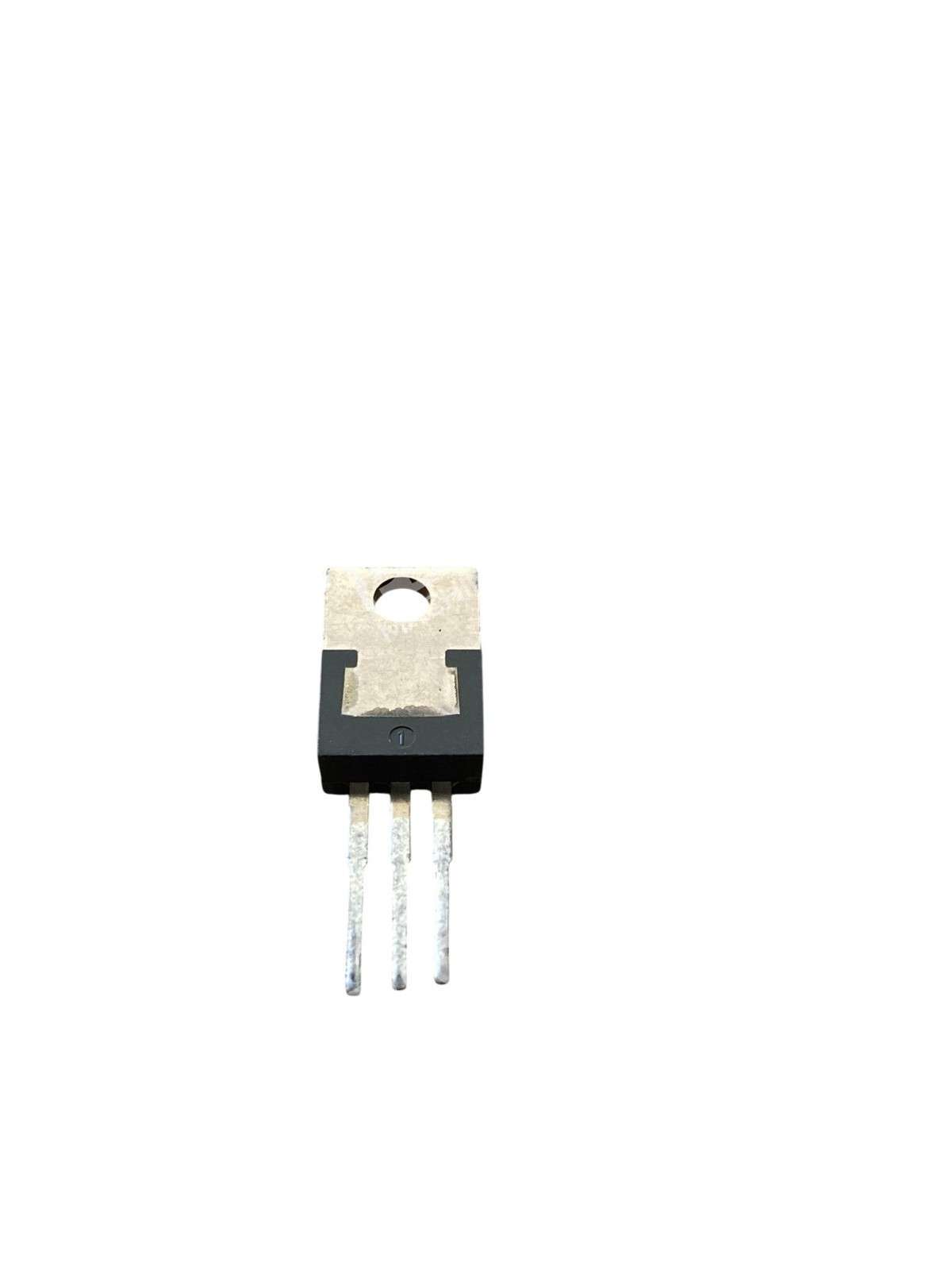

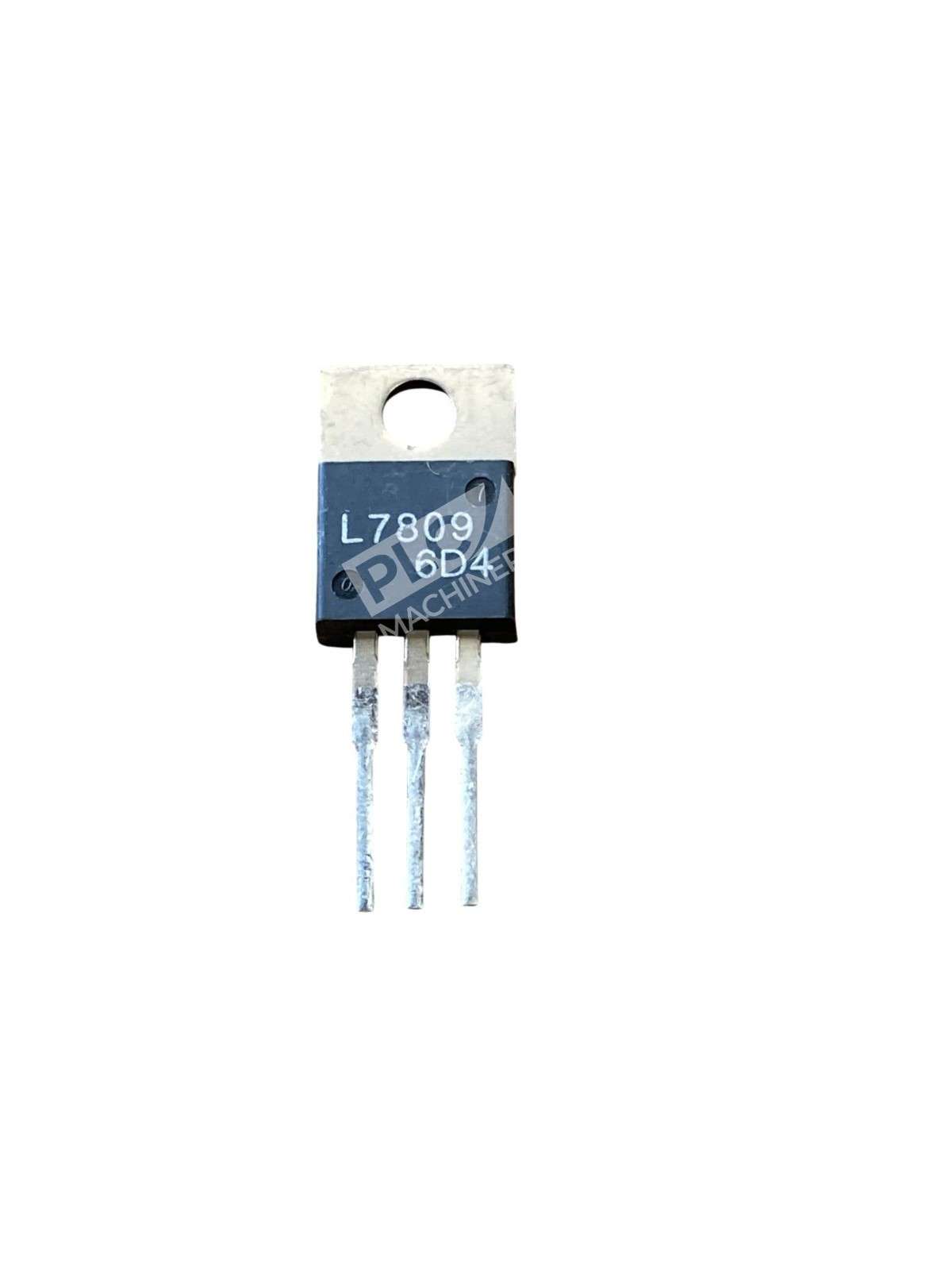

L7809 6D4 Positive Linear Voltage Regulator TO-220 IC 9V 1.5A The L7809 6D4 is a three-terminal positive linear voltage regulator designed to provide a stable 9V output with a maximum current of 1.5A. Encased in the industry-standard TO-220 package, this regulator is ideal for a wide range of electronic applications requiring reliable voltage regulation. Key Features Output Voltage: Fixed 9V Output Current: Up to 1.5A Input Voltage Range: 11V to 35V Dropout Voltage: Approximately 2V at 1A Thermal Overload Protection: Prevents overheating Short-Circuit Protection: Safeguards against output shorts Operating Temperature Range: 0°C to 125°C Applications The L7809 6D4 is suitable for various applications, including: Powering microcontrollers and sensors in embedded systems Industrial control systems Consumer electronics Battery-powered devices General-purpose regulated power supplies Package Information The TO-220 package offers excellent thermal dissipation capabilities, allowing the regulator to operate efficiently under high-current conditions. The package’s design facilitates easy mounting to a heatsink for enhanced thermal management. Protection Features To ensure reliable operation, the L7809 6D4 incorporates several protection mechanisms: Thermal Shutdown: Activates if the junction temperature exceeds safe limits Current Limiting: Prevents excessive current draw Safe-Area Protection: Ensures operation within safe parameters These features contribute to the regulator’s durability and reliability in various operating conditions. Conclusion The L7809 6D4 Positive Linear Voltage Regulator is a versatile and dependable component for applications requiring a stable 9V power supply. Its robust design, comprehensive protection features, and ease of use make it a preferred choice for engineers and designers in the electronics industry.
