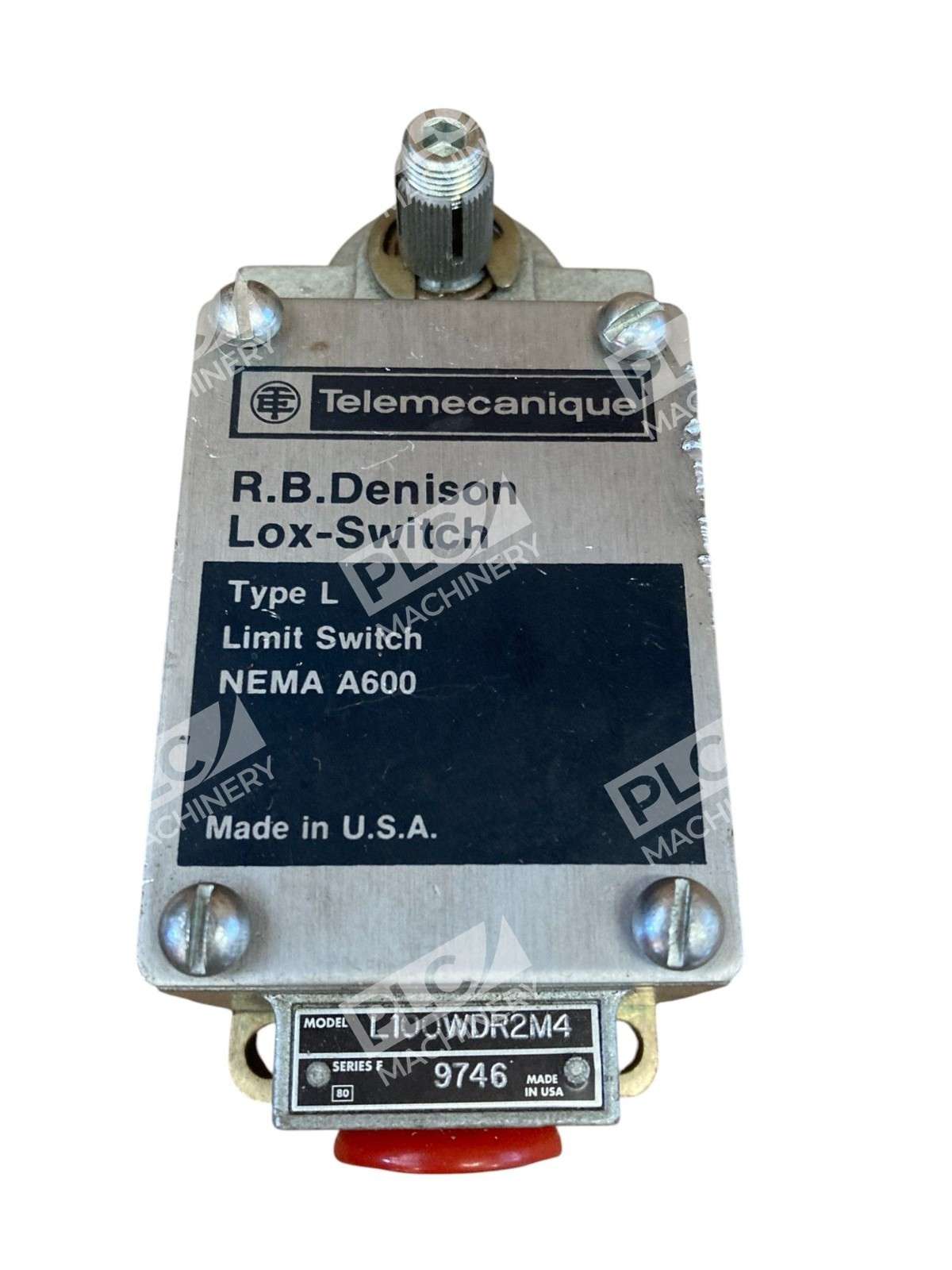

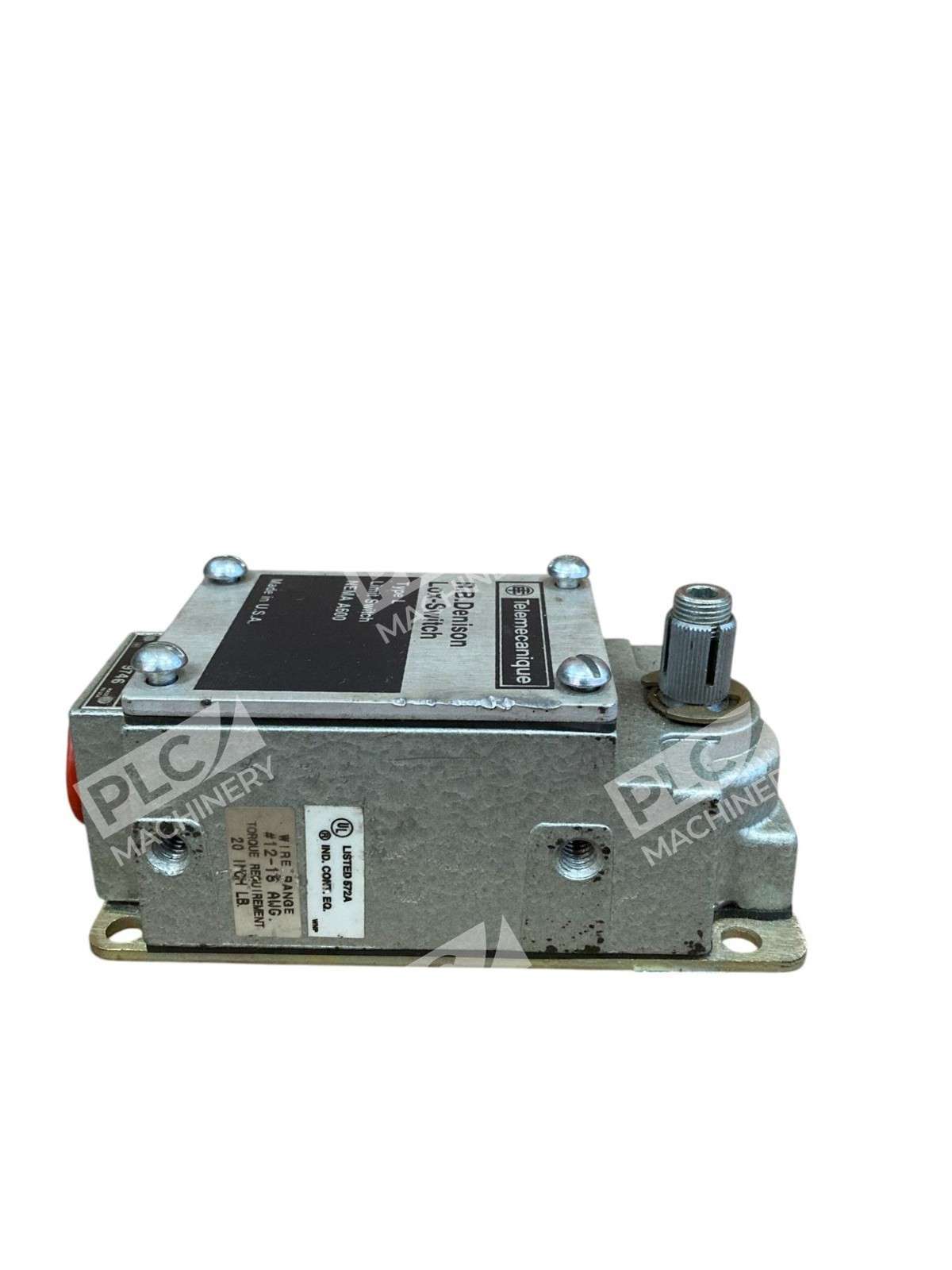

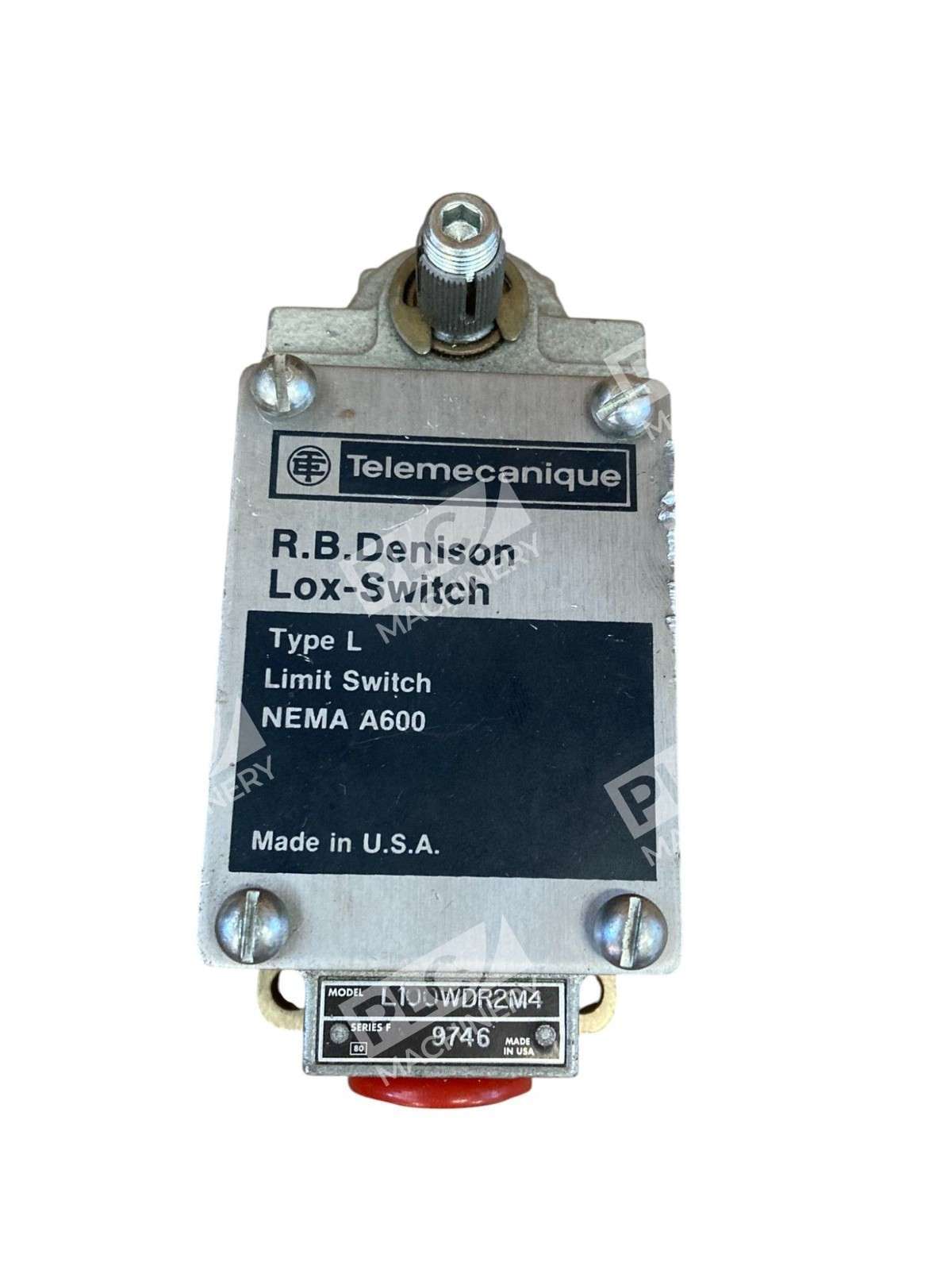

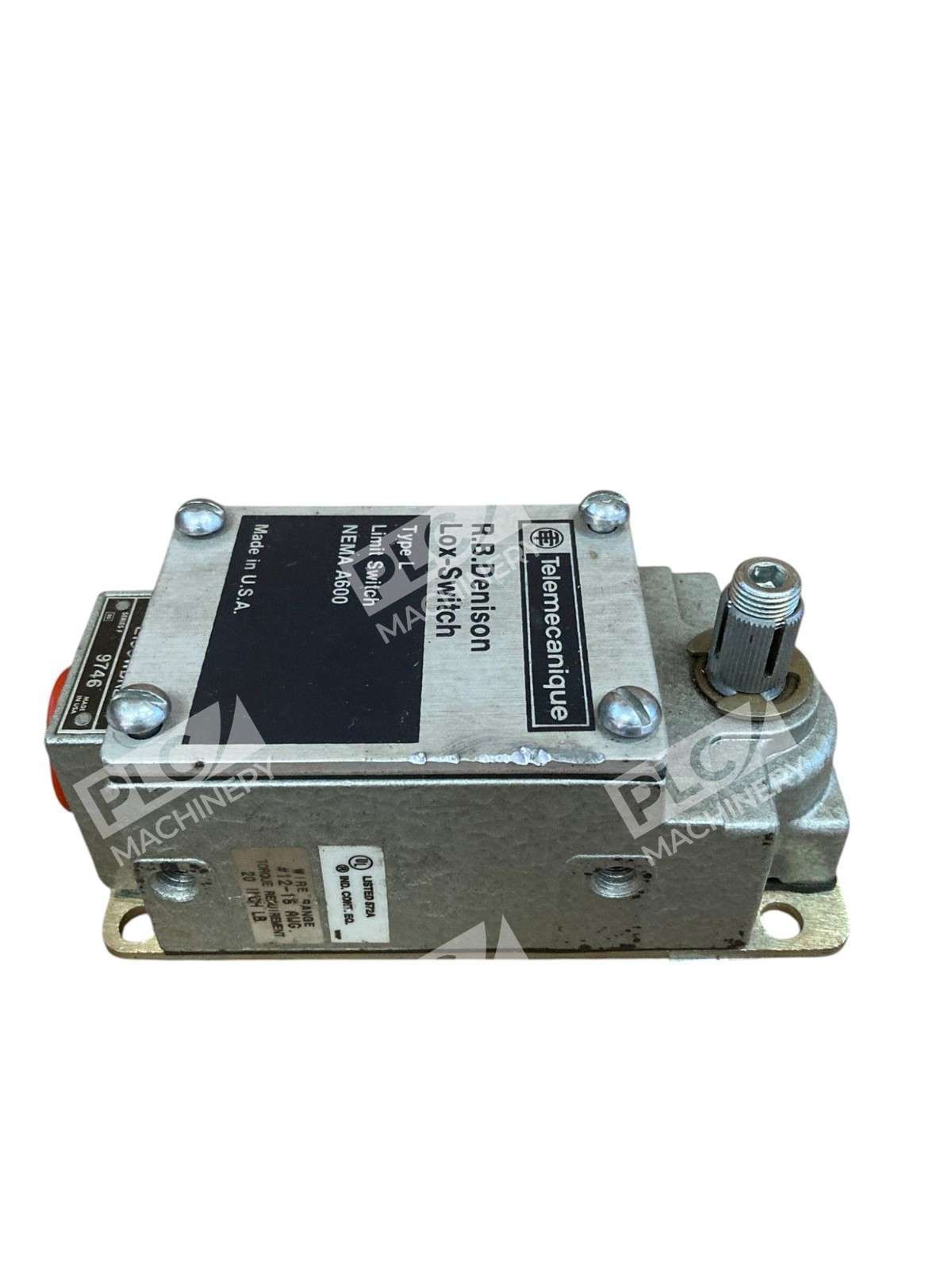

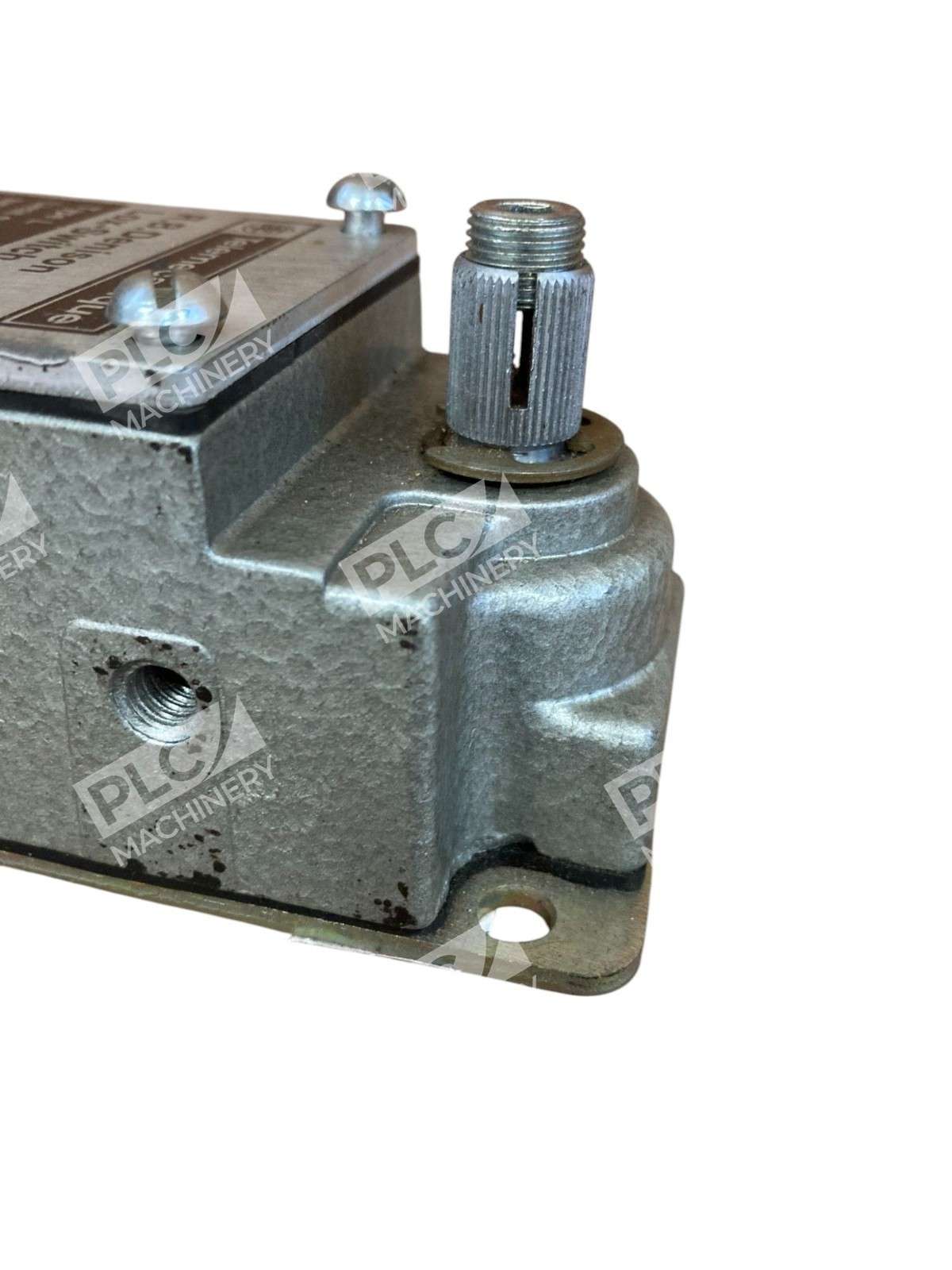

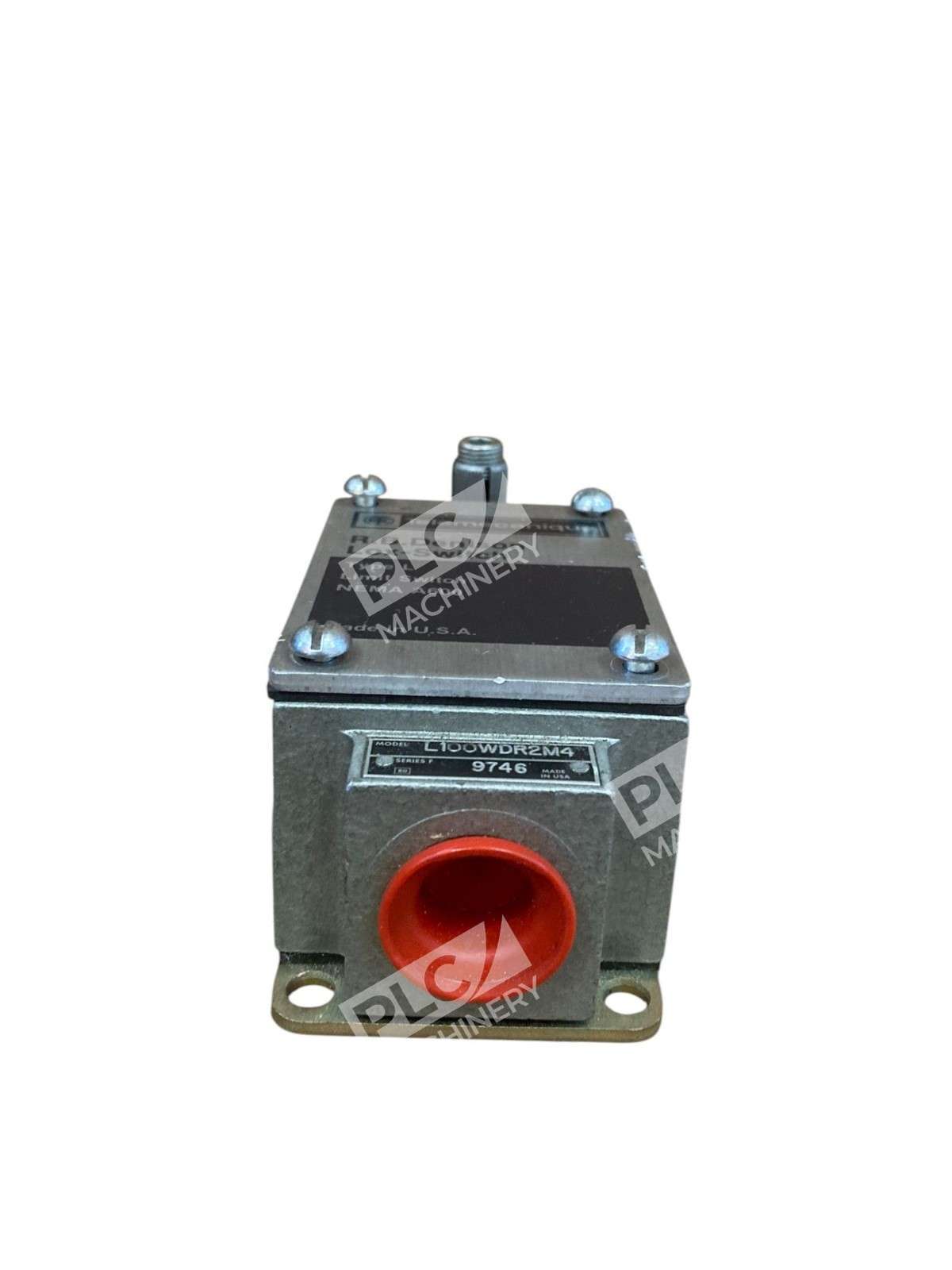

Telemecanique L100WDR2M4 R.B. Denison Lox-Switch The Telemecanique L100WDR2M4 is a severe-duty mill limit switch, designed to meet the rigorous demands of industrial applications. As part of the L100 series, this switch is engineered for environments where standard limit switches may not suffice, offering enhanced durability and performance. Key Features Voltage and Current Ratings: Operates at 600 V with a current rating of 20 A, accommodating higher load requirements. Contact Configuration: Equipped with 2 Normally Open (2NO) contacts, conforming to Form XX DPST-NO-DB configuration. Actuation Mechanism: Features a rotary head with snap action, ensuring precise and reliable operation. Enclosure: Housed in a cast aluminum body, providing robustness and resistance to harsh conditions. The enclosure meets NEMA 1, 2, 4, 12, and 13 standards, offering protection against dust, water, and other environmental factors. Connection Type: Utilizes a 1/2-14 NPT conduit entrance with screw-clamp terminals, facilitating secure and straightforward wiring. Operating Temperature Range: Designed to function effectively in temperatures ranging from -10°F to 185°F, suitable for various industrial settings. Dimensions: Measures 4.95 inches in height, 2.25 inches in width, and 3.41 inches in depth, allowing for integration into diverse machinery and equipment. Applications The L100WDR2M4 is ideal for a wide range of industrial applications, including: Material working Packaging Materials handling Conveying systems Food and beverage processing Mining and mineral construction Oil and gas operations Crane and hoisting equipment Mill and foundry environments Additional Information The L100 series, including the L100WDR2M4, is recognized for its extended operating and reset forces, as well as heavy-duty contacts capable of handling up to 20 A AC/DC. These switches are designed to meet both domestic and international standards, ensuring reliability and safety in critical applications. For detailed specifications and installation guidelines, refer to the manufacturer’s documentation.
