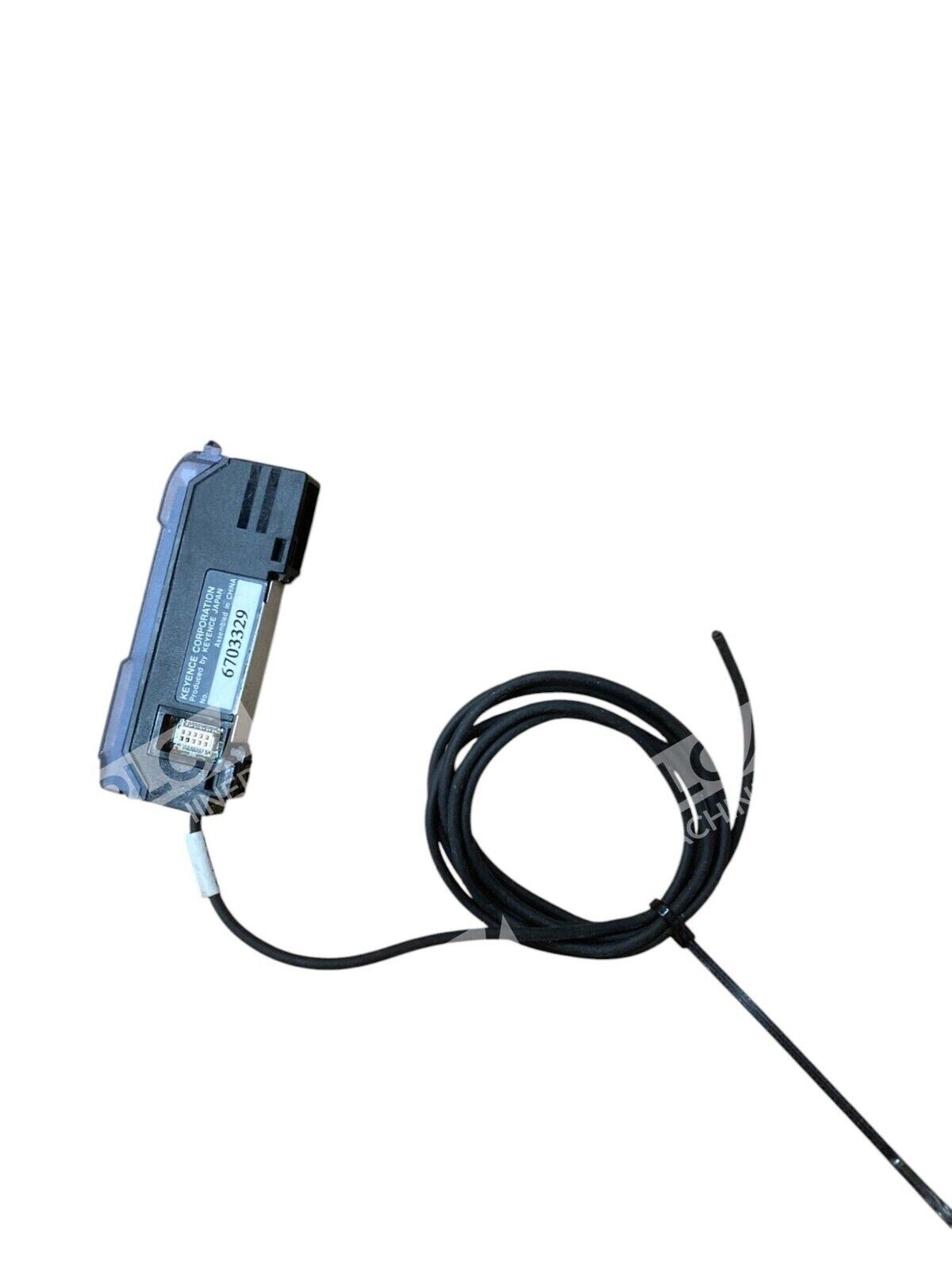

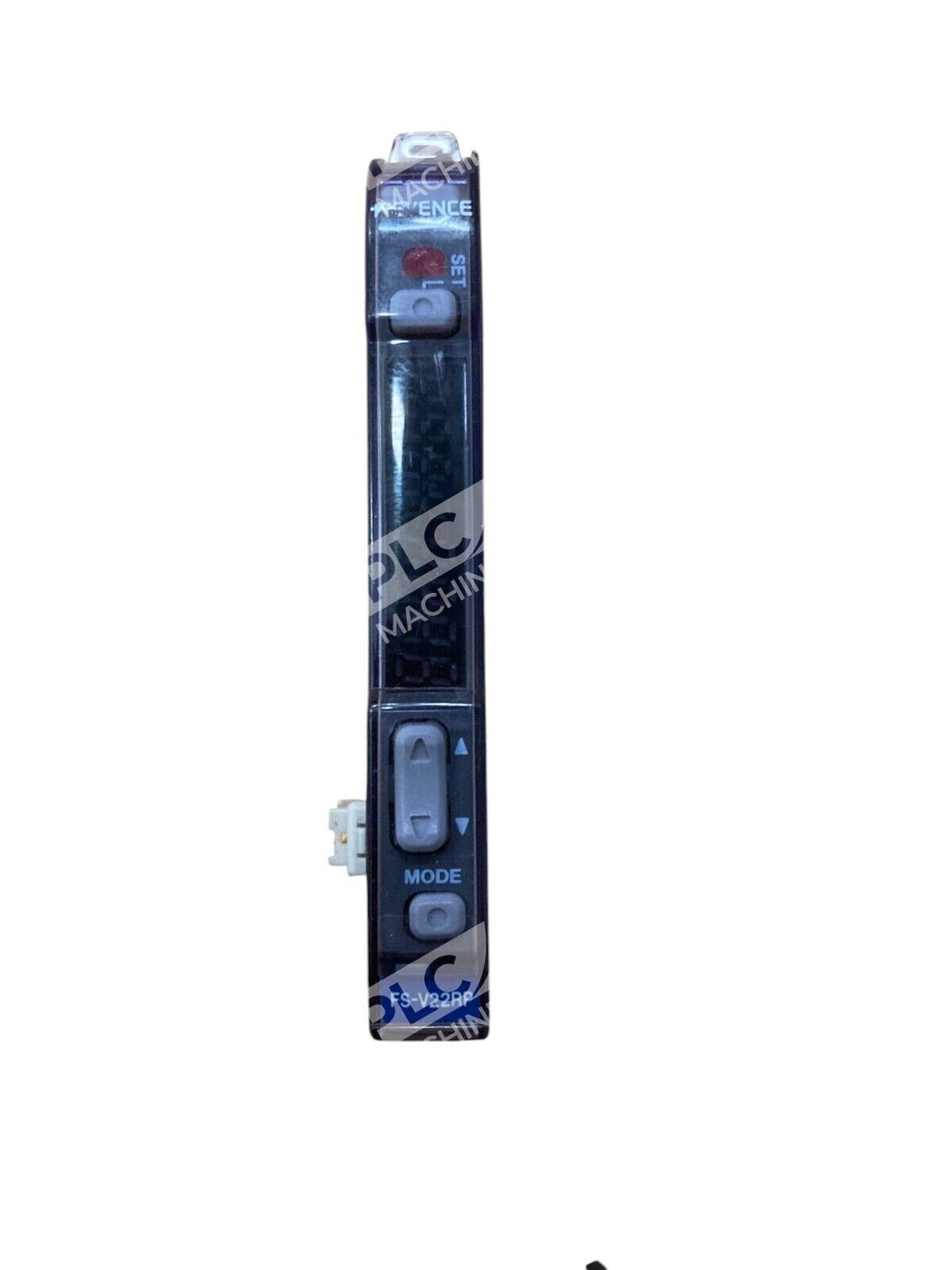

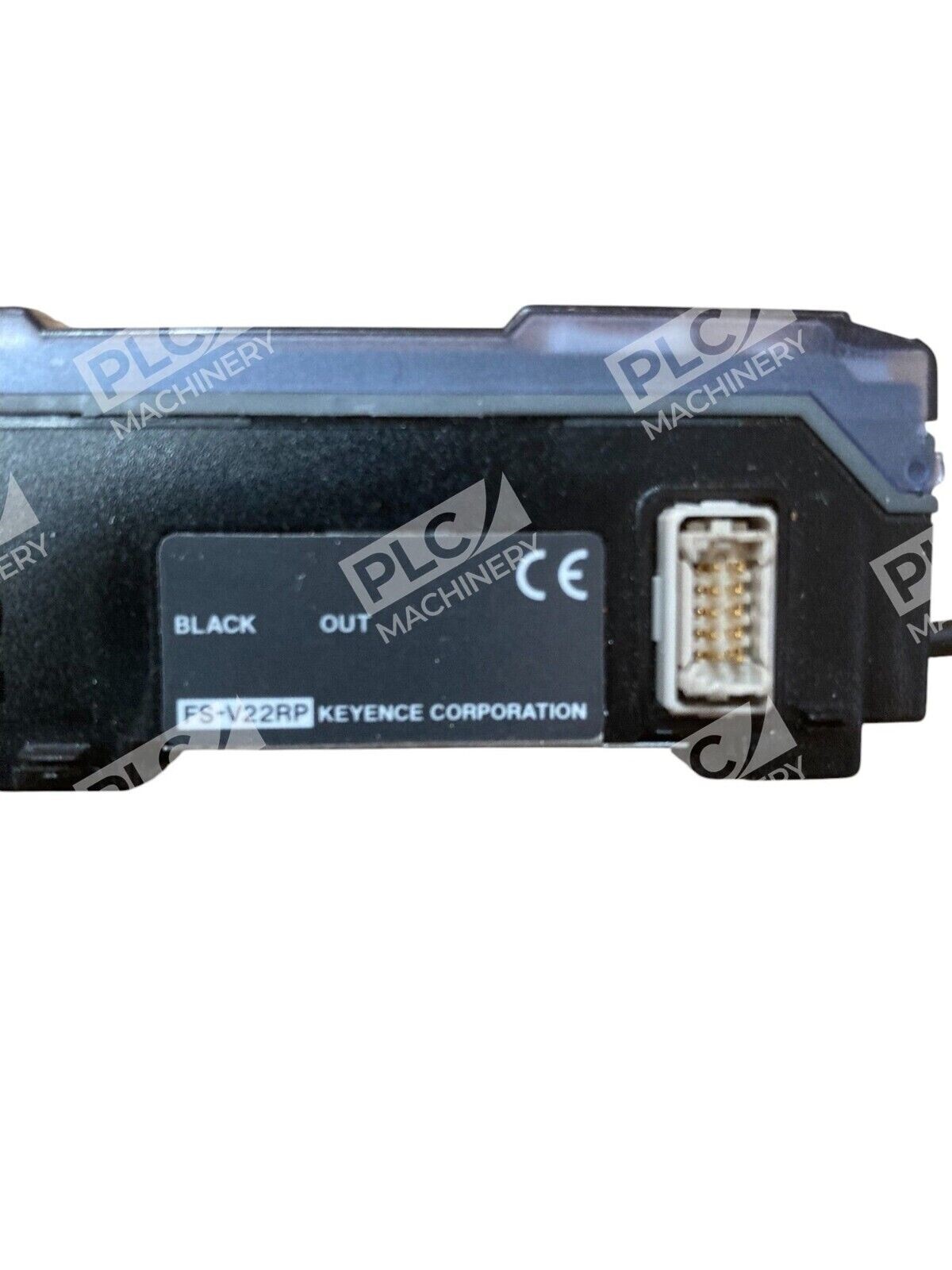

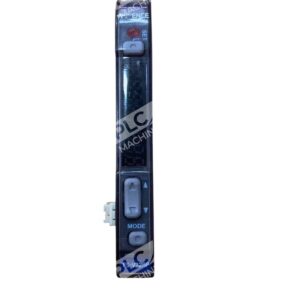

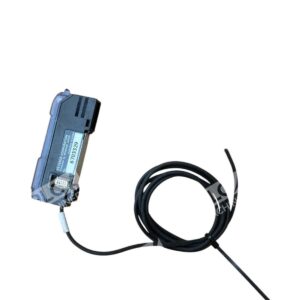

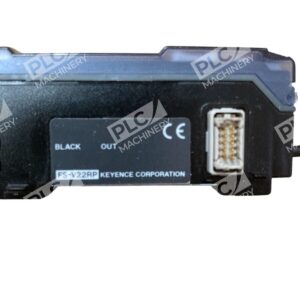

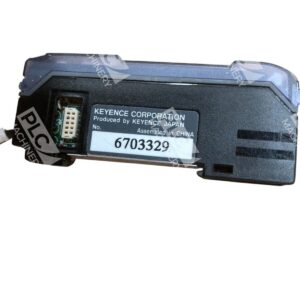

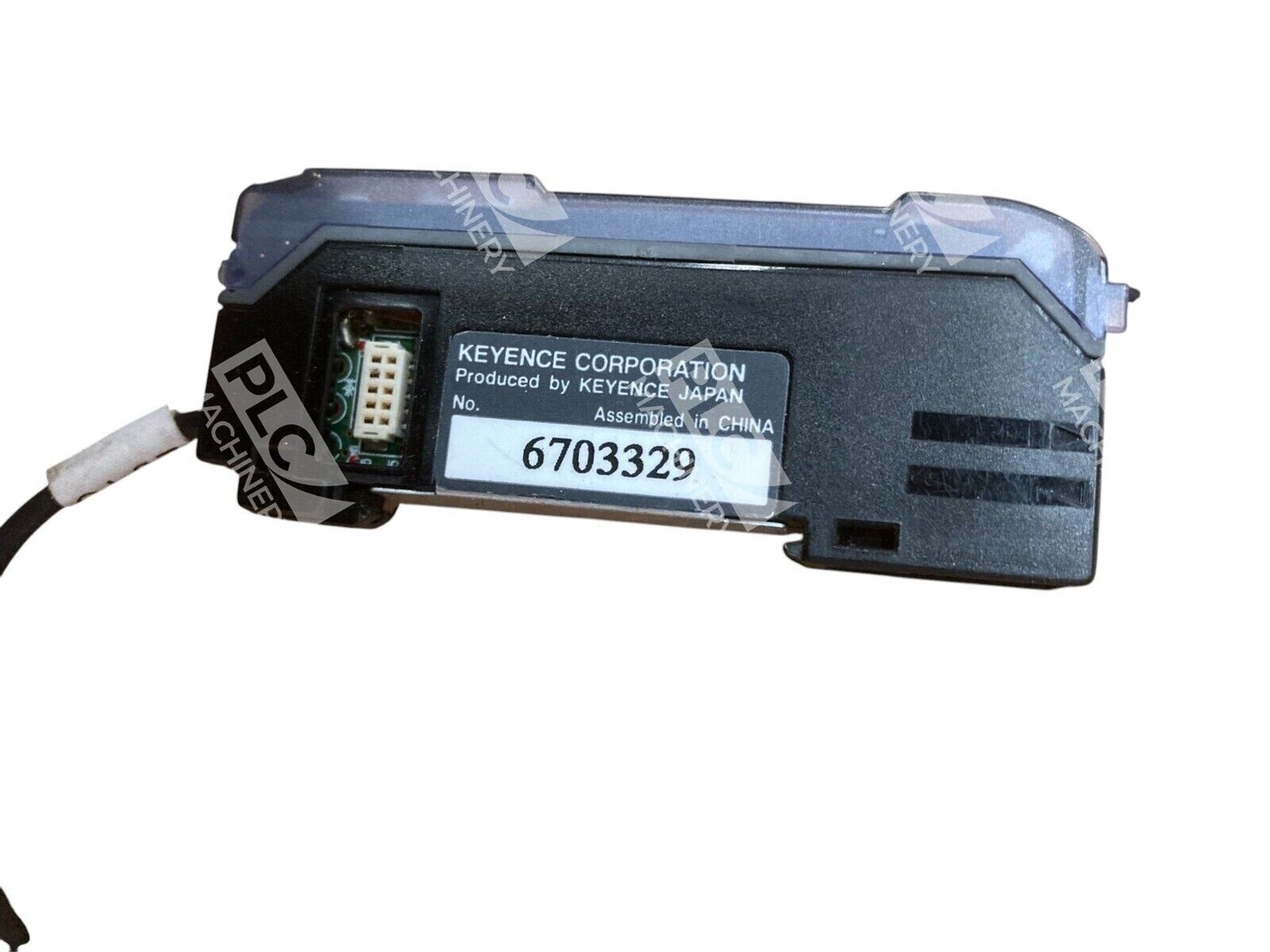

Keyence FS-V22RP Fiber Amplifier
The Keyence FS-V22RP is a fiber optic sensor amplifier designed to enhance detection capabilities in various industrial applications. This expansion unit features a PNP open-collector output and utilizes a red LED light source to ensure precise and reliable performance.
Key Features
- Light Source: Red LED
- Response Time: Adjustable settings including 250 µs (FINE), 500 µs (TURBO), 1 ms (SUPER TURBO), 4 ms (ULTRA TURBO), 500 µs (HIGH RESOLUTION), and 50 µs (HIGH SPEED)
- Output Selection: Light-ON/Dark-ON selectable
- Detection Modes: Light intensity, rising edge, falling edge
- Shift Function: Maximum ±1,999 (variable)
- Timer Function: Modes include Timer OFF, OFF-delay timer, ON-delay timer, and One-shot timer, with variable ranges from 1 to 500 ms
- Control Output: PNP open-collector, 100 mA max. (30 VDC max.), residual voltage: 1 V max.
Environmental Specifications
- Ambient Light Resistance: Incandescent lamp: 20,000 lux max.; Sunlight: 30,000 lux max.
- Operating Temperature: -10 to +55 °C (No freezing)
- Relative Humidity: 35 to 85% RH (No condensation)
- Vibration Resistance: 10 to 55 Hz, double amplitude 1.5 mm, 2 hours in each of the X, Y, and Z directions
- Shock Resistance: 500 m/s², 3 times in each of the X, Y, and Z directions
Physical Characteristics
- Case Material: Polycarbonate
- Dimensions: 30 mm (H) x 9 mm (W) x 70 mm (D)
- Weight: Approximately 45 g (including 2-m cable)
The FS-V22RP is engineered to deliver high-speed and high-resolution detection, making it suitable for a wide range of industrial sensing applications. Its compact design and robust environmental resistance ensure reliable operation in diverse settings.
