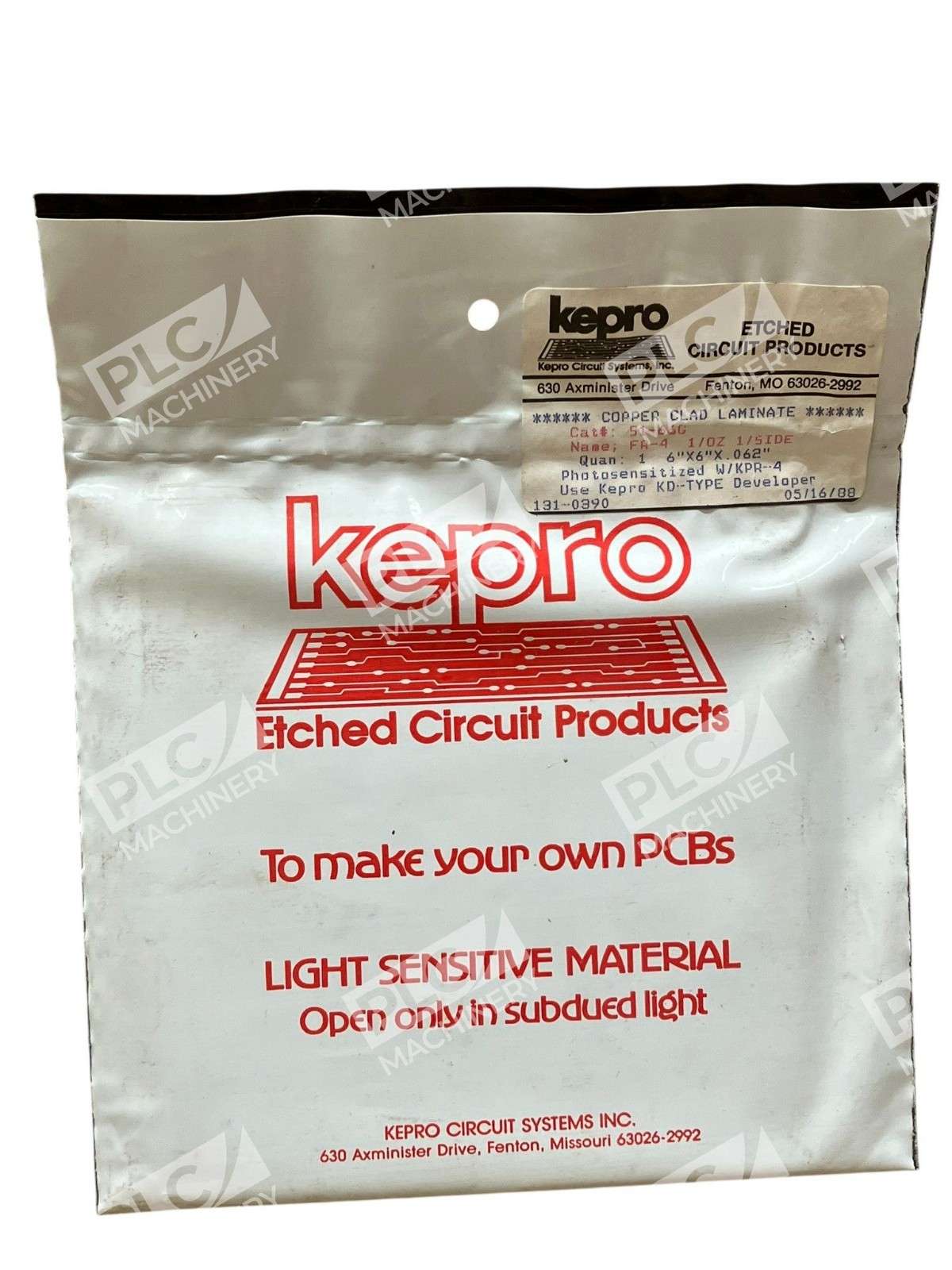

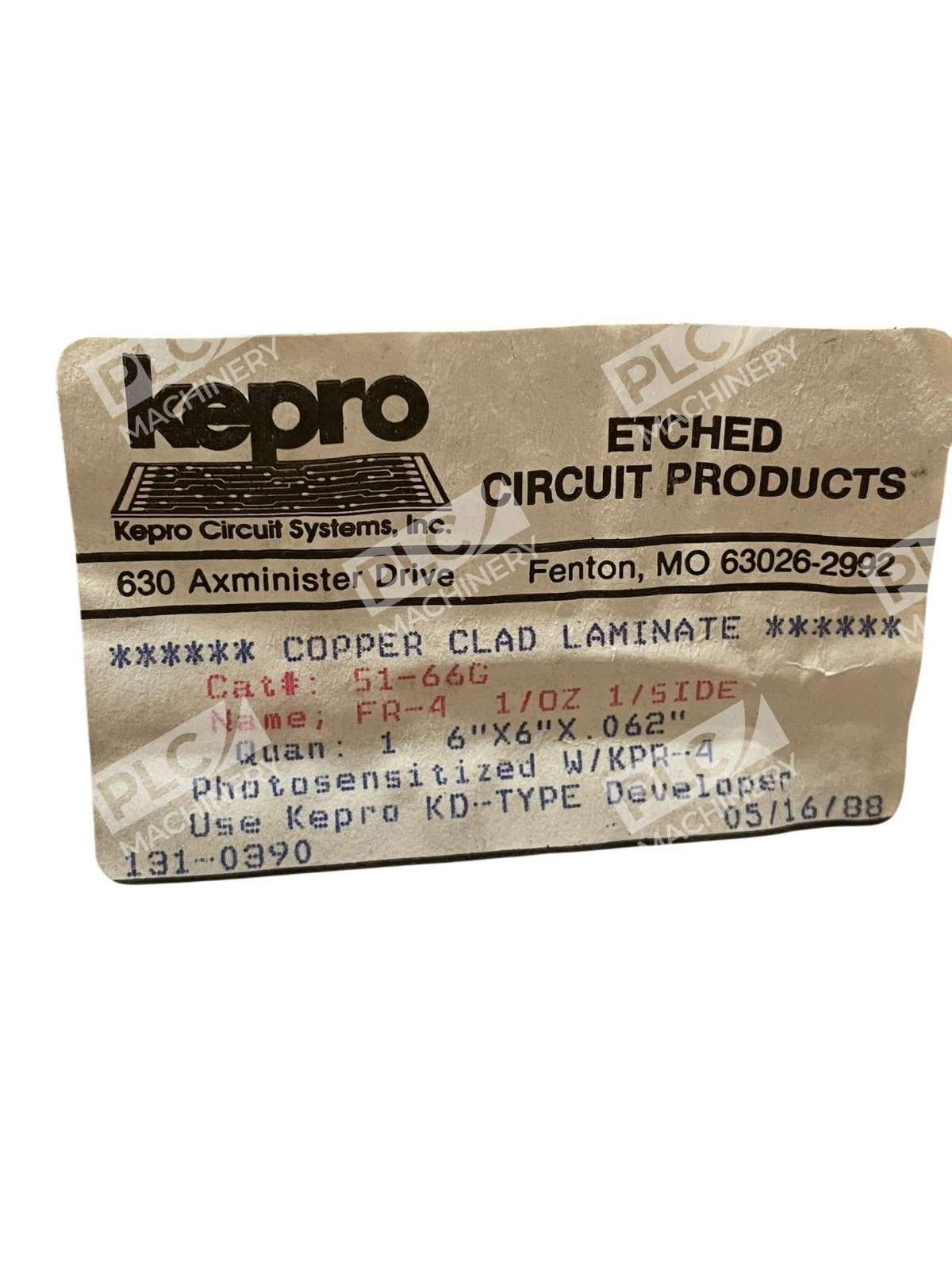

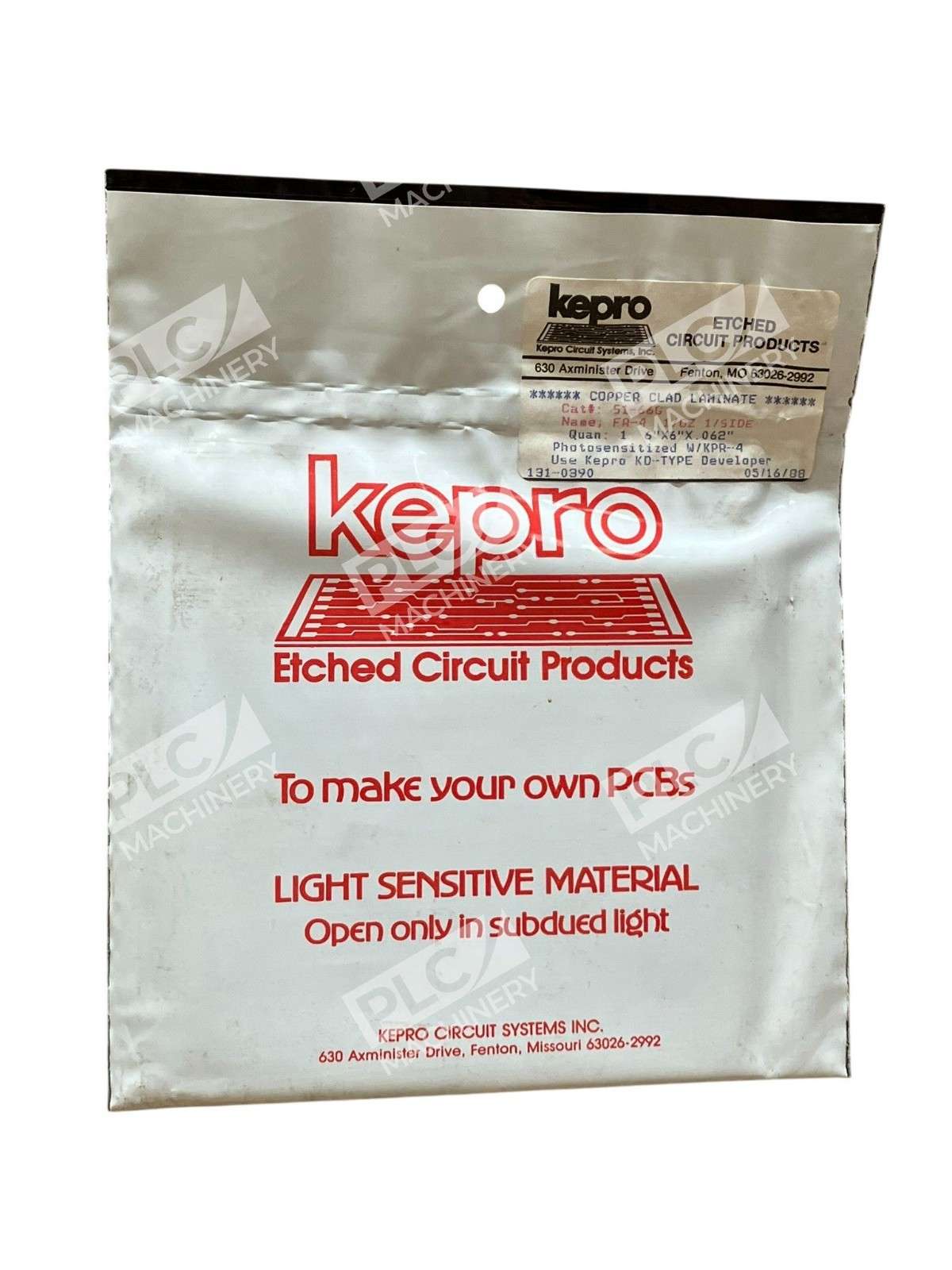

Kepro FR-4 1/OZ 1/Side 6″x6″x.062″ Photosensitized Laminate S1-66G

Kepro FR-4 1/OZ 1/Side 6″x6″x.062″ Photosensitized Laminate S1-66G

The Kepro FR-4 S1-66G is a high-quality, photosensitized laminate designed for precision in printed circuit board (PCB) prototyping and manufacturing. This single-sided laminate features a 1-ounce copper layer on a 6-inch by 6-inch substrate with a thickness of 0.062 inches, providing a robust foundation for various electronic applications.

Key Features

• Photosensitized Surface: The laminate’s photosensitive coating allows for the creation of intricate circuit patterns through photolithography, facilitating efficient and accurate PCB fabrication.
• FR-4 Substrate: Constructed from FR-4 material, known for its excellent mechanical strength, thermal stability, and electrical insulation properties, ensuring durability and reliability in electronic designs.
• 1-Ounce Copper Cladding: The 1-ounce copper layer provides sufficient conductivity for a wide range of electronic circuits, balancing performance and material efficiency.
• Standard Dimensions: Measuring 6 inches by 6 inches with a thickness of 0.062 inches, this laminate offers a convenient size for prototyping and small-scale production.

Applications

The Kepro FR-4 S1-66G laminate is ideal for:

• Prototyping and developing custom PCBs for electronic devices.
• Educational purposes in electronics and engineering courses.
• Small-scale production runs requiring precise and reliable PCB substrates.

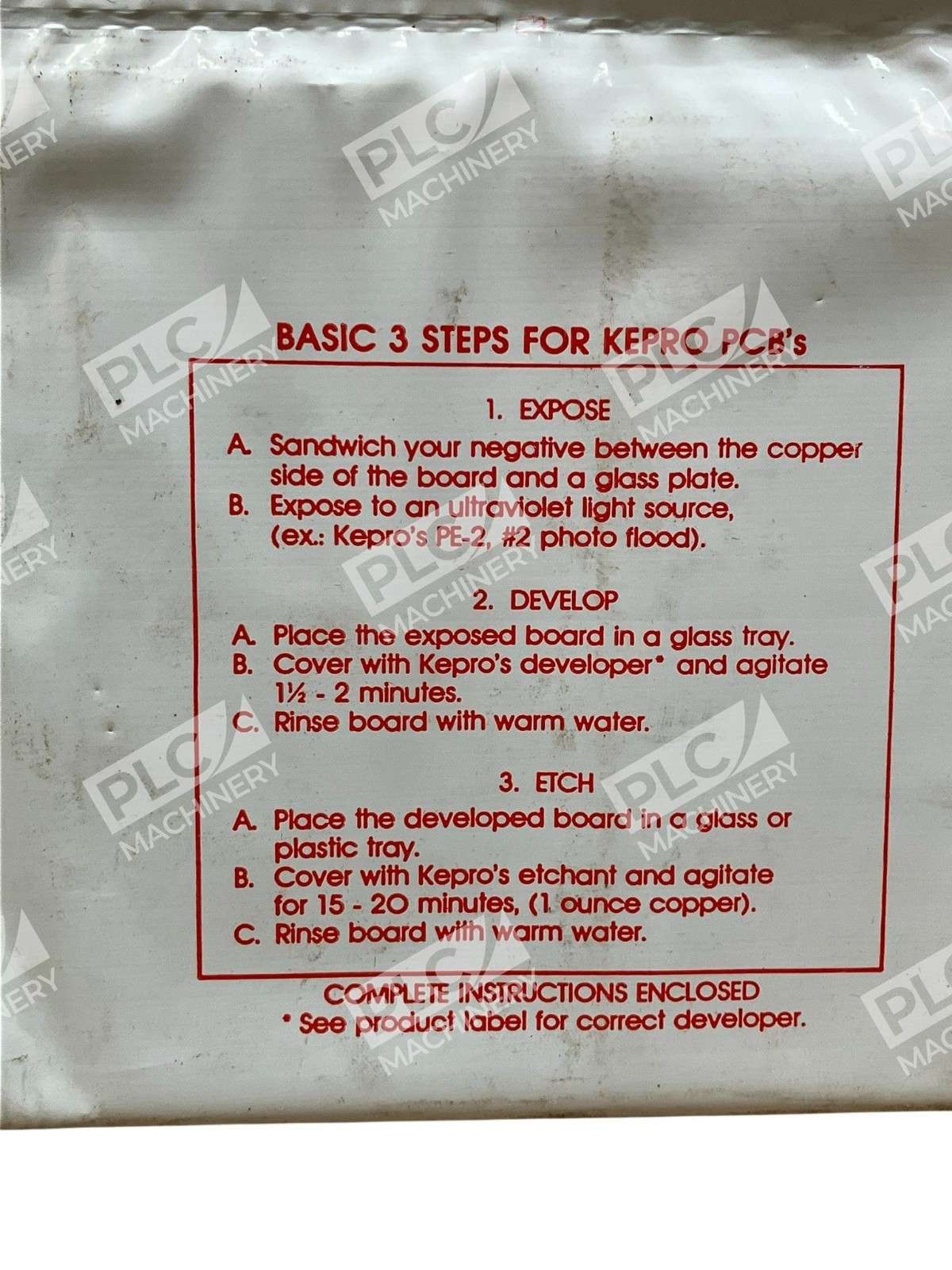

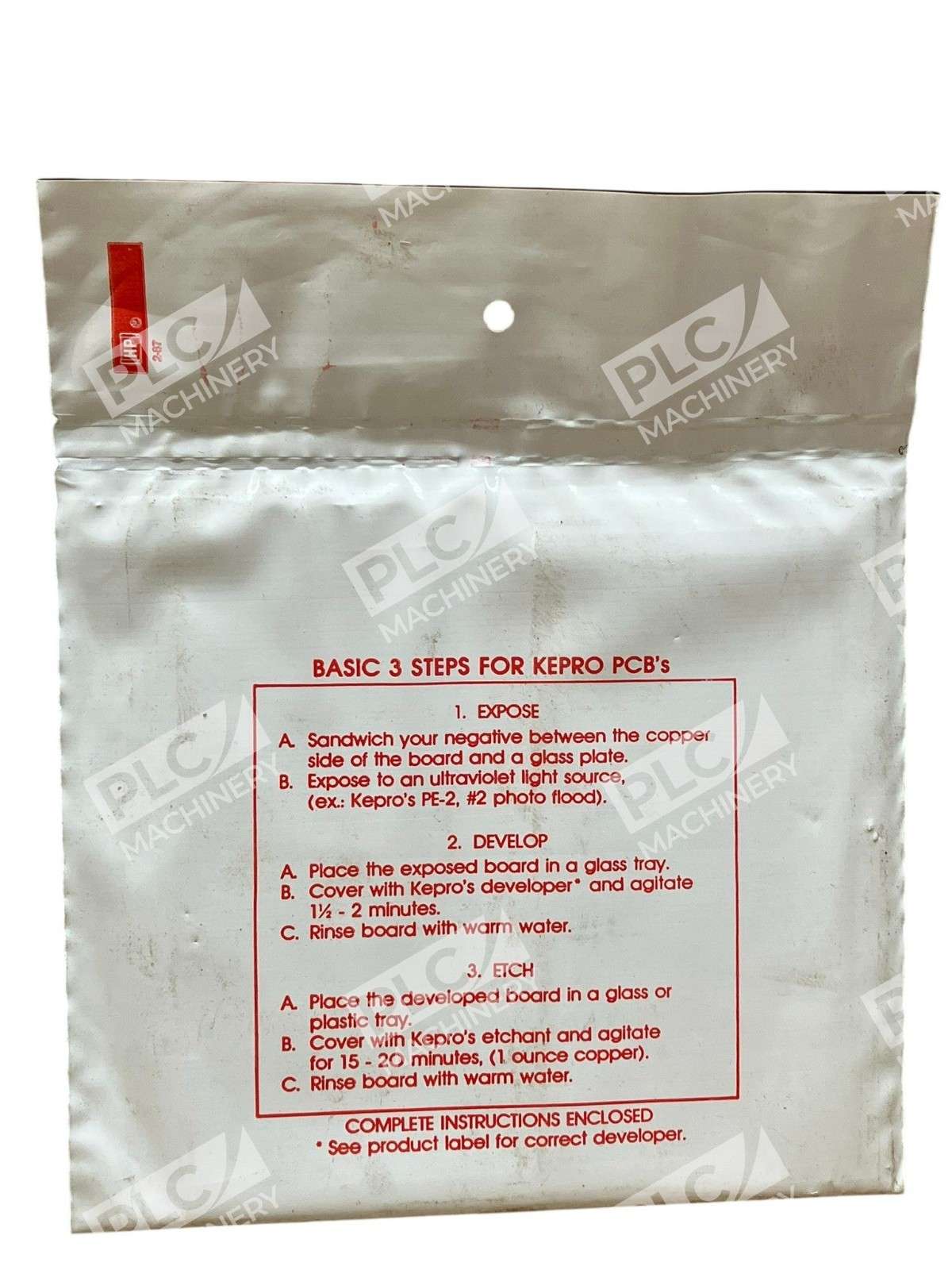

Processing Guidelines

To achieve optimal results with the Kepro FR-4 S1-66G laminate:

• Store the laminate in a cool, dry environment to preserve the photosensitive coating.
• Handle the material under safe light conditions to prevent premature exposure.
• Follow standard photolithographic procedures for developing and etching the desired circuit patterns.
• Ensure proper safety measures are in place when working with chemicals and UV light sources.

The Kepro FR-4 S1-66G photosensitized laminate offers a reliable and efficient solution for creating high-quality printed circuit boards, catering to the needs of both professionals and hobbyists in the electronics field.
