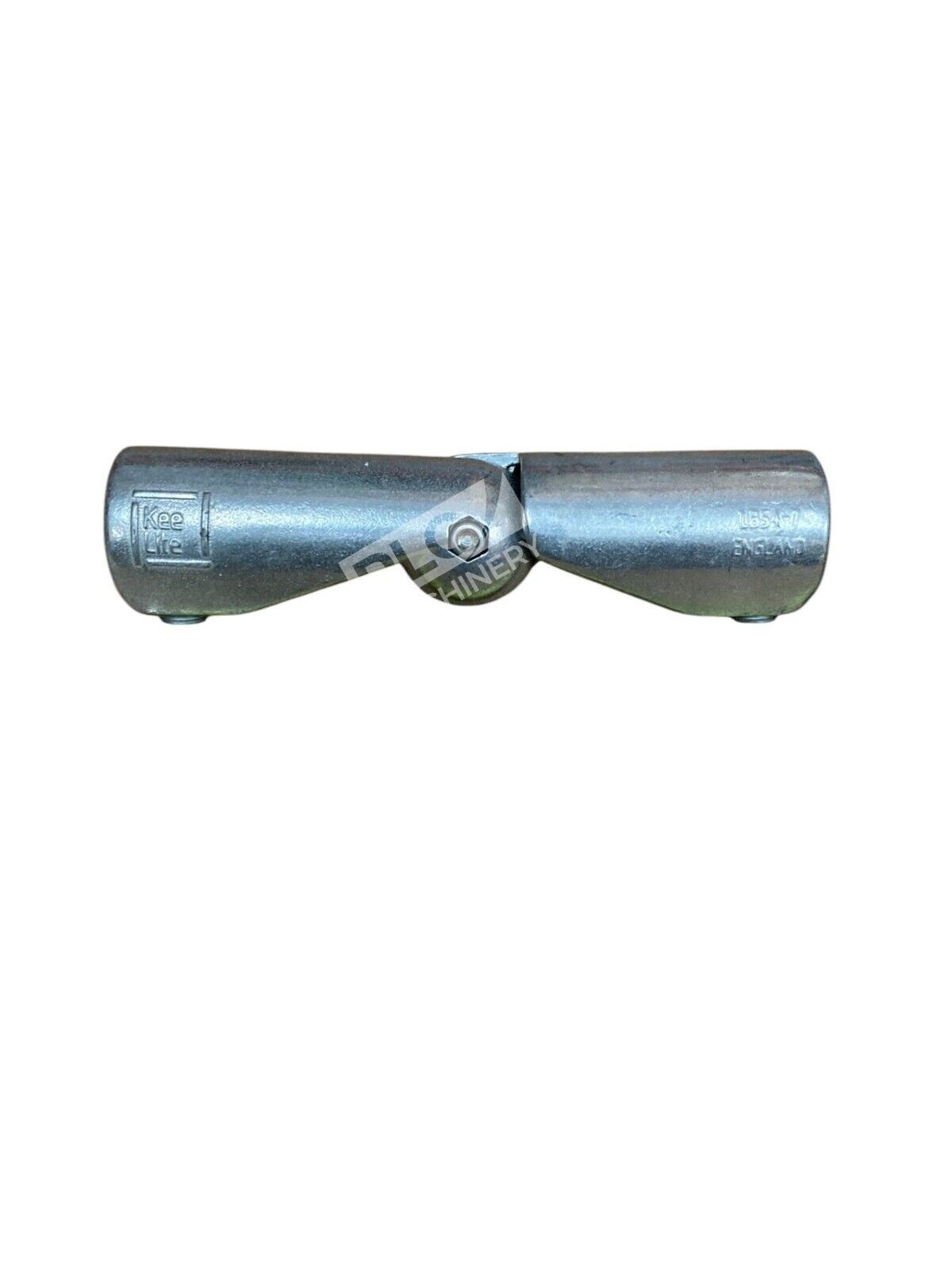

Kee Lite Adjustable Elbow LB54-7

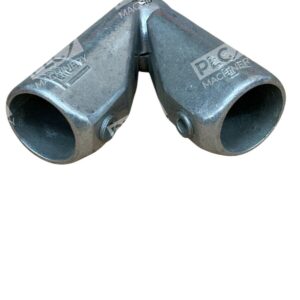

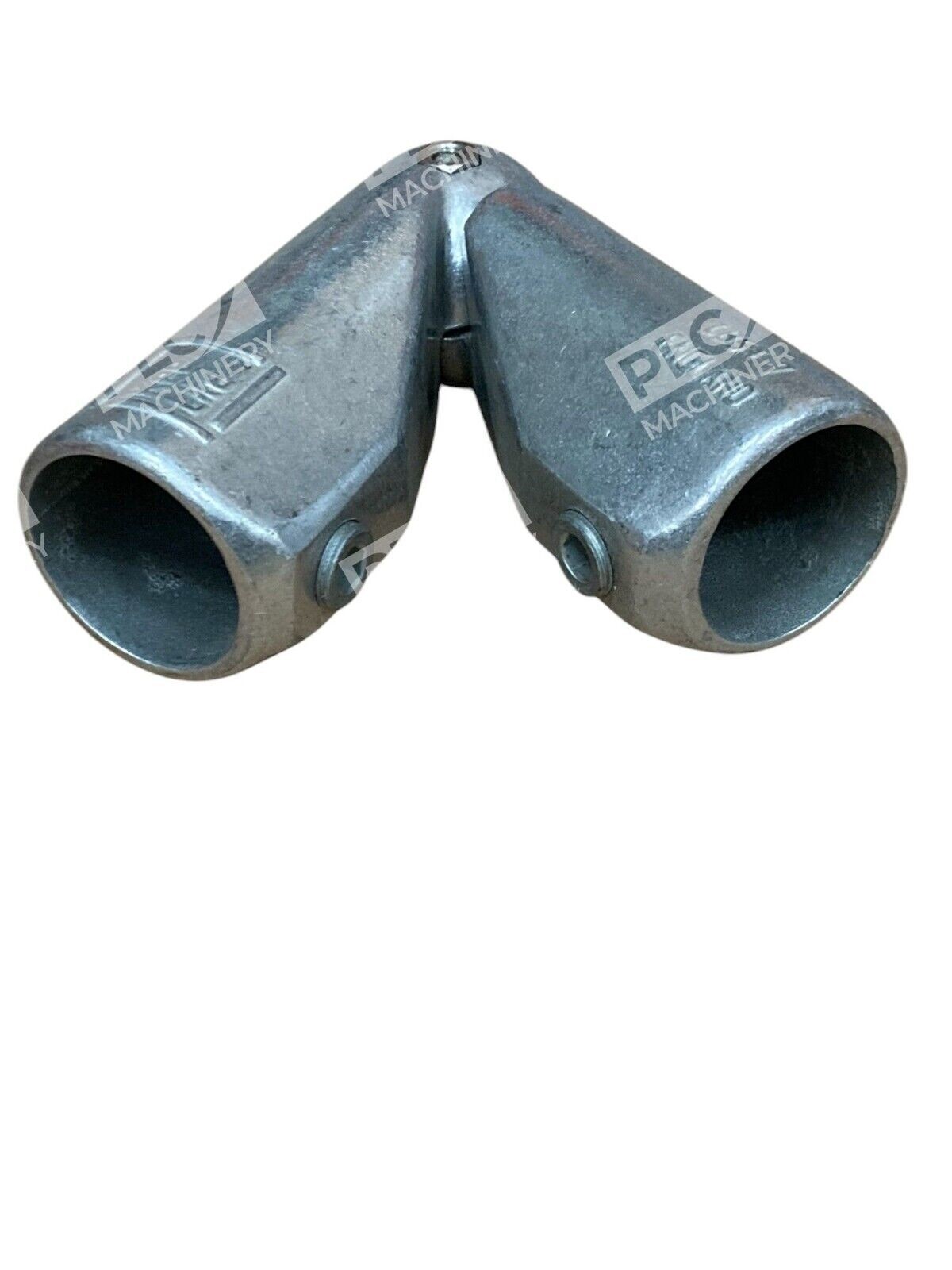

The Kee Lite Adjustable Elbow LB54-7 is a versatile swivel fitting designed to provide an in-line variable angle connection, adjustable from 45° to 200°. This flexibility makes it ideal for constructing handrails, safety barriers, and other tubular structures that require precise angle adjustments.
Key Features
- Material: Constructed from high-grade aluminum silicon magnesium alloy (A356-T6), offering a lightweight yet robust alternative to traditional steel fittings.
- Corrosion Resistance: The aluminum composition ensures excellent resistance to corrosion, making it suitable for both indoor and outdoor applications.
- Ease of Assembly: Designed for simple installation without the need for welding or threading. A standard hex key and tube cutter are sufficient for assembly, facilitating on-site adjustments and reducing labor costs.

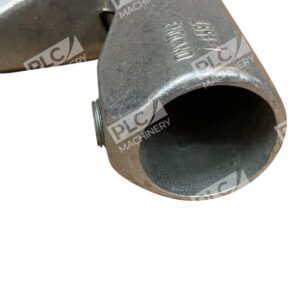

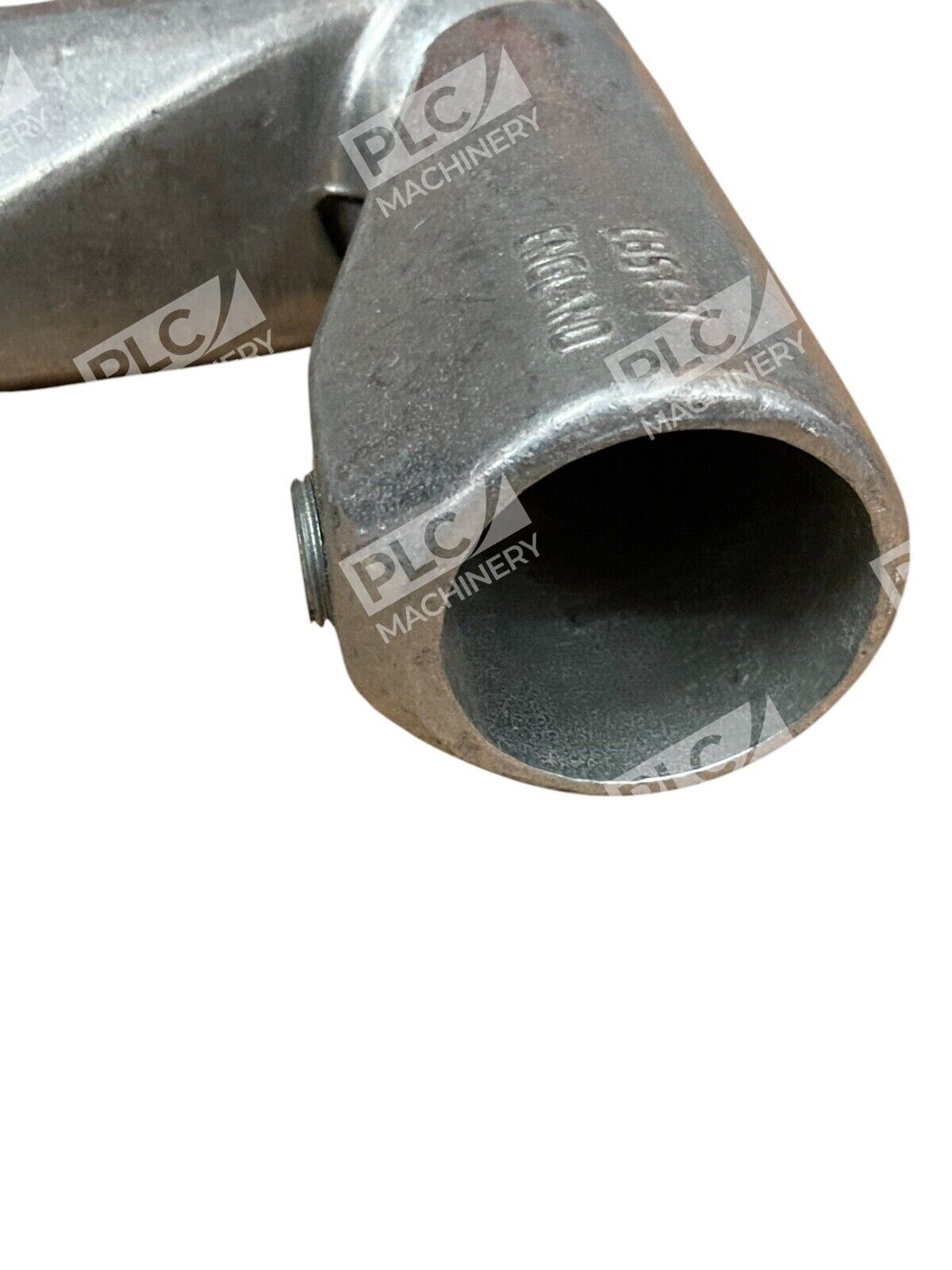

- Compatibility: Specifically designed to fit Schedule 40 aluminum or steel pipes with an outside diameter of 1.660 inches (1-1/4″ nominal bore).
- Load Capacity: Capable of supporting an axial load of up to 2,000 lbs per set screw when tightened to a torque of 29 lbs/ft, incorporating a safety factor of 2:1.
- Set Screws: Equipped with stainless steel set screws to enhance durability and provide additional corrosion protection.
Technical Specifications
| Measurement | Imperial (inches) | Metric (mm) |
|---|---|---|
| A (Pipe Outer Diameter) | 1.66 | 42.4 |
| B | 1.66 | 42.4 |
| D | 2.28 | 58.0 |
| E | 2.17 | 55.0 |
| F | 4.69 | 119.0 |
| Weight | 1.43 lbs | 0.65 kg |
Applications
The Kee Lite Adjustable Elbow LB54-7 is ideal for a wide range of applications, including:
- Handrails and guardrails
- Safety barriers
- Structural frameworks
- Customizable tubular structures requiring variable angle connections
Its lightweight design, combined with high strength and corrosion resistance, makes it a preferred choice for both temporary and permanent installations in various environments.
