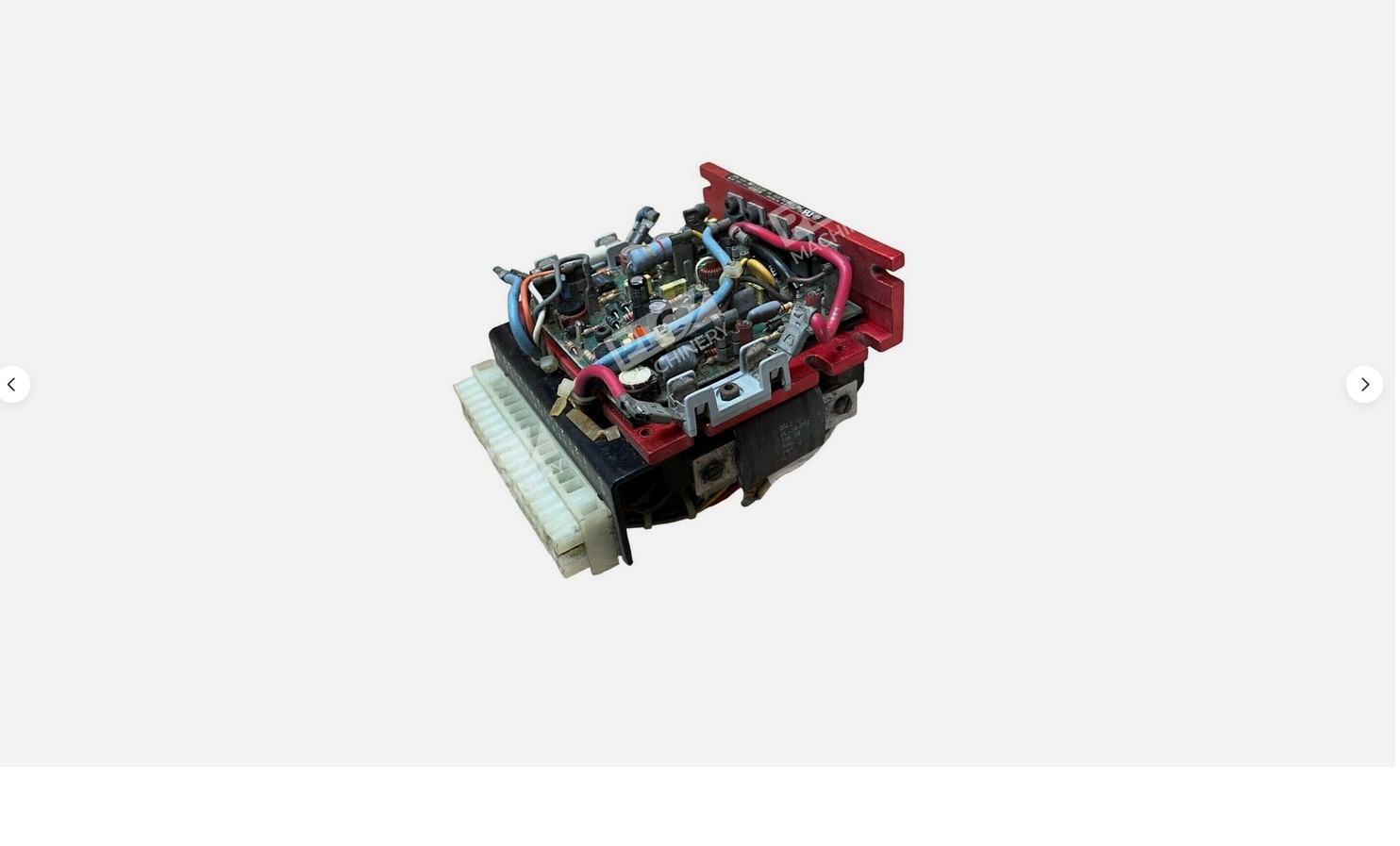

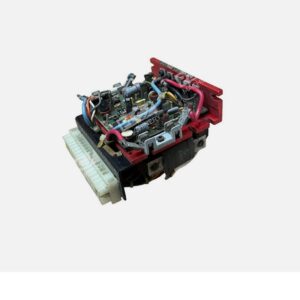

KB Electronics KBPB-125 DC Drive Reversing Control
The KB Electronics KBPB-125 is a compact and efficient DC motor speed controller designed for precise control and rapid reversing of DC motors. Its space-saving chassis makes it ideal for installations where space is limited.
Key Features
- Input Voltage: 115 VAC
- Output Voltage: 90 VDC
- Current Rating: 8 Amps (up to 16 Amps with optional heatsink)
- Horsepower Range: 0.75 HP (up to 1.5 HP with optional heatsink)
- Reversing Capability: Yes
- Dynamic Braking: Built-in solid-state dynamic braking for rapid stopping
- Plug-in Horsepower Resistor®: Allows for easy adaptation to various motor sizes without recalibration
- Trimpot Adjustments: Includes MIN, MAX, IR COMP, CL, ACCEL, and DECEL for fine-tuning performance
- Auto Inhibit®: Provides smooth and safe start-up during rapid switching of the AC line
- Compact Design: Dimensions of 4.30″ x 5.10″ x 3.50″ facilitate easy installation in confined spaces
Applications
The KBPB-125 is suitable for a variety of applications, including:
- Conveyors
- Pumps
- Screen presses
- Robotics
- Door openers
- Feeders
- Indexers
- Tapping machines
Additional Information
To ensure optimal performance, the KBPB-125 requires a Plug-in Horsepower Resistor® and appropriate fusing, which are sold separately. The control includes a 5K ohm remote potentiometer for convenient speed adjustments.
For installations requiring higher horsepower or current ratings, the optional auxiliary heatsink can be added to enhance the drive’s capacity.
With its robust features and reliable performance, the KBPB-125 is an excellent choice for applications demanding precise speed control and rapid reversing of DC motors.
