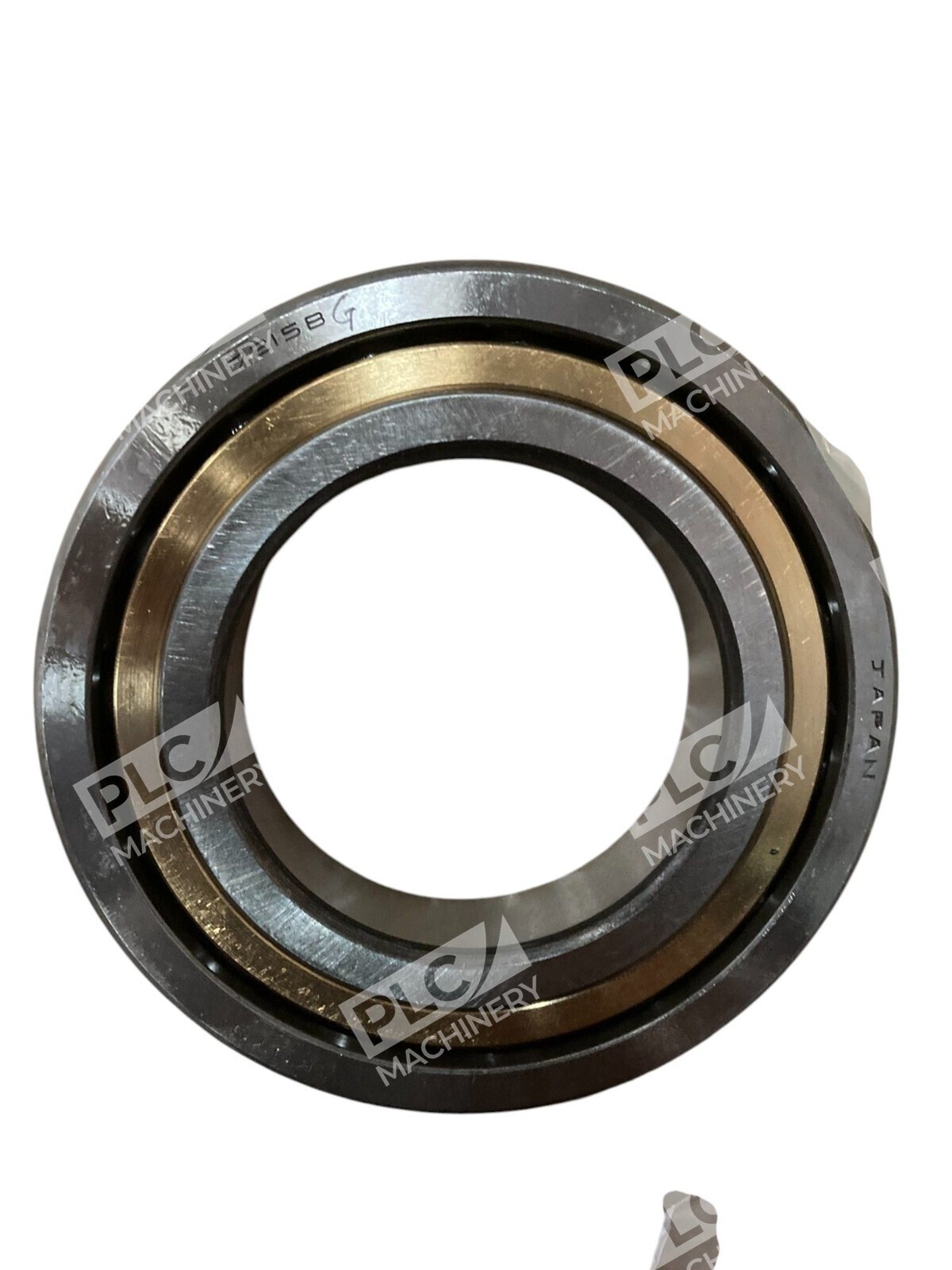

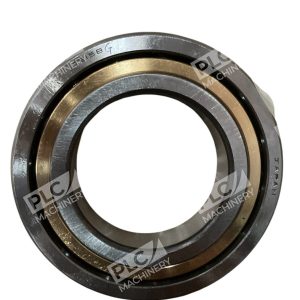

The JBS Japan Bearing Service 7215BG is a high-quality single-row angular contact ball bearing designed to handle both radial and axial loads efficiently.
Key Features
- Contact Angle: 40 degrees, optimizing axial load capacity.
- Dimensions: Inner diameter of 75 mm, outer diameter of 130 mm, and width of 25 mm.
- Material: Constructed from high carbon chrome steel for enhanced durability.
- Cage Type: Pressed steel cage ensuring stability and performance.
- Load Ratings: Dynamic load capacity of 71,500 N and static load capacity of 62,000 N.
- Speed Ratings: Maximum rotational speed of 4,500 rpm with grease lubrication and 6,000 rpm with oil lubrication.
- Operating Temperature Range: Suitable for temperatures between -40°C and 120°C.
Applications
Ideal for use in various industrial applications, including gearboxes, pumps, steel mill equipment, paper converting machines, machine tools, textile machinery, and sheave blocks.
Mounting Arrangements
The 7215BG bearing is flush ground for universal mounting, allowing for back-to-back (DB), face-to-face (DF), or tandem (DT) arrangements without the need for additional shims or spacers.
Additional Information
This bearing is part of the 72B series and adheres to ISO Class 0 precision standards, ensuring reliable performance in demanding applications.
