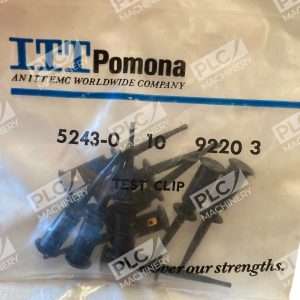

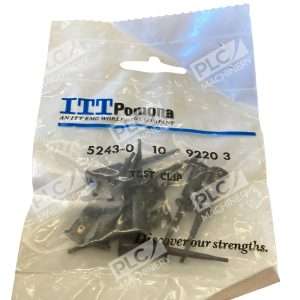

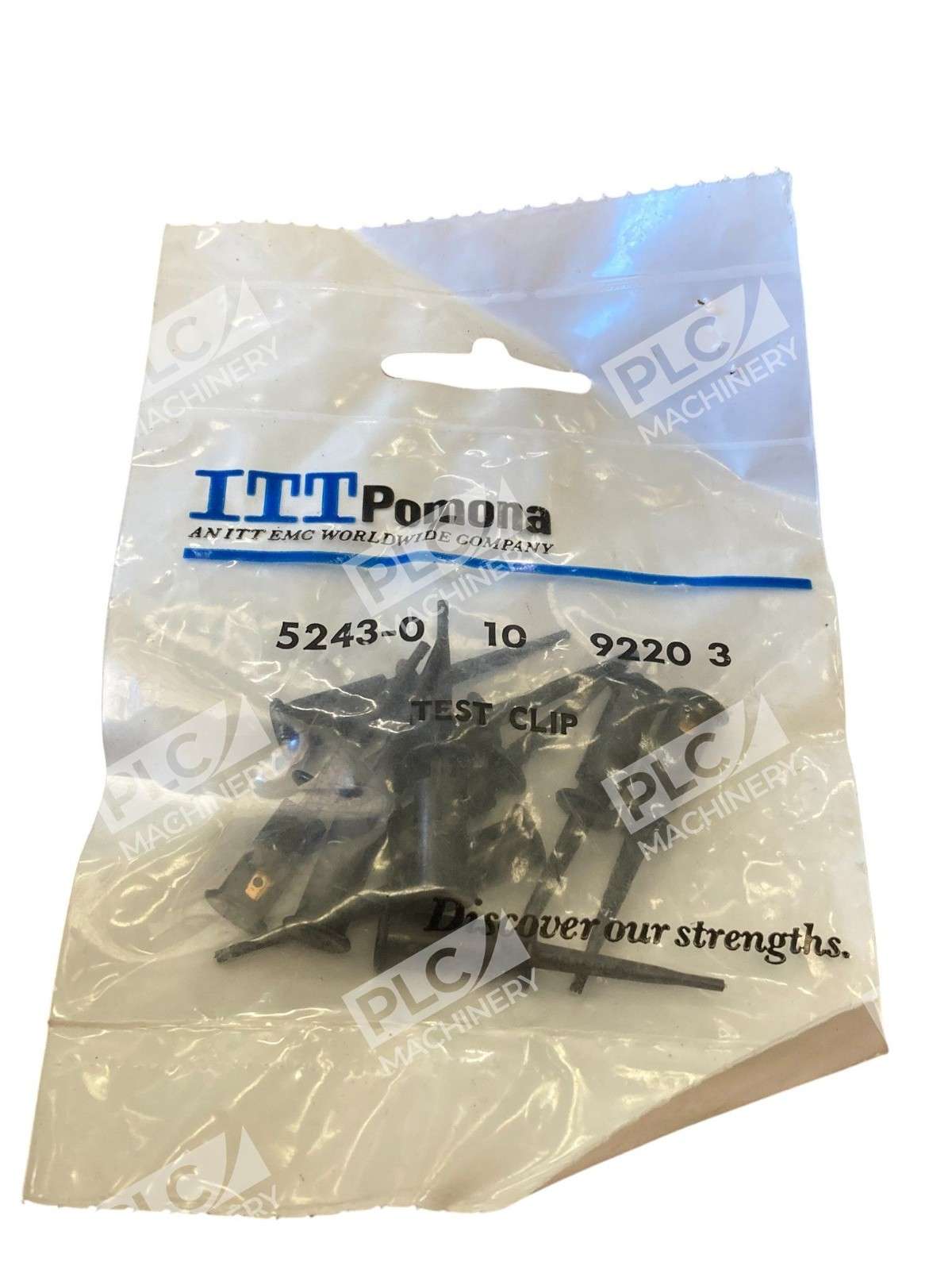

The ITT Pomona 5243-0 SMD Grabber Test Clip is a specialized tool designed for precise testing of surface-mounted devices (SMDs). This pack includes 10 black clips, each engineered to facilitate secure connections to SMD packages with lead pitches as small as 0.76mm (0.030 inches).
Key Features
- Precision Contact: The pincer-like contacts are adept at grasping individual legs of SMDs, including SOIC, SOJ, and PLCC packages, ensuring reliable and accurate testing.
- Compact Design: With an overall length of 1.580 inches (40.13mm) and a barrel diameter of 0.35 inches (8.89mm), these clips are designed for easy handling and maneuverability in tight spaces.
- Durable Construction: Constructed with stainless steel contacts and glass-filled nylon insulation, the clips offer durability and longevity.
- Gold-Plated Contacts: The contacts are gold-plated per MIL-G-45204, Type II, with a thickness of 30 to 50 microinches, enhancing conductivity and resistance to corrosion.
Specifications
- Hook/Pincer Opening: 0.040 inches (1.02mm)
- Termination: Solder connection with a 0.090-inch (2.29mm) wire opening
- Operating Temperature: Up to +102°C (+216°F)
- Voltage Rating: 30VAC / 60VDC maximum
- Current Rating: 0.5 Amperes
Assembly Instructions
- Remove the thumb cap to expose the contact connection.
- Thread the wire through the thumb cap and strip approximately 3.18mm (1/8 inch) of insulation.
- Insert the stripped wire end through the hole on the contact and solder securely.
- Slide the thumb cap back onto the contact to complete the assembly.
The ITT Pomona 5243-0 SMD Grabber Test Clips are essential for professionals requiring precise and reliable connections during the testing of surface-mounted components. Their robust design and ease of assembly make them a valuable addition to any electronics testing toolkit.
