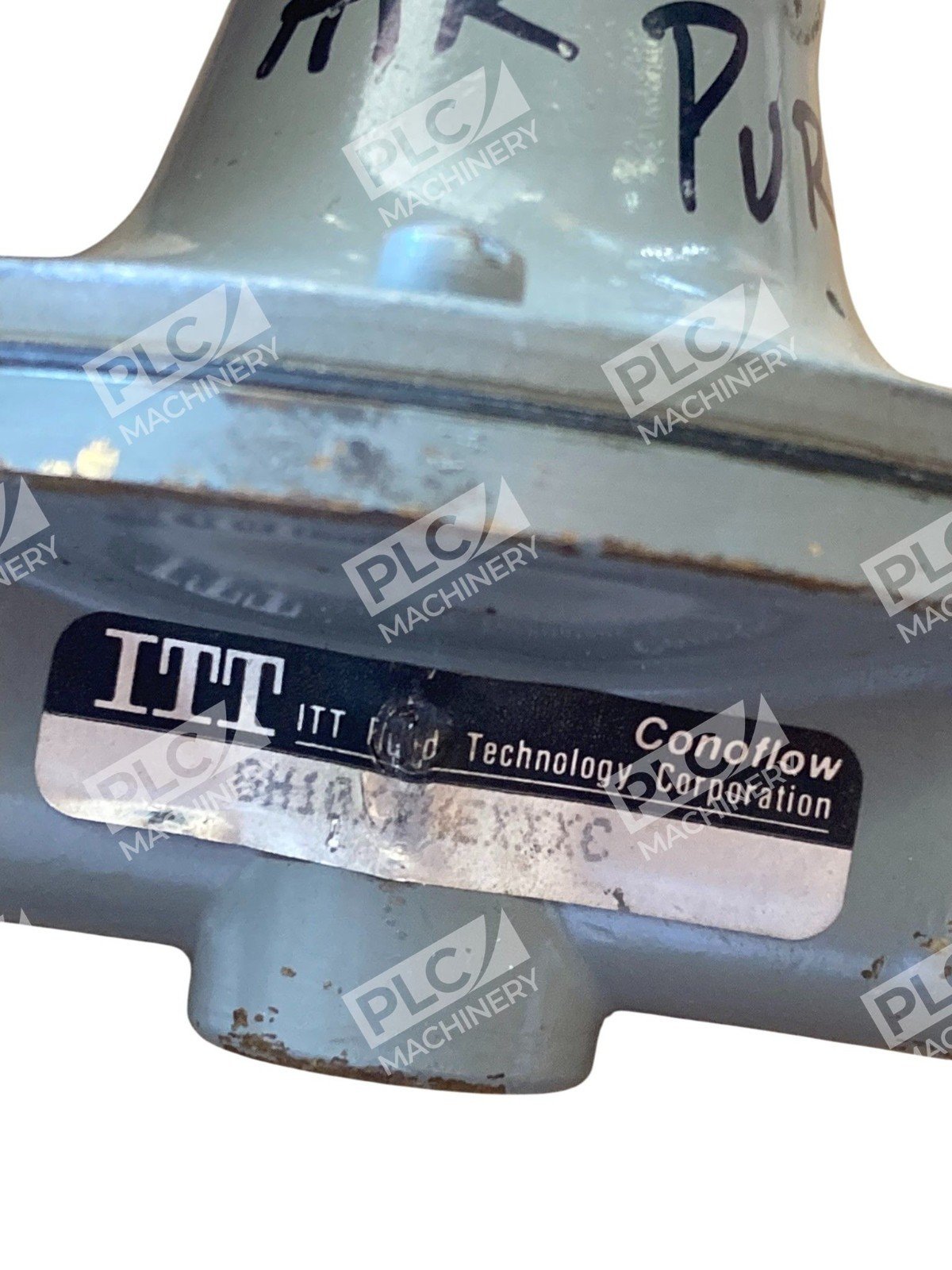

ITT Conoflow GH10XTHEXXXC Manual Loading Regulator GH10 Series

ITT Conoflow GH10XTHEXXXC Manual Loading Regulator – GH10 Series

The ITT Conoflow GH10XTHEXXXC is a precision manual loading regulator from the GH10 Series, engineered for accurate pressure control in various industrial applications. Its robust design and reliable performance make it suitable for laboratory environments, remote loading of pneumatic devices, speed changers, and other general-purpose uses.

Key Features

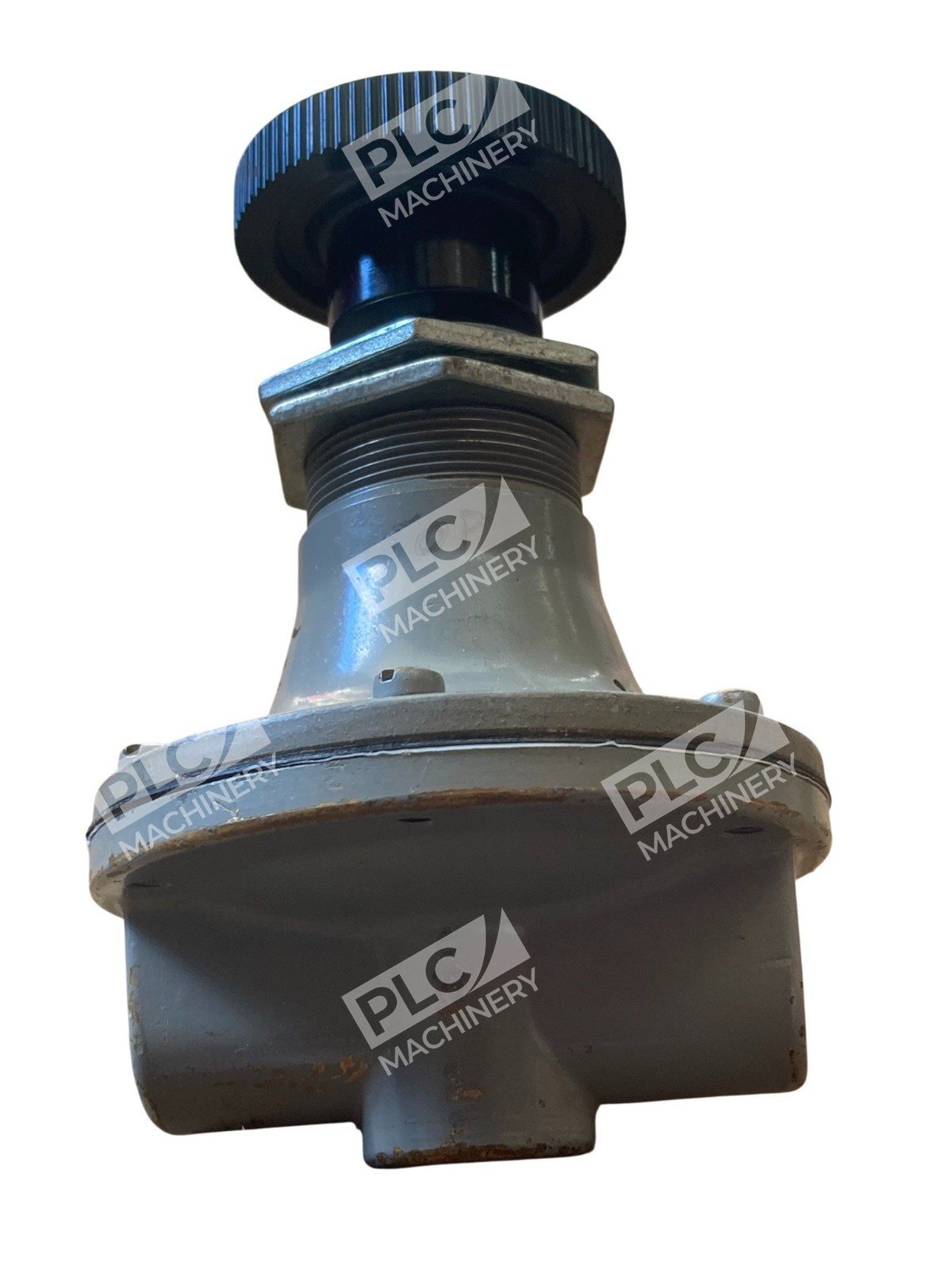

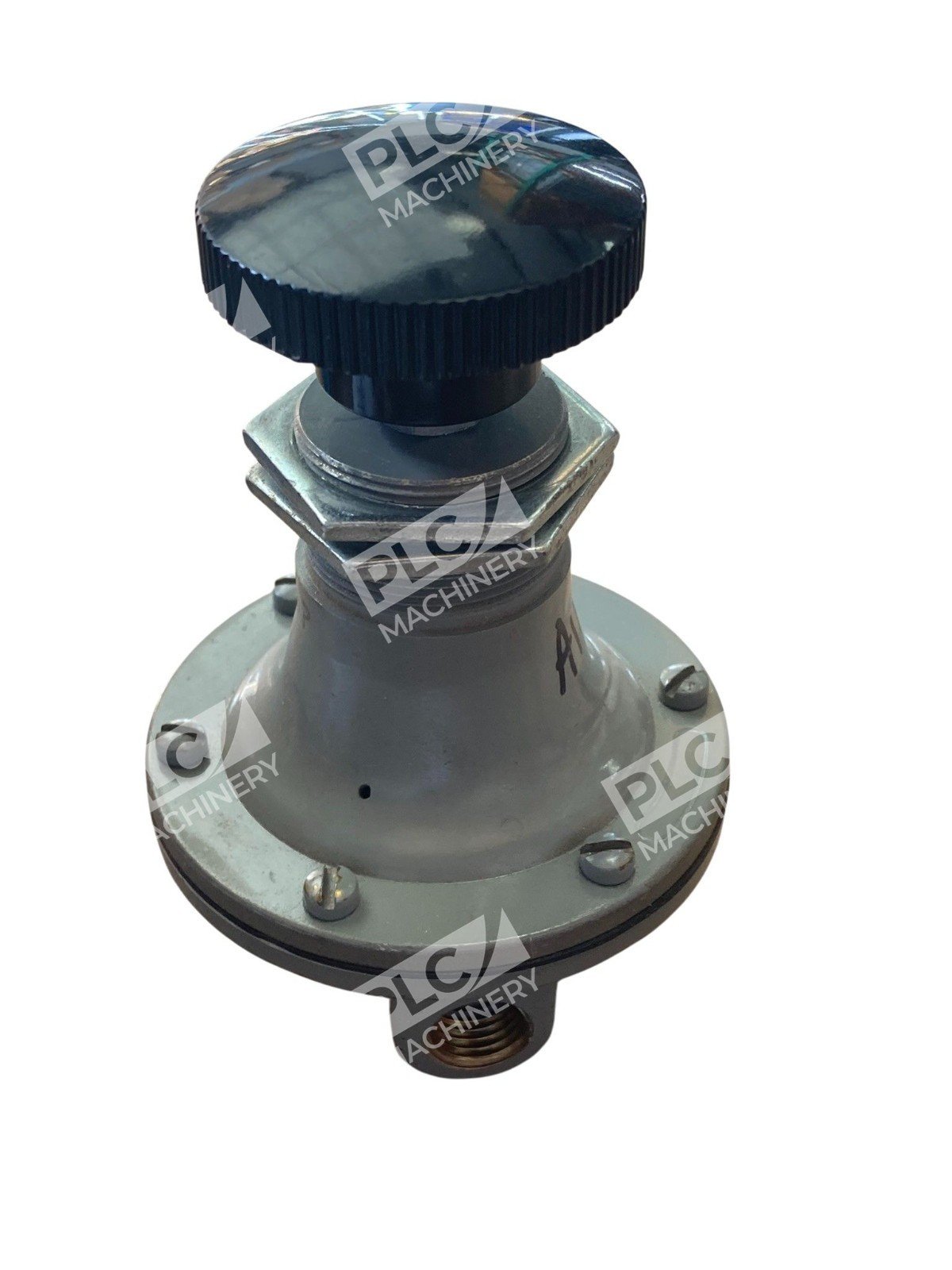

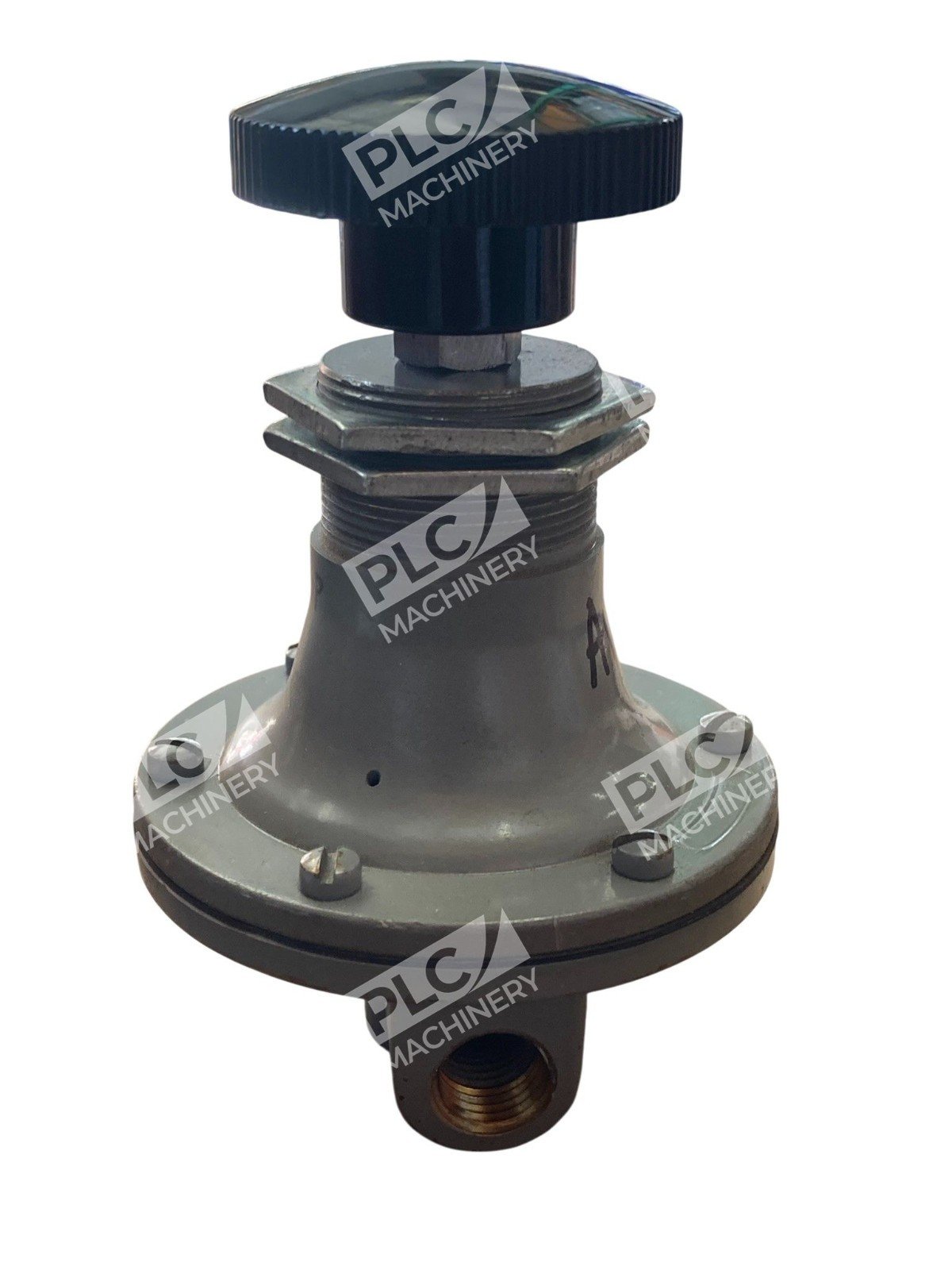

• Manual Pressure Adjustment: Equipped with a handwheel for straightforward and precise control over output pressure settings.
• Versatile Pressure Ranges: Offers regulated output pressure ranges of 0-3, 5, 15, 25, 35, 50, and 125 PSI (0-21, 35, 103, 172, 241, 345, and 862 kPa), accommodating diverse application requirements.
• High Supply Pressure Capacity: Capable of handling a maximum supply pressure of 200 PSI (1379 kPa), ensuring compatibility with various pneumatic systems.
• Durable Construction: Features a brass body and bonnet, with a Buna-N diaphragm assembly and a brass nozzle assembly with a stainless steel plug, ensuring longevity and resistance to wear.
• Temperature Resilience: Operates effectively within an ambient temperature range of -20°F to +150°F (-29°C to +66°C), suitable for various environmental conditions.
• Compact and Lightweight: With an approximate shipping weight of 2.00 lbs. (0.91 kg), it facilitates easy installation and integration into existing systems.

Principle of Operation

The GH10XTHEXXXC regulator functions by balancing the force exerted by the range spring on the diaphragm assembly with the output pressure acting beneath the diaphragm. Adjusting the handwheel alters the range spring force, thereby setting the desired output pressure.

In scenarios where the output pressure exceeds the set point, the diaphragm seat lifts from the plug, venting excess pressure to the atmosphere until equilibrium is restored. Conversely, if the output pressure falls below the set point, the unbalanced force from the range spring causes the nozzle plug to unseat, allowing supply pressure to flow through the nozzle to the downstream port, increasing the output pressure until balance is achieved.

For applications requiring enhanced sensitivity and stability, the regulator incorporates a constant bleed feature, keeping the diaphragm in a dynamic state by preventing the nozzle from closing completely. Additionally, a no bleed/no relief diaphragm assembly is available to prevent the process medium from exhausting to the atmosphere, which is particularly useful when handling liquids and toxic gases.

Applications

The GH10XTHEXXXC manual loading regulator is ideal for:

• Laboratory environments requiring precise pressure control.
• Remote loading of pneumatic devices.
• Speed changers and other general-purpose industrial applications.

Its precision, durability, and adaptability make it a valuable component in systems where accurate pressure regulation is critical.
