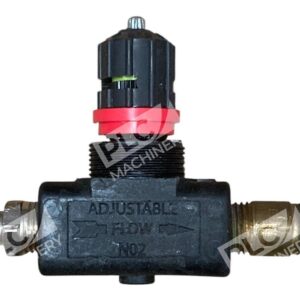

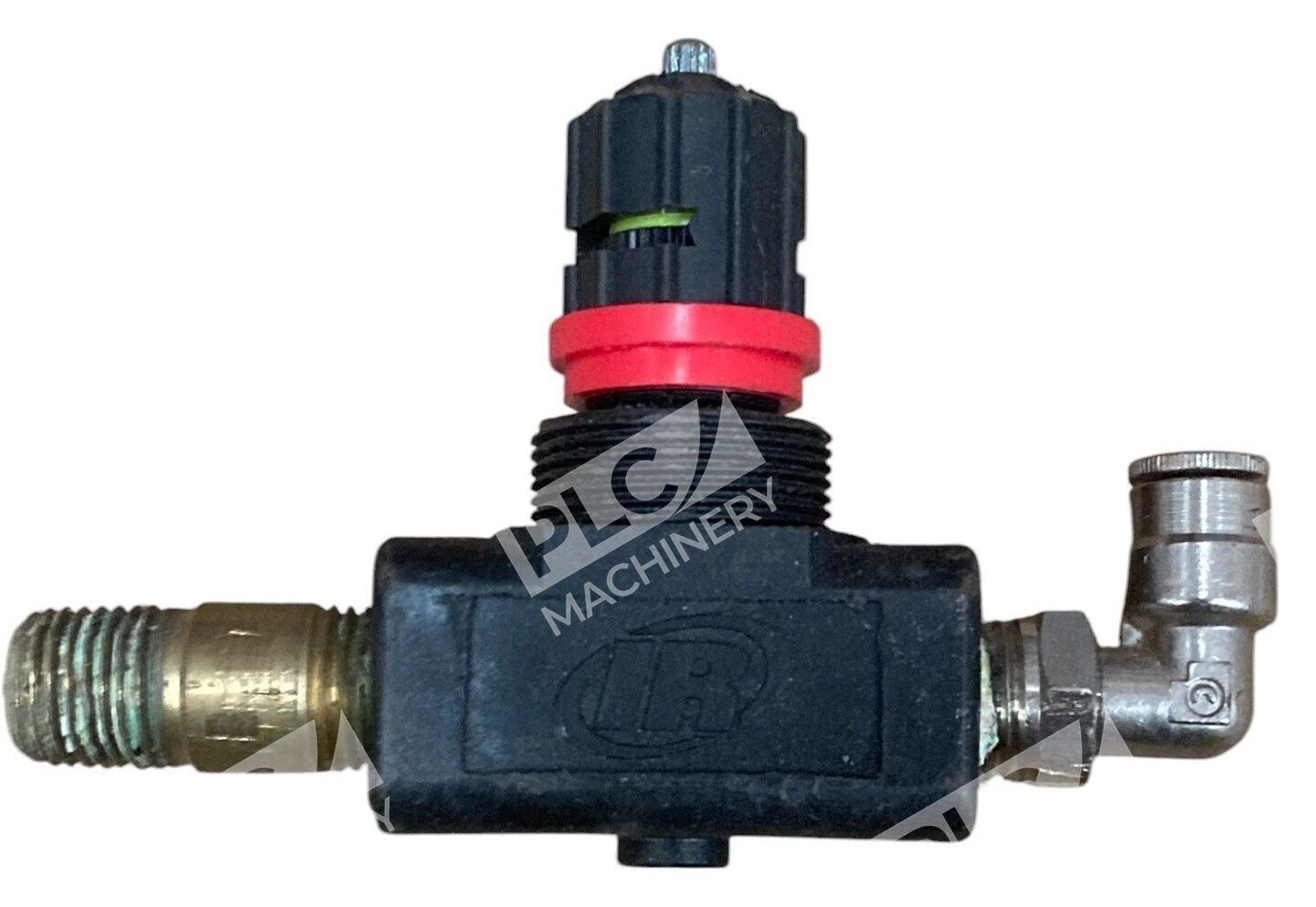

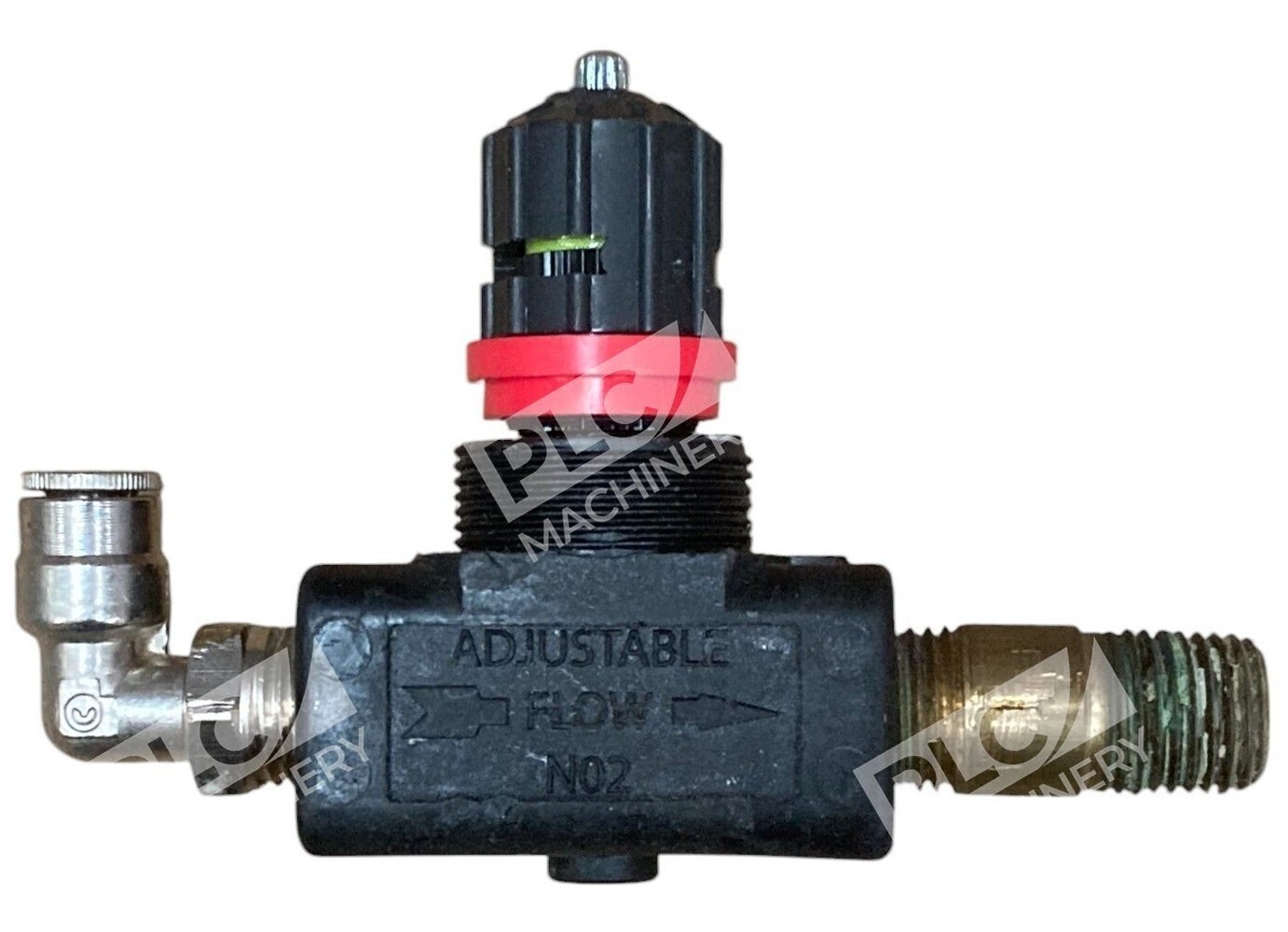

Ingersoll Rand N02 Flow Control Valve 104104-F02
The Ingersoll Rand N02 Flow Control Valve, model 104104-F02, is a precision-engineered component designed to regulate airflow in pneumatic systems. Its robust construction and user-friendly features make it an ideal choice for various industrial applications.
Key Features
- Port Size: Equipped with 1/4-inch NPT inlet and outlet ports, ensuring compatibility with standard pneumatic fittings.
- Pressure Rating: Capable of handling operating pressures up to 200 psi, suitable for high-pressure applications.
- Flow Capacity: Supports a maximum flow rate of 28 cubic feet per minute (cfm), facilitating efficient airflow management.
- Temperature Range: Operates effectively within a temperature range of 0 to 200 degrees Fahrenheit, accommodating various environmental conditions.
- Body Material: Constructed from glass-reinforced thermoplastic, offering durability and resistance to corrosion.
- Adjustment Mechanism: Features a calibrated adjustment knob with a four-stage tapered needle design, allowing for precise control settings and repeatability.
- Locking Mechanism: Includes a red locking ring to prevent unintended adjustments, enhancing operational safety.
- Mounting Options: Threaded design facilitates easy panel mounting, providing flexibility in installation.
Applications
This flow control valve is ideal for use in pneumatic systems where precise airflow regulation is critical, such as in diaphragm pumps and other industrial machinery. Its design ensures consistent performance and reliability in demanding environments.
Dimensions
- Overall Length: 1 7/8 inches
- Overall Height: 2 1/2 inches
- Overall Width: 15/16 inch
The Ingersoll Rand N02 Flow Control Valve 104104-F02 combines precision, durability, and ease of use, making it a valuable component for optimizing pneumatic system performance.
