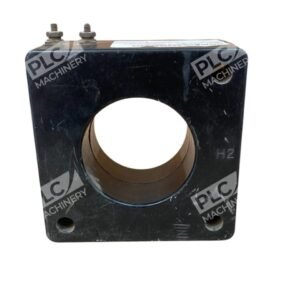

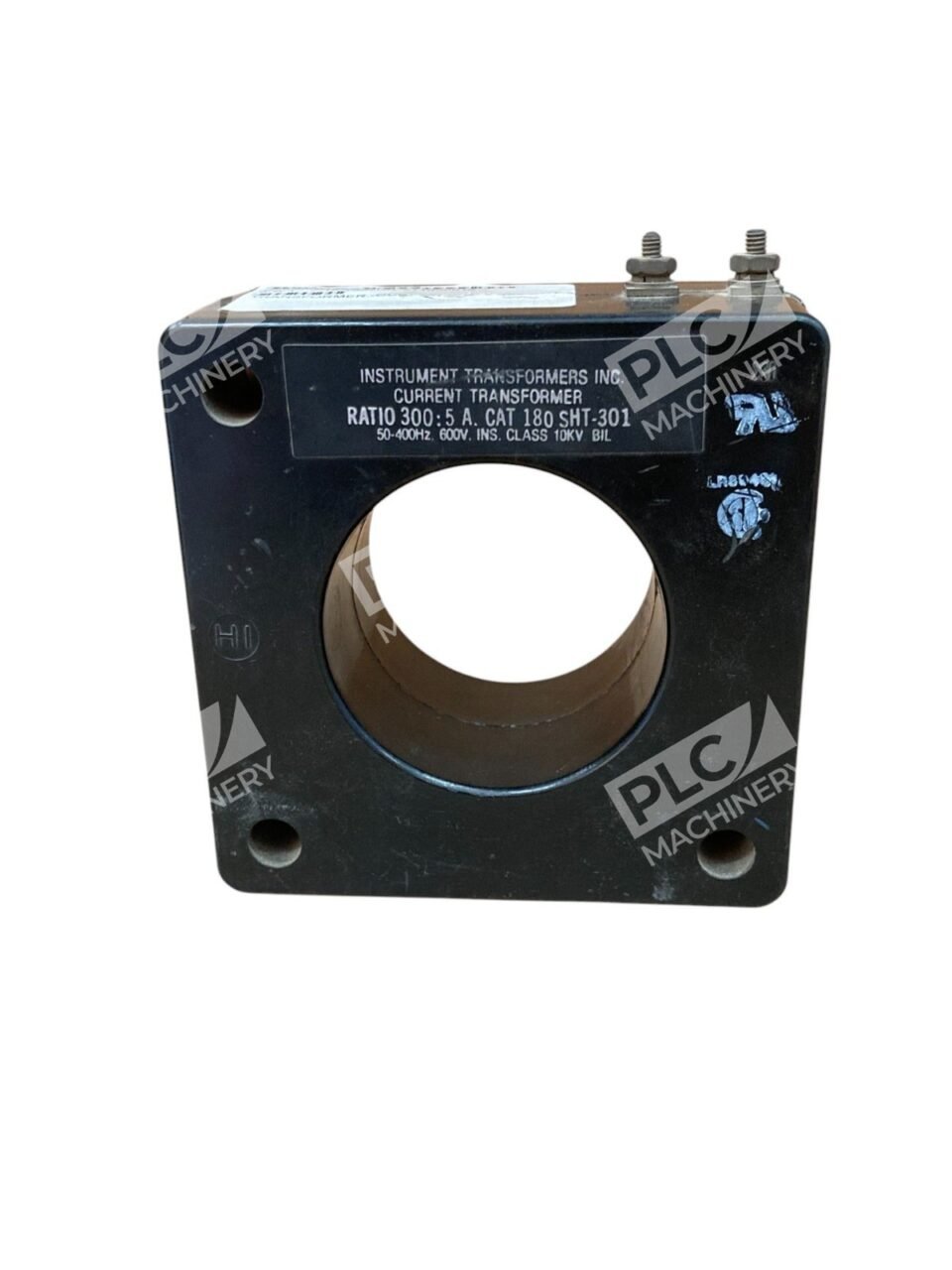

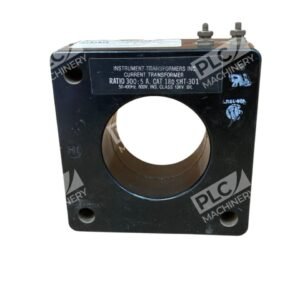

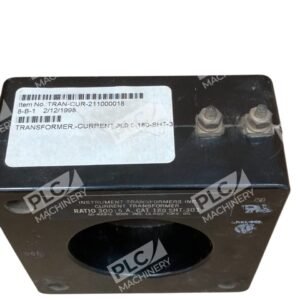

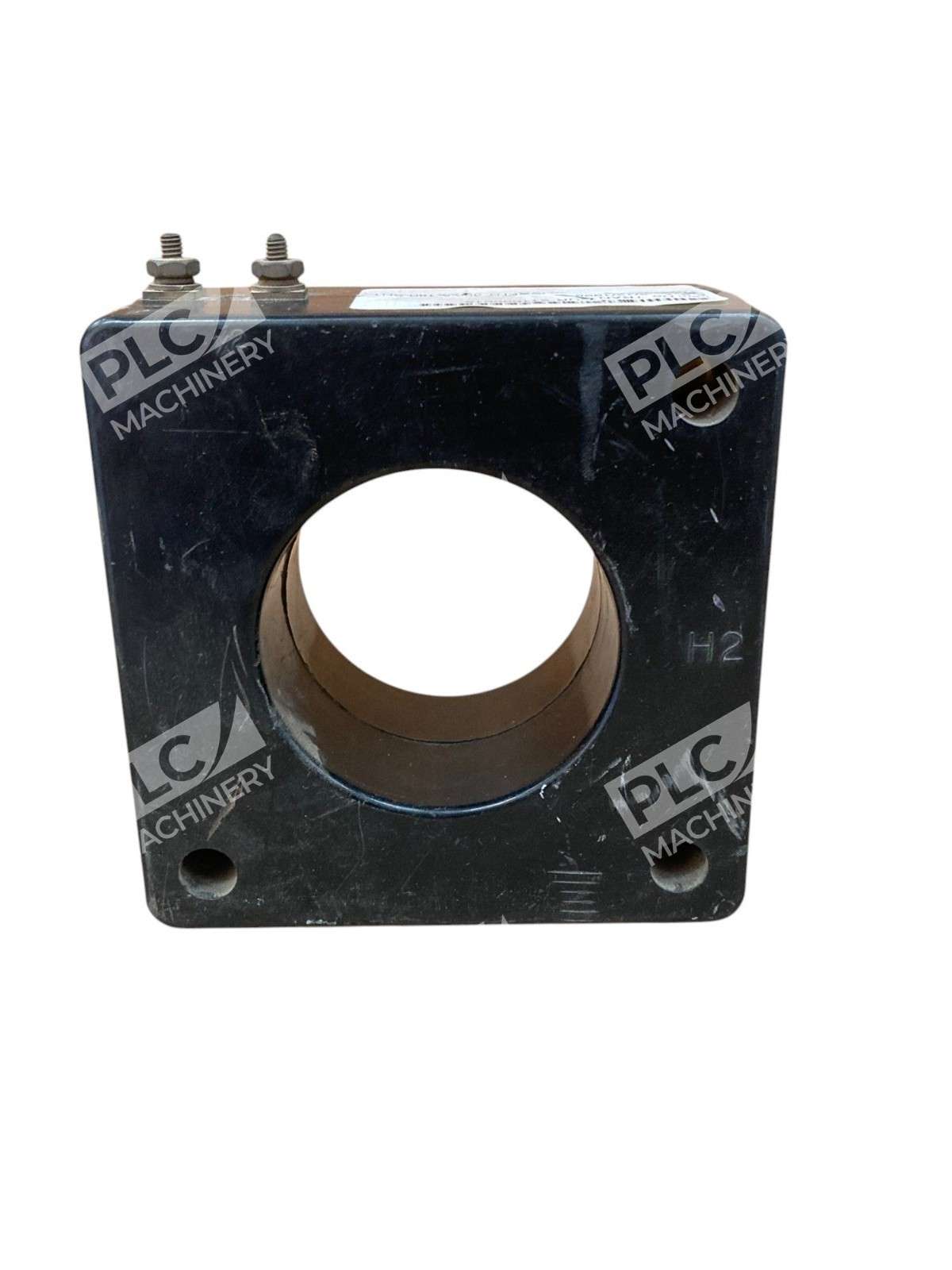

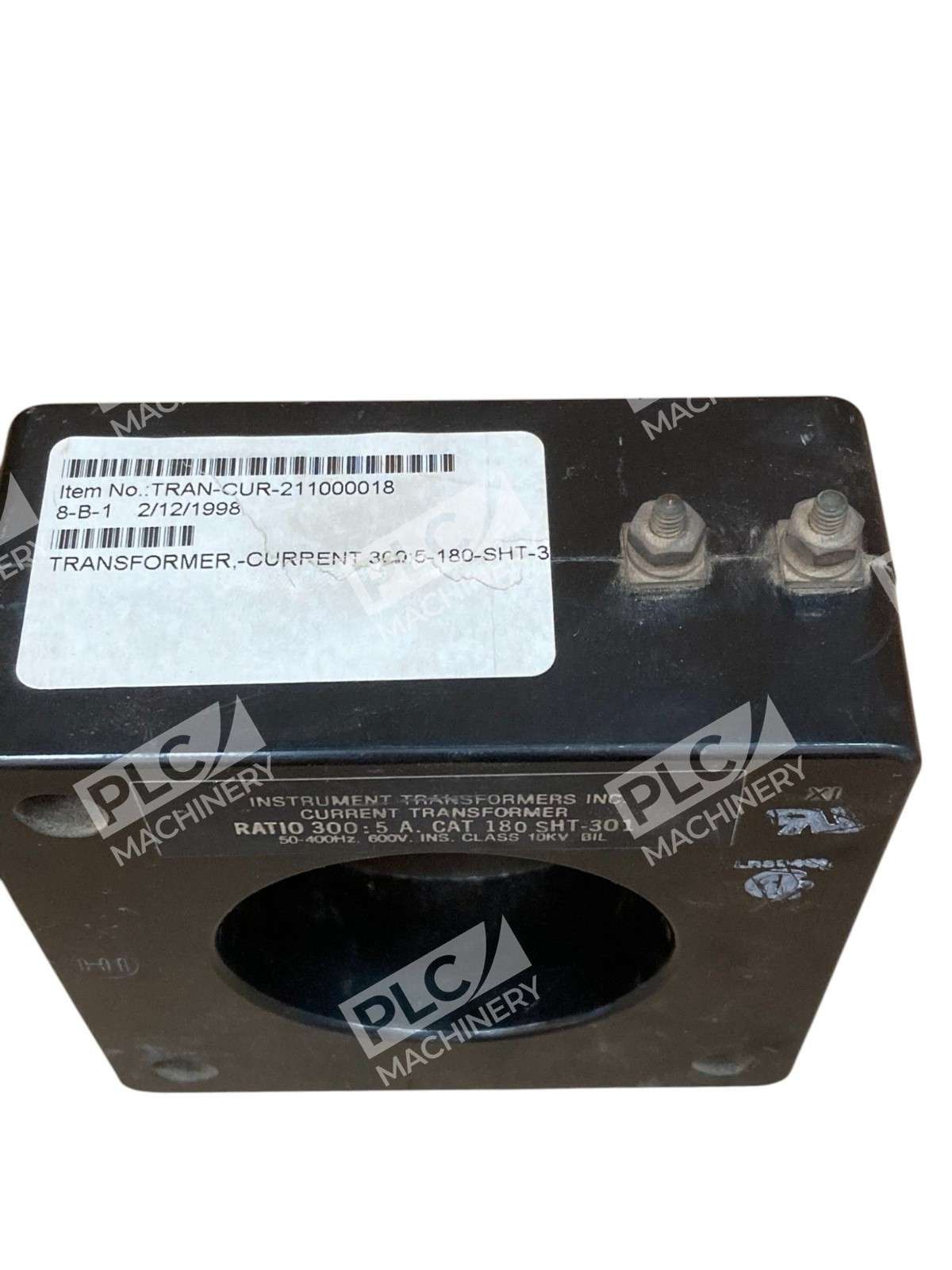

The Instrument Transformers 180SHT-301 Current Transformer is a high-precision device engineered for accurate current measurement in electrical systems.
Key Features

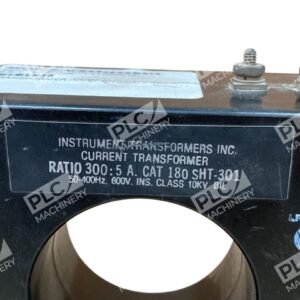

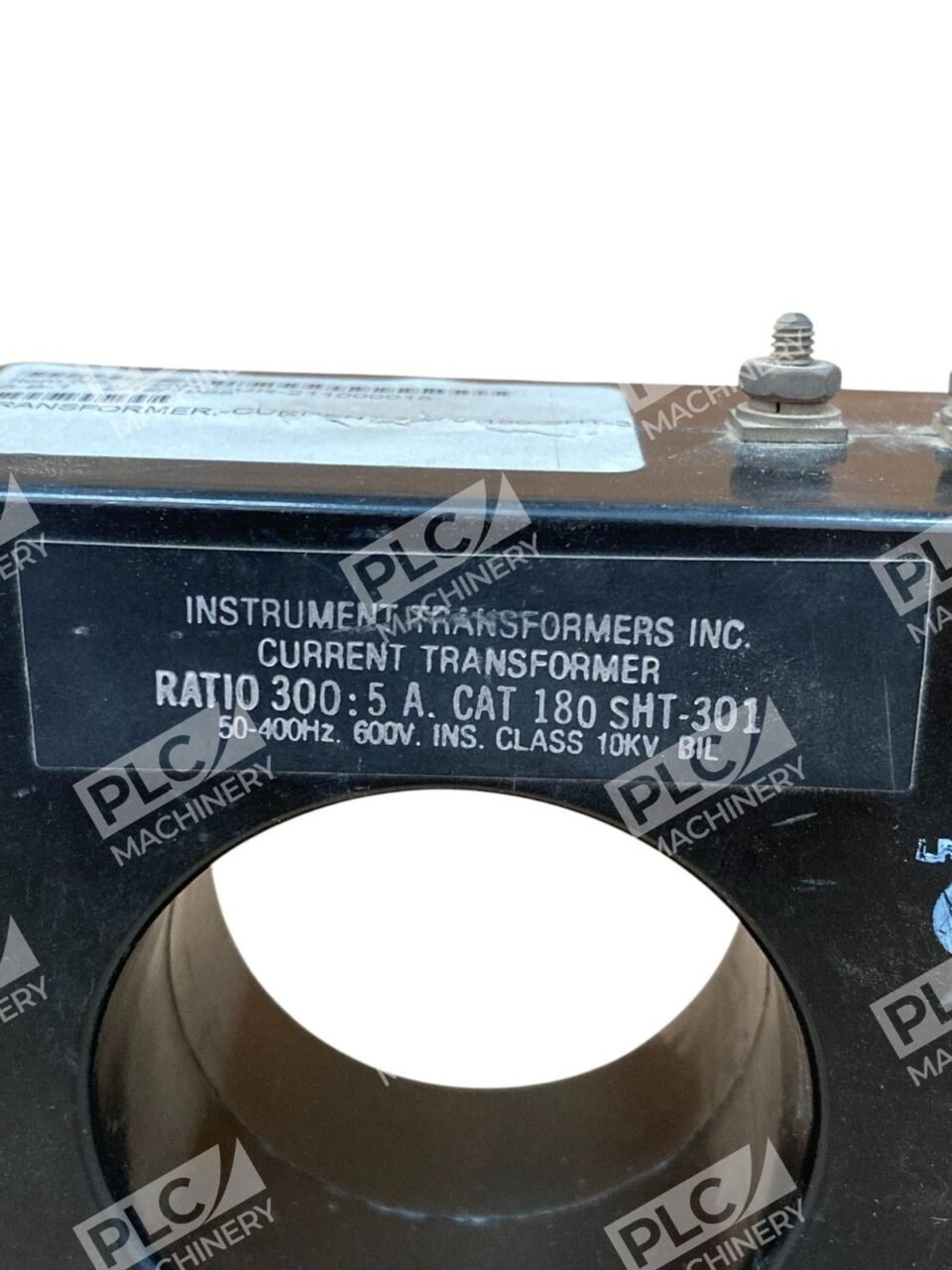

- Current Ratio: 300:5 Amps, facilitating precise scaling of high current values to manageable levels for monitoring and metering.
- Design: Solid-core construction with a 2.5-inch inner diameter and a square outer shape, ensuring durability and ease of installation.
- Insulation: Rated for 600 Volts with a 10 kV Basic Insulation Level (BIL), providing robust protection against electrical surges.
- Frequency Range: Operates efficiently across a frequency range of 25 to 400 Hz, offering versatility for various applications.
- Accuracy: Meets ANSI Metering Class 0.3 standards, ensuring high accuracy in current measurement.
- Thermal Rating: Continuous thermal current rating factor of 1.33 at 30°C ambient temperature, maintaining performance under continuous load conditions.
Applications
Ideal for integration into power monitoring systems, the 180SHT-301 is suitable for use in panel boards, control panels, and engine generators, where precise current measurement is critical.
Physical Specifications
- Dimensions: Height: 4.94 inches; Width: 4.50 inches; Depth: 2.19 inches.
- Weight: Approximately 3.5 lbs, facilitating easy handling and installation.
The Instrument Transformers 180SHT-301 Current Transformer combines precision, durability, and versatility, making it an excellent choice for professionals seeking reliable current measurement solutions in diverse electrical applications.
