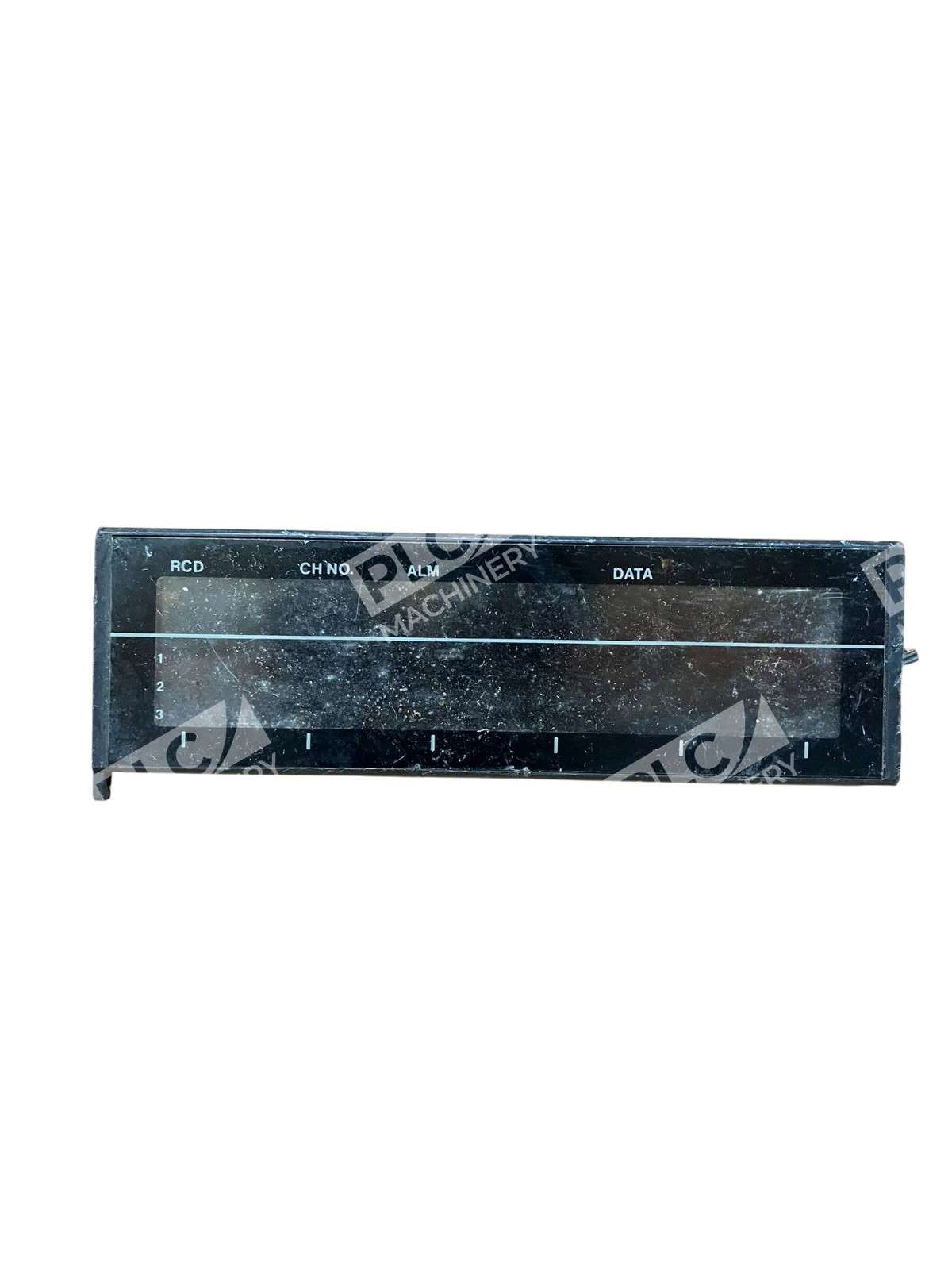

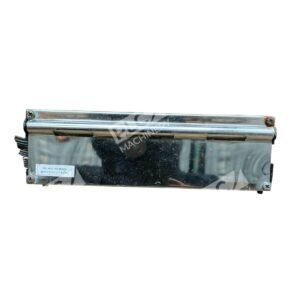

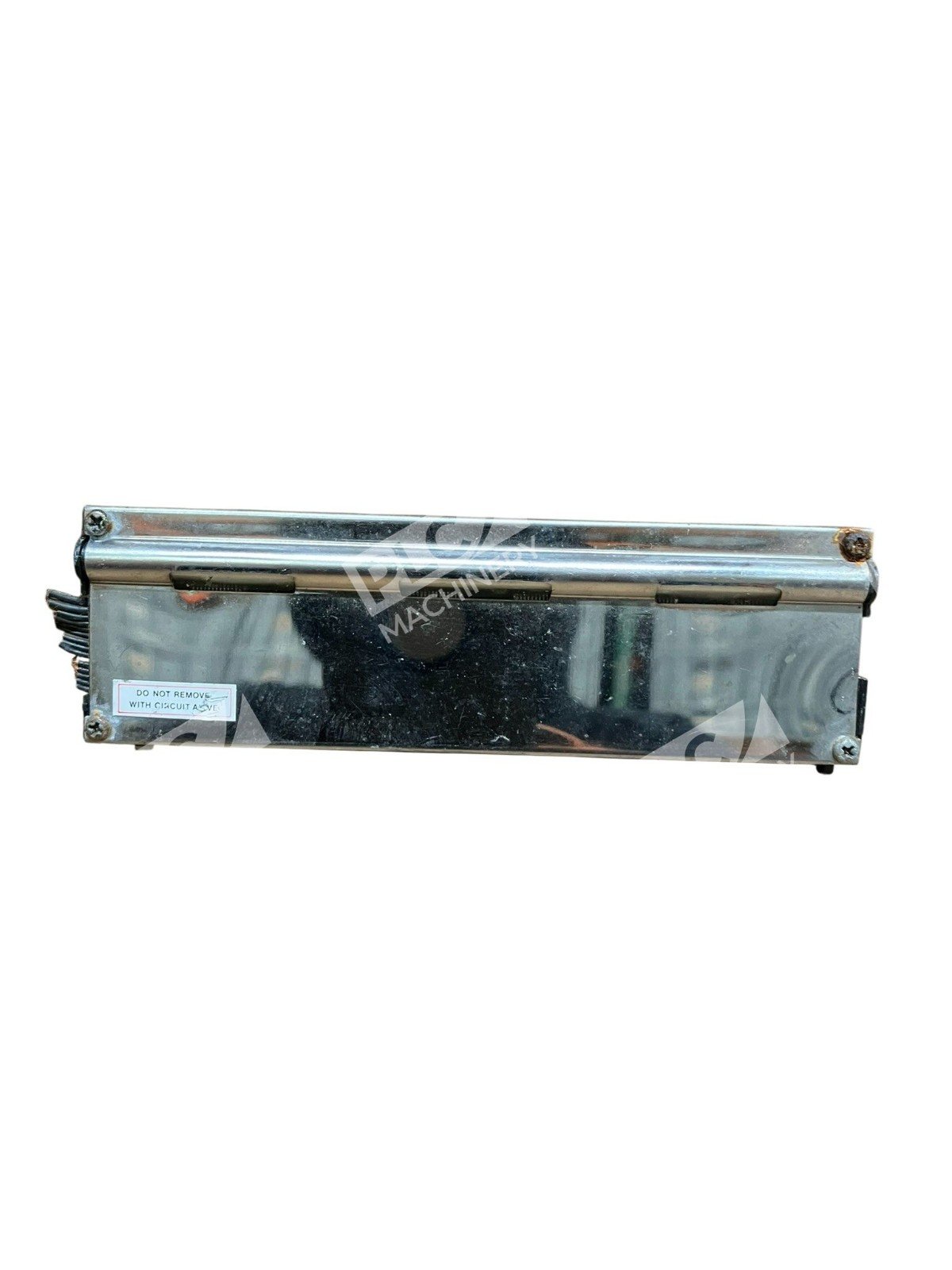

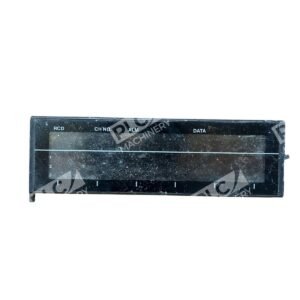

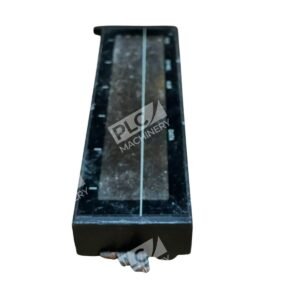

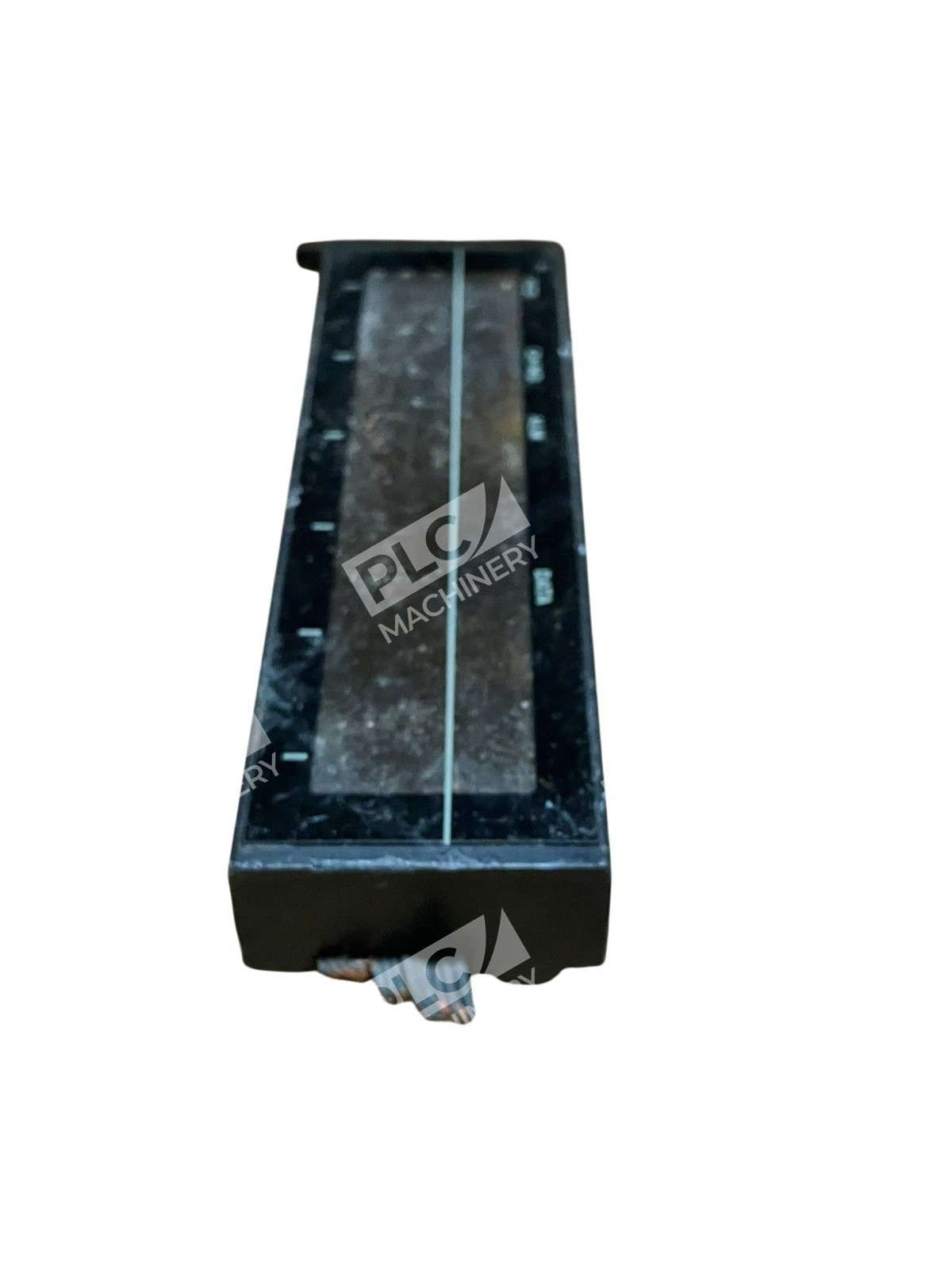

Industrial Control Display / Digital Recorder Module RCD CH NO ALM DATA

Industrial Control Display / Digital Recorder Module RCD CH NO ALM DATA

The Industrial Control Display / Digital Recorder Module is a sophisticated device engineered for precise monitoring and recording of industrial processes. It integrates a high-resolution display with advanced recording capabilities, ensuring comprehensive data acquisition and analysis.

Key Features

• High-Resolution Display: Equipped with a color TFT LCD, the module offers clear visualization of process parameters, facilitating real-time monitoring and quick decision-making.
• Multi-Channel Input: Supports multiple input channels, accommodating various signal types such as voltage, current, thermocouples, and RTDs, providing versatility across different industrial applications.
• Alarm Indicators: Features dedicated alarm indicators (ALM) that alert operators to abnormal conditions, enhancing safety and operational efficiency.
• Data Recording and Storage: Capable of recording extensive data sets with time-stamped entries, the module ensures accurate historical data logging for analysis and compliance purposes.
• Communication Interfaces: Incorporates multiple communication options, including RS-422A, Ethernet, and USB interfaces, enabling seamless integration with existing control systems and facilitating remote monitoring.
• Remote Control Functionality: Allows for remote operation, including recording start/stop and chart speed adjustments, enhancing flexibility in process management.

Applications

This module is ideal for industries requiring precise process control and data recording, such as manufacturing, energy production, and chemical processing. Its robust design and comprehensive feature set make it a valuable tool for ensuring process integrity and optimizing operational performance.

Specifications

• Display: Color TFT LCD with touch panel
• Input Types: Voltage, current, thermocouple, RTD
• Alarm Indicators: ALM (Alarm), BAT (Battery), RCD (Recording)
• Communication Interfaces: RS-422A, Ethernet, USB
• Power Supply: 24 V DC
• Dimensions: 200 mm (W) x 30 mm (H) x 110 mm (D)
• Weight: Approximately 750 g

The Industrial Control Display / Digital Recorder Module is a reliable solution for comprehensive process monitoring and data recording, contributing to enhanced operational control and efficiency.
