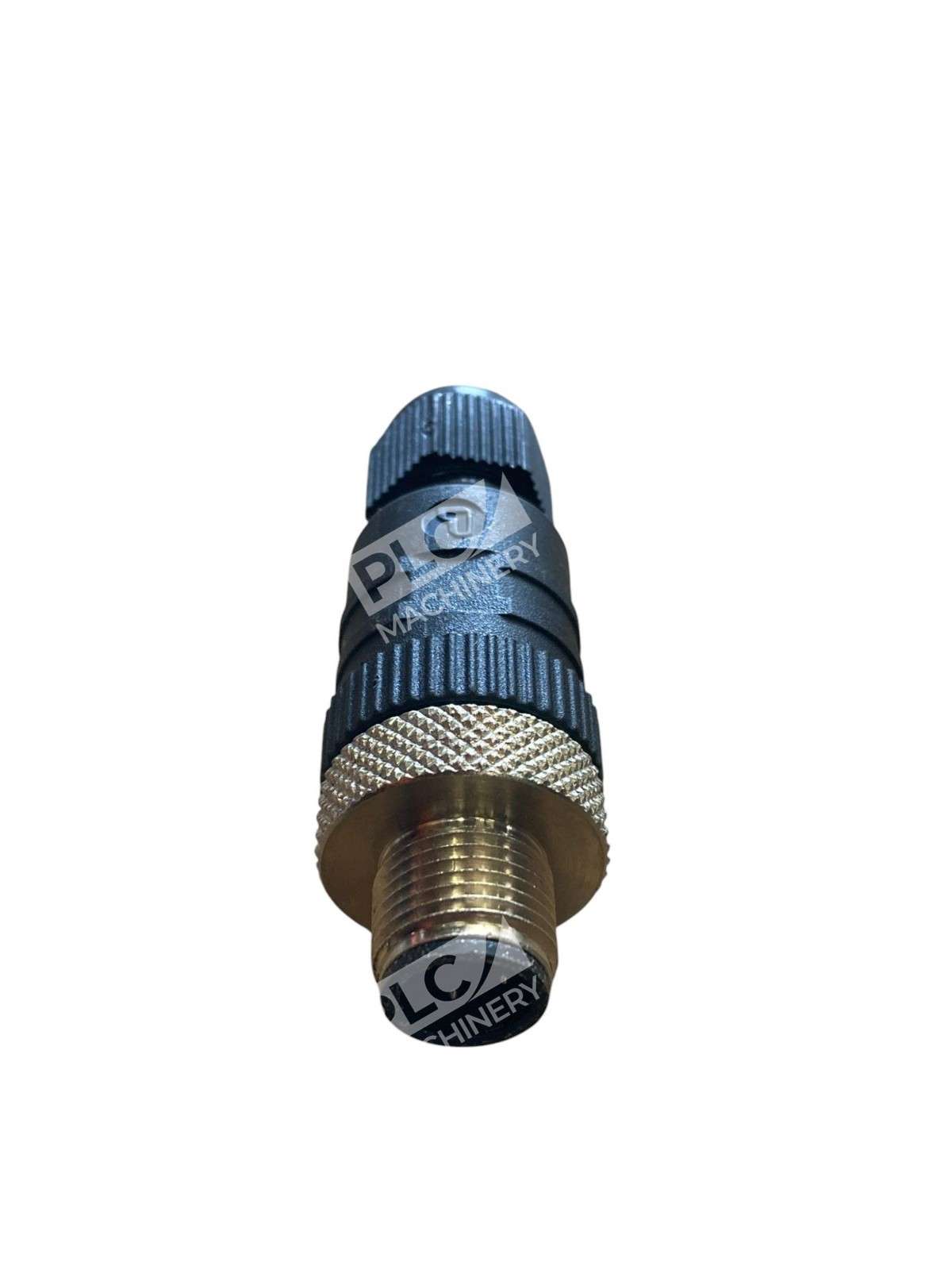

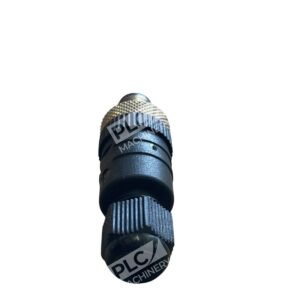

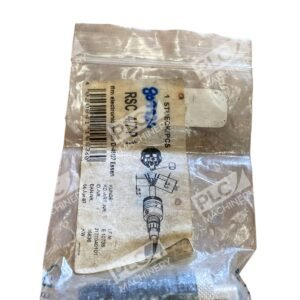

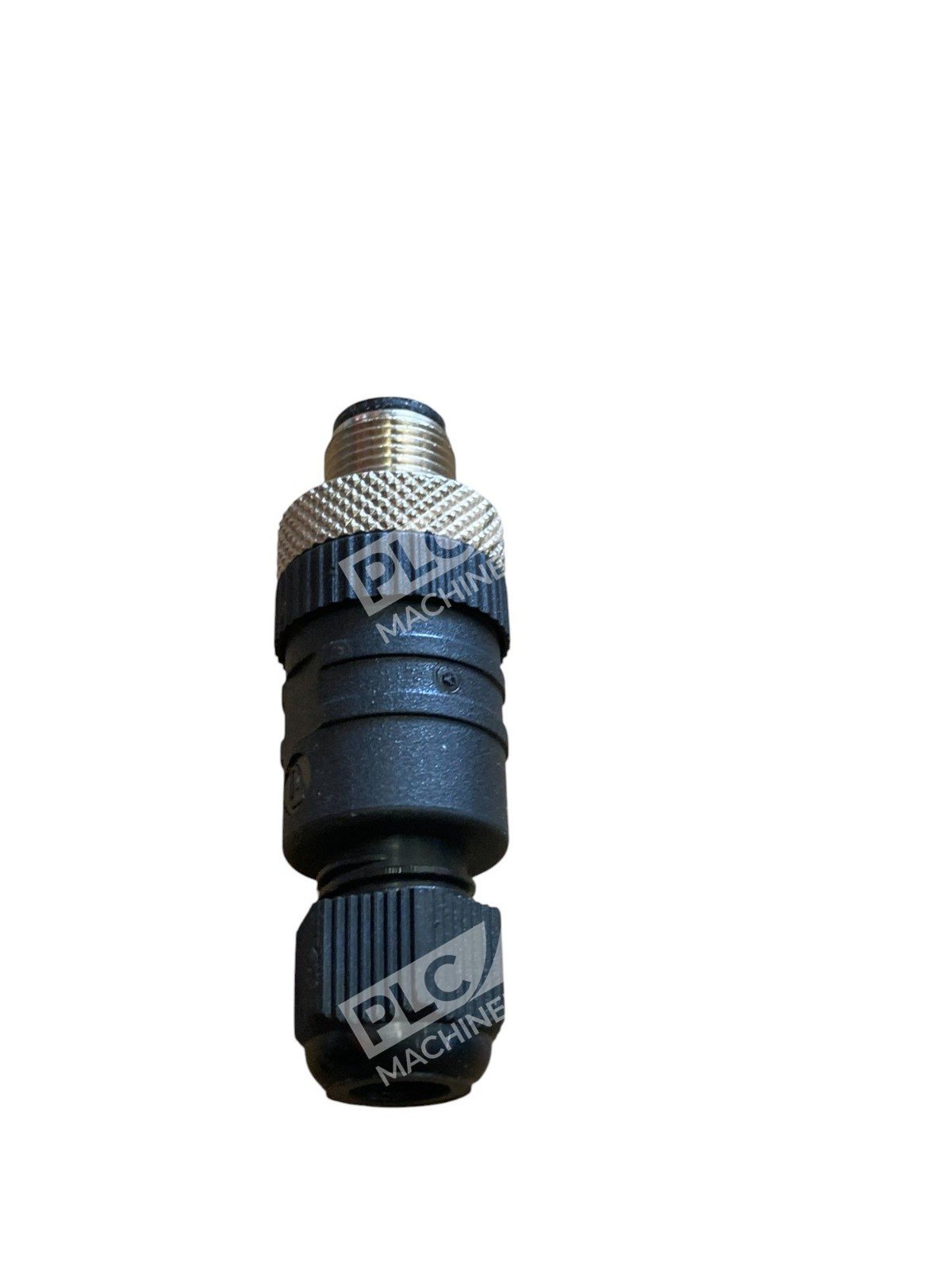

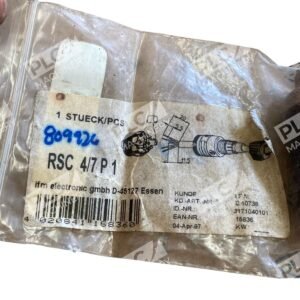

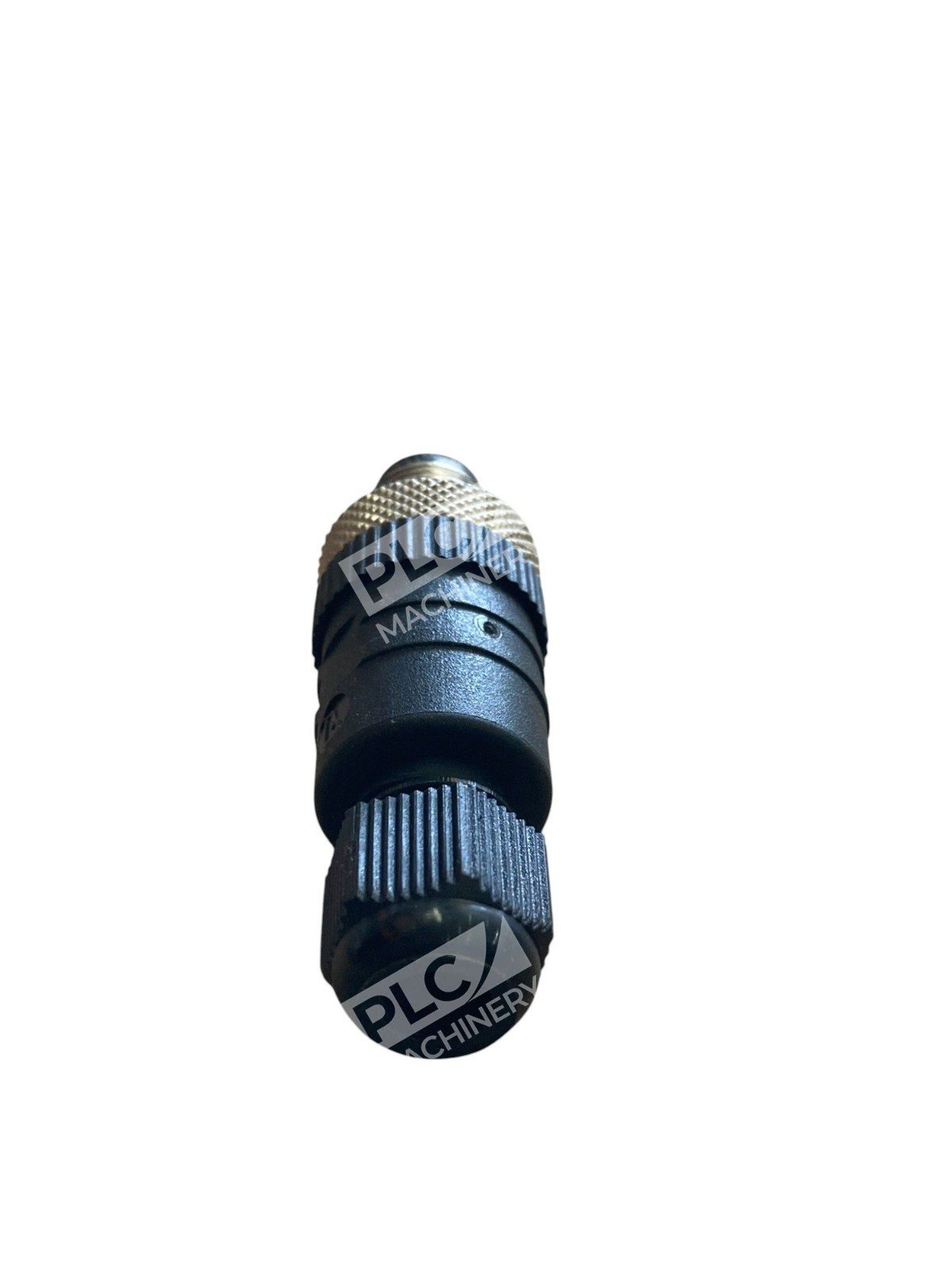

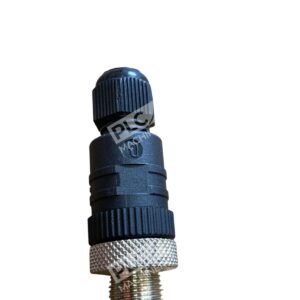

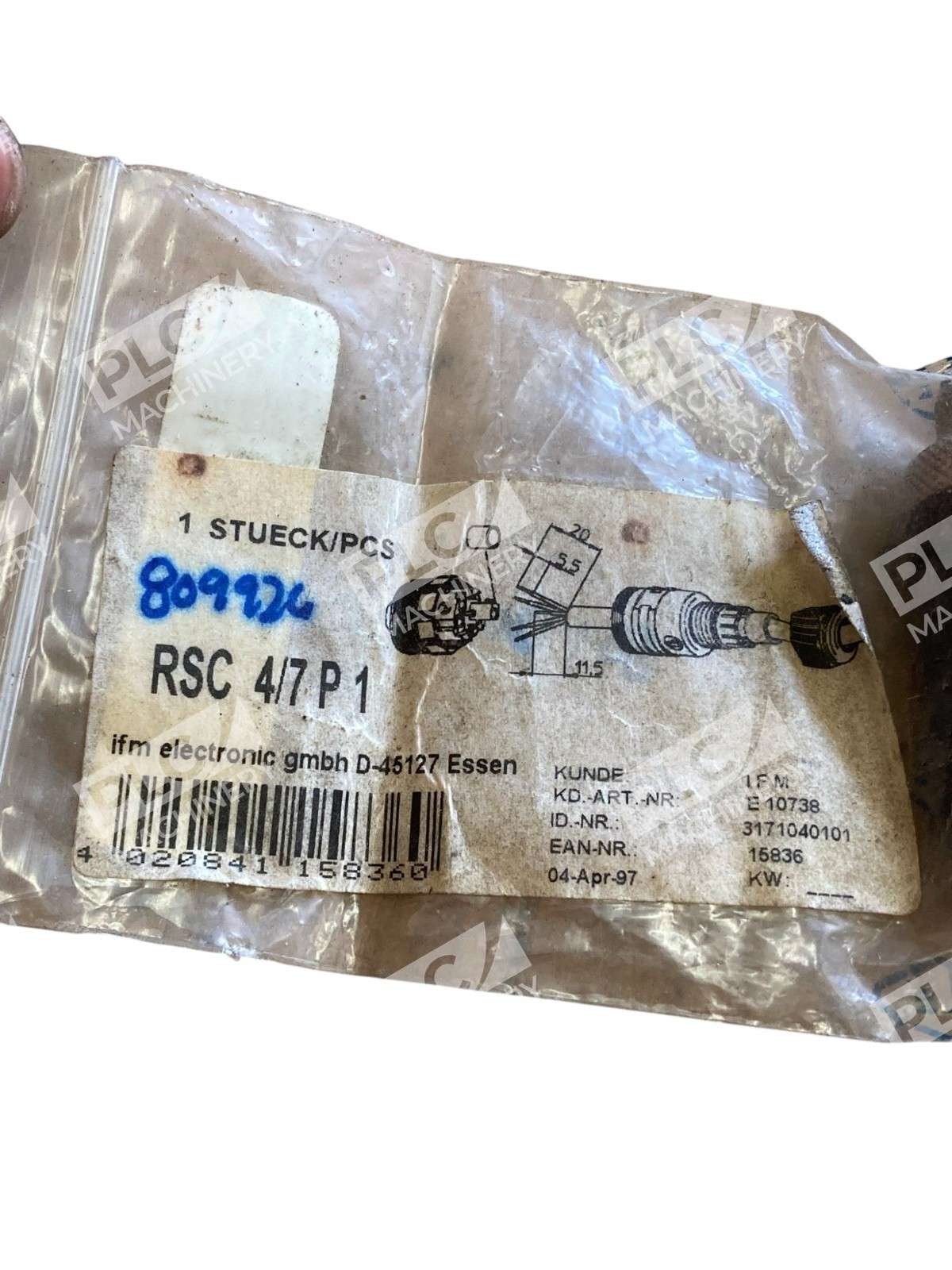

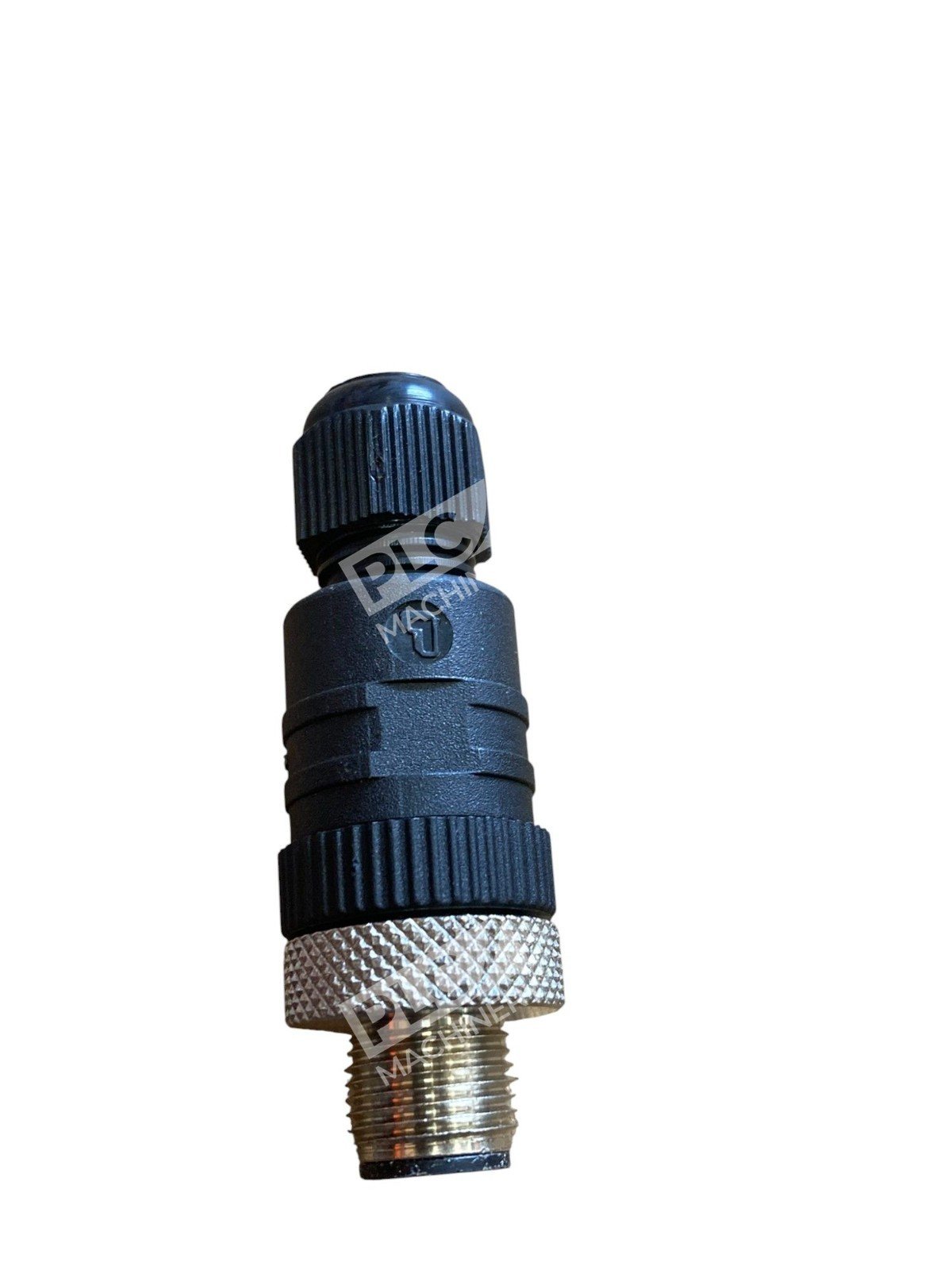

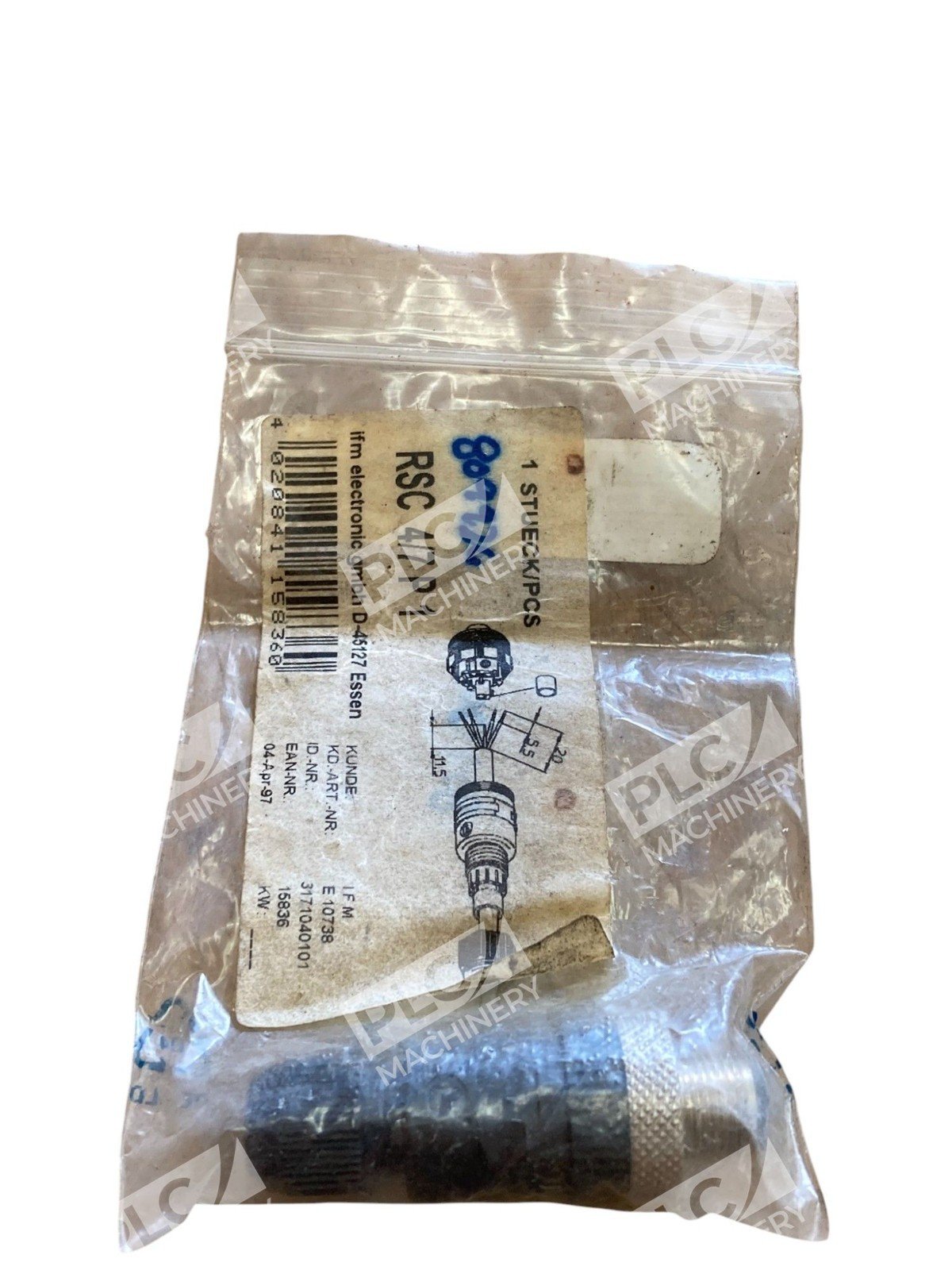

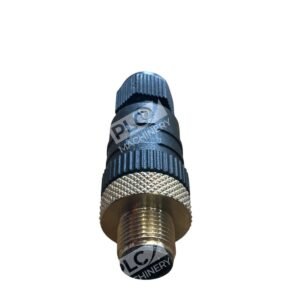

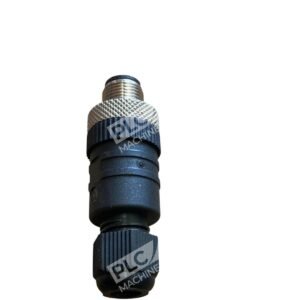

IFM Electronic RSC 4/7P1 Connector
The IFM Electronic RSC 4/7P1 is a high-quality M12 field-attachable connector designed for reliable and secure connections in industrial automation systems. This straight male connector features a 4-pin configuration, making it suitable for various sensor and actuator applications.
Key Features
- Connector Type: M12, 4-pin, straight male
- Attachment Type: Coupling screw
- Voltage Rating: 250 V AC/DC
- Current Rating: 4 A
- Protection Class: IP67, ensuring dust-tight and water-resistant performance
- Housing Material: Durable black PBT (Polybutylene Terephthalate)
- Termination Method: Screw terminals for easy and secure wiring
Applications
The RSC 4/7P1 connector is ideal for use in industrial environments where robust and reliable connections are essential. Its IP67 rating ensures protection against dust and temporary immersion in water, making it suitable for harsh conditions. Common applications include:
- Sensor and actuator connections
- Industrial automation systems
- Machine building
- Process control
Technical Specifications
| Parameter | Specification |
|---|---|
| Connector Design | Straight |
| Number of Pins | 4 |
| Coding | A-coded |
| Operating Voltage | 230 V AC/DC |
| Rated Impulse Voltage | 2.5 kV |
| Contact Resistance | ≤ 10 mΩ |
| Insulation Resistance | ˃ 10⁹ Ω |
| Wire Cross-Section | Up to 0.75 mm² |
| Cable Diameter | 3 to 6.5 mm |
With its robust construction and reliable performance, the IFM Electronic RSC 4/7P1 connector is an excellent choice for ensuring secure and efficient connections in demanding industrial applications.
