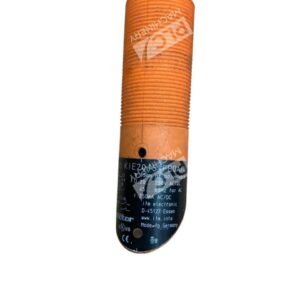

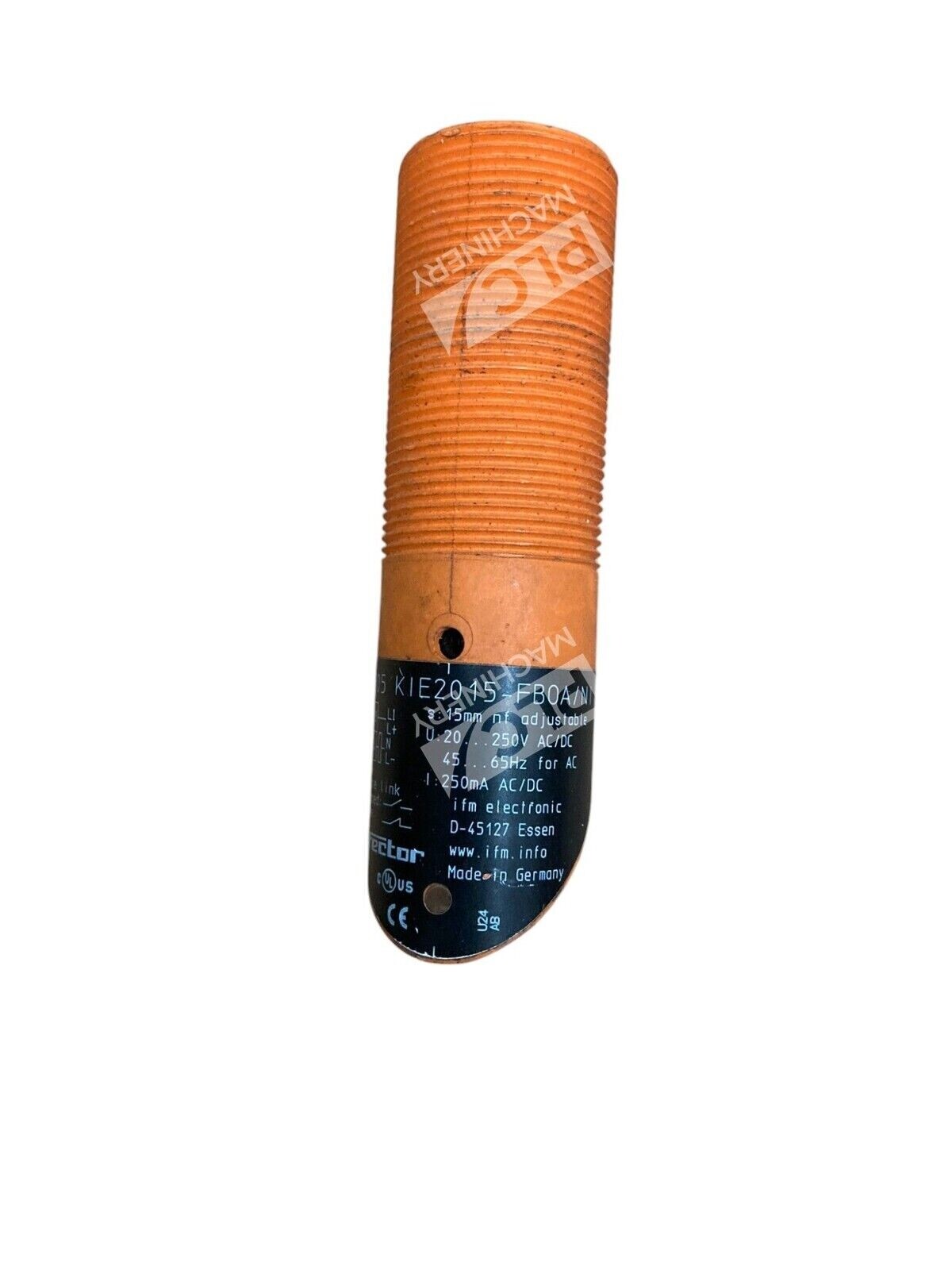

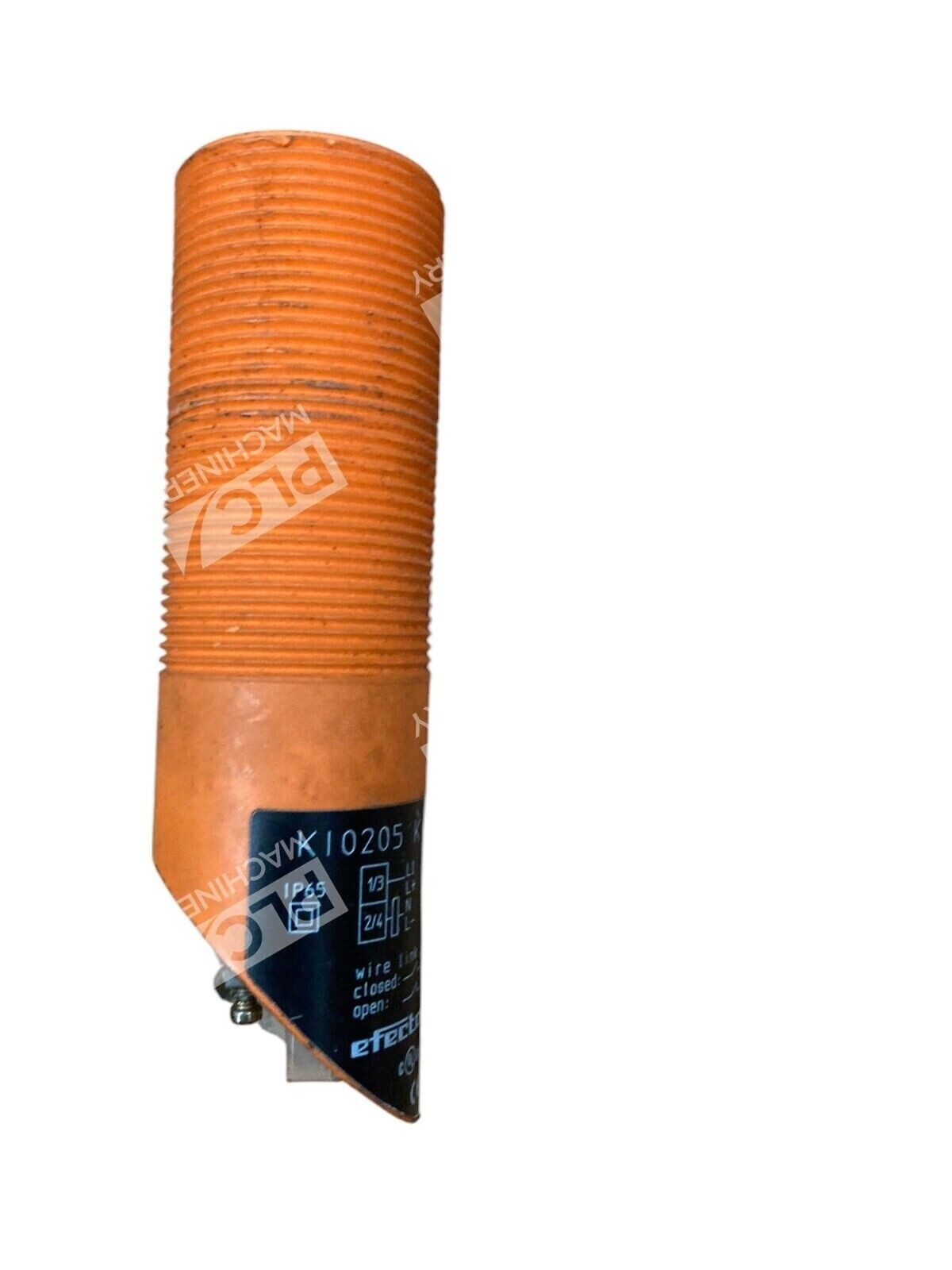

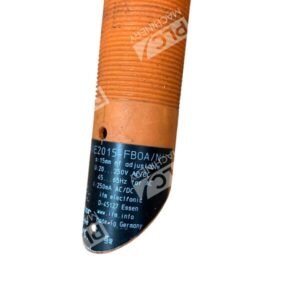

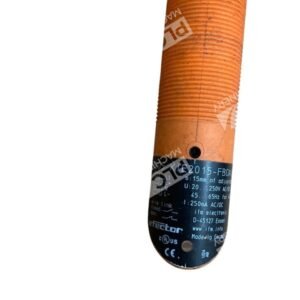

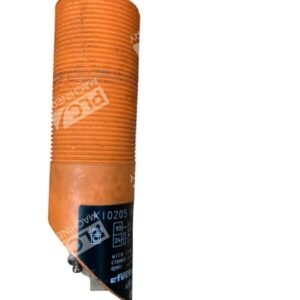

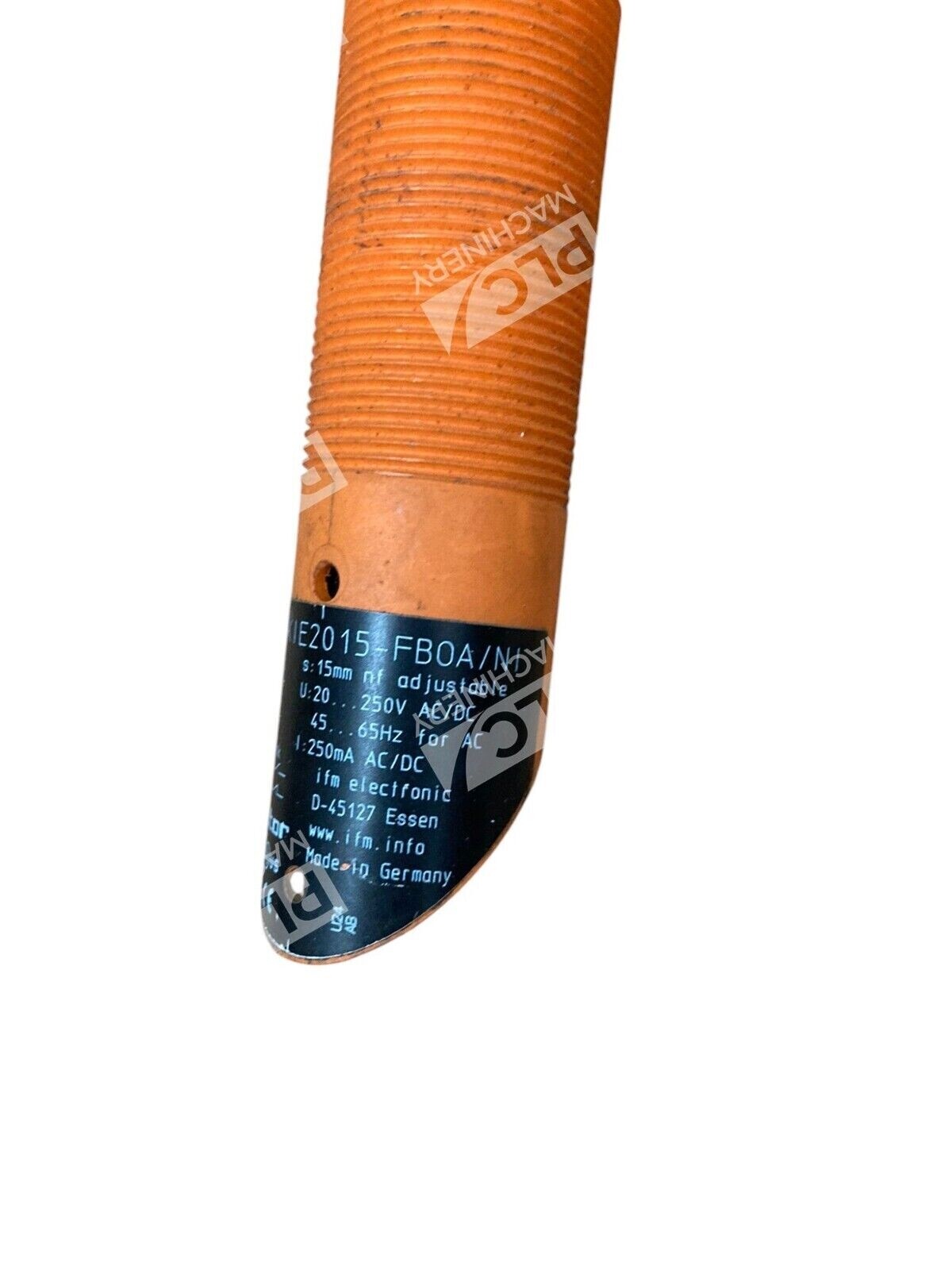

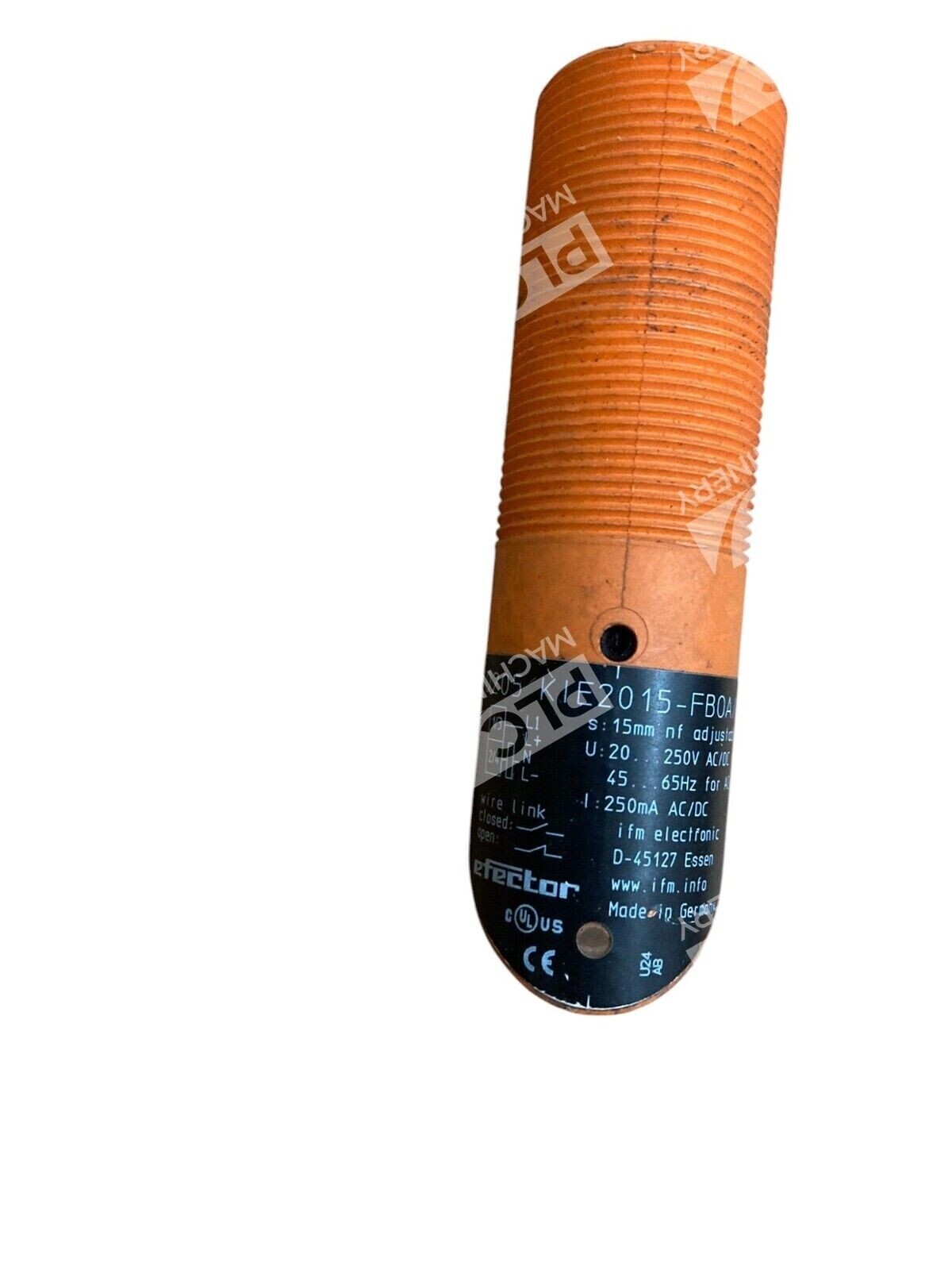

IFM Efector Capacitive Sensor KIE2015-FBOA/NI-KI0205

IFM Efector Capacitive Sensor KIE2015-FBOA/NI-KI0205

The IFM Efector KIE2015-FBOA/NI-KI0205 is a capacitive proximity sensor designed for precise and reliable detection of various materials, including solids and liquids, through non-metallic surfaces. Its robust construction and versatile features make it suitable for a wide range of industrial applications.

Key Features

• Adjustable Sensing Range: The sensor offers a sensing range adjustable between 3 mm and 15 mm, allowing for flexibility in different application scenarios.
• AC/DC Output: Compatible with both AC and DC power supplies, operating within a voltage range of 20 to 250 VAC/VDC.
• Programmable Output Function: Users can configure the sensor for normally open (NO) or normally closed (NC) operation, providing adaptability to various control systems.
• High Noise Immunity: Enhanced resistance to conducted radio frequency interference ensures reliable performance in electrically noisy environments.
• Durable Housing: Constructed with polybutylene terephthalate (PBT), the sensor’s M30 x 1.5 threaded housing is designed for durability and ease of installation.
• Environmental Protection: Rated IP65, the sensor is protected against dust and water ingress, suitable for challenging industrial conditions.
• Temperature Range: Operates effectively in ambient temperatures ranging from -25°C to 70°C, accommodating various environmental conditions.
• Visual Status Indication: Equipped with a red LED indicator that provides clear visual feedback on the sensor’s output status.

Technical Specifications

• Operating Voltage: 20 to 250 VAC/VDC
• Current Rating: Continuous current rating of 200 mA
• Voltage Drop: Less than 10 V for AC and less than 8 V for DC
• Switching Frequency: 25 Hz for AC and 40 Hz for DC
• Connection Type: Terminal chamber with M20 x 1.5 cable gland, accommodating cable diameters from 7 to 13 mm
• Mounting: Non-flush mountable design for versatile installation options

The IFM Efector KIE2015-FBOA/NI-KI0205 capacitive sensor combines flexibility, durability, and high performance, making it an ideal choice for detecting a wide range of materials in diverse industrial applications.
