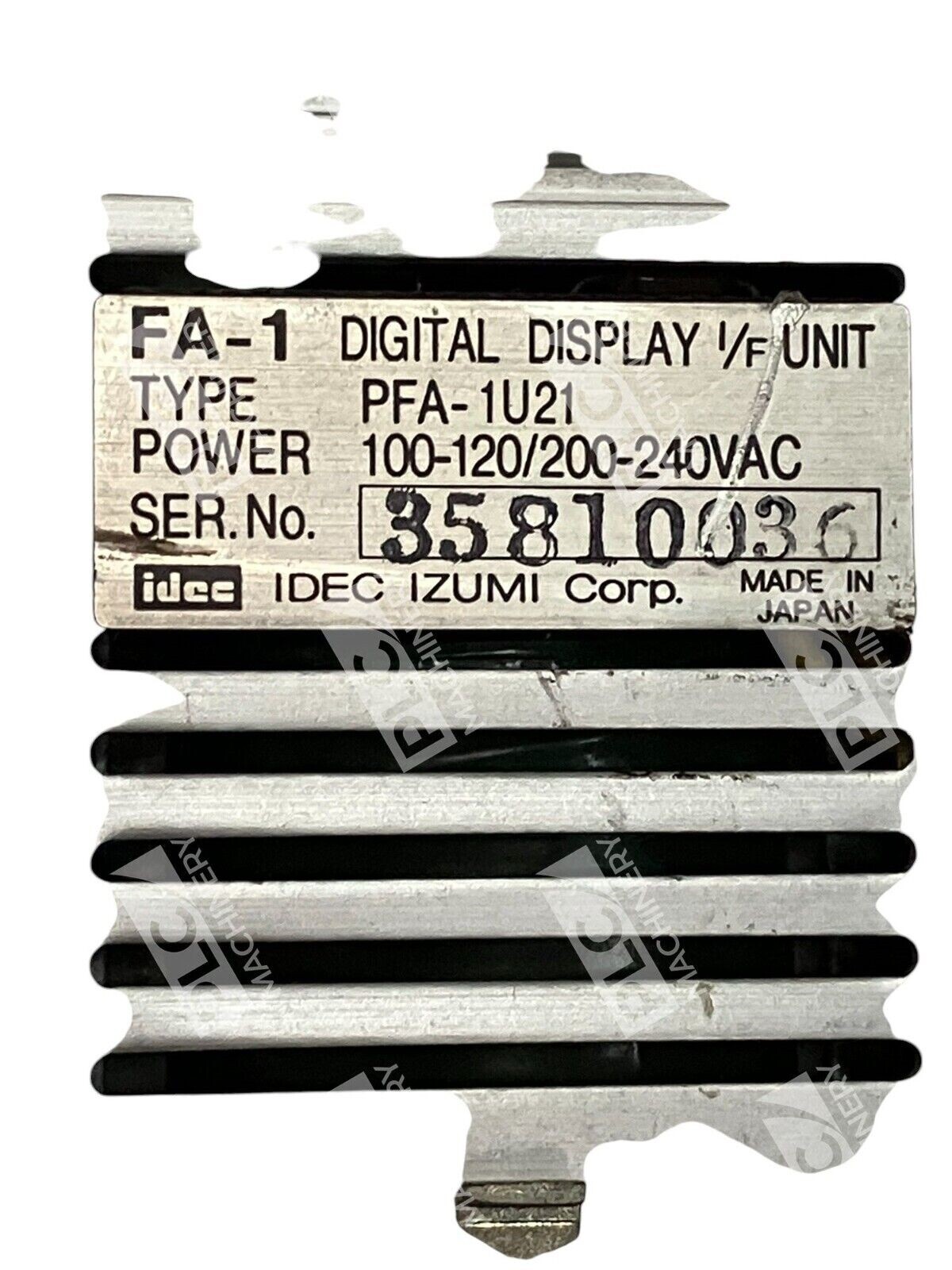

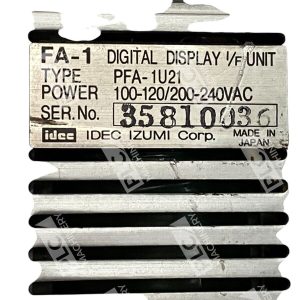

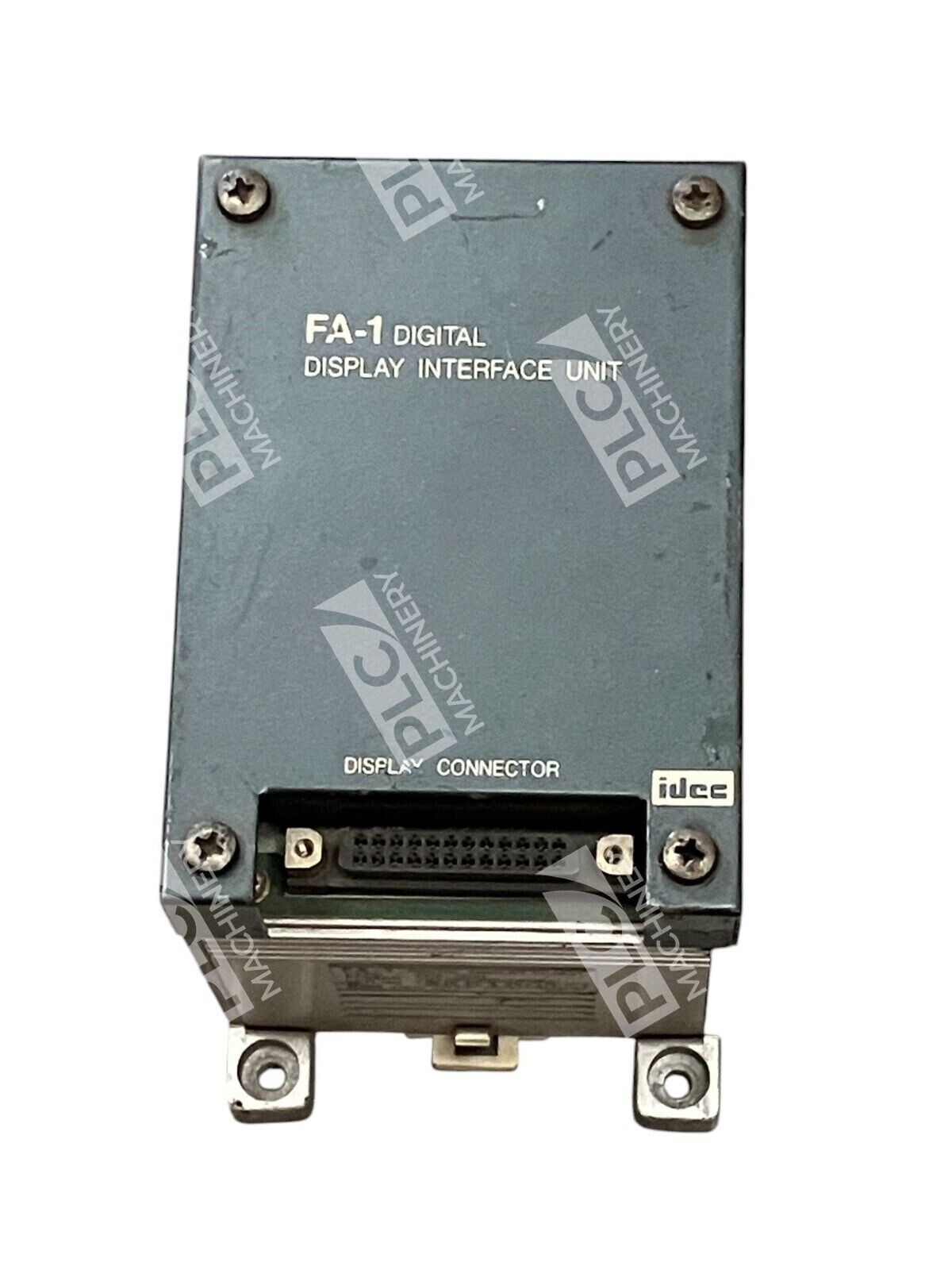

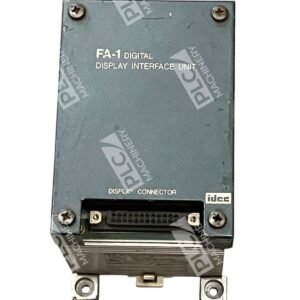

Idec Izumi FA-1 Digital Display Interface Unit PFA-1U21

Idec Izumi FA-1 Digital Display Interface Unit PFA-1U21

The Idec Izumi FA-1 Digital Display Interface Unit PFA-1U21 is an essential component designed to enhance the functionality of the FA-1 Series Programmable Controllers. This interface unit enables the external display of counted values from timer (TIM) and counter (CNT) instructions, facilitating real-time monitoring and data visualization.

Key Features

• Display System: Utilizes a dynamic lighting display to present data clearly and effectively.
• Number of Circuits: Supports 2 circuits, each capable of displaying 4-digit BCD (Binary-Coded Decimal) values.
• Output Capacity: Provides 32 outputs, with 16 outputs allocated per circuit, ensuring comprehensive data representation.
• Power Requirements: Operates efficiently within a power voltage range of 100 to 120V AC, with a power consumption of approximately 20W.

Functionality

When integrated with the FA-1 Series Programmable Controller, the PFA-1U21 converts counted values into 4-digit BCD format. These values are then assigned to a series of 16 output points, starting from a specified output. This setup allows for seamless data transmission to external digital display units, ensuring accurate and timely information dissemination.

Applications

The PFA-1U21 is ideal for industrial environments where real-time data monitoring is crucial. Its ability to interface with external displays makes it suitable for applications requiring precise tracking of operational metrics, enhancing overall system efficiency and reliability.

Incorporating the Idec Izumi FA-1 Digital Display Interface Unit PFA-1U21 into your control system ensures enhanced data visibility and operational control, contributing to improved performance and decision-making processes.
