Hyspan 12″ 2.5″ 50PSIG 1507SP Expansion Joint 59453

Hyspan 12″ 2.5″ 50PSIG 1507SP Expansion Joint 59453

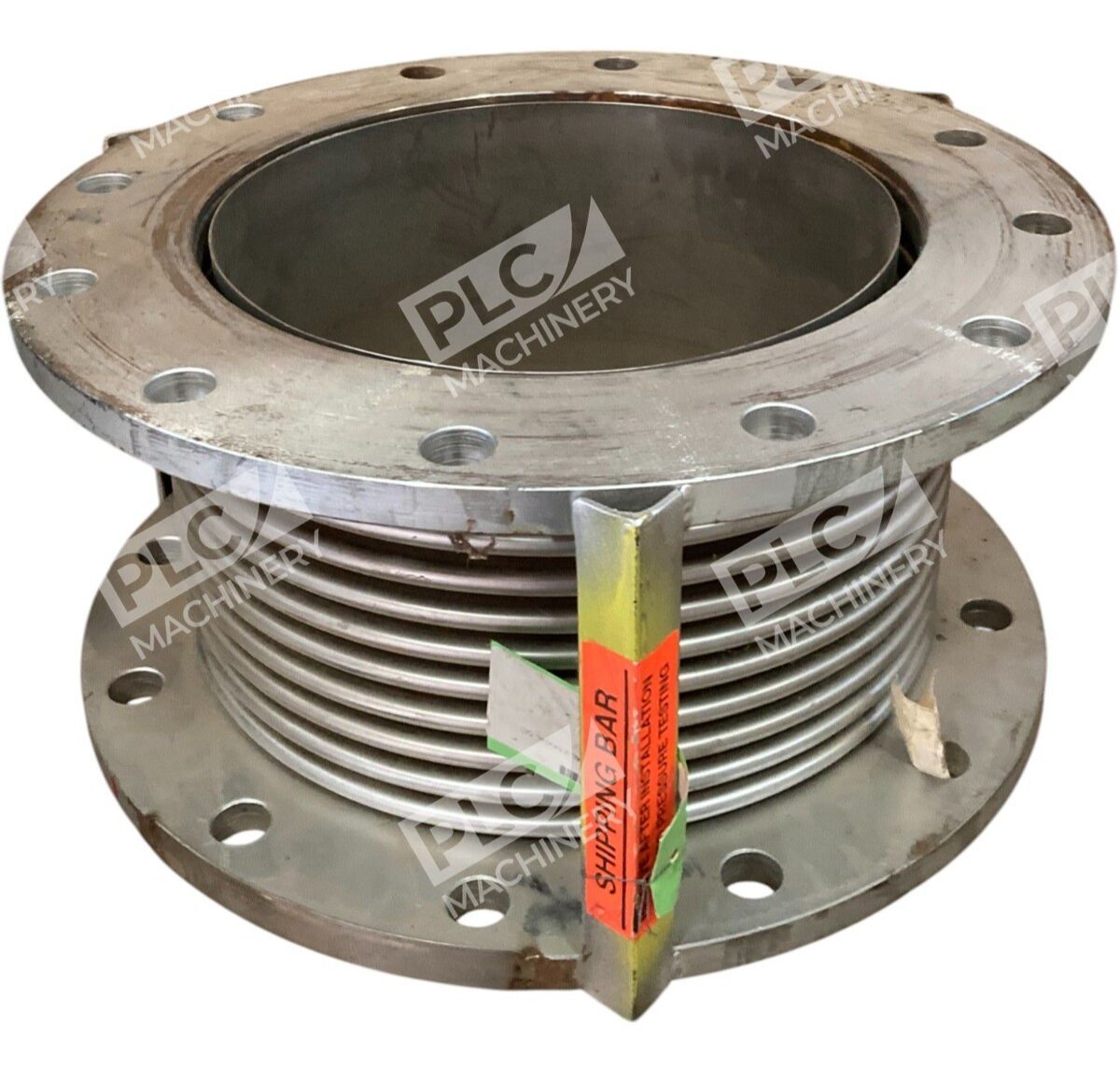

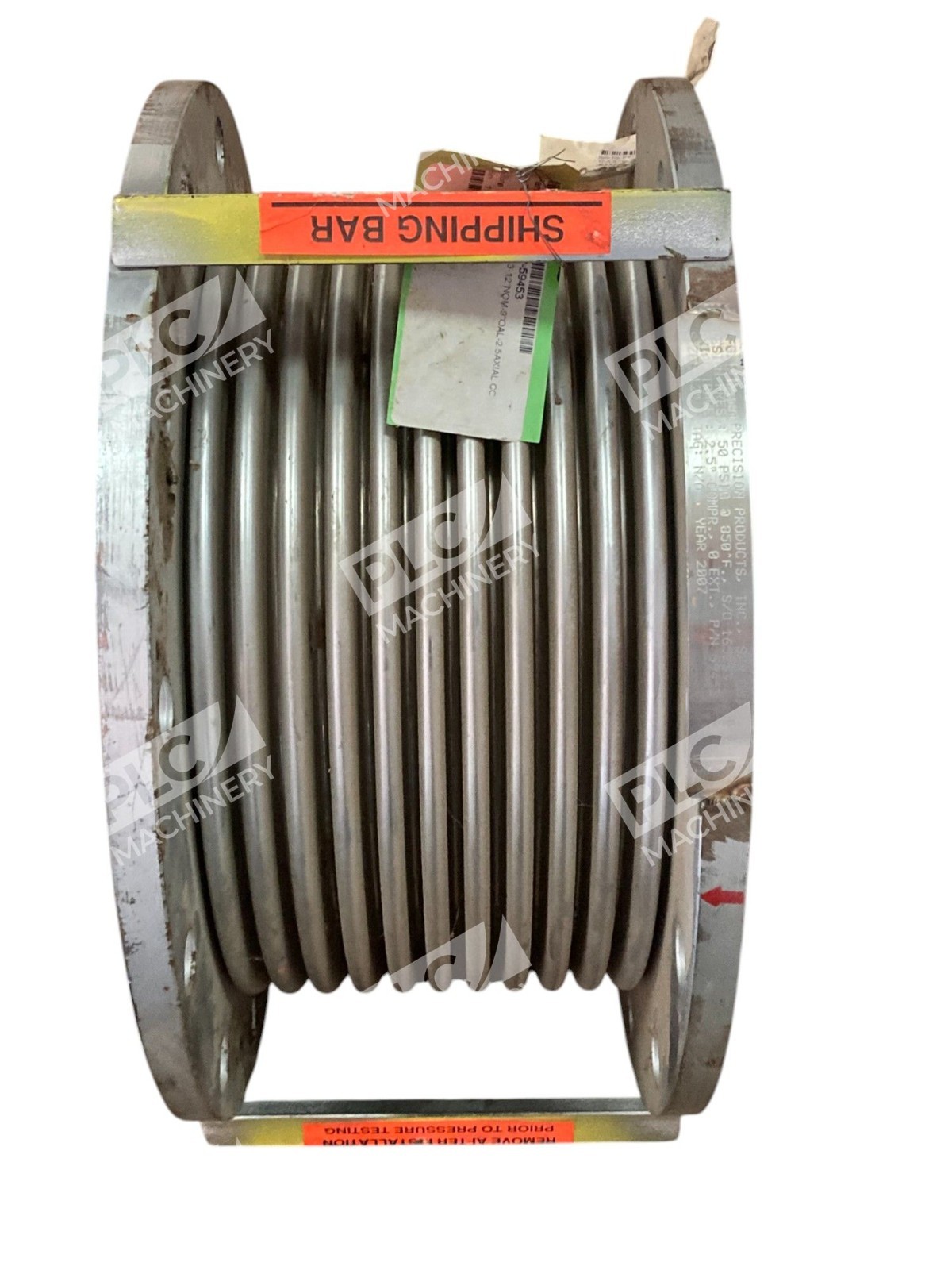

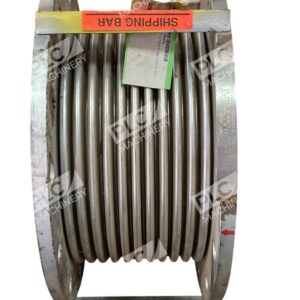

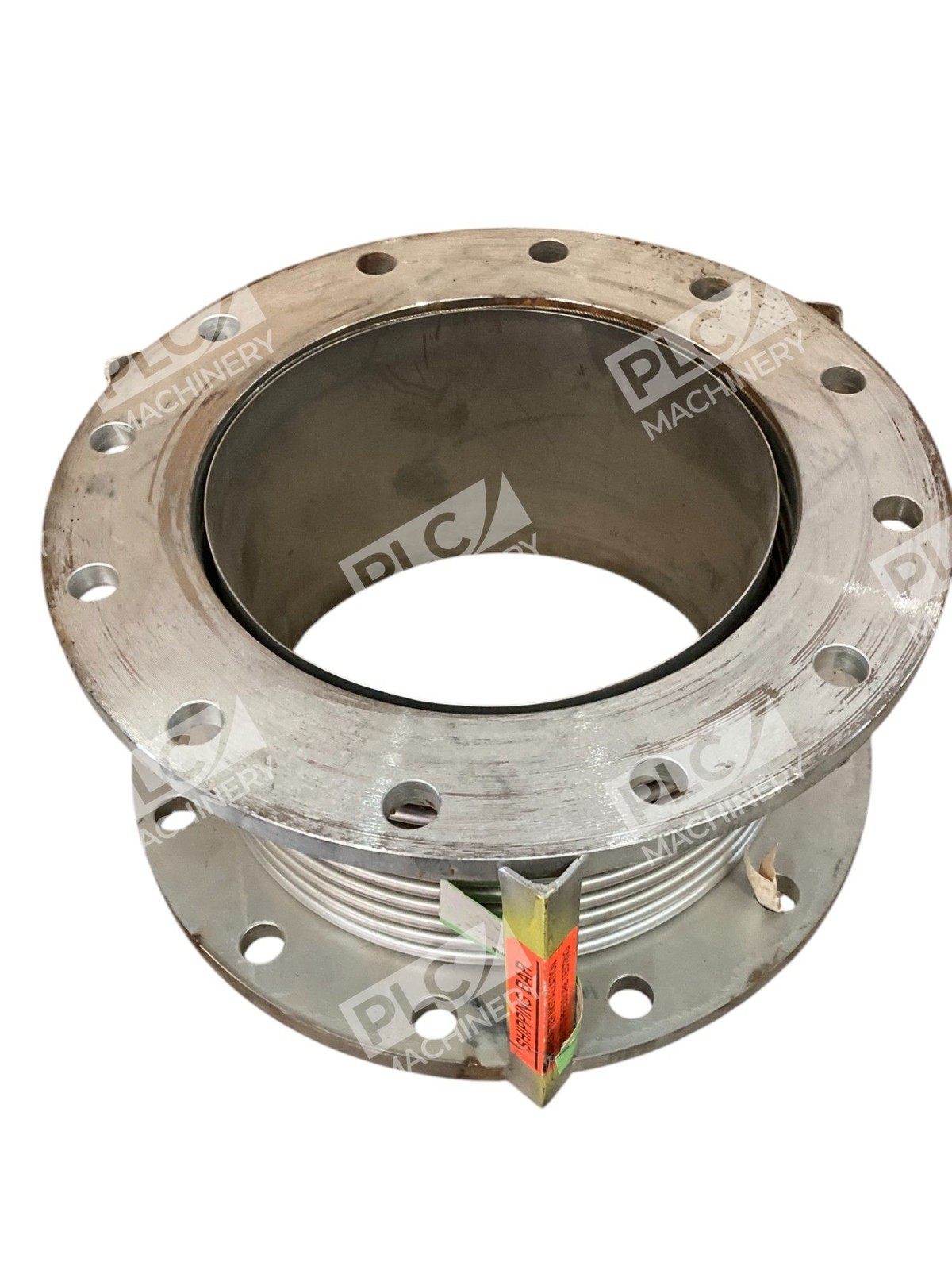

The Hyspan 12″ 2.5″ 50PSIG 1507SP Expansion Joint, part of the Series 1500 Hyflex Single Bellows Expansion Joints, is engineered to accommodate axial movements in piping systems. Designed for a nominal pipe size of 12 inches, this expansion joint effectively manages thermal expansion and contraction, ensuring system integrity and longevity.

Key Features

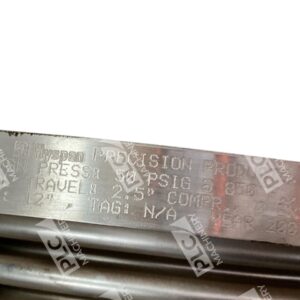

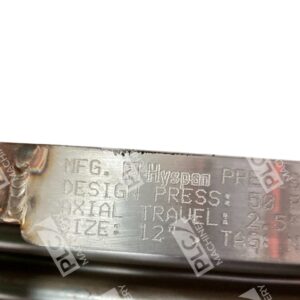

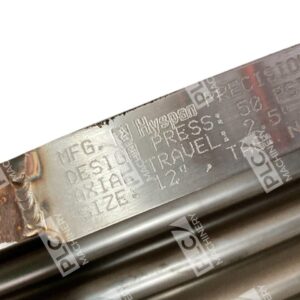

• Pressure Rating: Suitable for applications up to 50 PSIG (3.5 BARG), making it ideal for low-pressure systems.
• Axial Movement: Capable of handling axial compression and extension, providing flexibility to absorb thermal movements.
• Material Construction: Constructed with high-quality steel components, ensuring durability and resistance to various environmental conditions.
• End Connections: Available with fixed flanges, facilitating straightforward installation and secure connections within piping systems.
• Temperature Range: Designed to operate efficiently up to 500°F (260°C), accommodating a wide range of thermal conditions.

Applications

This expansion joint is suitable for various industrial applications, including:

• HVAC systems
• Steam distribution lines
• Process piping in chemical plants
• Power generation facilities

Additional Options

To enhance performance and meet specific application requirements, the following options are available:

• Internal Flow Liners: Minimize flow turbulence and protect the bellows from erosion.
• External Shrouds: Provide additional protection against external damage and environmental factors.
• Control Rods: Limit the movement of the expansion joint, preventing over-extension or compression.

For detailed specifications and customization options, please refer to the product documentation or contact the manufacturer directly.
