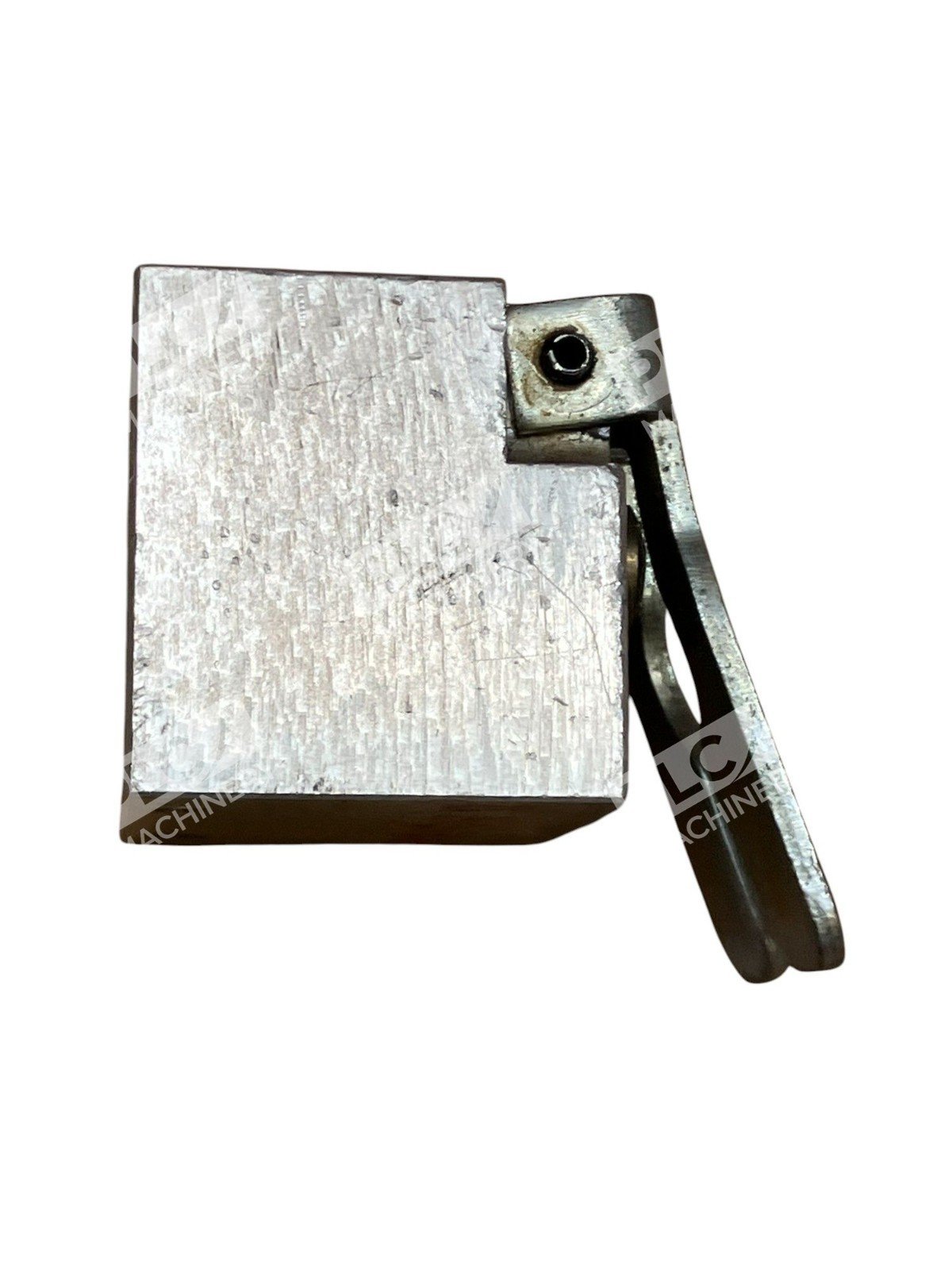

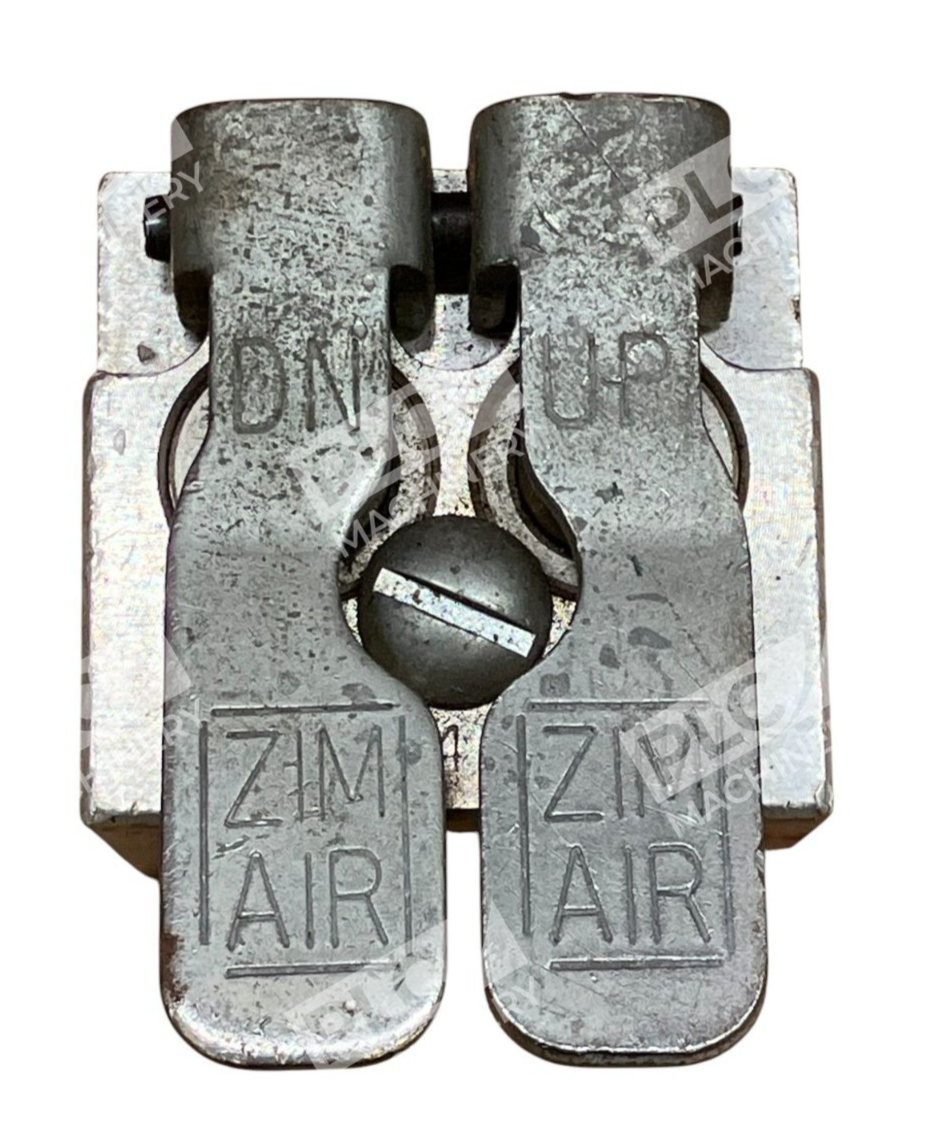

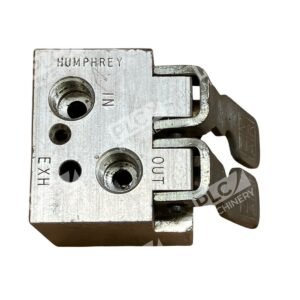

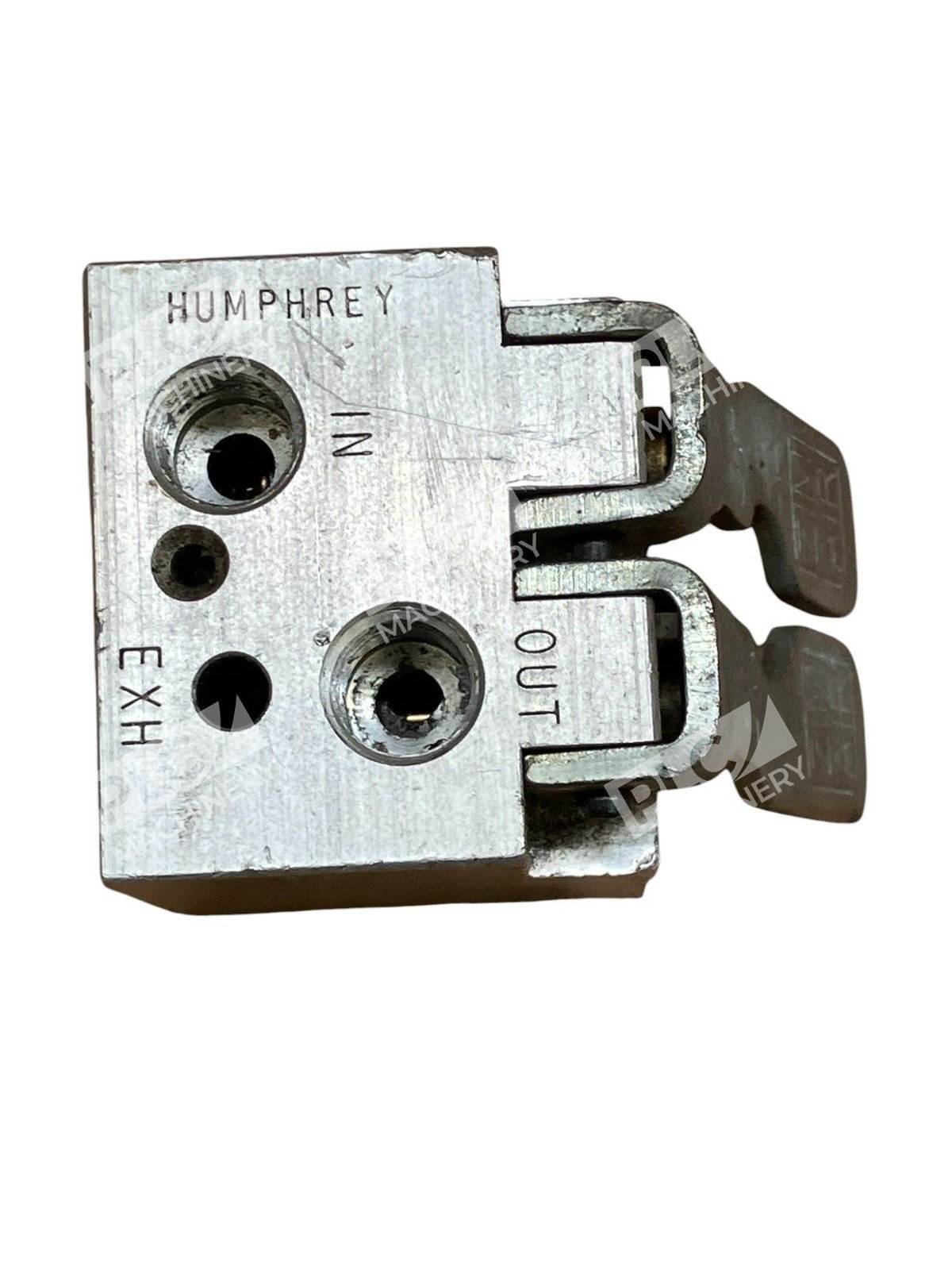

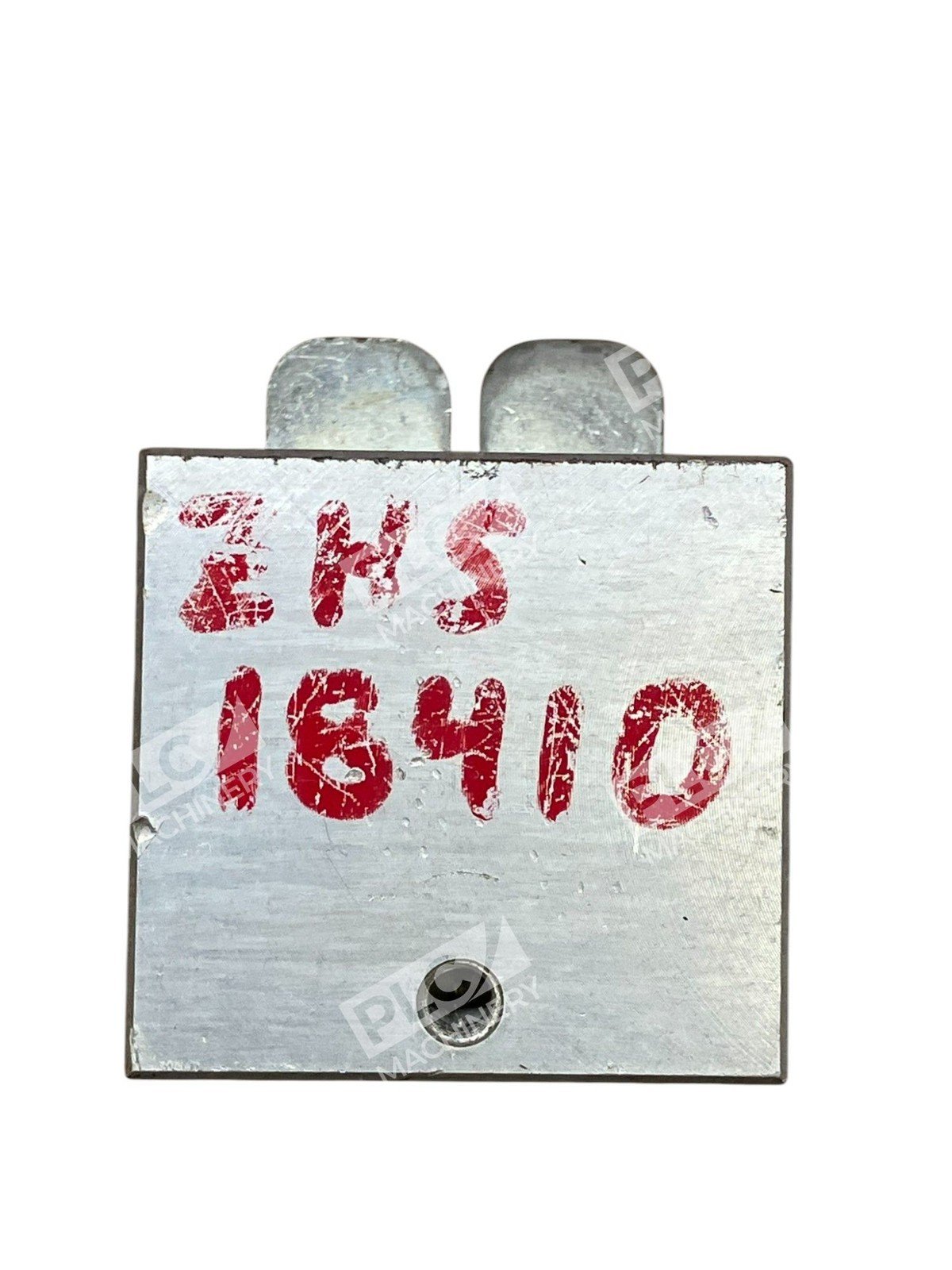

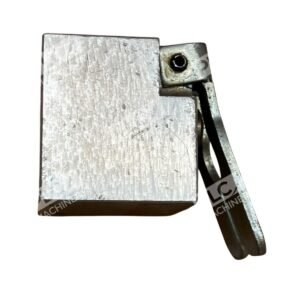

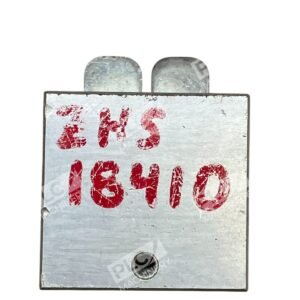

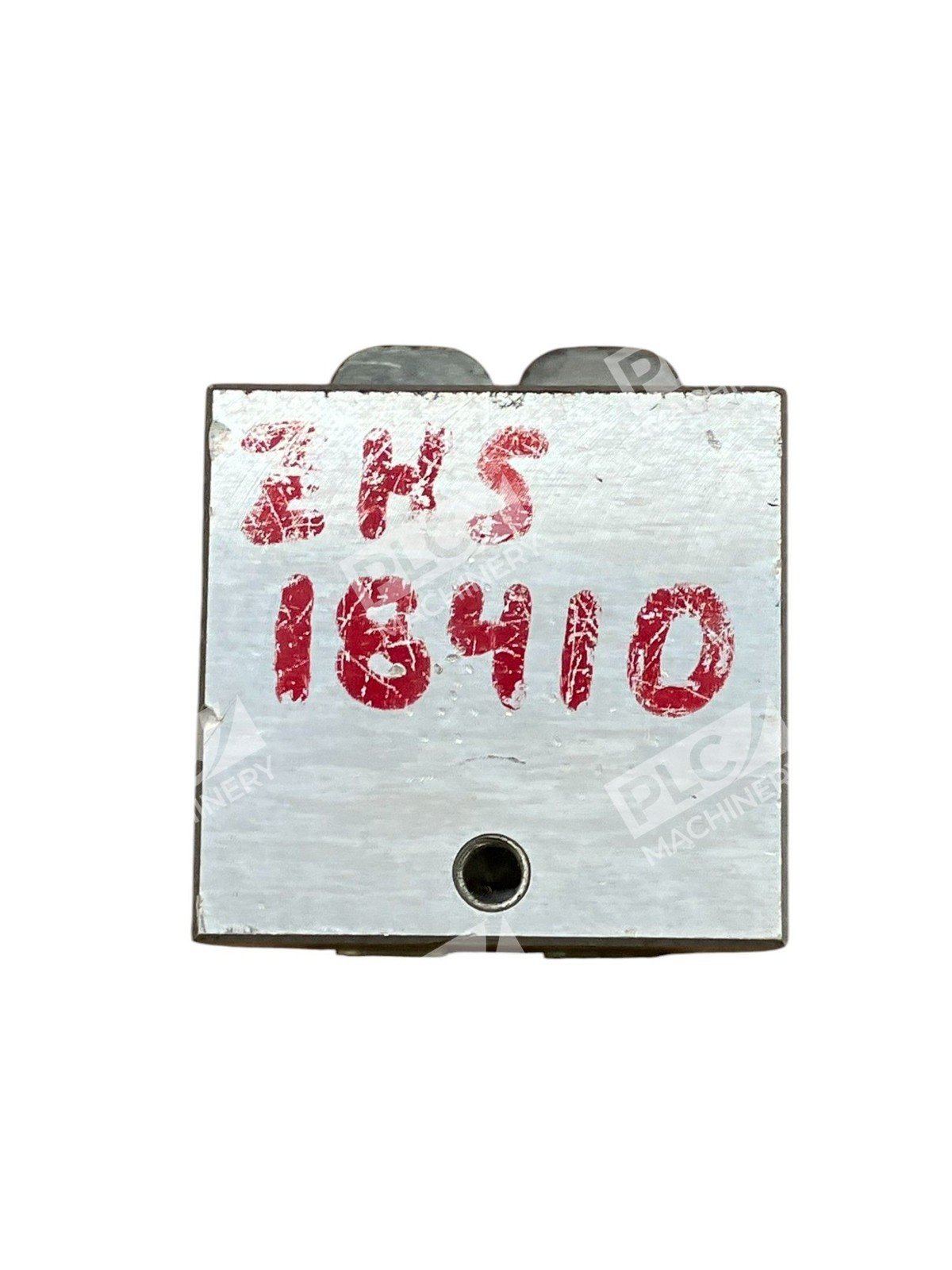

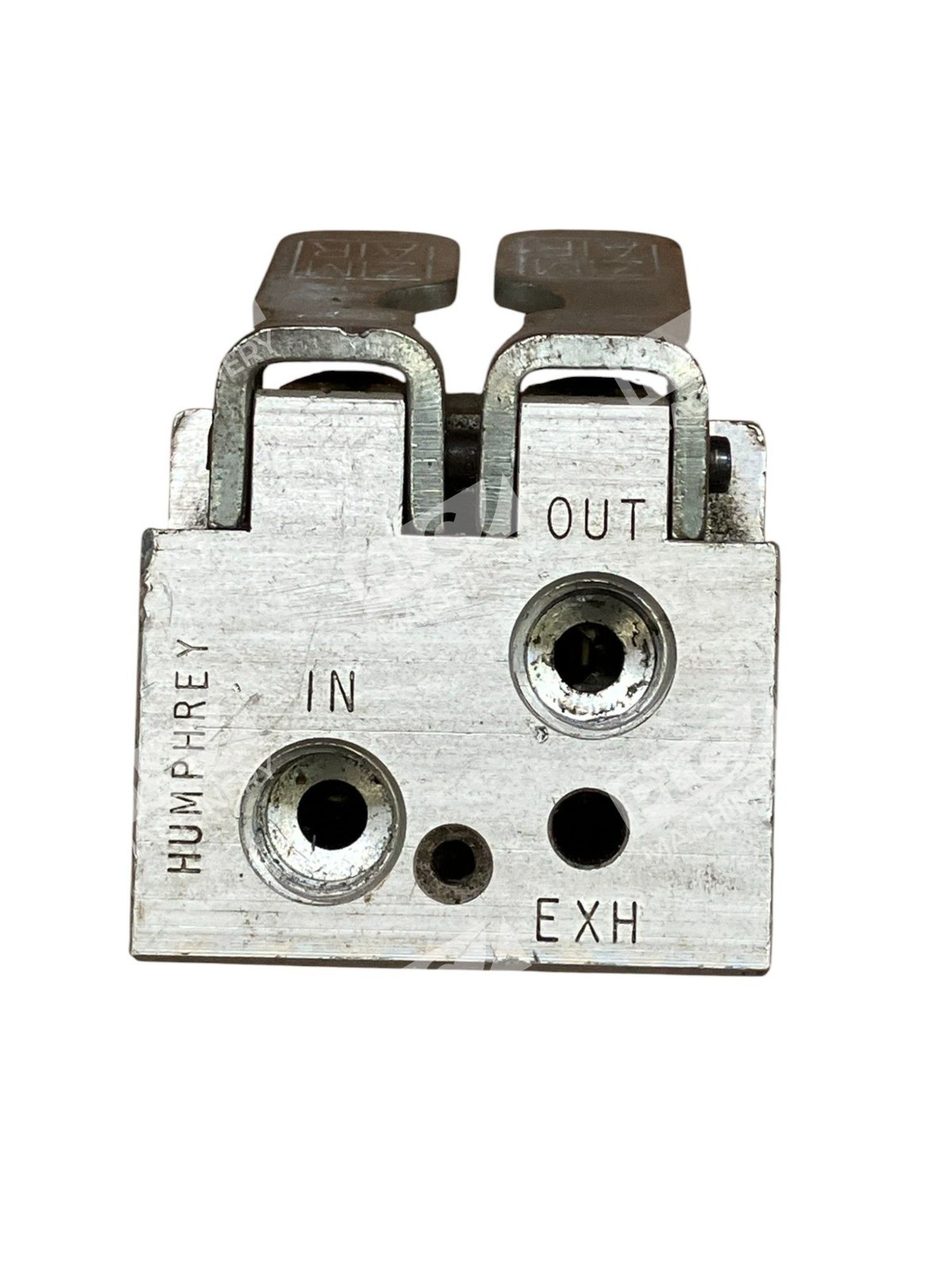

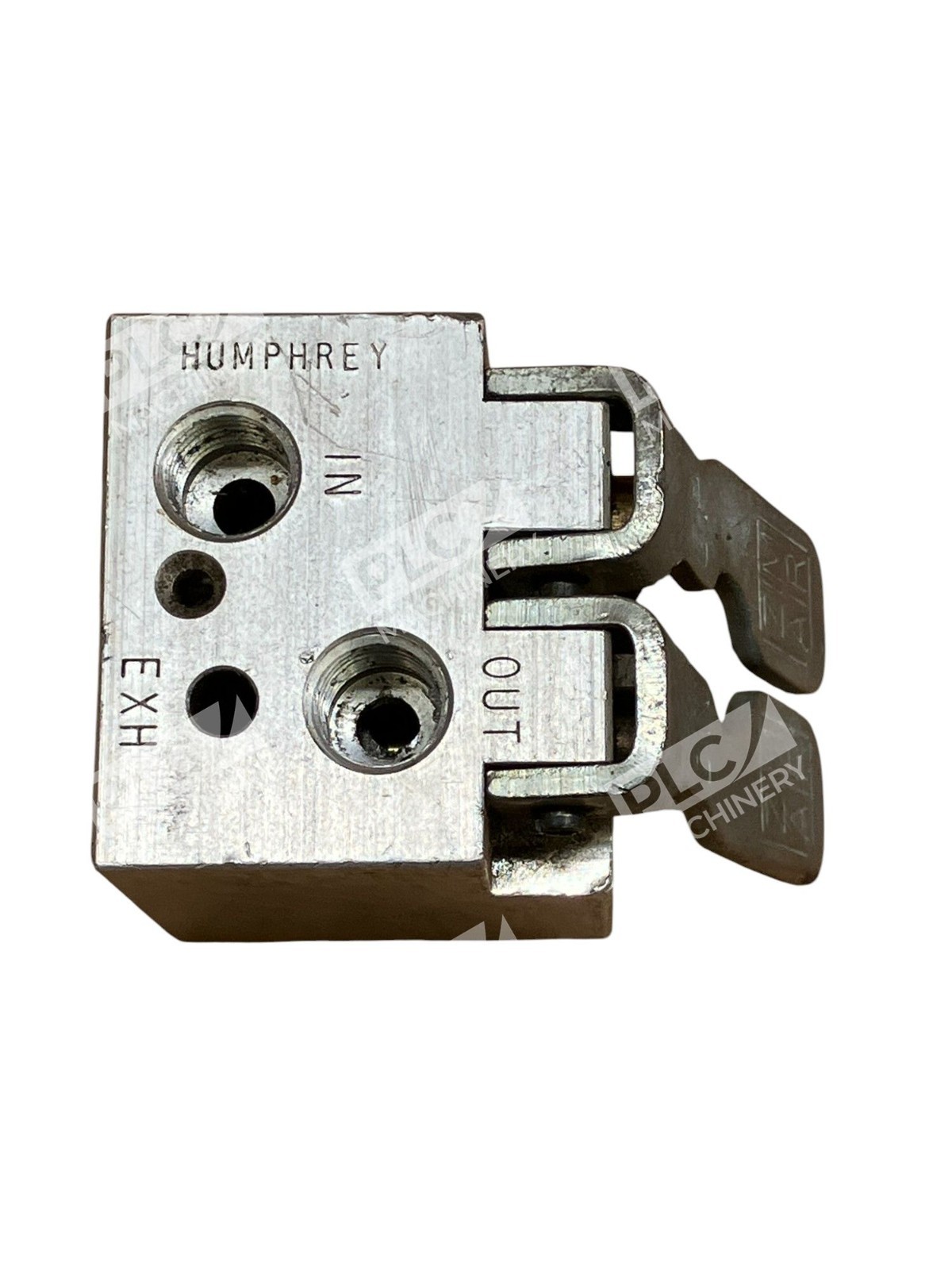

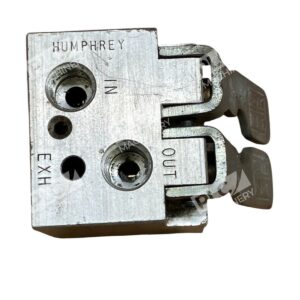

Humphrey ZHS 18410 Air Control Valve Zim Air

The Humphrey ZHS 18410 Air Control Valve, part of the Zim Air series, is engineered for precise pneumatic control in various industrial applications.

Key Features

• Diaphragm-Poppet Design: Ensures reliable operation with bubble-tight sealing, both actuated and unactuated.
• Air Piloted Operation: Operated via a remote pneumatic signal, making it suitable for hazardous or challenging environments.
• Versatile Media Compatibility: Compatible with air, inert gases, and mild liquids, offering flexibility across different systems.
• Compact and Durable Construction: Designed for close-proximity mounting, facilitating fast cycling and quick exhaust.

Technical Specifications

• Valve Function: Single Pilot, Normally Closed
• Port Size: 1/2 NPT (Pilot Port: 1/8 NPSF)
• Flow Capacity: 160 SCFM at 100 psig (Cv: 2.67)
• Pressure Range: 10 to 125 psi
• Operating Speed: Up to 600 cycles per minute
• Ambient Temperature Range: 0°F to 225°F
• Materials: Brass, Stainless Steel, Buna-N

Applications

Ideal for use as a slave valve in simultaneous functions, safety valve in interlocking applications, and in environments with poor or uncertain compressed air conditions.

The Humphrey ZHS 18410 Air Control Valve combines robust performance with versatility, making it a reliable choice for demanding pneumatic control tasks.
