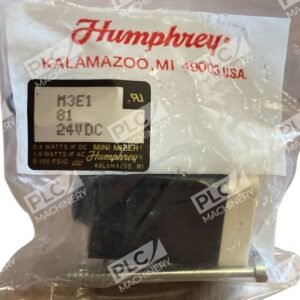

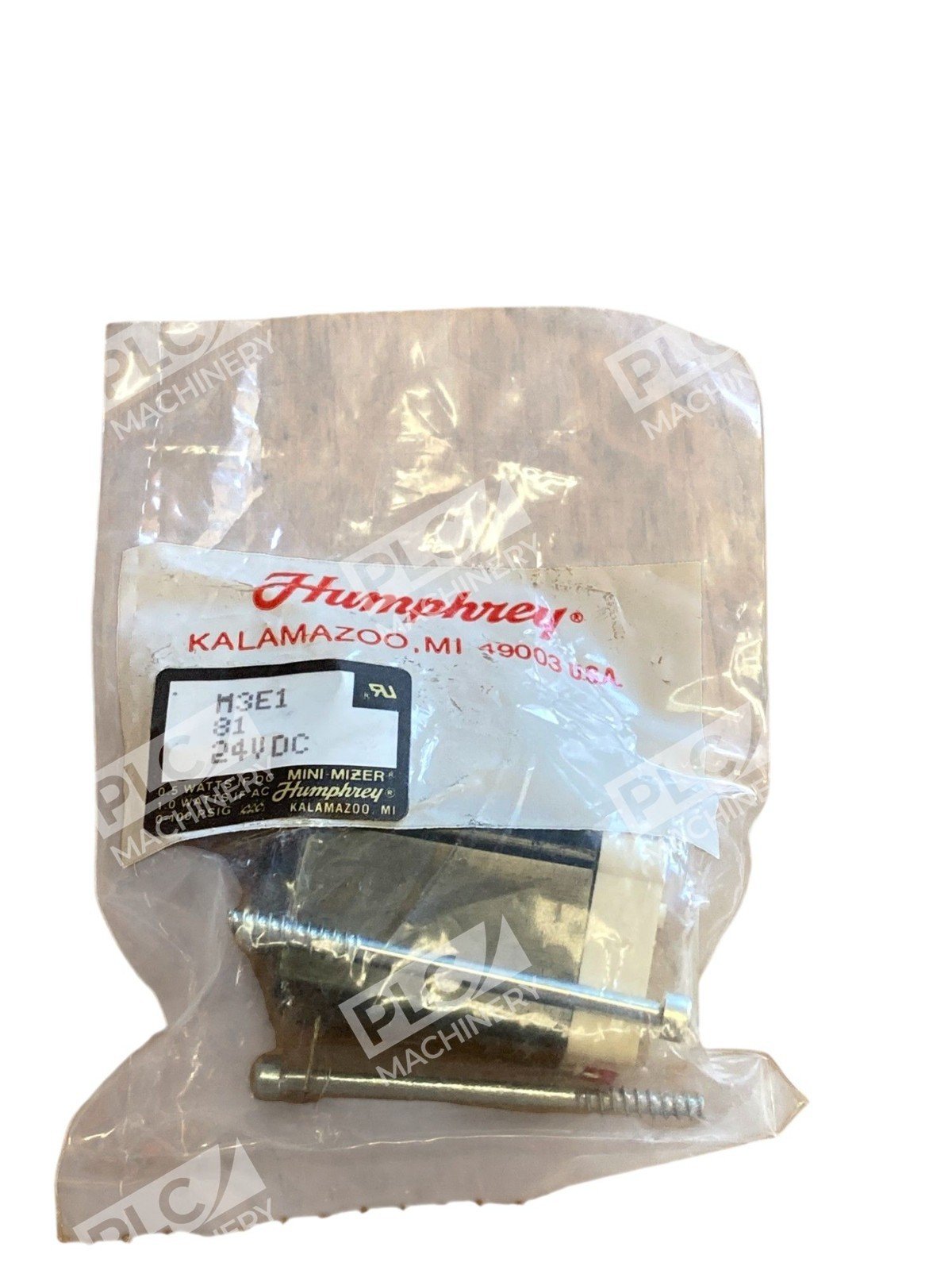

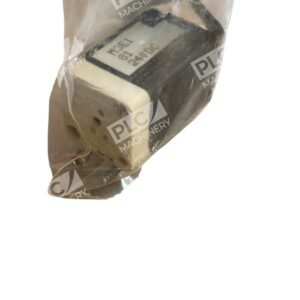

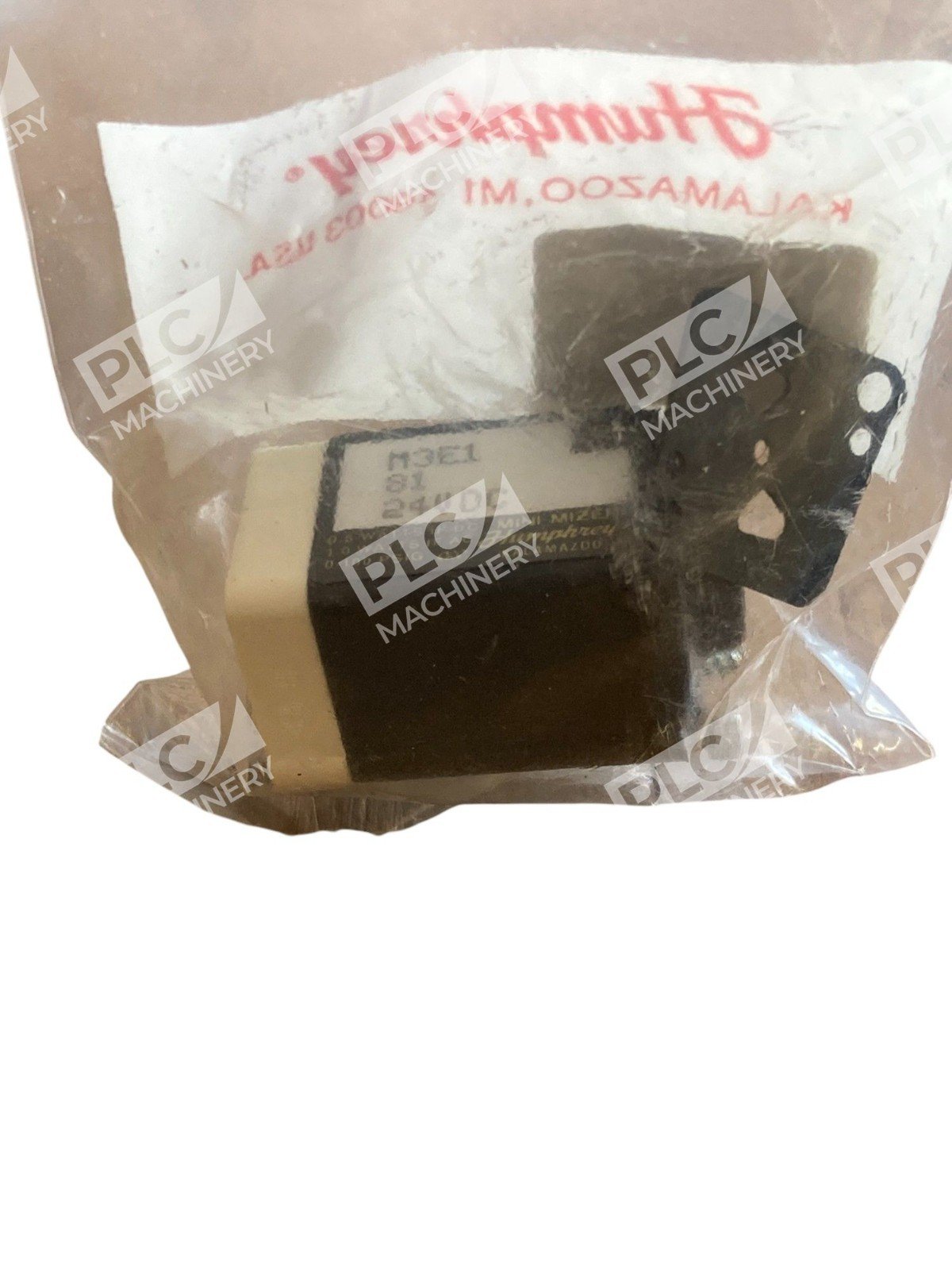

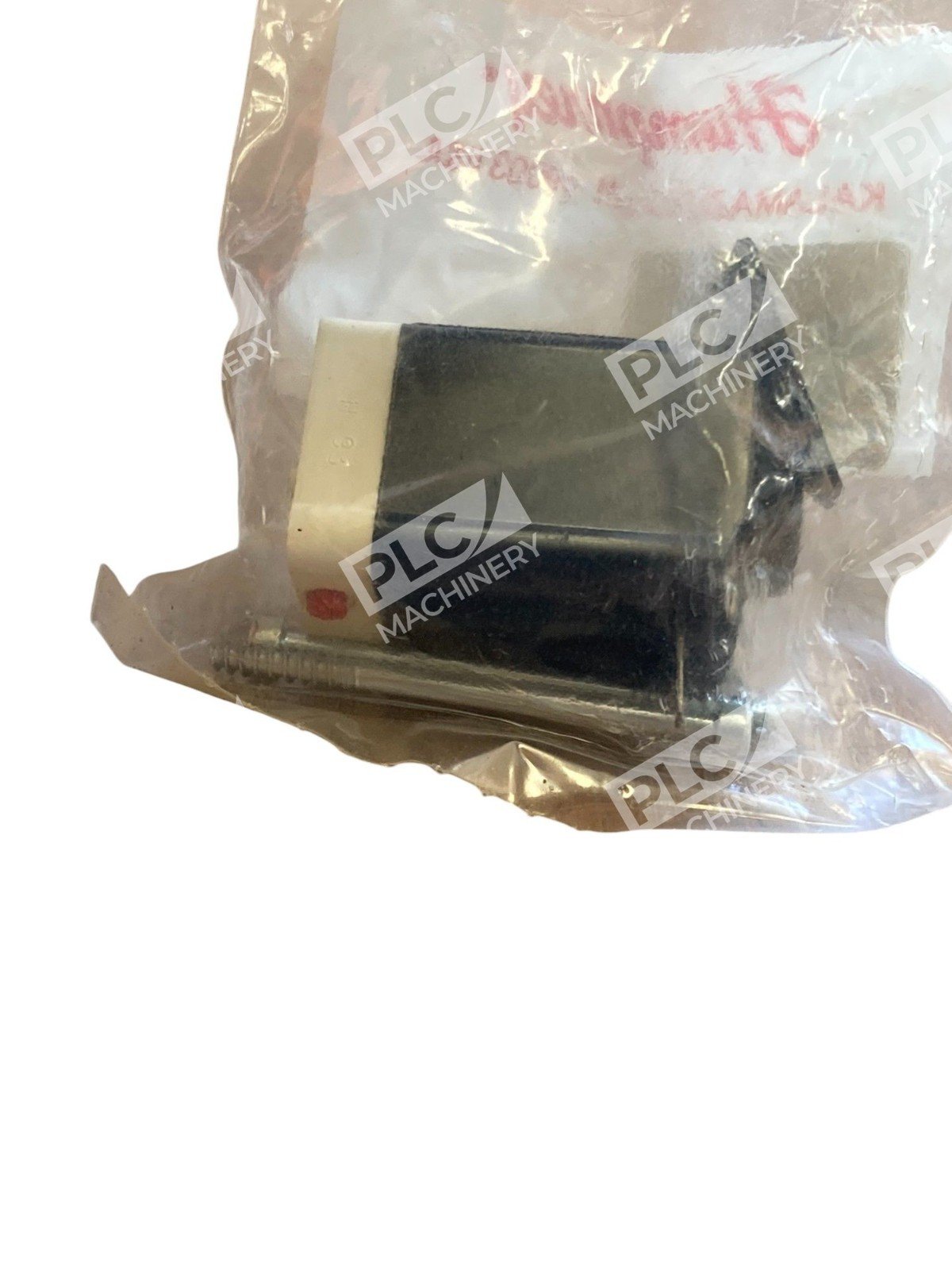

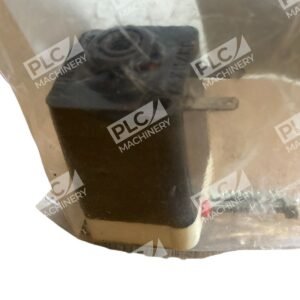

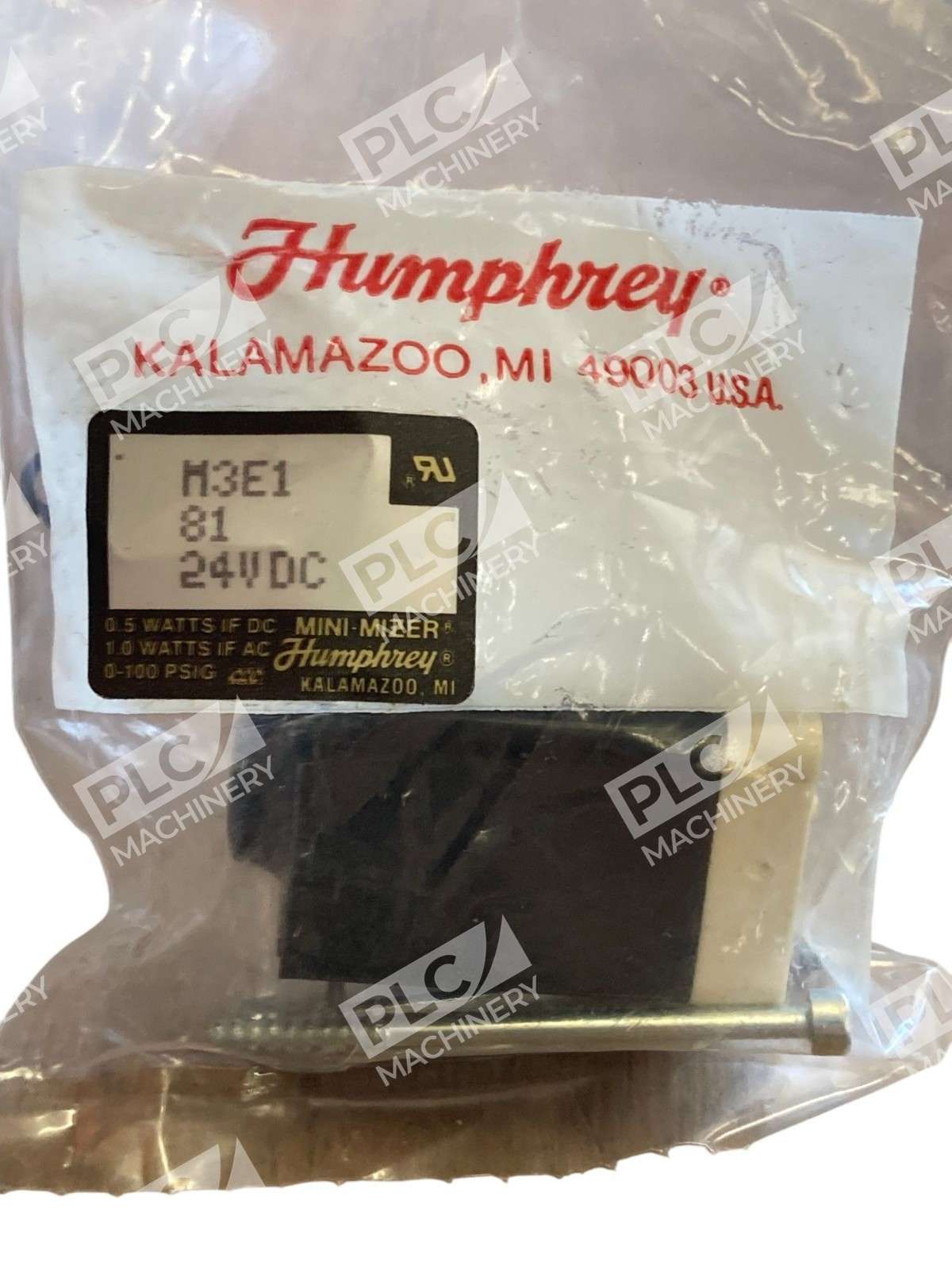

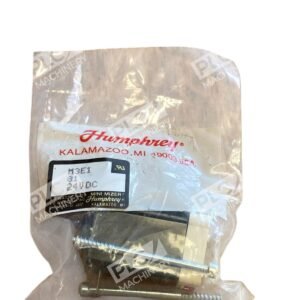

Humphrey M3E1 81 24VDC Mini-Mizer Solenoid Valve
The Humphrey M3E1 81 24VDC Mini-Mizer Solenoid Valve is a compact, direct-acting 3-port valve designed for efficient pneumatic control applications. Operating at a low power consumption of just 0.5 watts, it serves as an ideal interface for PC and PLC systems.
Key Features
- Valve Function: Single Solenoid, Normally Closed
- Voltage: 24VDC
- Piping Type: Manifold, Subbase Piping
- Number of Ports: 3
- Number of Positions: 2
- Type of Operation: Direct Acting
- Flow Rate: 1 SCFM at 100 psig (28 LPM at 6.9 bar)
- Orifice Size: 0.023 inches (0.597 mm)
- Flow Coefficient (Cv): 0.01
- Pressure Range: 0 to 100 psi
- Response Time: 5/6 milliseconds per step
- Operating Speed: Up to 600 cycles per minute
- Ambient Temperature Range: 0 to 150°F
- Wetted Materials: Stainless Steel, Nickel-plated Steel, Brass, Buna-N
- Weight: 2.0 ounces
- Electrical Entry: 18-inch Lead Wires
- Voltage Range: +10%, -15%
- Compliance: RoHS
Designed to meet stringent leakage requirements, the M3E1 81 24VDC Mini-Mizer Solenoid Valve is suitable for applications involving air and inert gases. Its compact dimensions (1.63 x 0.88 x 0.88 inches) and manifold mounting capability make it versatile for various pneumatic systems.
