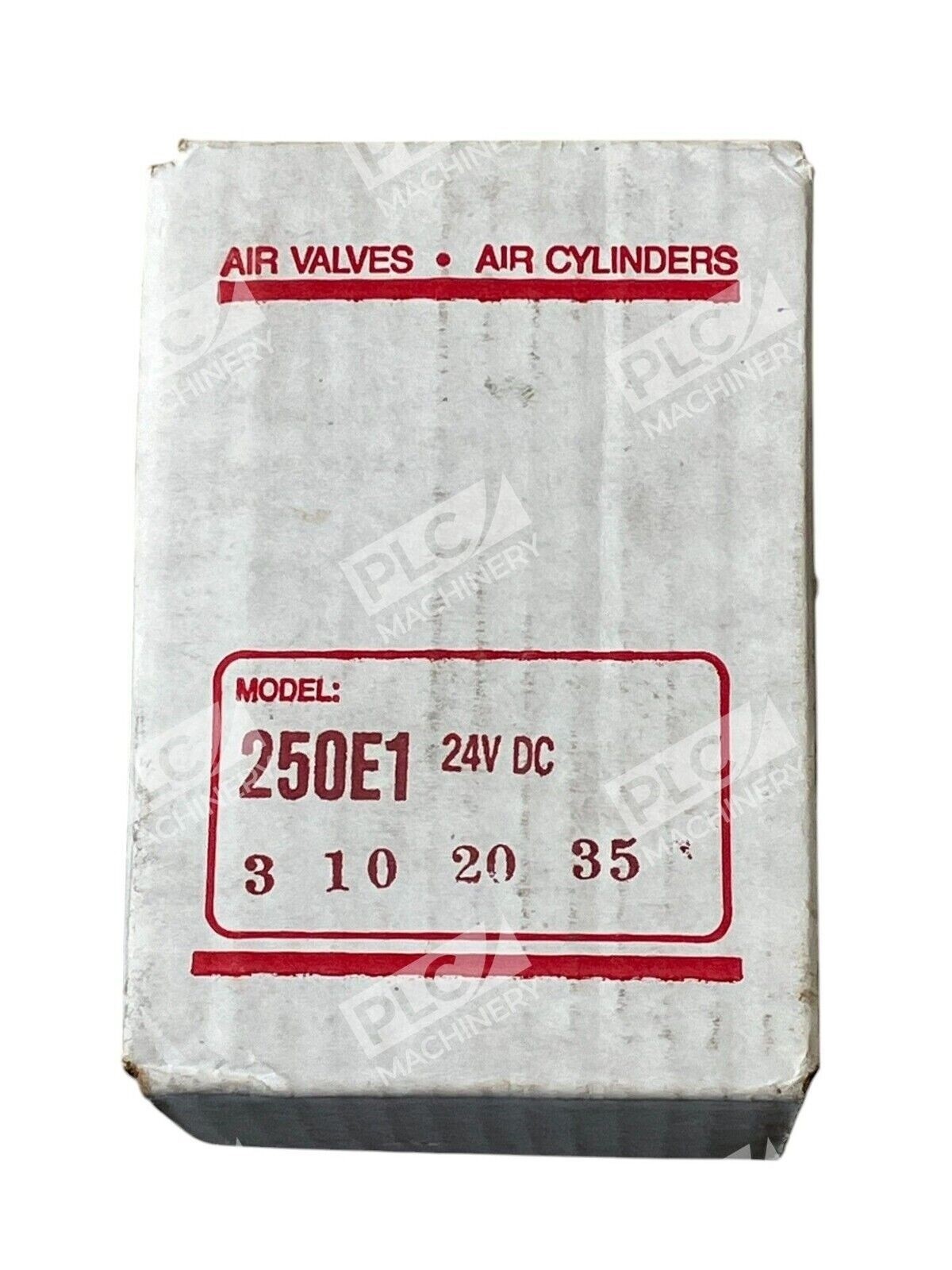

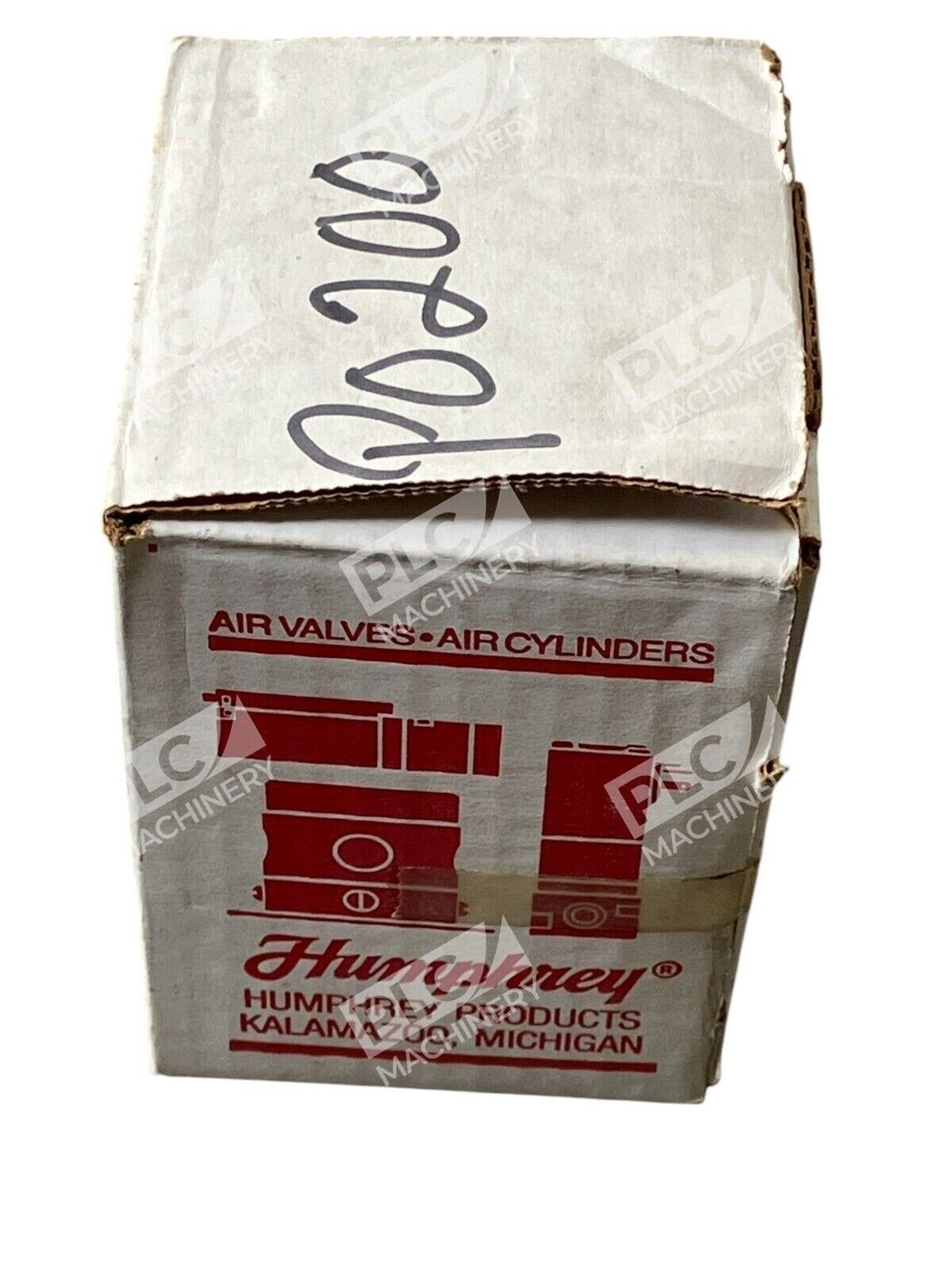

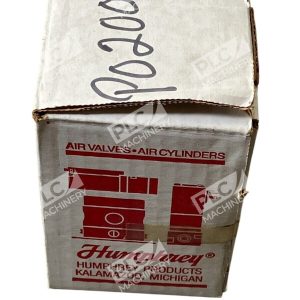

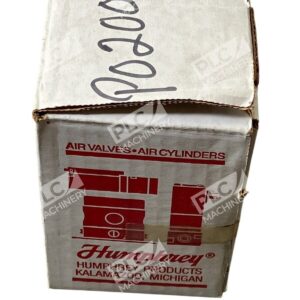

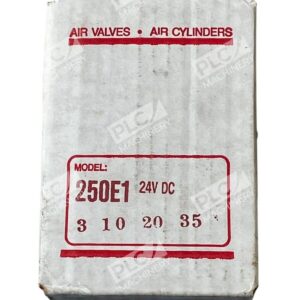

Humphrey 250E1-3-10-20-35 Pneumatic Solenoid Air Valve

The Humphrey 250E1-3-10-20-35 is a 3-way, 2-position, single solenoid valve designed for efficient pneumatic control in various industrial applications. Operating at 24V DC, this valve ensures reliable performance and precise actuation.

Key Features

• Valve Function: 3-way, 2-position, single solenoid, normally closed
• Port Size: 1/4″ NPT ports
• Operation: Internal pilot
• Voltage: 24V DC
• Power Consumption: 6.7 W
• Operating Pressure Range: 30 to 125 psi
• Flow Capacity: 60 SCFM at 100 psi
• Response Time: Fast response suitable for high-speed operations
• Cycle Rate: Up to 600 cycles per minute
• Ambient Temperature Range: -20°F to 225°F
• Wetted Materials: Zinc die-cast, brass, stainless steel, Buna-N
• Lubrication: Not required

Applications

This valve is ideal for controlling pneumatic actuators, cylinders, and other devices in automation systems, manufacturing processes, and other industrial settings requiring precise air flow control.

Additional Information

The Humphrey 250E1-3-10-20-35 features a compact design, allowing for close proximity mounting and quick exhaust, making it suitable for applications where space is limited and rapid cycling is necessary.
