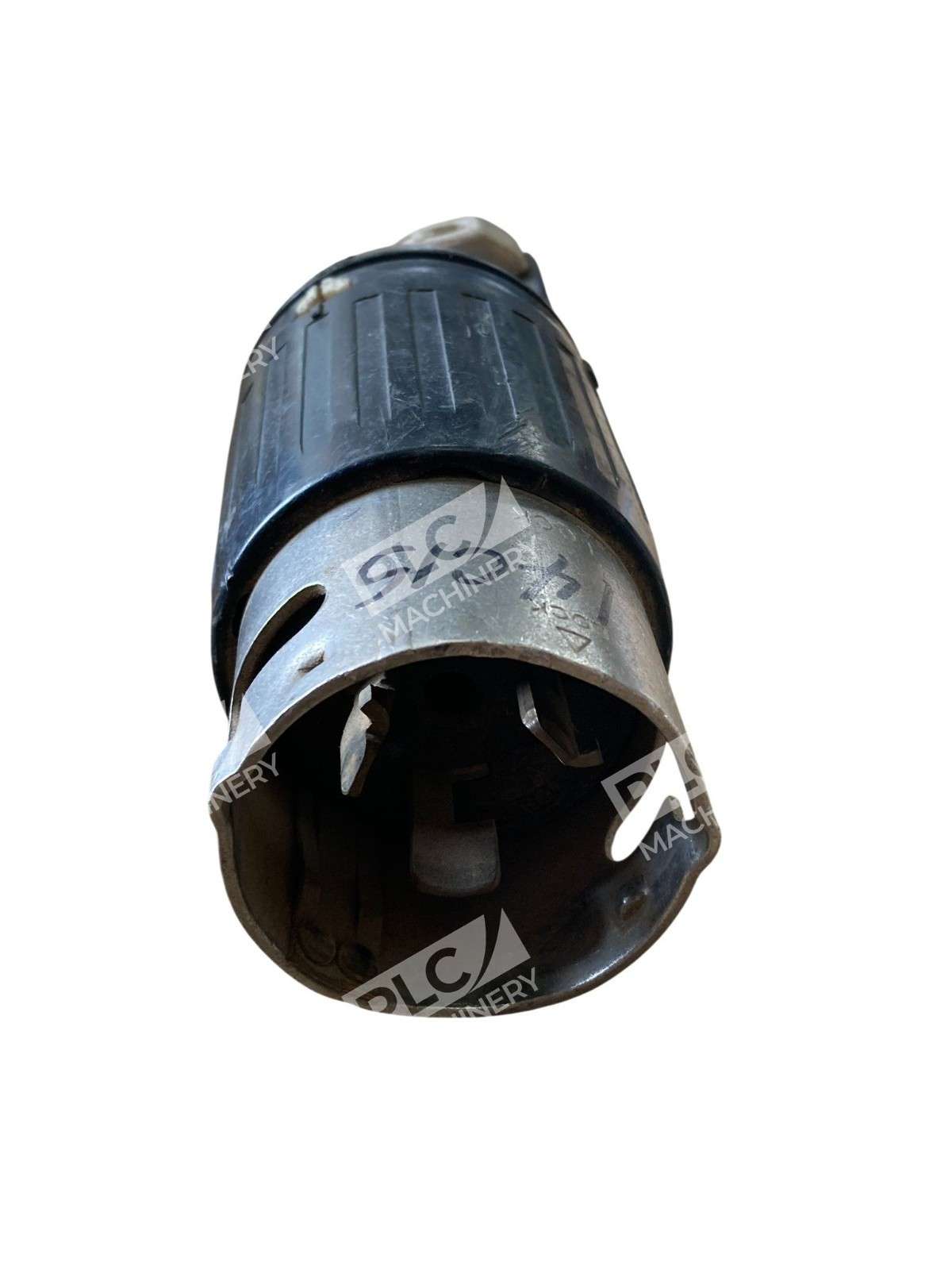

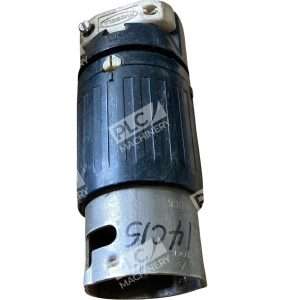

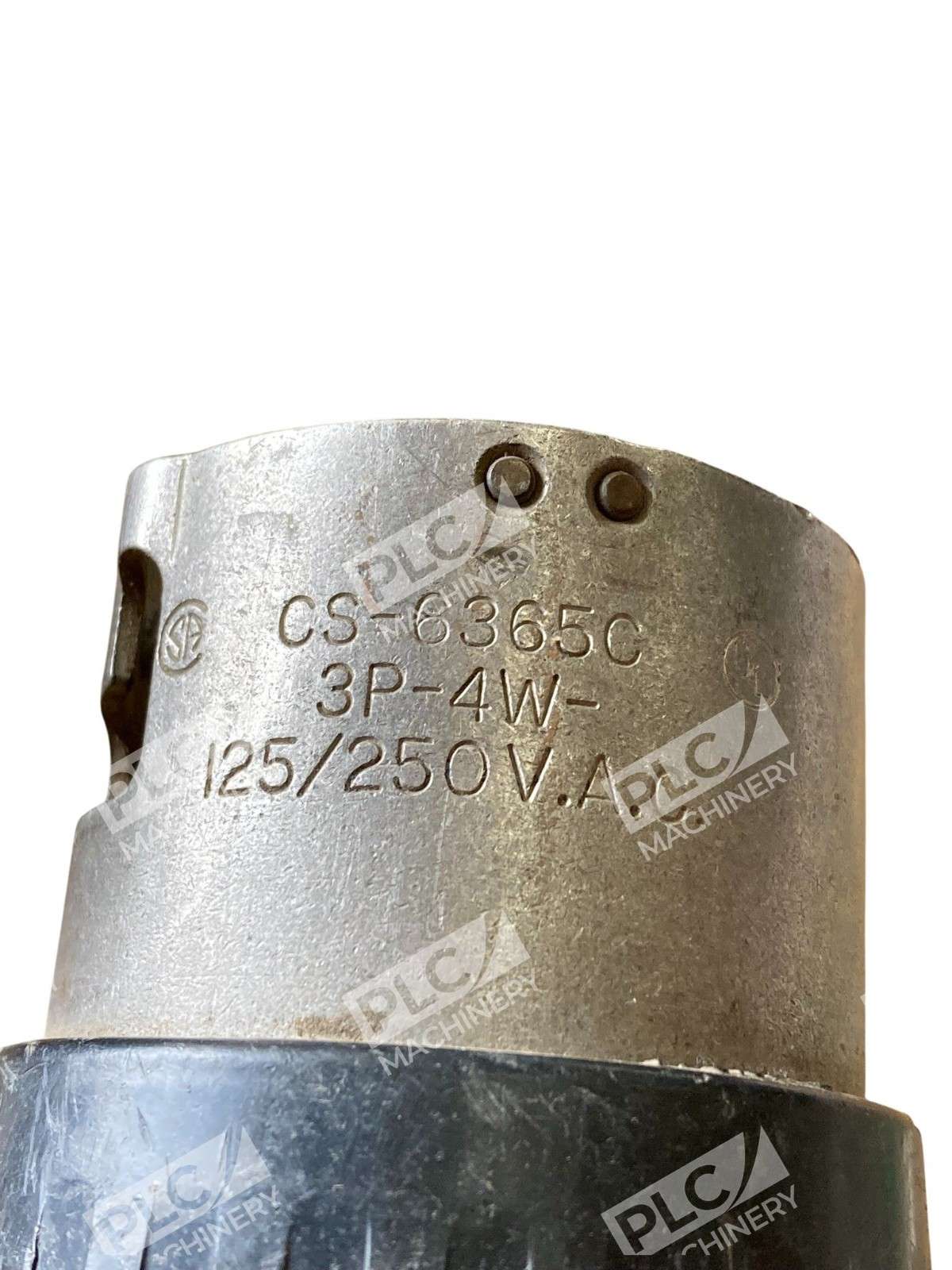

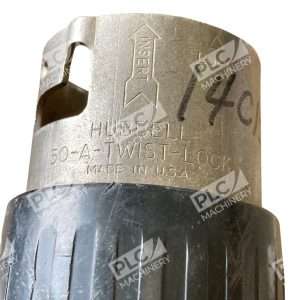

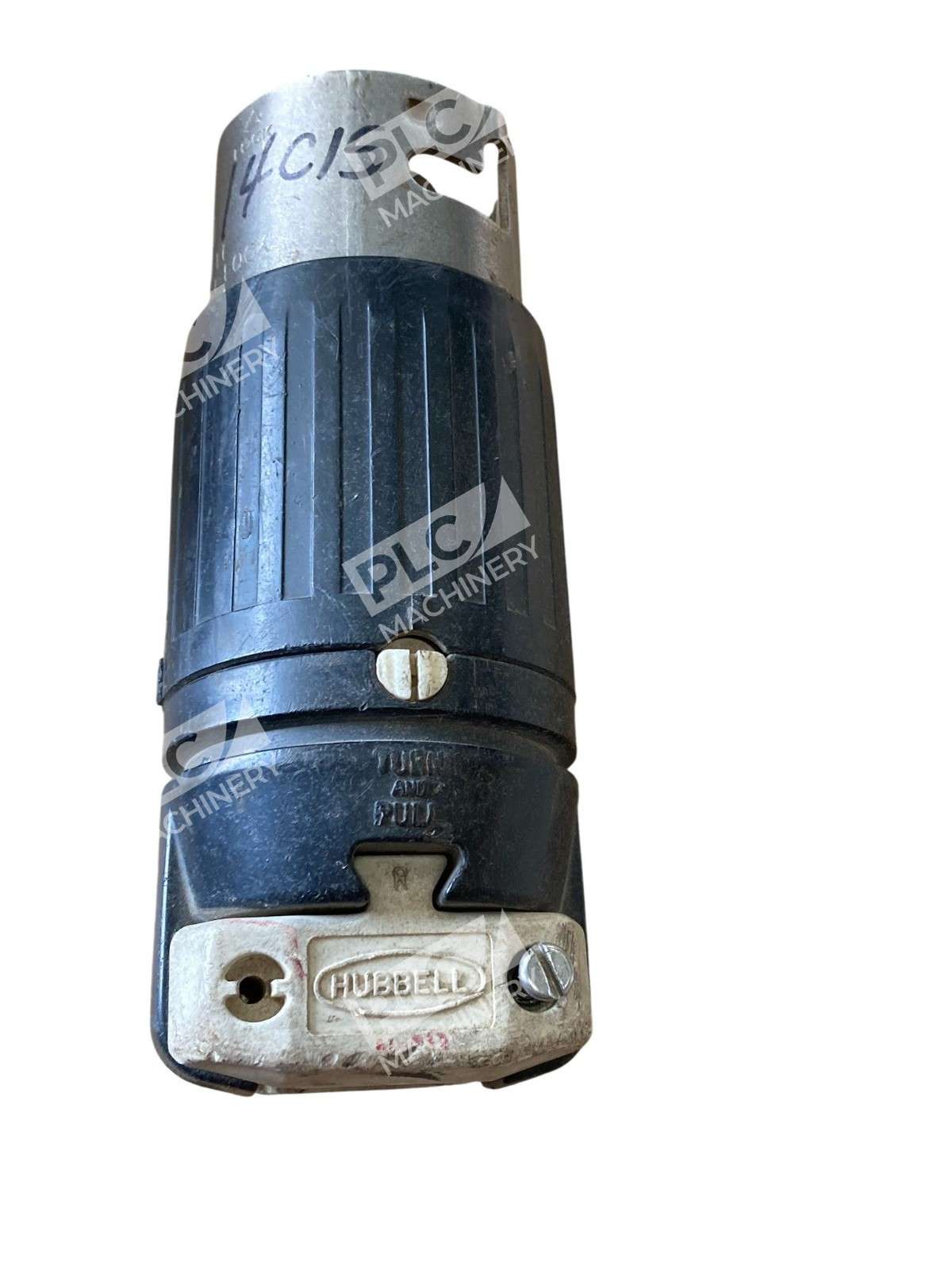

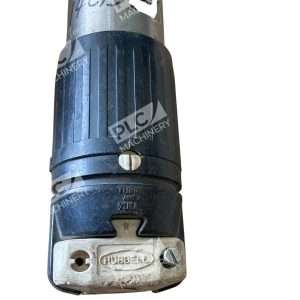

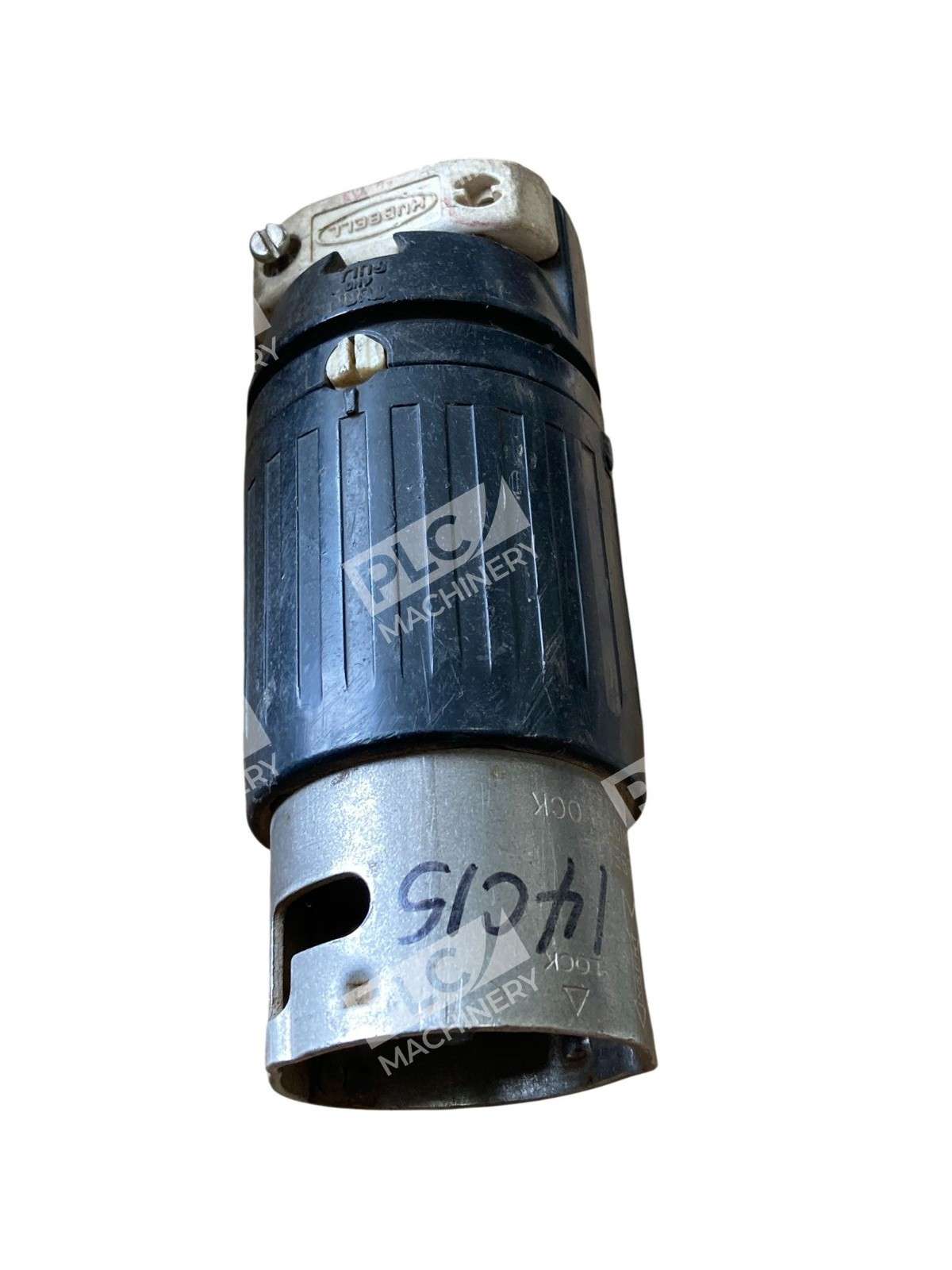

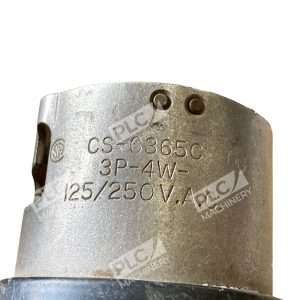

Hubbell CS-6365C 50-Amp 125/250V Twist-Lock Male Plug
The Hubbell CS-6365C is a robust 50-amp, 125/250V, 3-pole, 4-wire grounding male plug designed for heavy-duty industrial applications. Its Twist-Lock® mechanism ensures secure connections, preventing accidental disconnections in demanding environments.
Key Features
- Durable Construction: The plug features a tough nylon housing that offers superior impact resistance, making it suitable for harsh industrial settings.

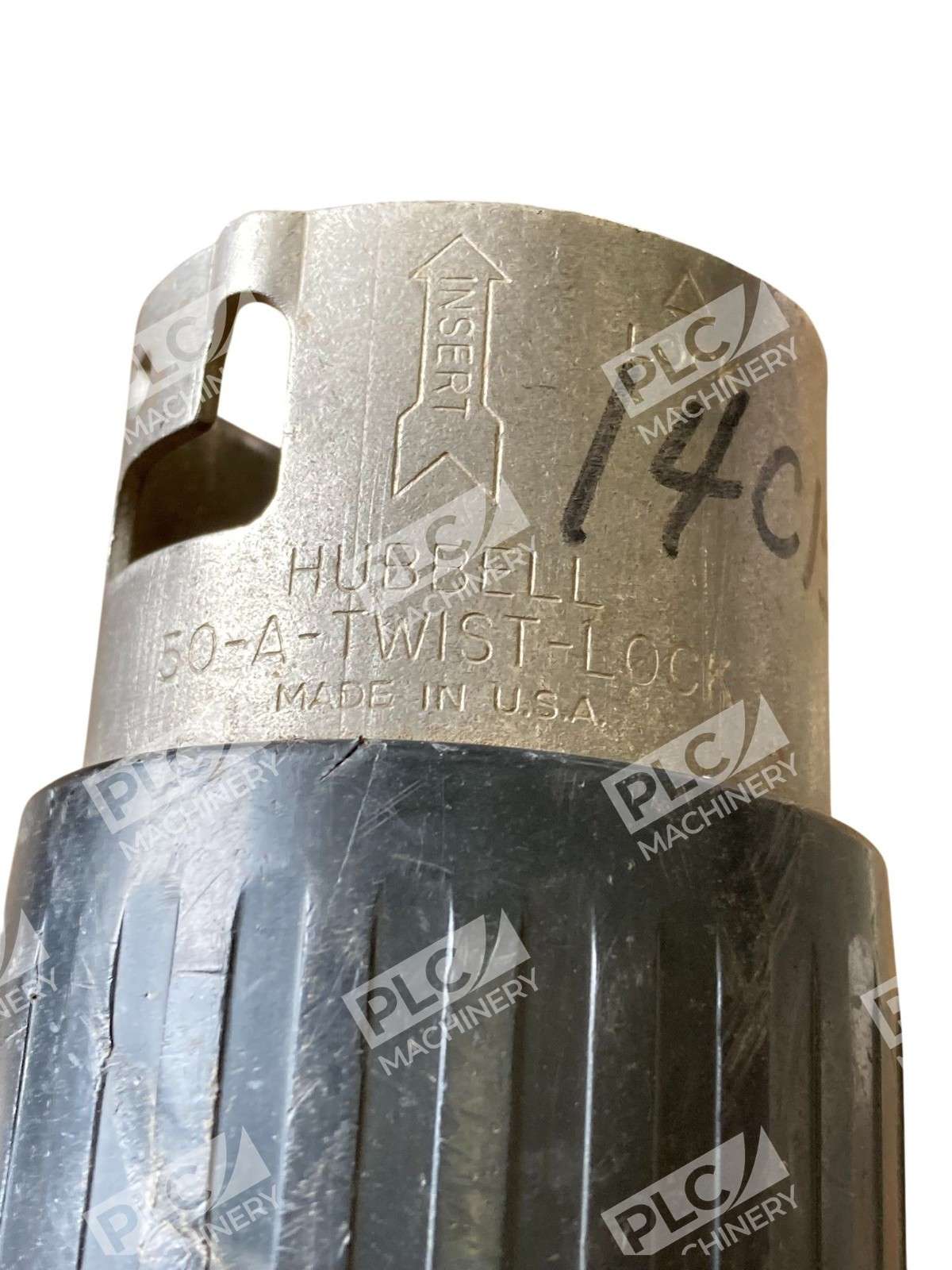

- Secure Connections: The stainless steel shroud restricts mismating with the wrong device, ensuring proper and safe connections.

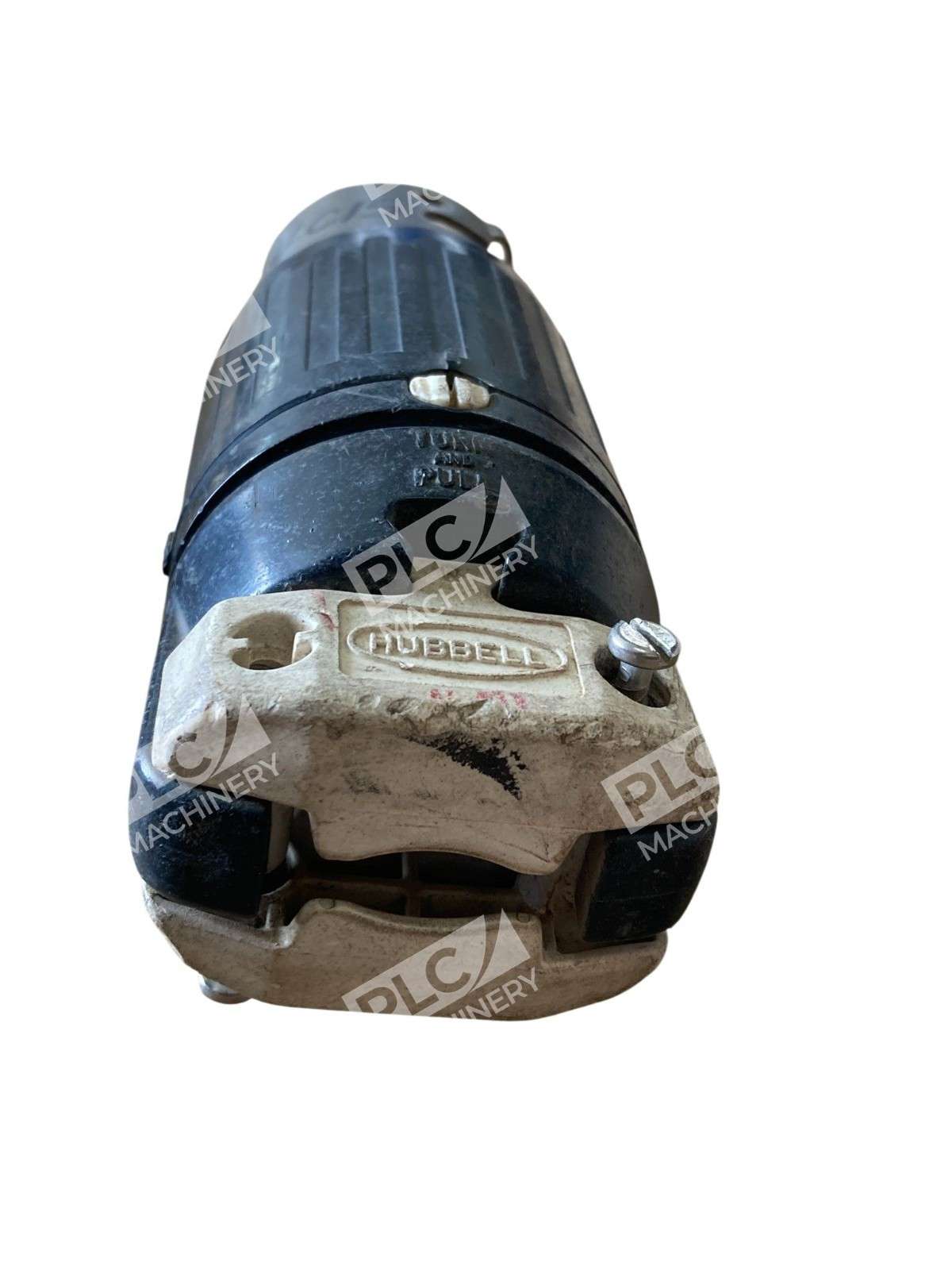

- Enhanced Strain Relief: A heavy-duty two-piece external cord clamp provides maximum strain relief, securely holding the conductors and the cord jacket.
- Reliable Termination: The box terminal with a hex socket threaded slug permits high clamping pressure on conductors without damaging strands, ensuring a reliable electrical connection.
- Thermal Resilience: The thermoplastic polyester interior provides heat resistance and impact strength, operating effectively in temperatures from -40°C to 75°C.
Specifications
- Amperage Rating: 50 A
- Voltage Rating: 125/250 VAC
- Number of Poles: 3
- Number of Wires: 4
- Wire Size Compatibility: #10 AWG to #6 AWG stranded copper wire
- Cord Range: 0.830″ to 1.250″ (21.08 mm to 31.75 mm)
- Operating Temperature: -40°C to 75°C
- Certifications: Certified to CSA C22.2 No.42; Listed to UL 498
The Hubbell CS-6365C is engineered to meet the rigorous demands of industrial environments, providing reliable and secure power connections for heavy-duty equipment.
