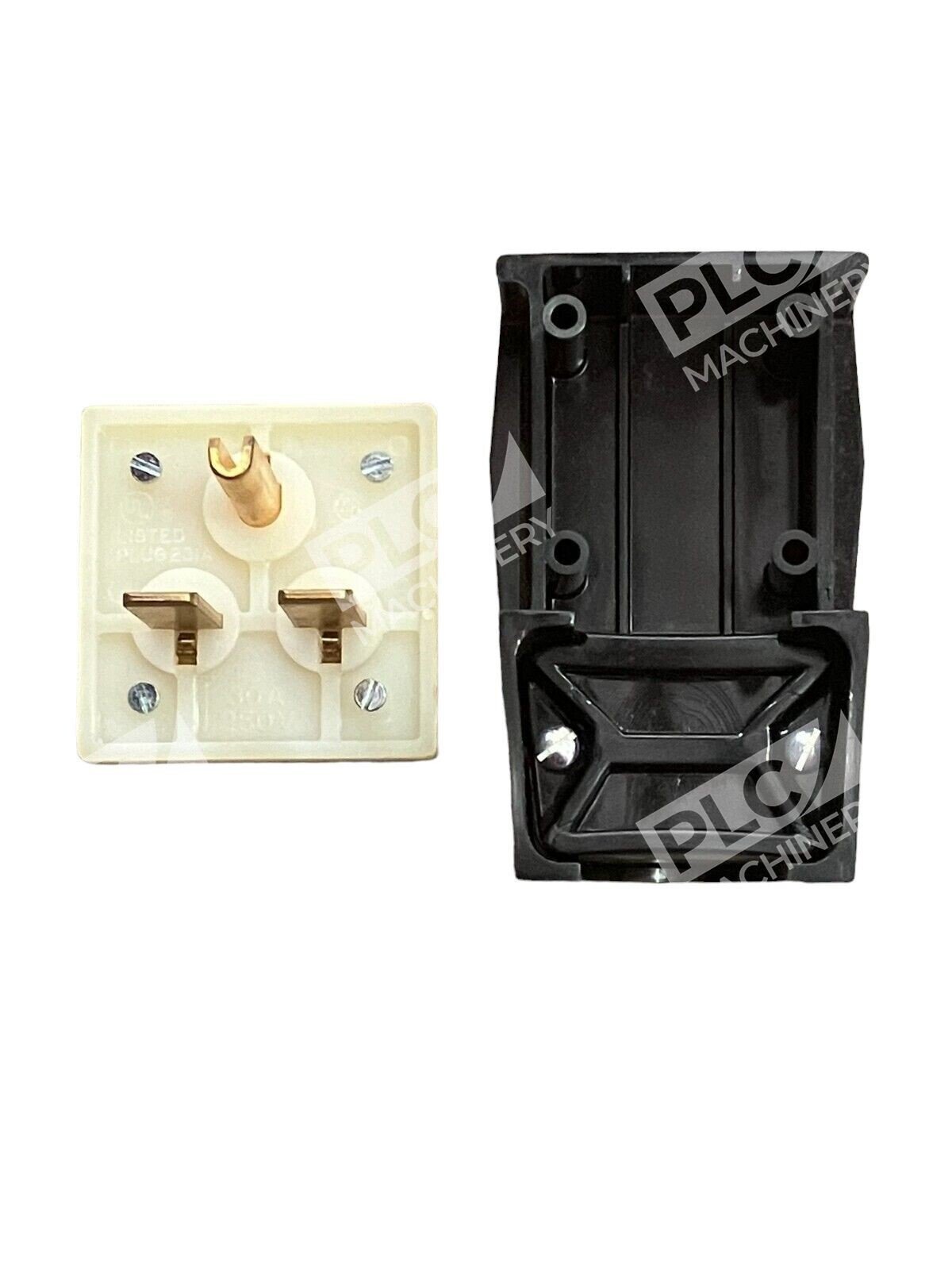

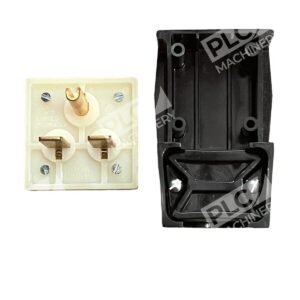

Hubbell 9331 Angle Plug: Reliable Power Connection for Industrial Applications
The Hubbell 9331 Angle Plug is a robust and dependable solution designed to meet the demanding requirements of industrial and commercial environments. This heavy-duty plug ensures a secure and efficient power connection, making it an ideal choice for various applications.
Key Features
- Angled, Low-Profile Design: The plug’s angled configuration allows for a low-profile installation, optimizing space and reducing strain on connected cables.

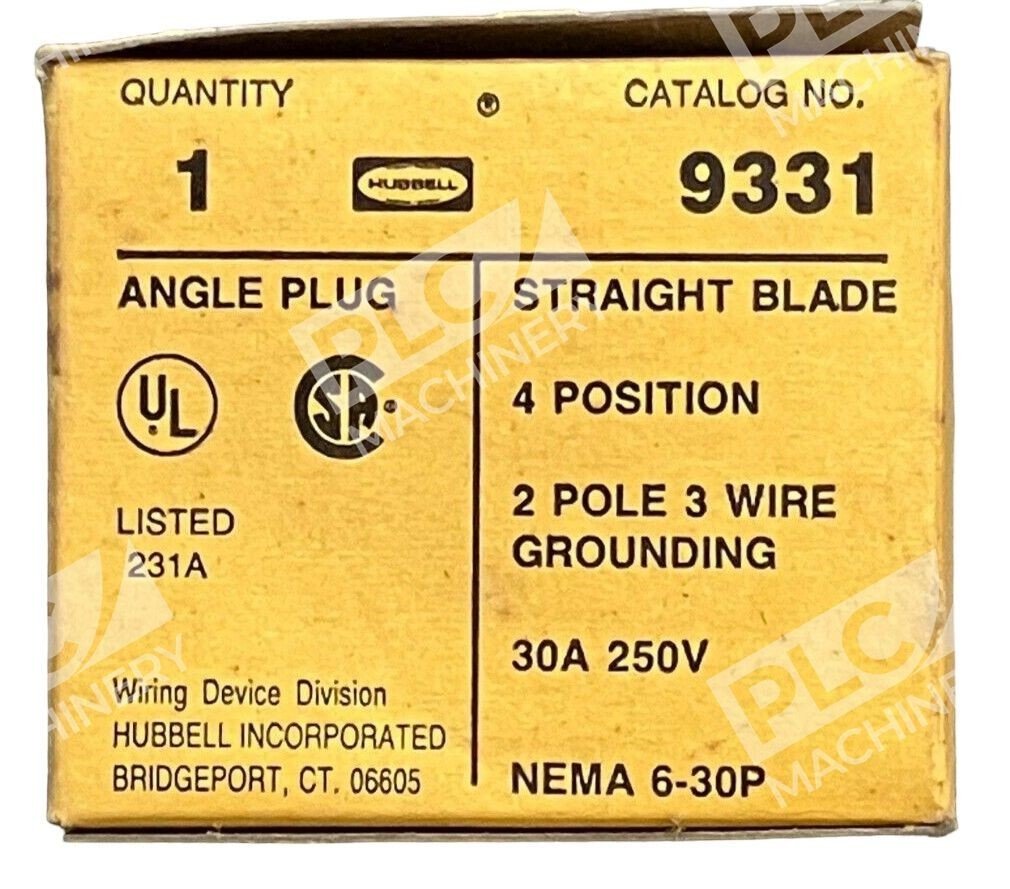

- 4-Position Assembly: Offers versatile positioning options to accommodate different installation requirements.

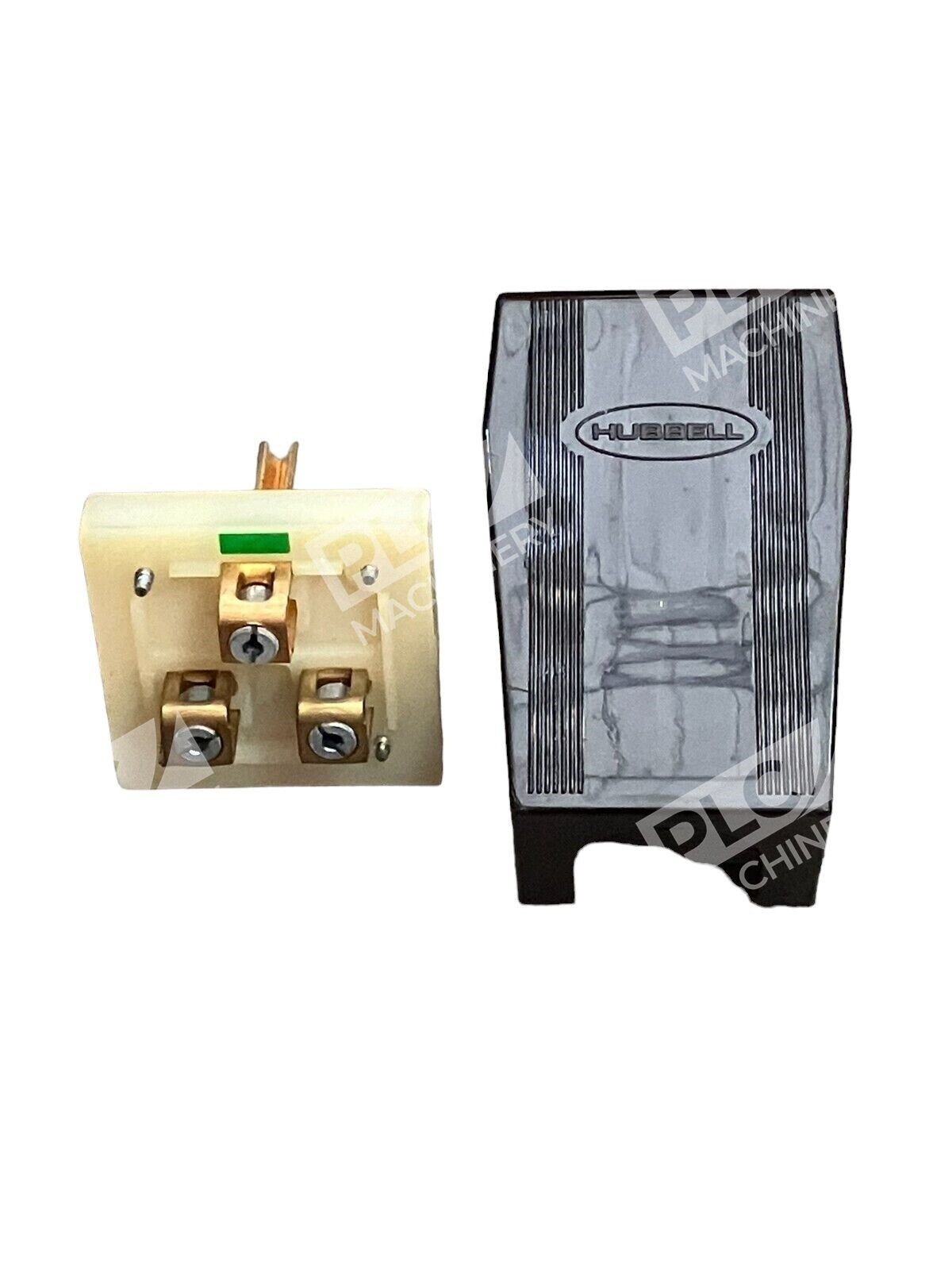

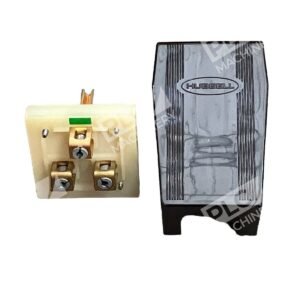

- Durable Construction: Constructed with a super-tough nylon housing and reinforced thermoplastic polyester components, the Hubbell 9331 is built to withstand harsh industrial conditions.
Specifications

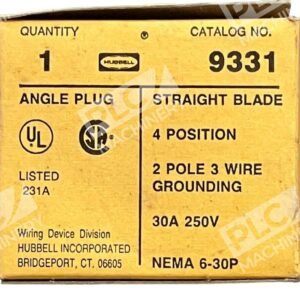

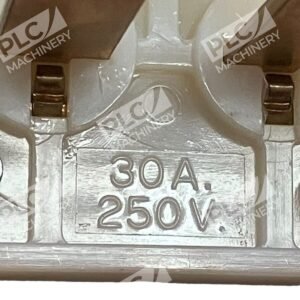

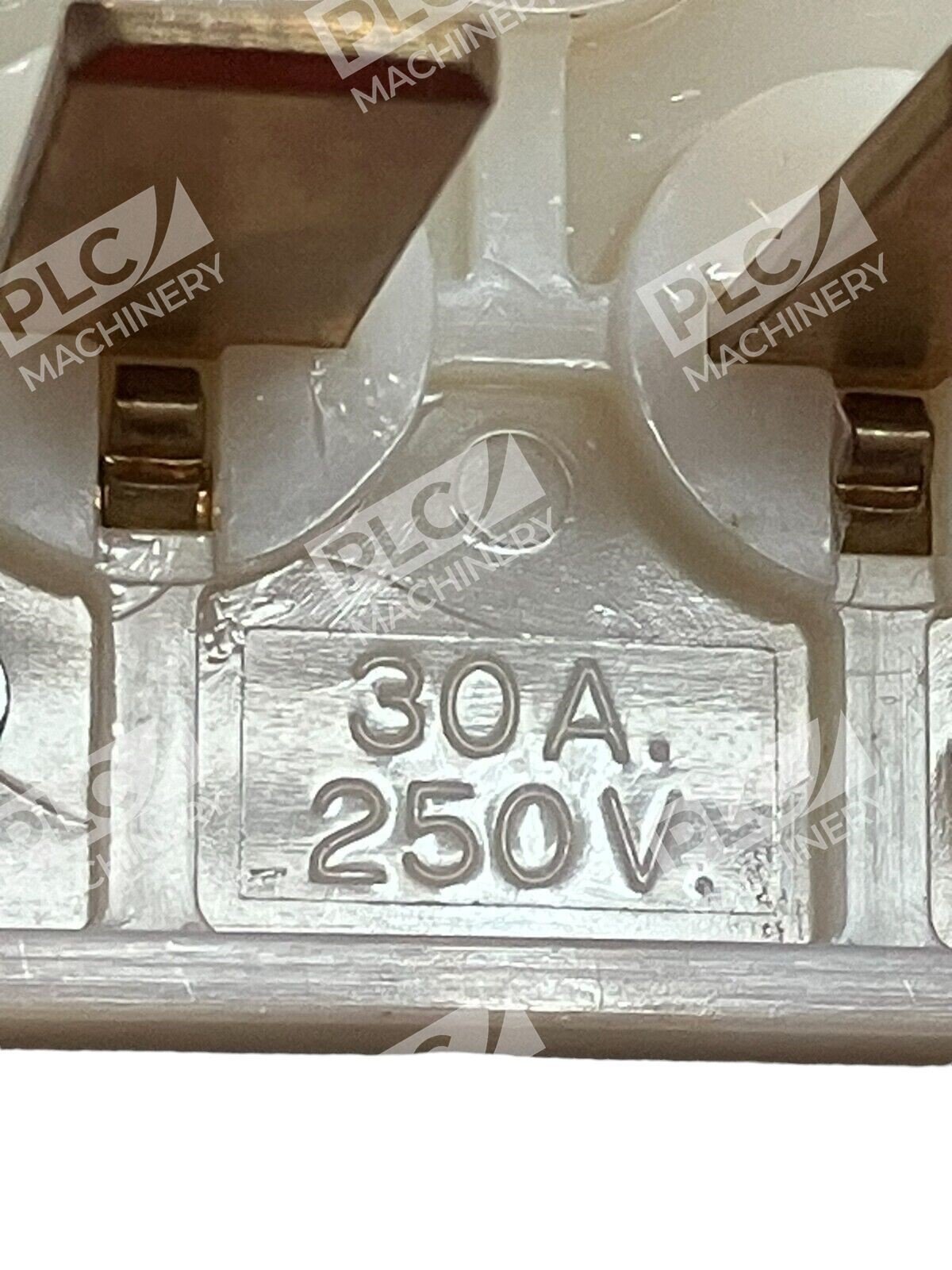

- Amperage Rating: 30 Amps
- Voltage Rating: 250 Volts
- Number of Poles: 2
- Number of Wires: 3
- NEMA Configuration: 6-30P

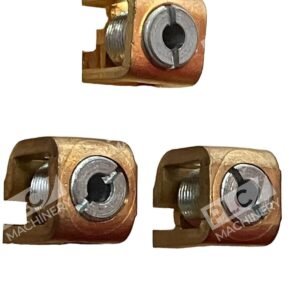

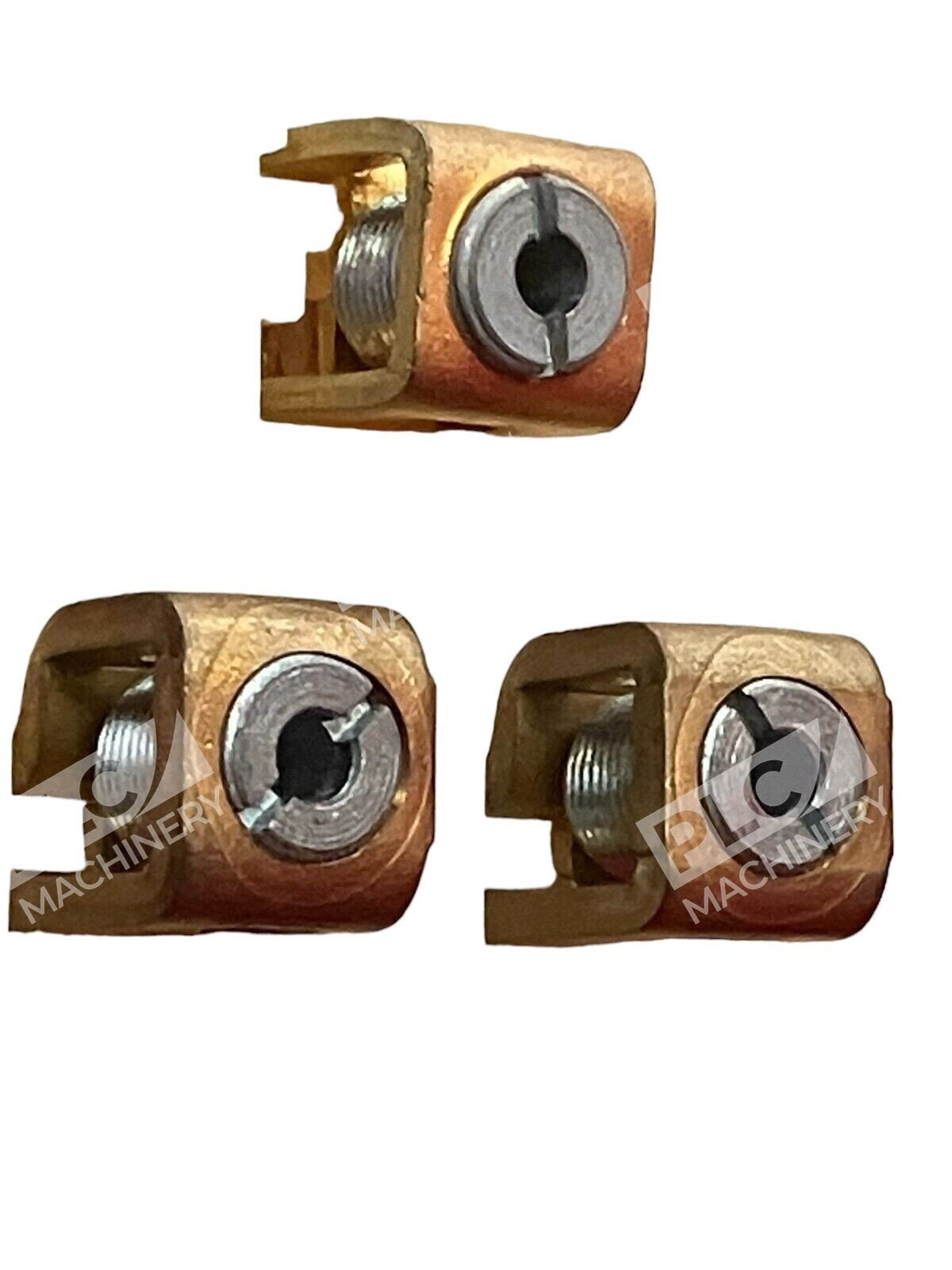

- Wire Size Compatibility: Accepts #12 AWG to #4 AWG stranded or solid copper conductors
- Cord Diameter Range: 0.625″ to 1.187″ (15.9 mm to 30.1 mm)
- Operating Temperature: -40°C to 75°C (-40°F to 167°F)
- Dielectric Strength: Withstands 2,000V minimum
Certifications and Compliance

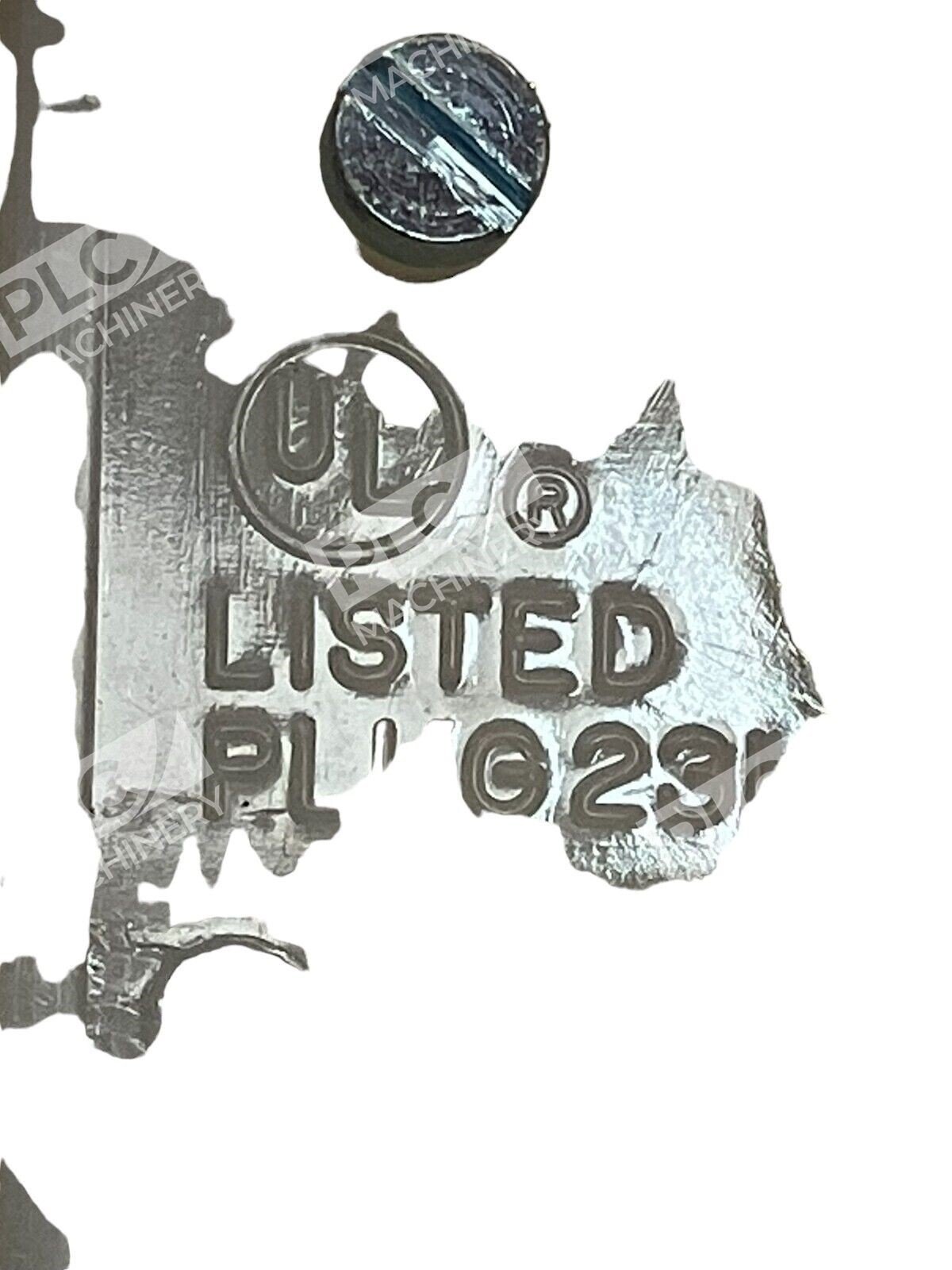

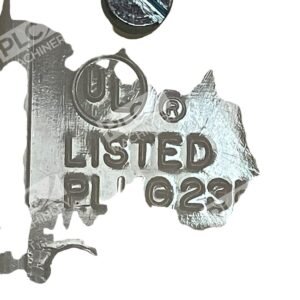

- UL Listed to UL498 File E1706
- CSA Certified to C22.2 No. 42 File 280
- NEMA WD-6 Compliant
With its heavy-duty design and reliable performance, the Hubbell 9331 Angle Plug is an excellent choice for ensuring safe and efficient power connections in industrial and commercial settings.
