Hub City FC350X1-3/4

Hub City FC350X1-3/4 Piloted Flange-Mount Ball Bearing Unit

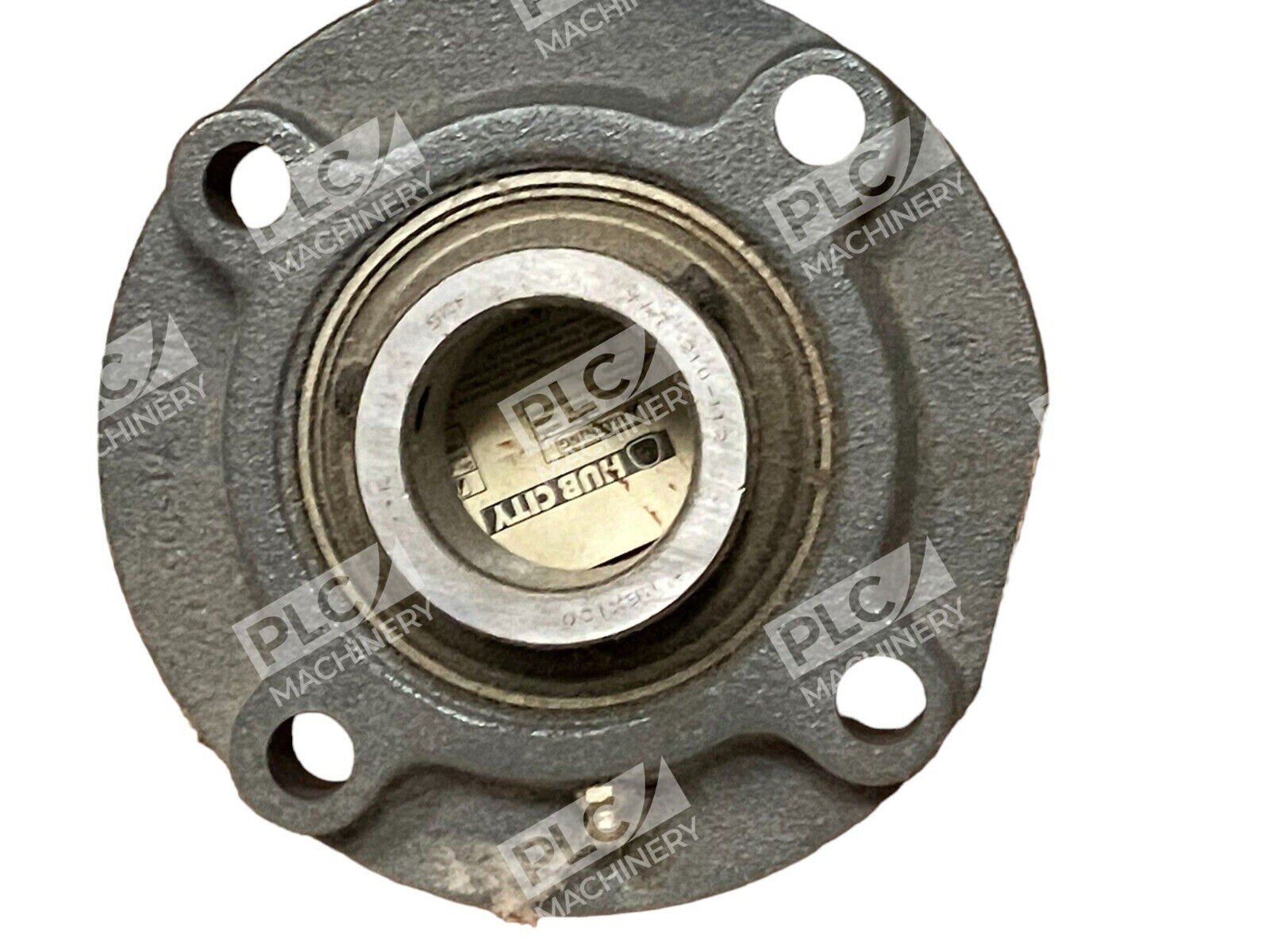

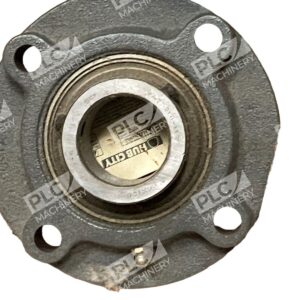

The Hub City FC350X1-3/4 is a medium-duty, piloted flange-mount ball bearing unit designed for general industrial applications. This unit features a 1-3/4 inch bore diameter and a robust cast iron housing, ensuring durability and reliable performance in demanding environments.

Key Features

• Bore Diameter: 1-3/4 inches
• Housing Material: Cast iron
• Mounting Type: 4-bolt piloted flange
• Locking Mechanism: Set screw
• Seal Type: Contact seal
• Lubrication: Pre-lubricated with #2 lithium grease; relubricatable design
• Operating Temperature Range: Up to 200°F
• Maximum RPM: 3500 rpm

Design and Construction

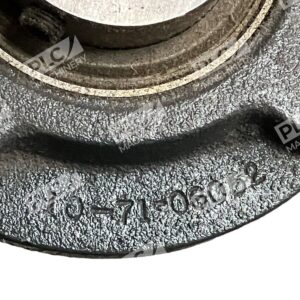

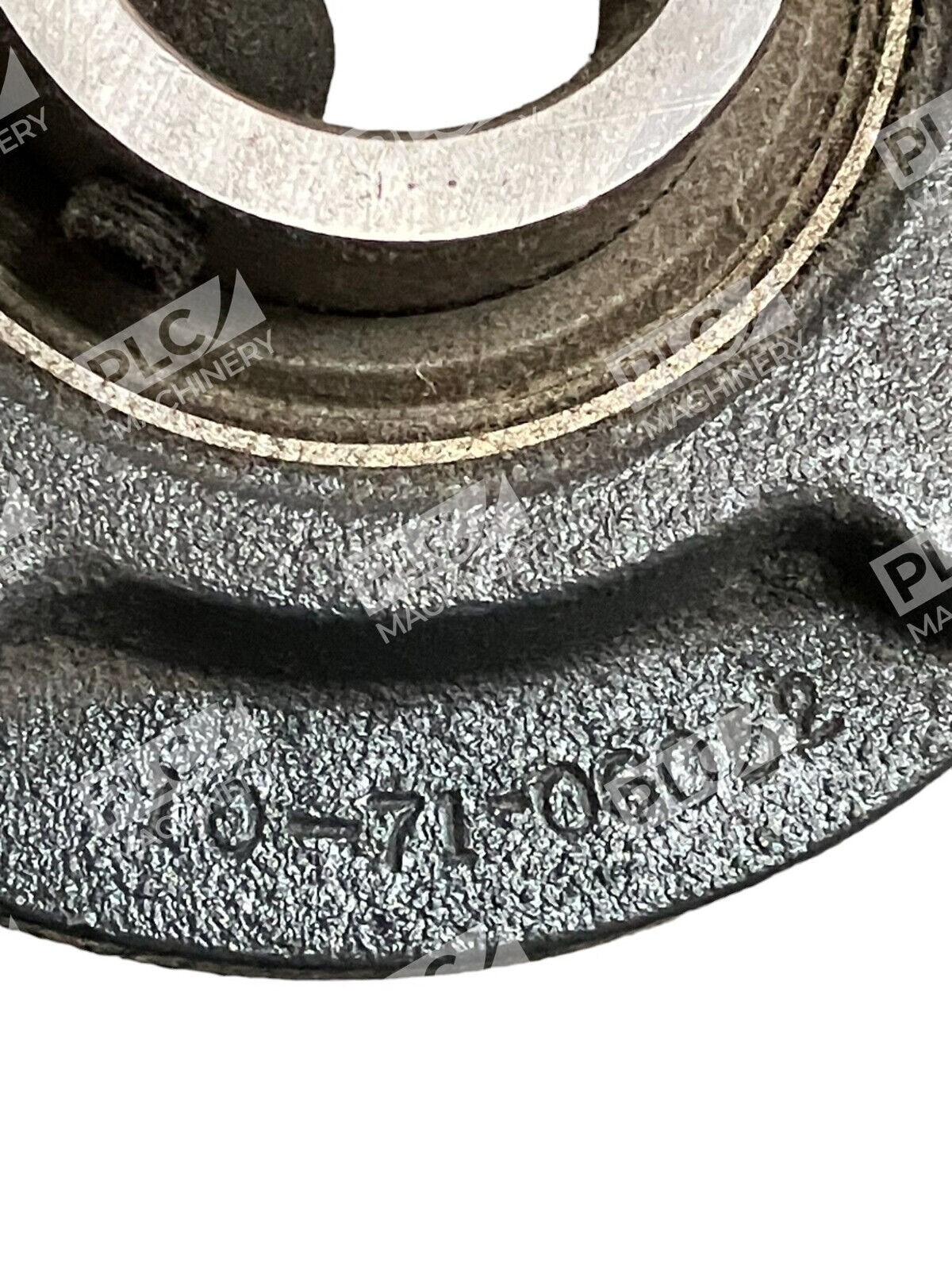

The FC350X1-3/4 unit is constructed with a rugged cast iron housing, providing strength and resistance to wear. The bearing insert is made from 52100 bearing steel, known for its high hardness and durability. The set screw locking mechanism ensures a secure fit on the shaft, minimizing movement and potential misalignment during operation.

Sealing and Lubrication

Equipped with contact seals, the bearing unit effectively prevents contaminants from entering, thereby extending its service life. The unit comes pre-lubricated with #2 lithium grease and includes a grease fitting for easy relubrication, facilitating maintenance and ensuring consistent performance.

Applications

The Hub City FC350X1-3/4 is suitable for a wide range of industrial applications, including conveyors, material handling equipment, and other machinery requiring reliable flange-mounted bearing units. Its design allows for interchangeable mounting dimensions with most competitive products, offering flexibility in various setups.

With its combination of durable materials, effective sealing, and ease of maintenance, the FC350X1-3/4 provides a dependable solution for your bearing needs.
