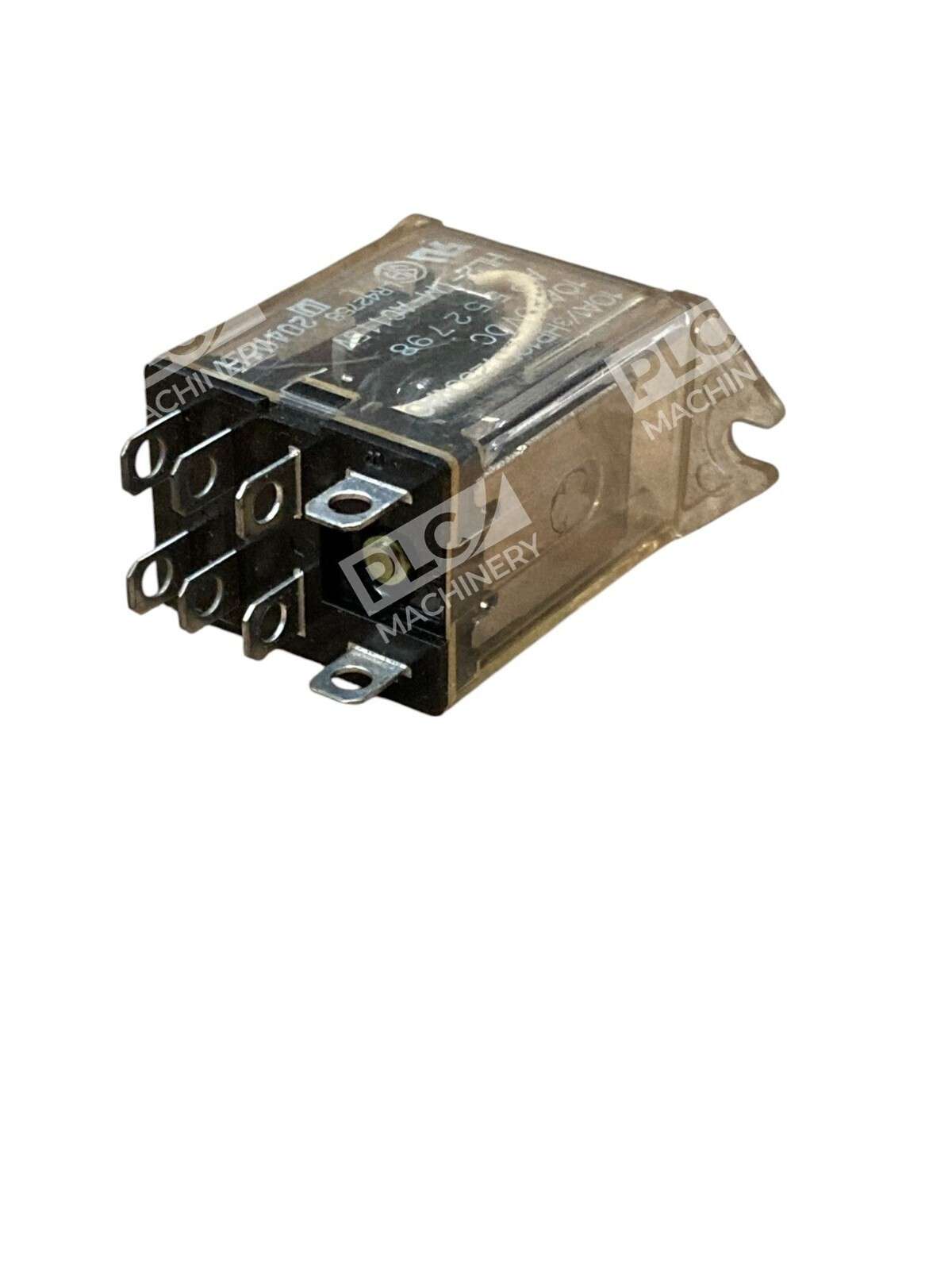

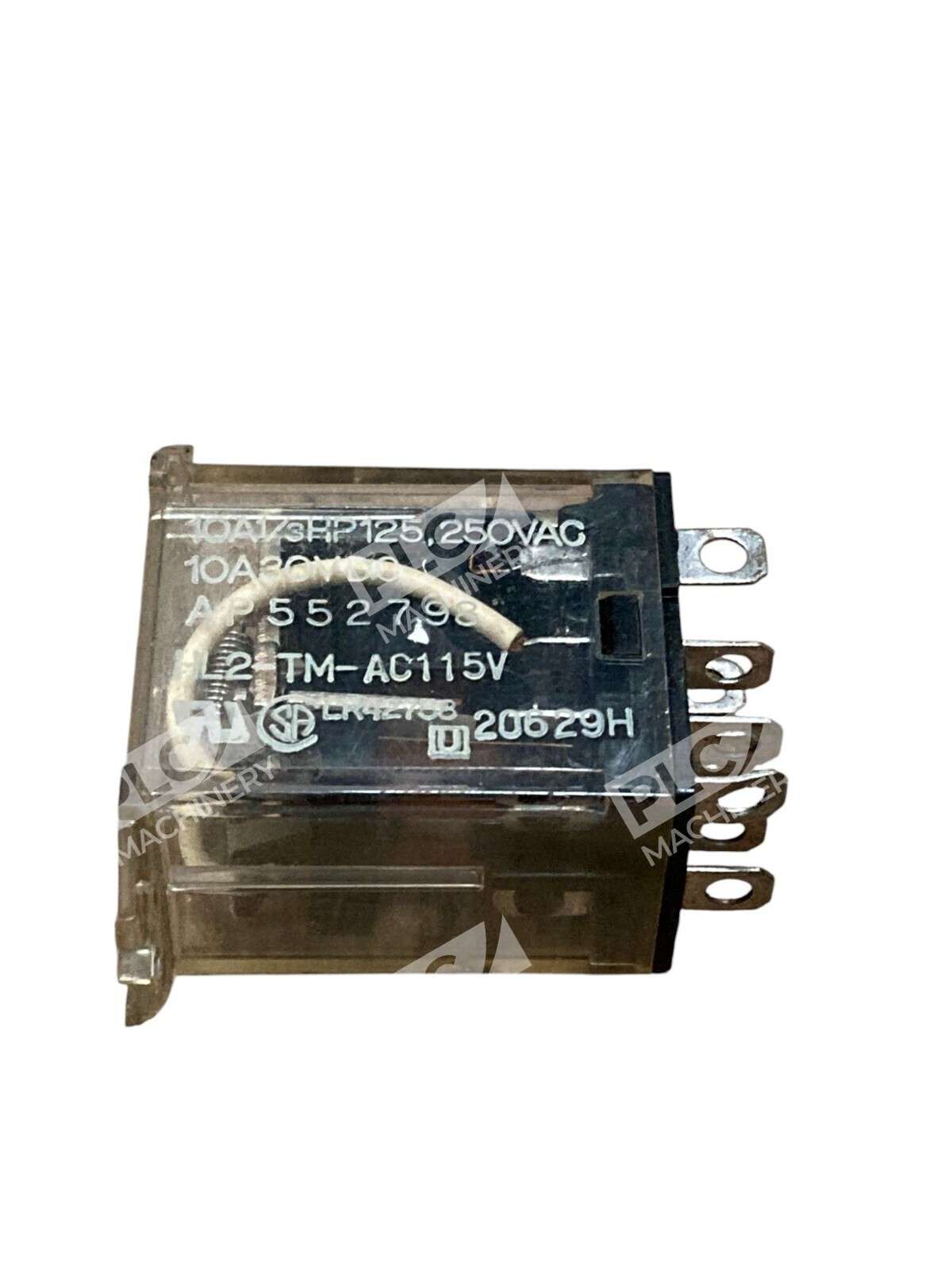

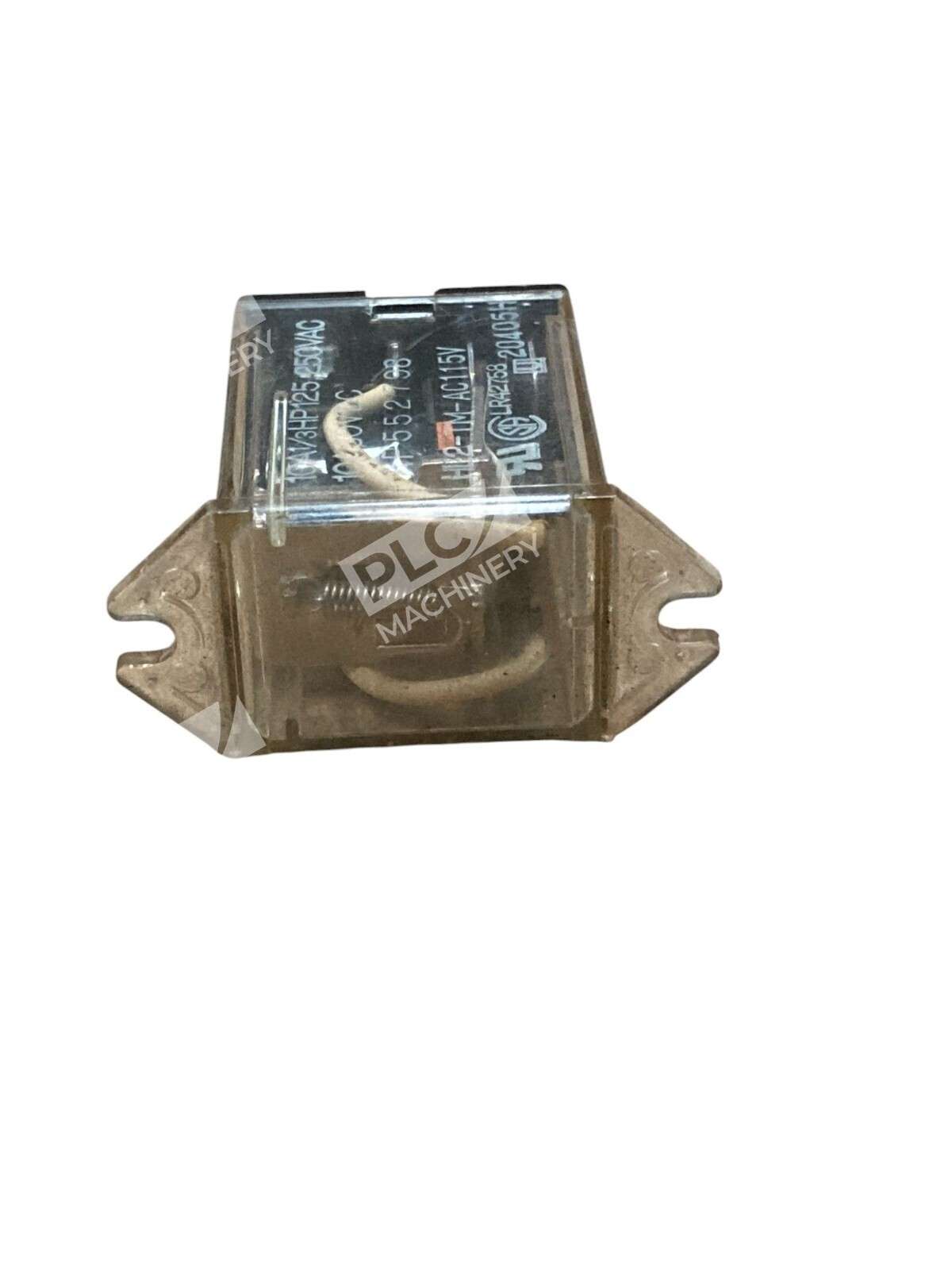

Matsushita HL2-TM-AC115V Control Relay for Ultra Gas Boilers 115V 10A The Matsushita HL2-TM-AC115V is a general-purpose control relay designed to provide reliable switching capabilities for Ultra Gas Boilers and other industrial applications. Operating at 115V AC, this relay is engineered to handle currents up to 10A, ensuring efficient performance in demanding environments. Key Features Contact Configuration: DPDT (Double Pole Double Throw) or 2 Form C, offering versatile switching options. Coil Voltage: 115V AC, suitable for standard power systems. Contact Rating: Capable of handling up to 10A, accommodating various load requirements. Switching Voltage: Nominally rated at 125V AC, ensuring compatibility with standard voltage levels. Operate and Release Times: Both set at 10 milliseconds, facilitating swift response times. Mounting Type: Chassis mount design for secure and stable installation. Termination Style: Quick Connect terminals measuring 0.187 inches (4.7mm) for easy and reliable connections. Operating Temperature Range: Designed to function effectively between -50°C and 70°C, suitable for various environmental conditions. Contact Material: Constructed with silver alloy contacts to ensure durability and consistent performance. Applications The HL2-TM-AC115V relay is ideal for controlling electrical circuits in Ultra Gas Boilers, providing dependable operation in heating systems. Its robust design and high current capacity make it suitable for a wide range of industrial and commercial applications requiring precise control and reliability. Installation and Compatibility Featuring a chassis mount configuration and quick connect terminals, the HL2-TM-AC115V relay allows for straightforward installation and integration into existing systems. Its standard voltage and current ratings ensure compatibility with various equipment and control systems. For detailed specifications and installation guidelines, please refer to the product datasheet.
