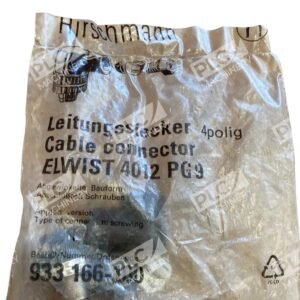

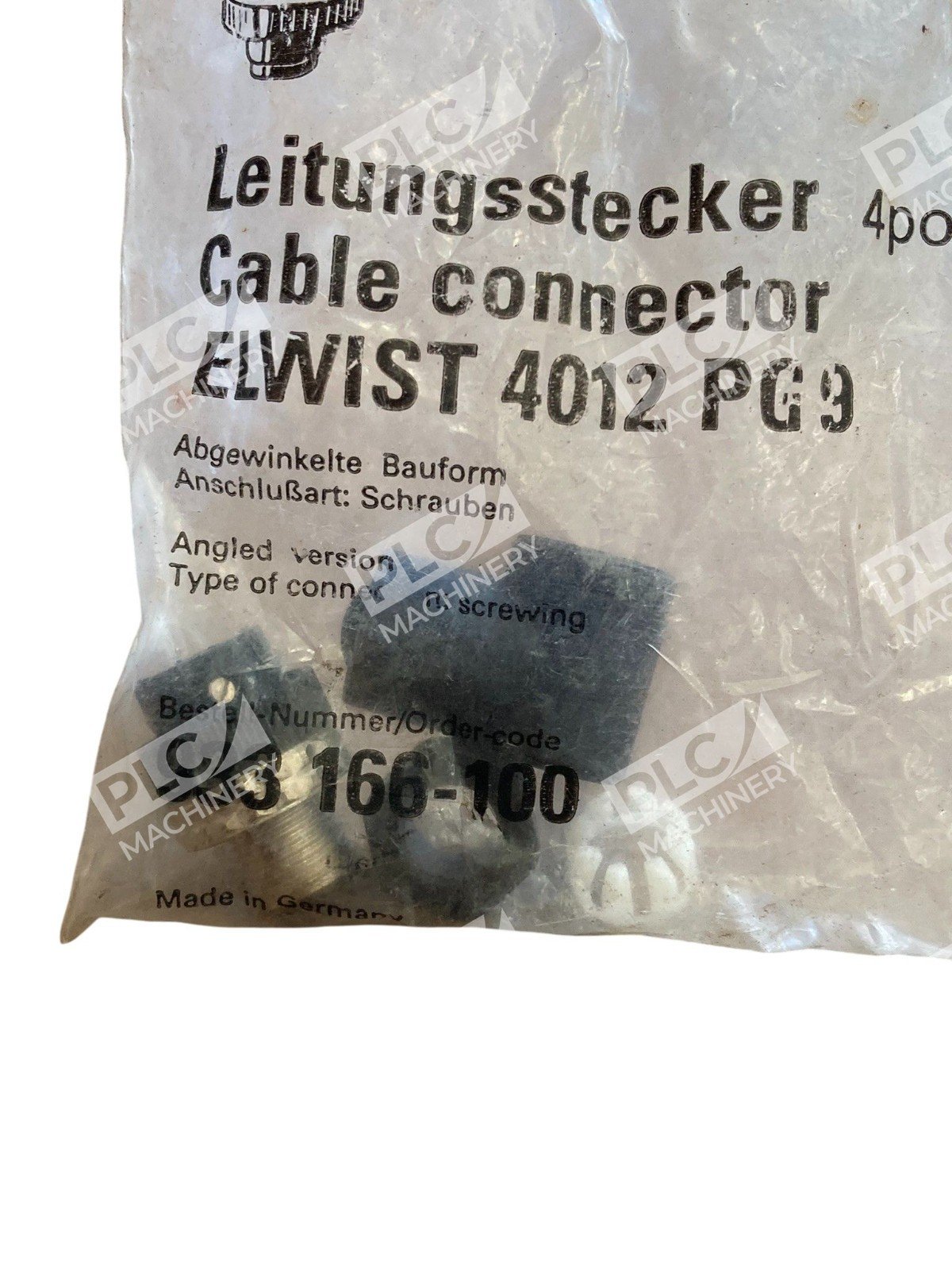

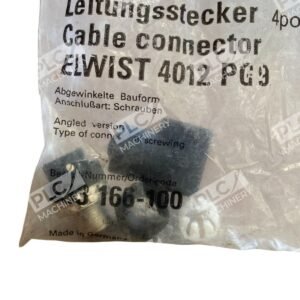

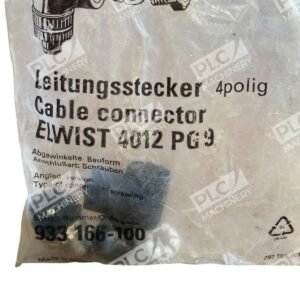

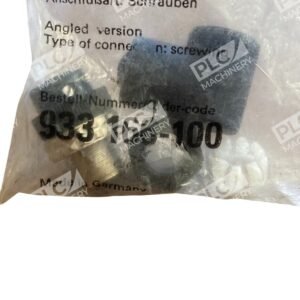

Hirschmann ELWIST 4012 PG9 Cable Connector
The Hirschmann ELWIST 4012 PG9 is a high-quality, right-angled M12 male cable plug designed for reliable and secure connections in industrial applications. This unassembled connector features a strain relief mechanism utilizing a clamping cage, ensuring durability and stability in demanding environments.
Key Features
- Connector Type: M12, 4-pin male, right-angled design
- Termination Method: Screw terminals for easy and secure wiring
- Cable Compatibility: Suitable for cables with diameters ranging from 6 mm to 8 mm, supporting a maximum conductor size of 0.75 mm²
- Electrical Ratings: Rated voltage of 250 V AC/DC and a current rating of 4 A at 40°C
- Protection Class: IP67, offering excellent resistance against dust and water ingress
- Operating Temperature Range: -25°C to +90°C, accommodating various industrial environments
Applications
The ELWIST 4012 PG9 connector is ideal for use in sensor and actuator connections, automation systems, and other industrial settings where secure and robust M12 connections are required. Its right-angled design allows for space-saving installations, making it suitable for applications with limited space.
Materials and Construction
- Contact Material: Copper-Zinc (CuZn) with tin (Sn) plating for enhanced conductivity and corrosion resistance
- Housing Material: Polyamide (PA) with glass fiber reinforcement, providing strength and durability
- Coupling Nut Material: Nickel-plated Zinc-Aluminum (ZnAl) for secure mating and longevity
- O-Ring: Nitrile Butadiene Rubber (NBR) for effective sealing
The Hirschmann ELWIST 4012 PG9 cable connector combines robust construction with reliable performance, making it a dependable choice for various industrial connectivity needs.
