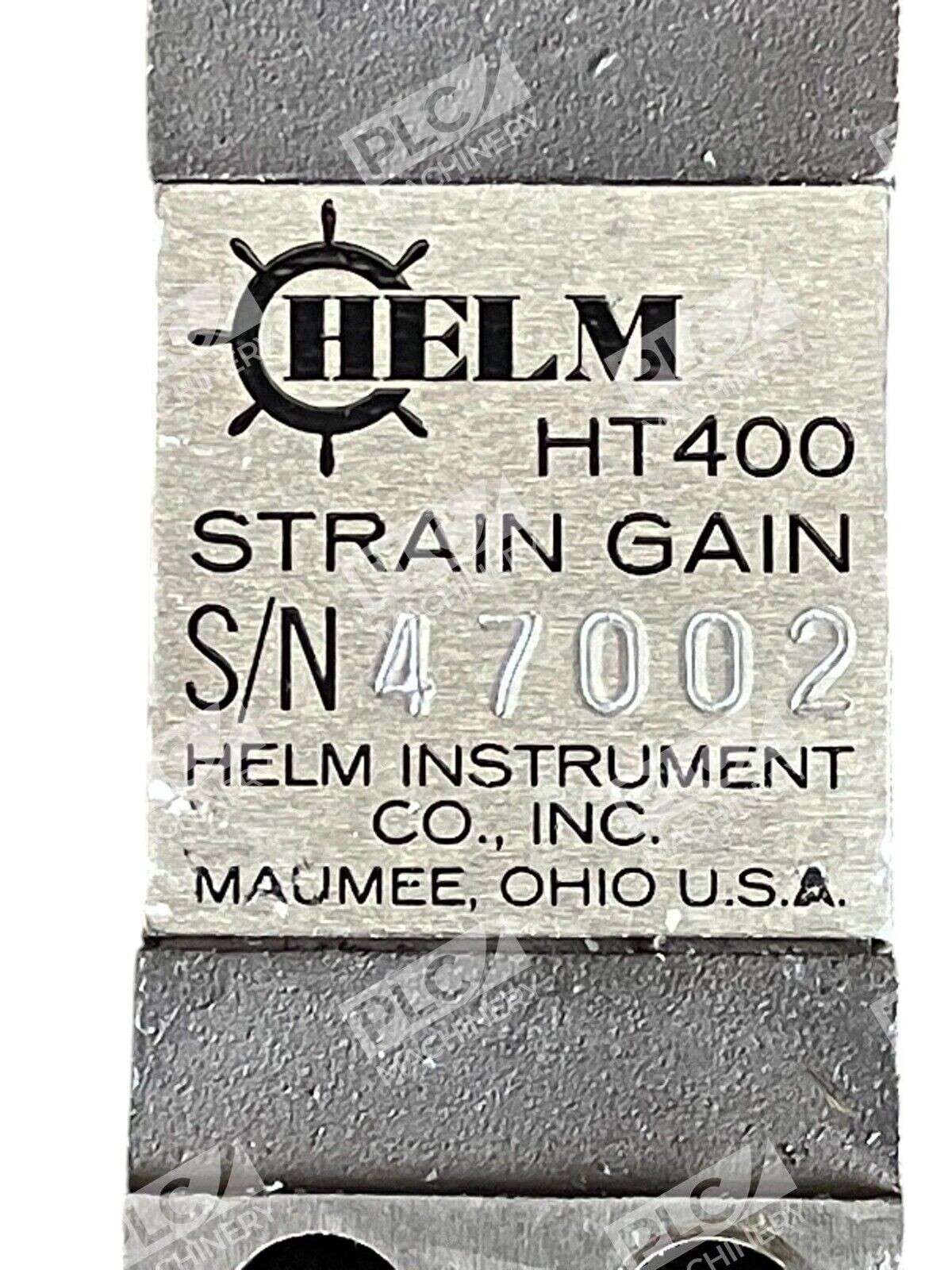

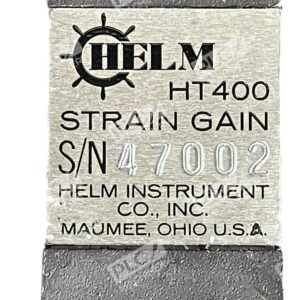

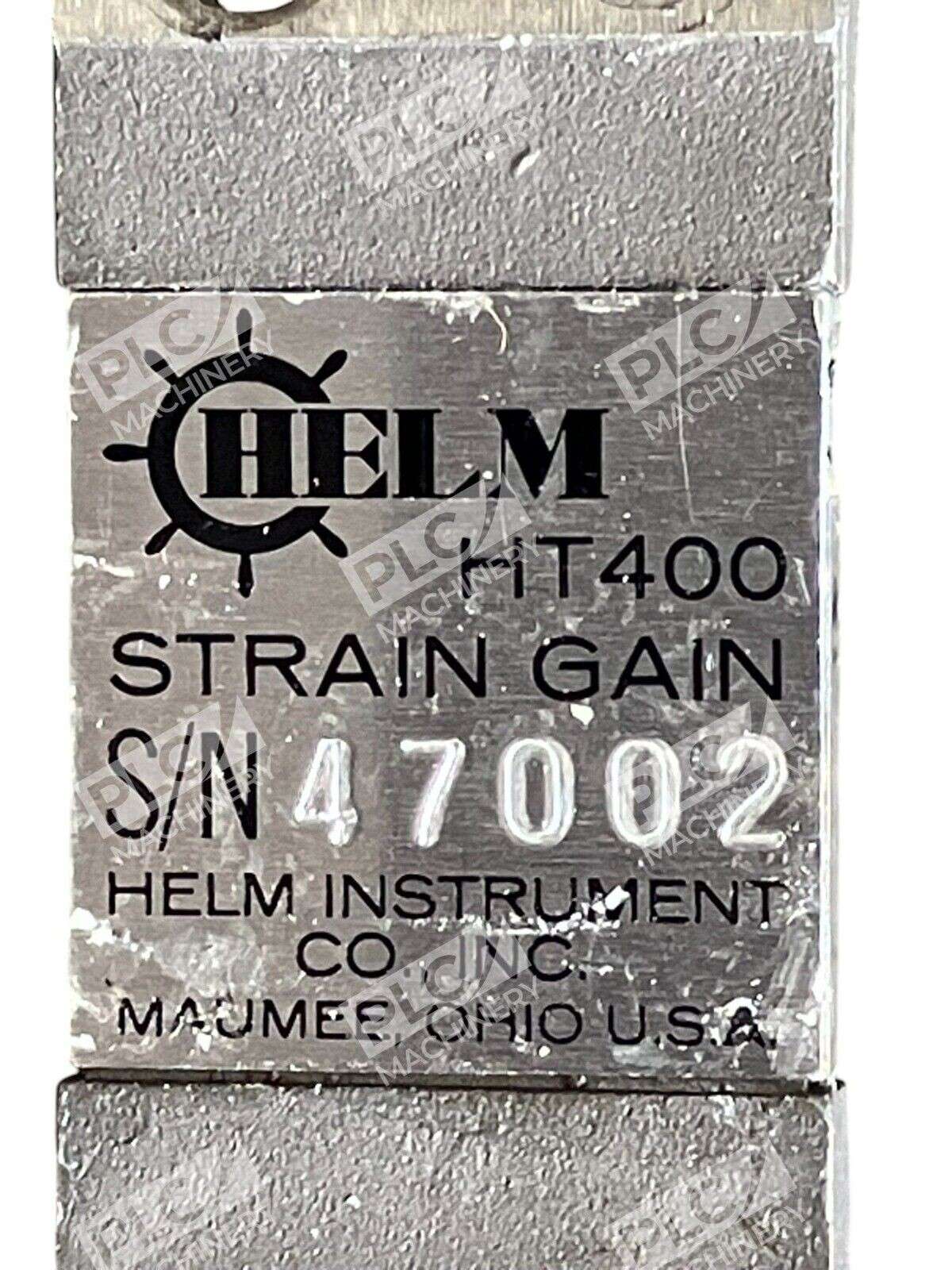

Helm Strain Gain HT400

Helm Strain Gain HT400

The Helm Strain Gain HT400 is a precision load-sensing transducer engineered to accurately measure strain levels in various metal stamping presses. Designed for versatility, it can be mounted directly onto the upright columns of straight-side presses or the throat area of OBI and gap frame presses using either drill/tap or weld/pad methods. When integrated with Helm monitoring systems, the HT400 provides linear strain level outputs, which are displayed on digital meters for real-time monitoring.

Key Features

• High-Output Strain Gage Design: Utilizes a 350-ohm full Wheatstone bridge circuit to ensure long-term stability and precise measurements.
• Interchangeable Sensors: Manufactured with a machining tolerance within 1%, allowing sensors to be swapped without the need for press recalibration.
• Simple Installation: Offers straightforward mounting options with minimal maintenance requirements.
• Versatile Measurement: Capable of measuring both tension and compression forces.
• Lifetime Guarantee: Backed by Helm’s commitment to quality and durability.

Specifications

• Capacity: 400 microstrain
• Overload Limit: 600 microstrain maximum
• Recommended Excitation: 8 volts AC or DC
• Maximum Excitation: 15 volts AC or DC
• Output: 1 mV/V at 400 microstrain

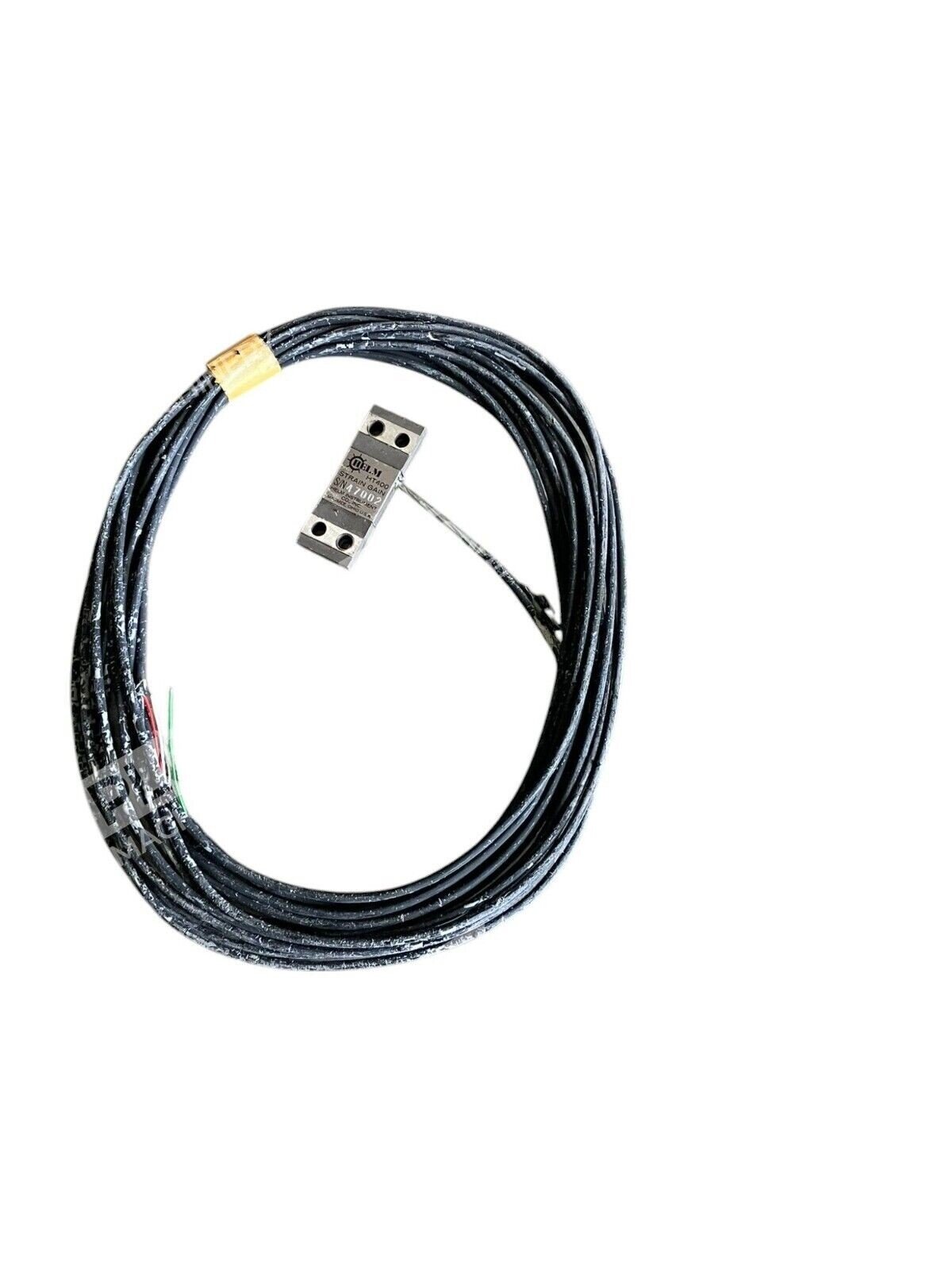

• Cable: Shielded 4-conductor cable with an oil-resistant polyurethane jacket

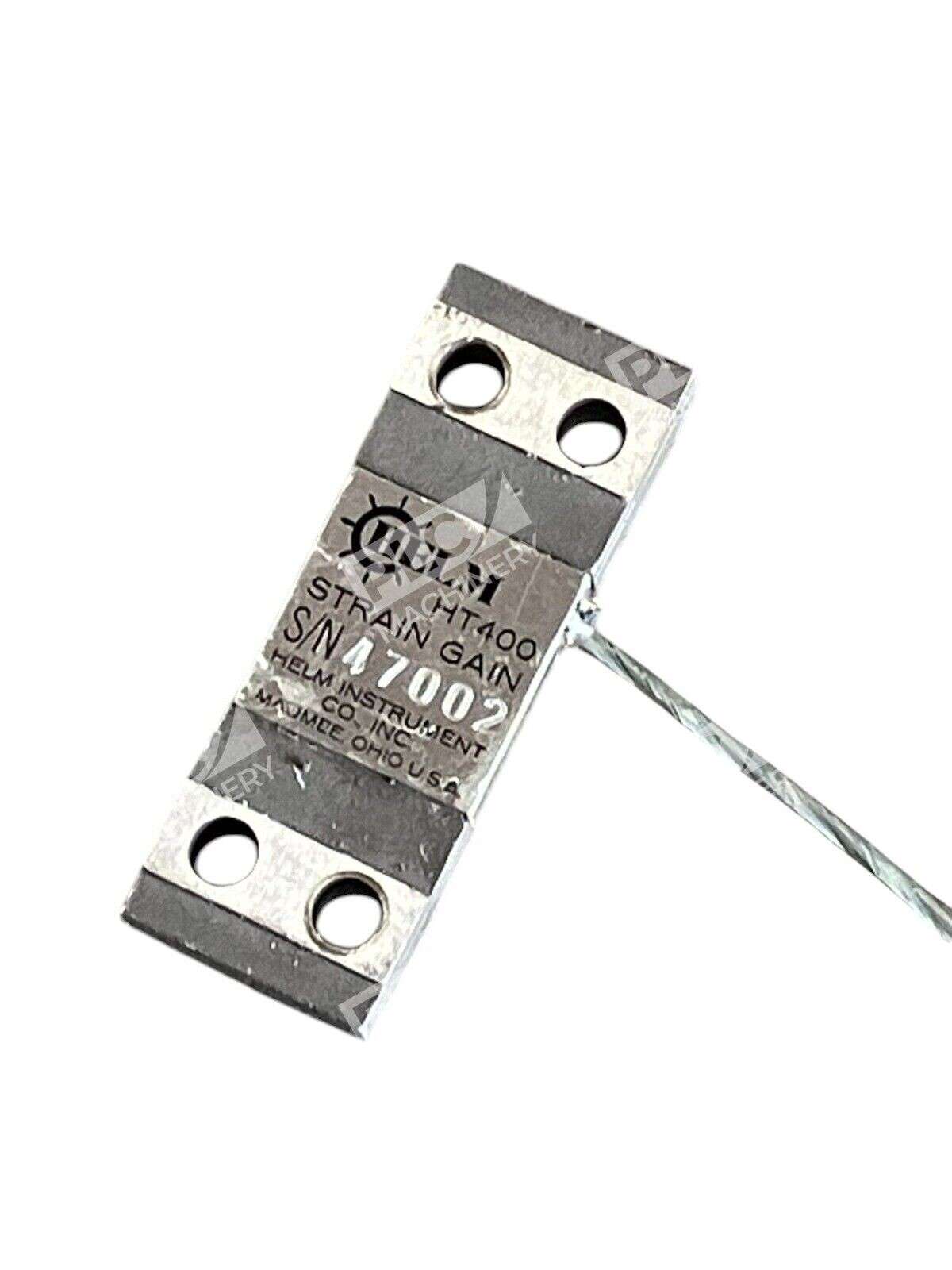

• Dimensions: 1″ wide x 2 3/4″ long x 5/16″ thick

Ordering Information

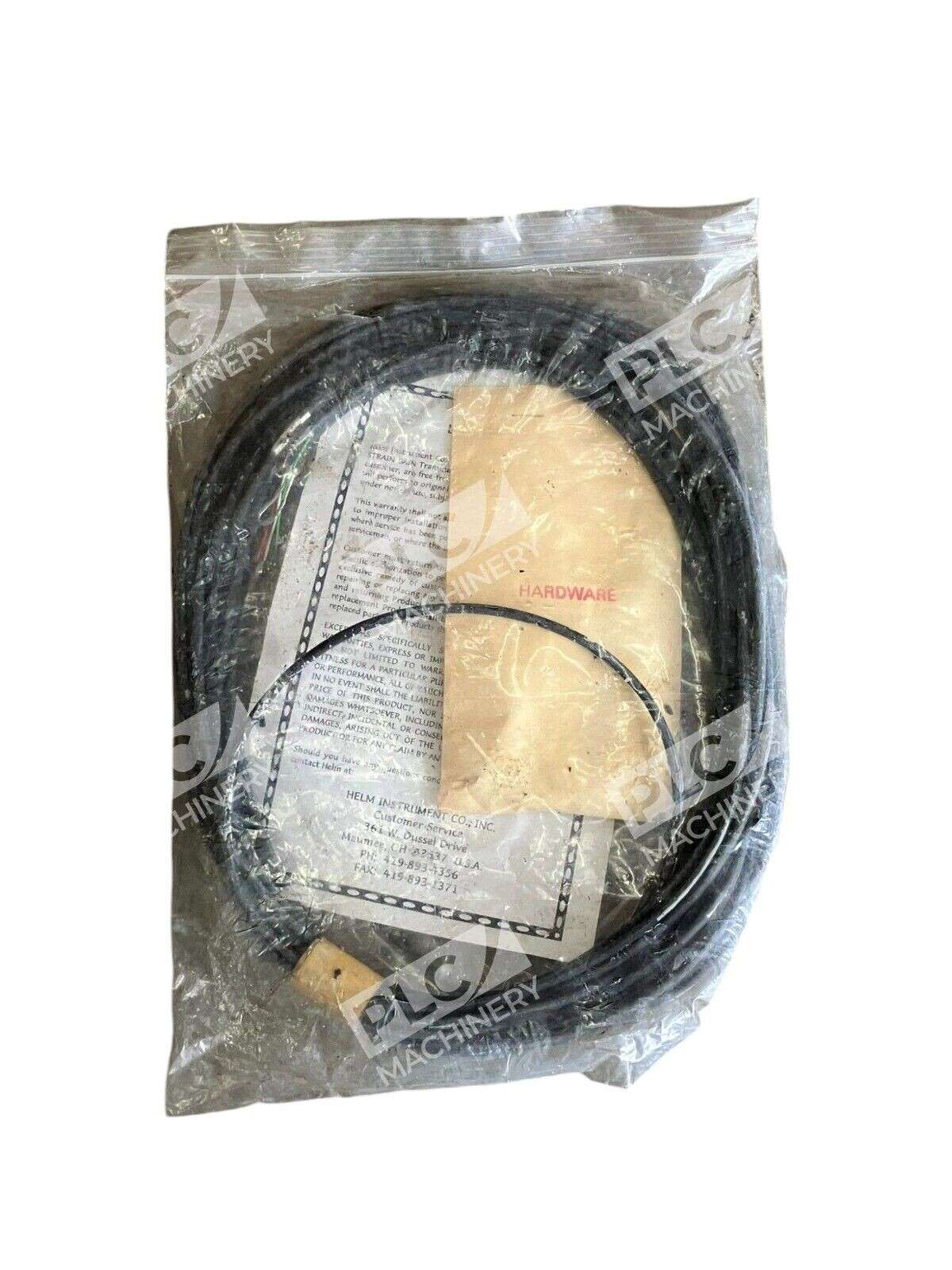

The standard HT400 sensor package includes:

• 35 feet of cable (Model HT-400-35)
• Four mounting screws
• Two anti-torque washers
• Hex wrench

Custom cable lengths and comprehensive installation kits compatible with Helm load monitoring systems are available upon request.

Installation Options

Drilled-Hole Mounting

Requires the DF-400 drill fixture:

1. Position the fixture and drill the center hole.
2. Tap the hole and secure the fixture to the press, ensuring proper alignment.
3. Drill the remaining four holes to a depth of 3/4 inch. Remove the fixture and tap the holes.
4. Mount the HT400 sensor using the provided hardware.

Weld-Pad Mounting

Requires the WF-400 weld fixture and a set of WP-400 weld pads:

1. Clean the mounting surface to prepare for welding.
2. Attach the weld pads to the weld fixture.
3. With a gloved hand, hold the welding fixture with weld pads against the press.
4. Remove the weld fixture.
5. Mount the HT400 sensor using the provided hardware.

Accessories

• DF-400 Drill Guide: Facilitates precise drilled-hole mounting.
• WF-400 Weld Fixture: Assists in accurate weld-pad mounting.
• WP-400 Weld Pads: Set of pads for secure weld mounting.
• T-21 Protection Box: Provides additional protection for the sensor.
• WS Cover with Gasket: Ensures a sealed environment for the sensor.

The Helm Strain Gain HT400 stands as a reliable solution for monitoring strain in metal stamping operations, offering precision, durability, and ease of integration into existing systems.
