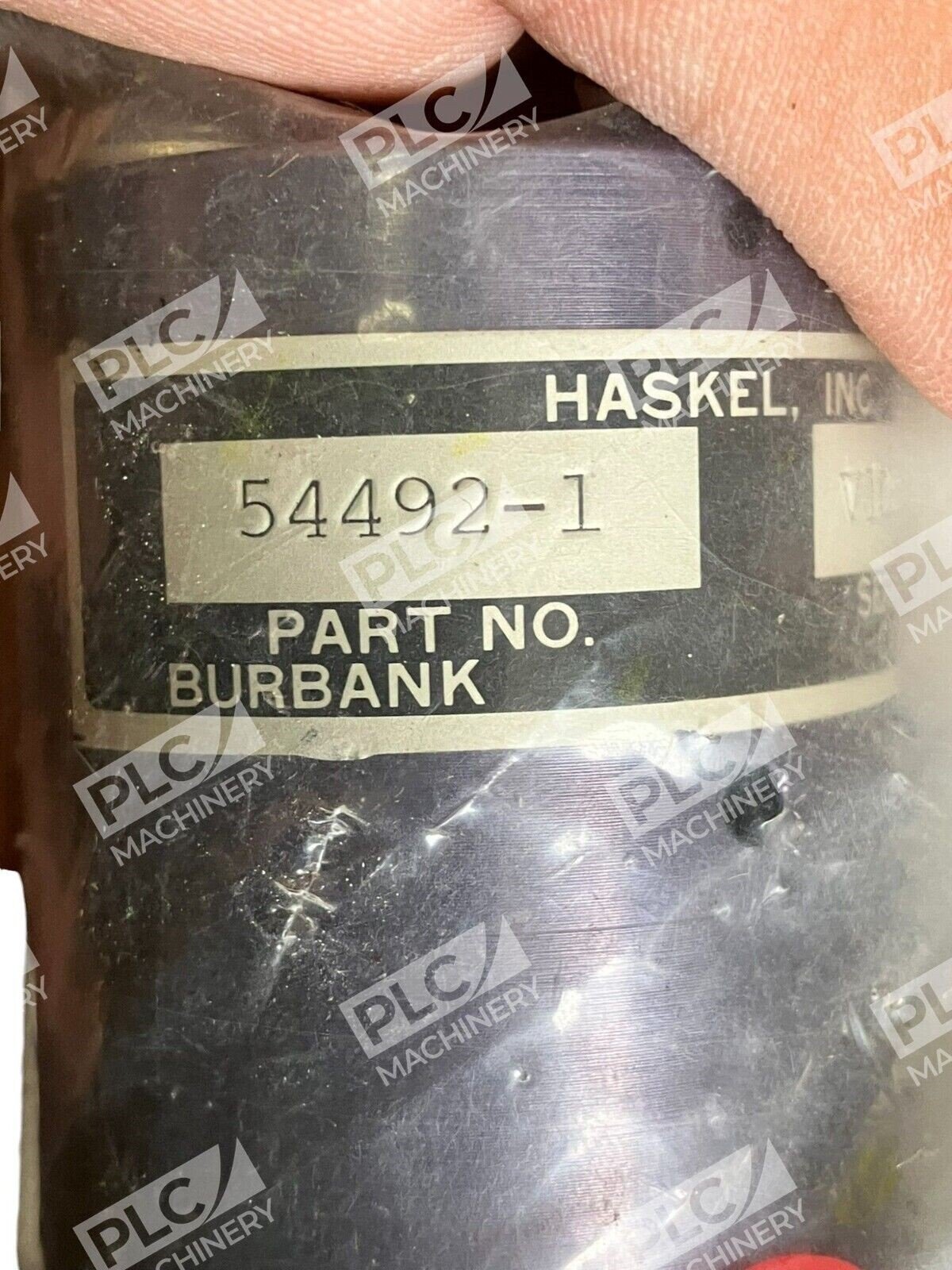

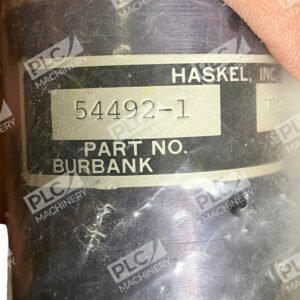

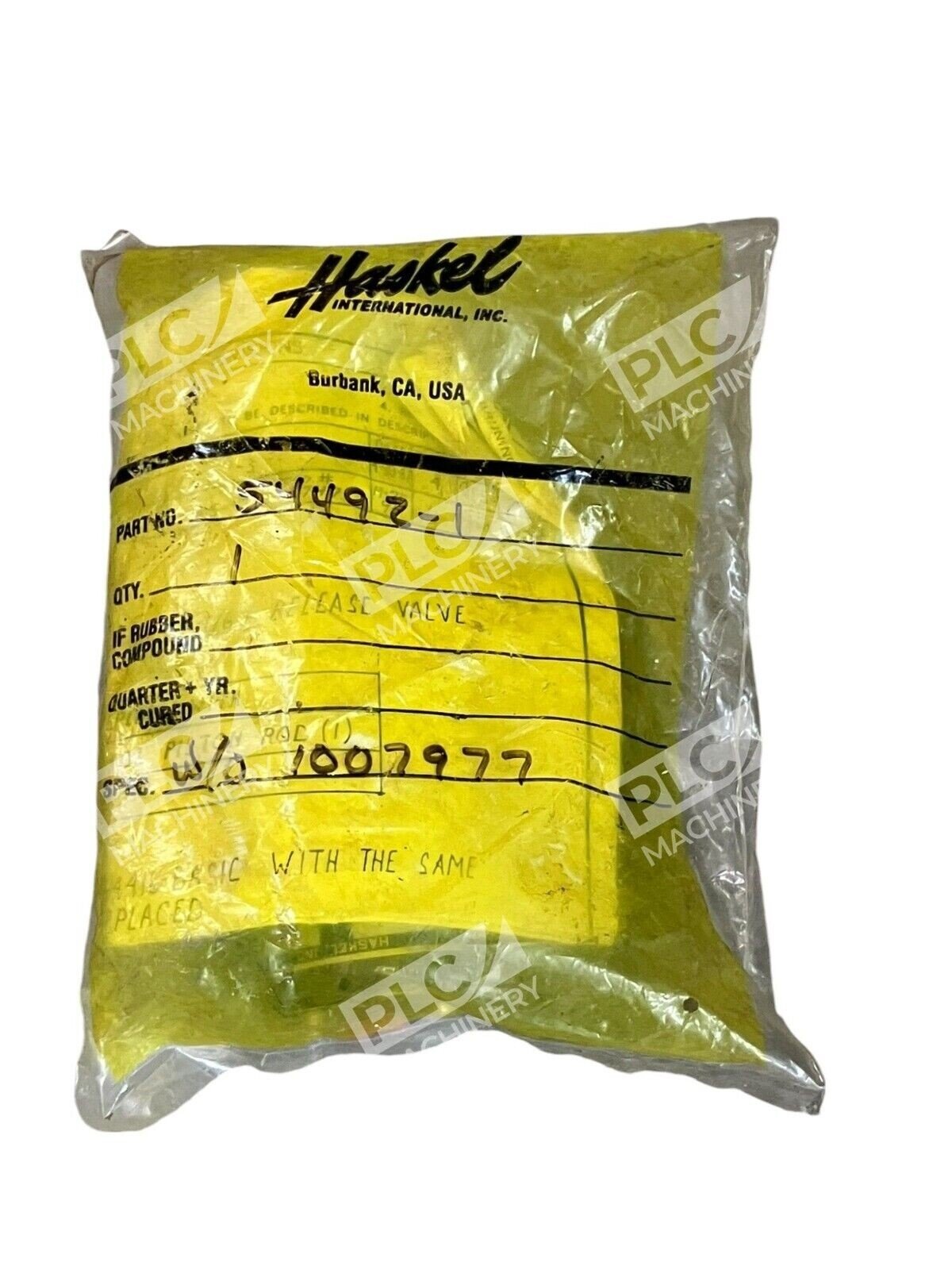

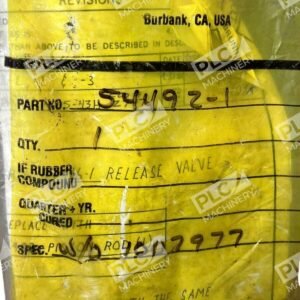

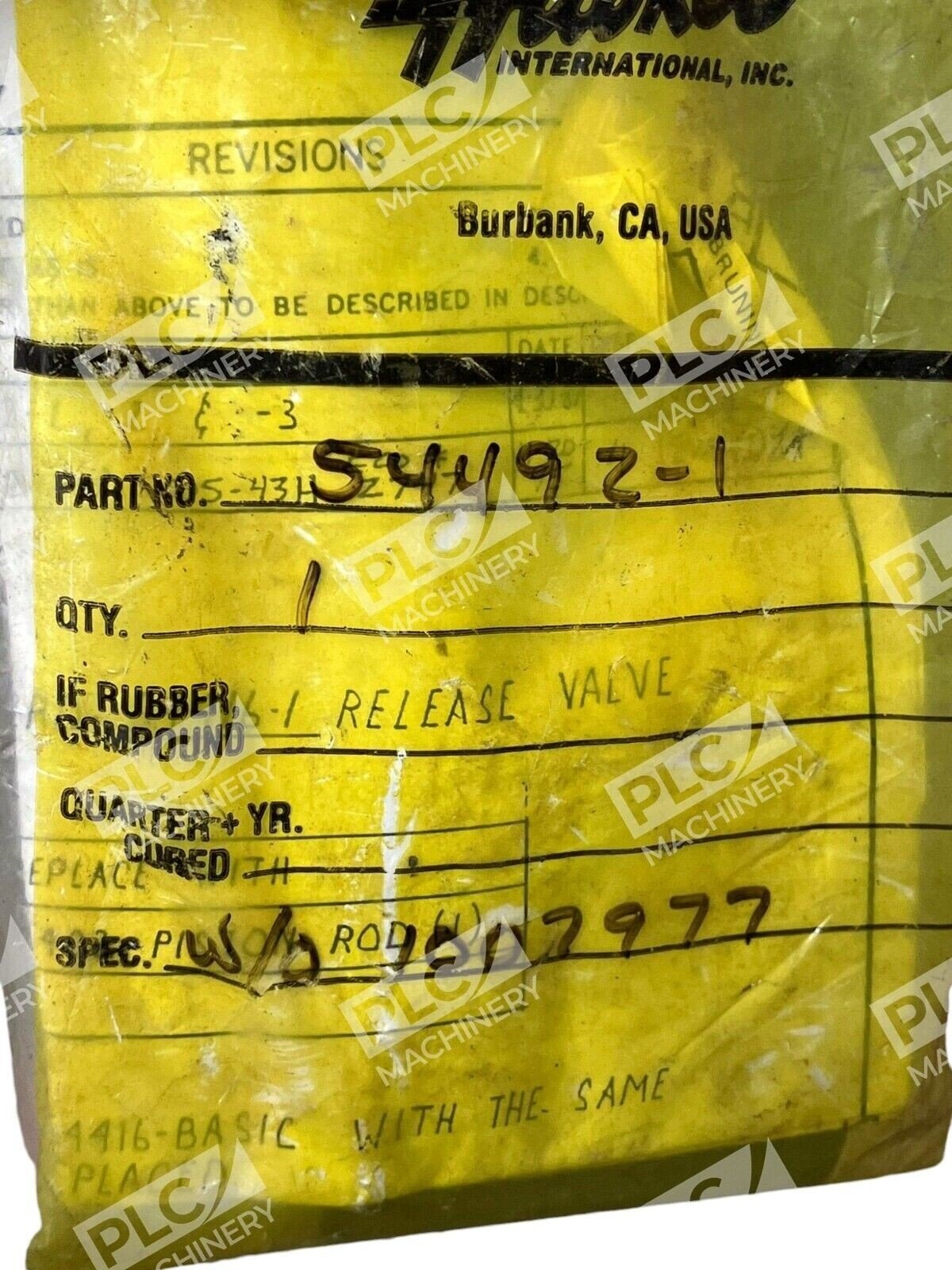

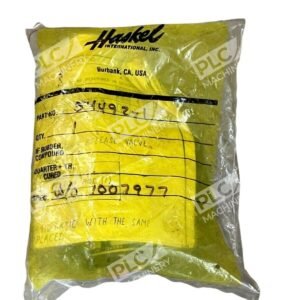

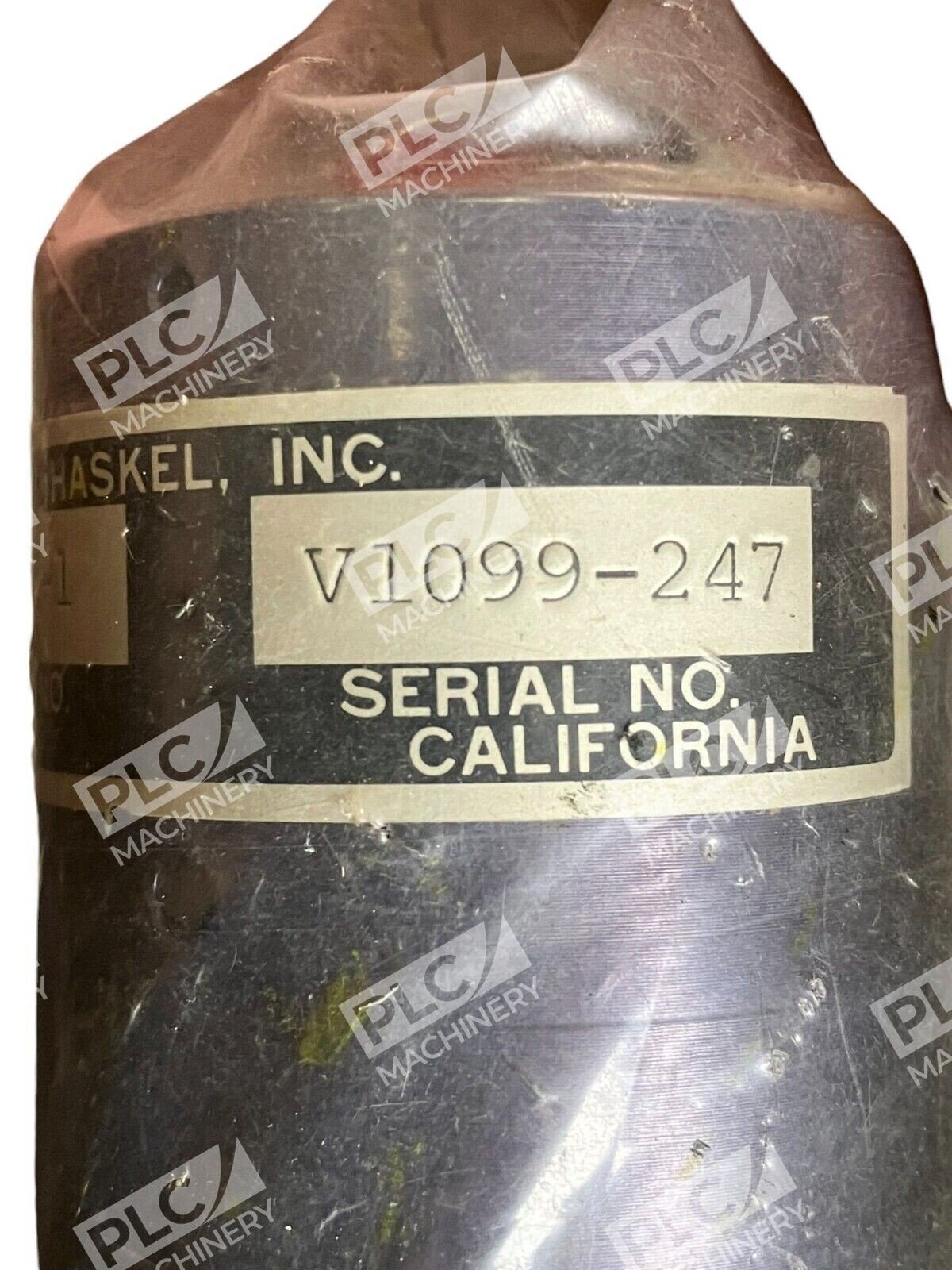

Haskel Inc 54492-1

The Haskel 54492-1 Air Pilot Valve is a high-performance, two-way, normally open valve engineered for precise control in high-pressure applications.

Key Features

• Seated Poppet Design: Ensures minimal leakage at elevated pressures when handling low-viscosity fluids.
• Direct Air Actuation: Facilitates seamless integration into systems operating in wet or hazardous environments, as well as those utilizing air-driven pumps or boosters.
• High Area Ratio Actuation: Utilizes a nominal area ratio of 55:1, allowing effective control of high forces using low-pressure plant air.
• Dual Functionality: Incorporating a small air regulator in the pilot line enables the valve to serve as a safety relief mechanism.

Specifications

• Type: 2-Way
• Normal Position: Open
• Nominal Area Ratio for Actuation: 55:1
• Maximum Inlet Pressure (with 100 psig air pilot): 5,000 psig
• Minimum Cv: 0.6
• Port Sizes:
  • “P”, “C”, or “B” Port: 1/4″ FNPT
  • “T” or “A” Port: 1/4″ FNPT
• Port Maximum Pressures:
  • “P”, “C”, or “B” Port: 15,000 psig
  • “T” or “A” Port: 3,000 psig
• Materials of Construction (Liquid Section): Stainless Steel, Aluminum, Buna-N
• Dimensions:
  • Length: 3-3/4″
  • Diameter: 1-5/8″
• Weight: 1 lb.
• Air Pilot Port Size: 1/8″ FNPT

Applications

The Haskel 54492-1 Air Pilot Valve is ideal for industries requiring reliable high-pressure fluid control, including chemical processing, oil and gas, and manufacturing sectors. Its robust design and versatile functionality make it a valuable component in complex fluid handling systems.
