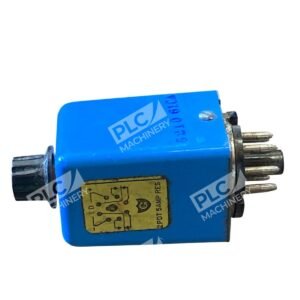

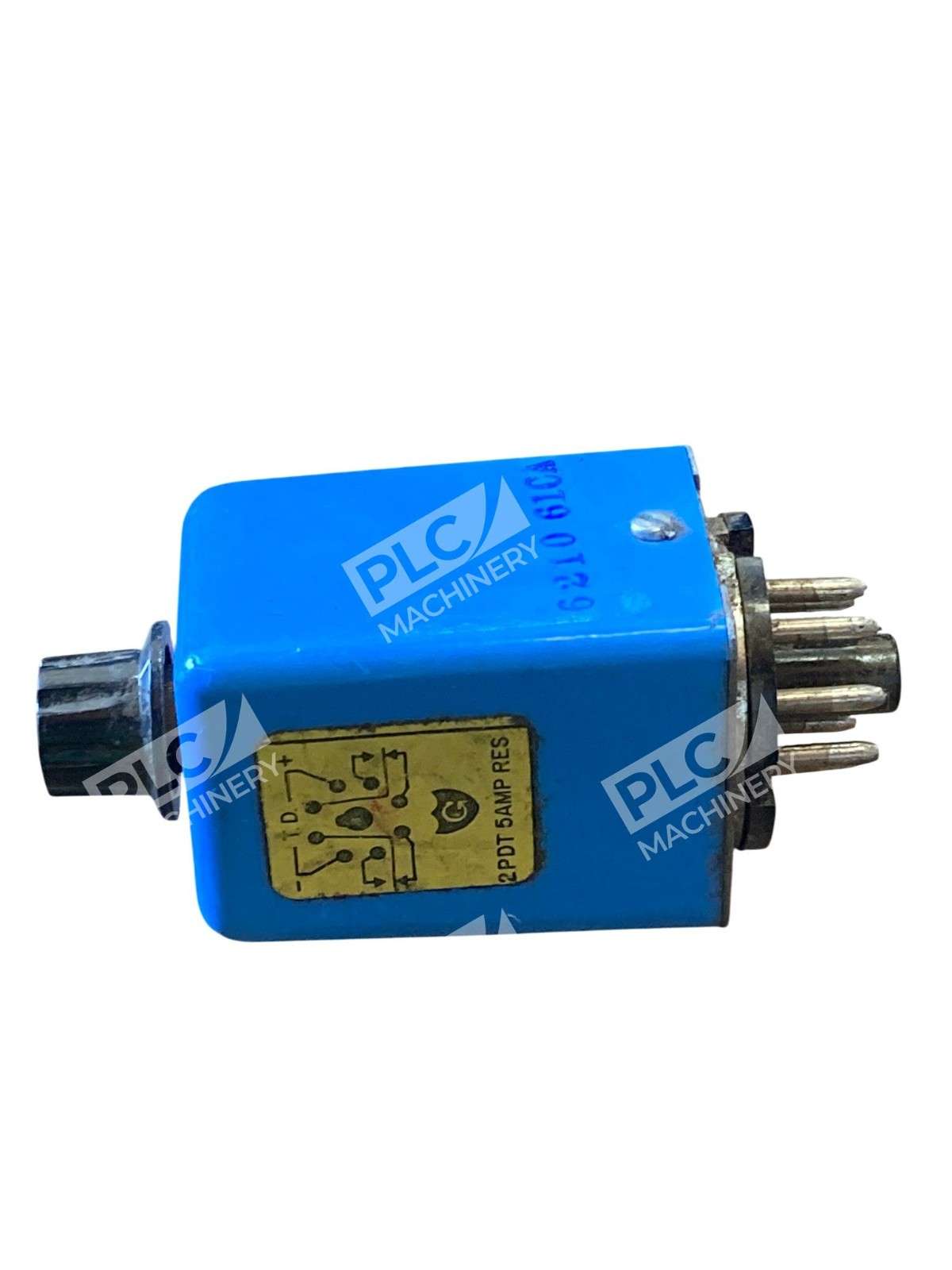

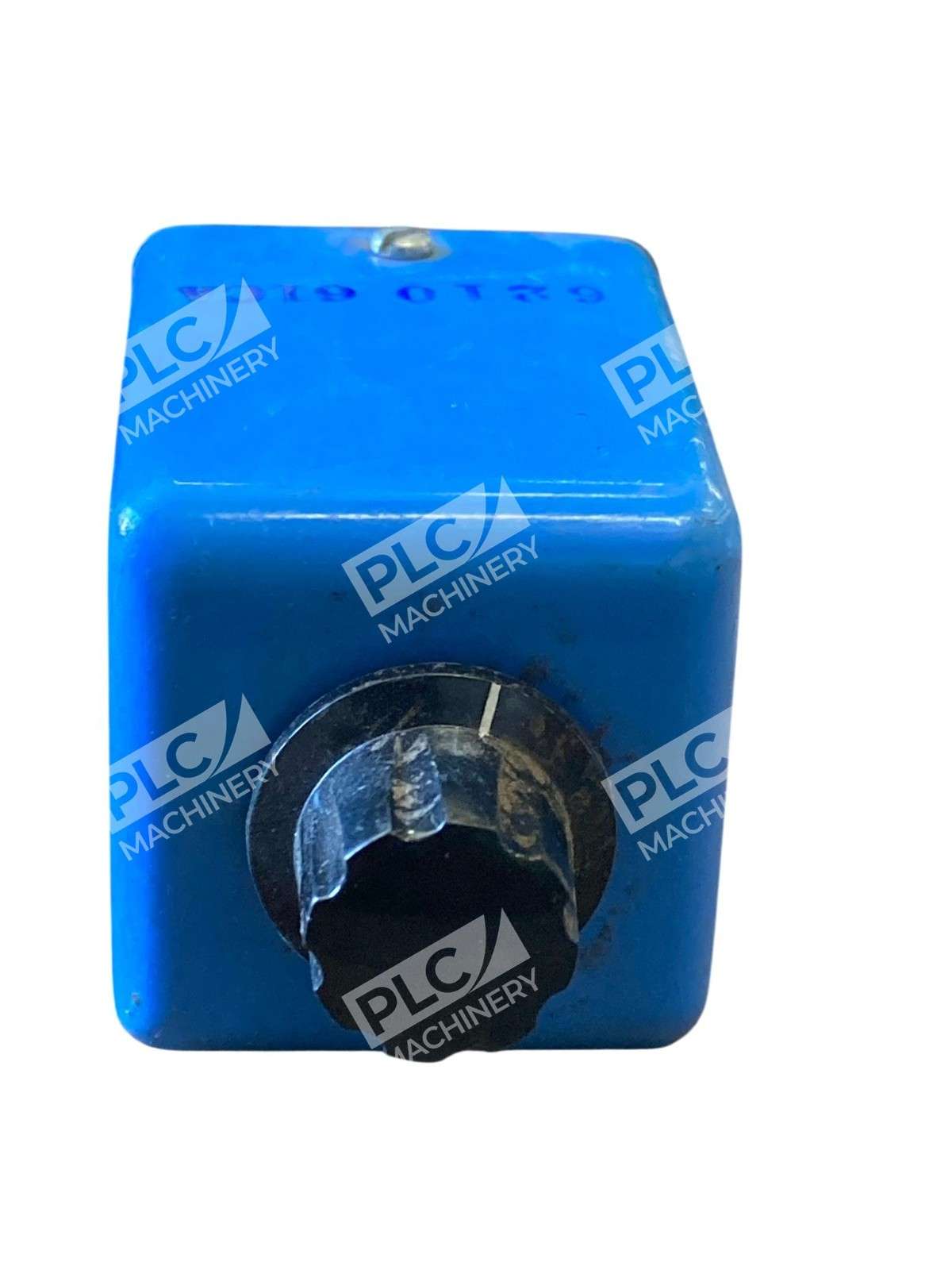

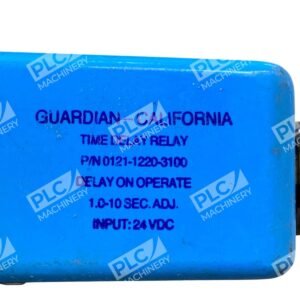

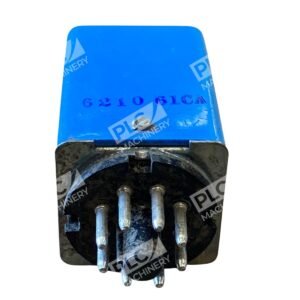

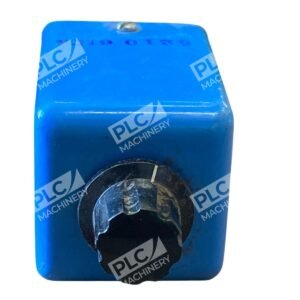

The Guardian 0121-1220-3100 Time-Delay Relay is a precision-engineered component designed to provide reliable time-delay functions in various industrial applications.
Key Features
- Time Delay Range: Adjustable from 1.0 to 10 seconds, allowing for precise control over timing operations.
- Operating Voltage: Designed for 24 VDC systems, ensuring compatibility with standard industrial power supplies.
- Contact Configuration: Equipped with a DPDT (Double Pole Double Throw) contact arrangement, providing versatile switching capabilities.
- Contact Rating: Capable of handling up to 15 A at 240 VAC or 24 VDC, suitable for a wide range of load requirements.
- Mounting: DIN rail mountable, facilitating easy installation and integration into control panels.
- LED Indicators: Features green and red LED indicators for clear status monitoring; the green LED indicates power application, while the red LED blinks during timing and remains on when the output is energized.
Applications
This time-delay relay is ideal for applications requiring precise timing control, such as:
- Sequential control systems
- Motor control circuits
- Lighting control
- Process automation
Technical Specifications
- Operating Temperature: -4°F to 131°F (-20°C to 55°C)
- Storage Temperature: -22°F to 158°F (-30°C to 70°C)
- Power Consumption: 1.7 W (DC)
- Weight: Approximately 2.3 oz (55 g)
The Guardian 0121-1220-3100 Time-Delay Relay combines robust performance with user-friendly features, making it a reliable choice for engineers and technicians seeking precise timing solutions in their control systems.
