Gould Shawmut RFS40 40A 600V

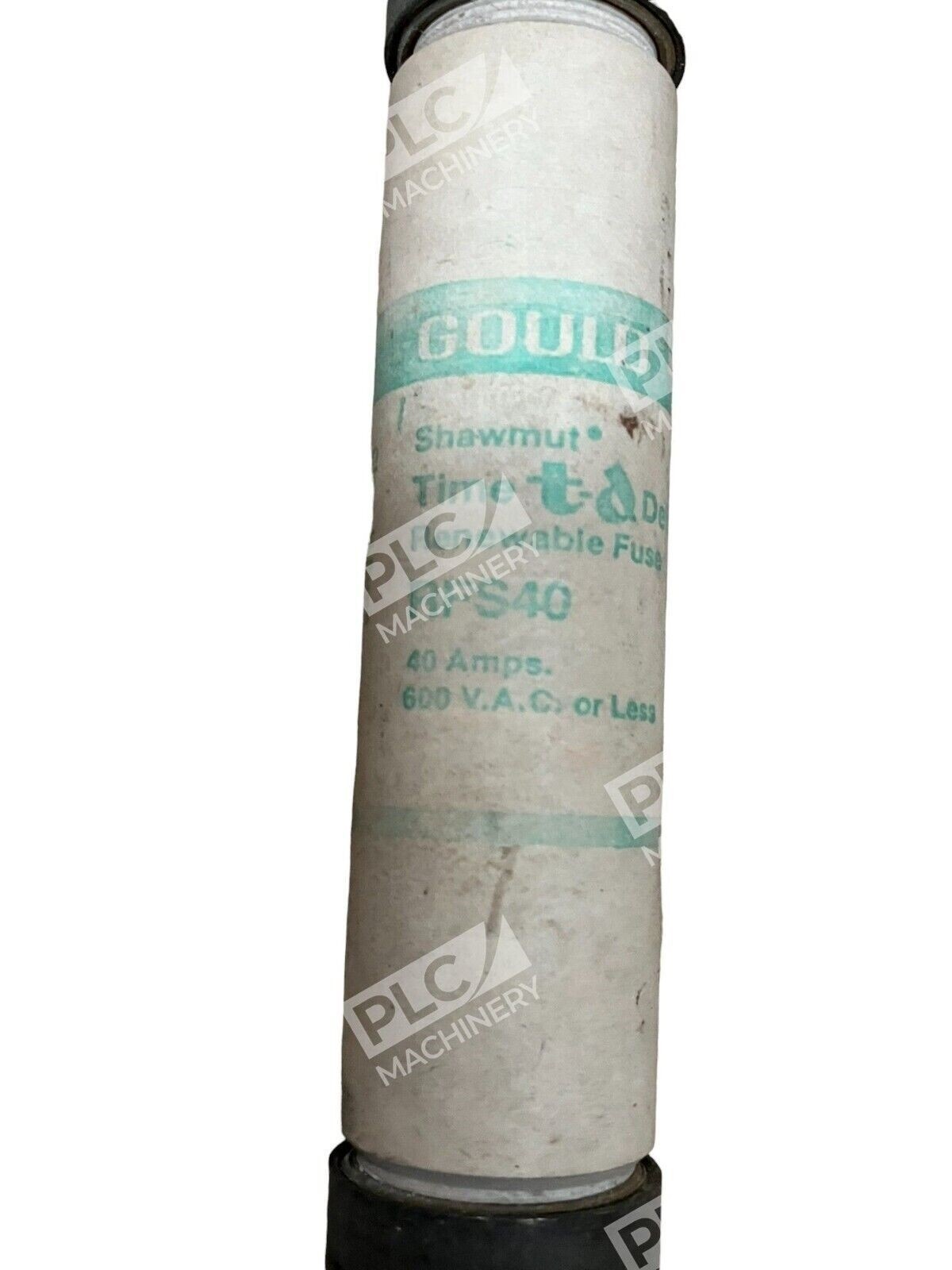

Gould Shawmut RFS40 40A 600V Fuse

The Gould Shawmut RFS40 is a renewable, fast-acting Class H fuse designed for general-purpose applications where available short-circuit currents do not exceed 10,000 amperes. This fuse is suitable for use in motor controllers and other electrical systems requiring reliable overcurrent protection.

Key Features

• Amperage Rating: 40 Amps
• Voltage Rating: 600 VAC
• Interrupting Rating: 10,000 AIC at 600 VAC
• Fuse Class: Class H
• Speed/Characteristic: Fast-Acting
• Mounting: Clip
• Terminal Type: Ferrule
• Body Type: Cylindrical
• Body Size: 1-1/16 inches in diameter x 5-1/2 inches in length

Applications

The RFS40 fuse is ideal for use in motor controllers and other electrical systems where overload protection is provided by an overload relay. Its renewable design allows for the replacement of fuse links, making it a cost-effective solution for protecting electrical circuits.

Construction

Featuring a ceramic body and bolt-in mounting, the RFS40 fuse offers durability and ease of installation. The renewable design allows for quick replacement of fuse links, ensuring minimal downtime and continued protection of electrical equipment.

Compliance and Standards

The Gould Shawmut RFS40 fuse complies with industry standards for safety and performance, providing reliable protection for electrical systems. Its design and construction meet the requirements for Class H fuses, ensuring compatibility with a wide range of applications.
