General Signal GS O-Z Gedney Conduit Fitting 1-1/4″x12″ ECGJH-125-12

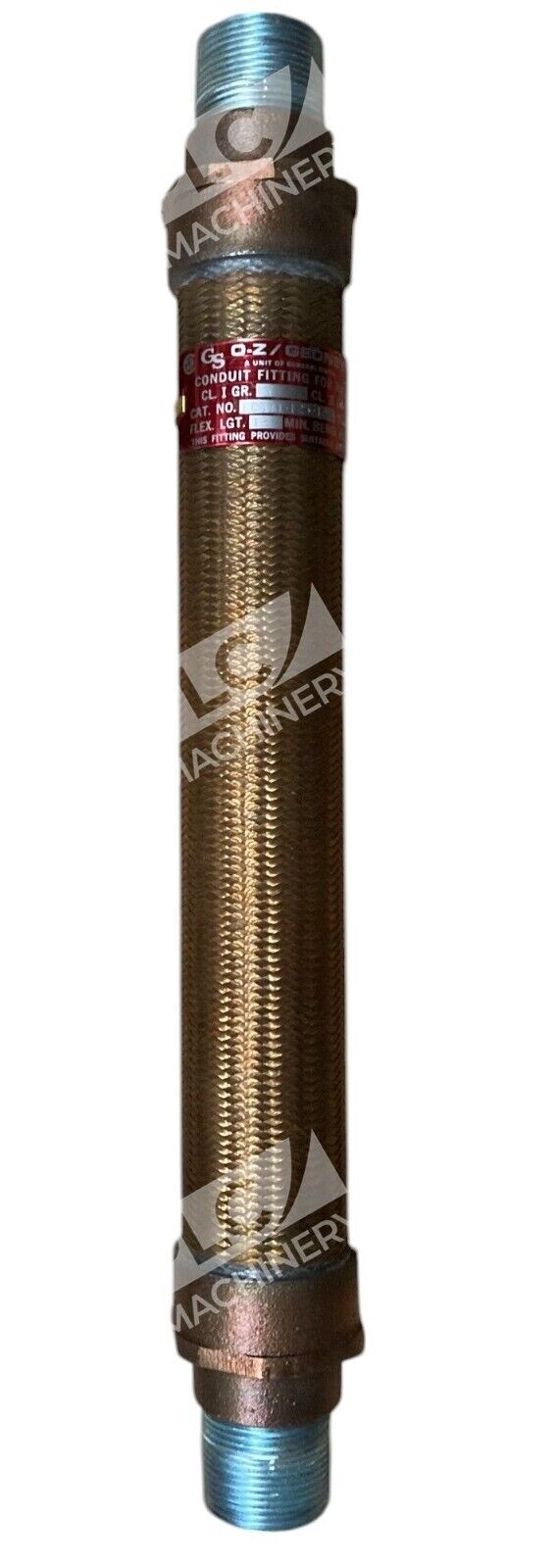

O-Z/Gedney ECGJH-125-12 Flexible Conduit Coupling

The O-Z/Gedney ECGJH-125-12 is a 1-1/4 inch flexible conduit coupling designed to provide a secure and flexible connection in hazardous and wet locations. Its robust construction and compliance with industry standards make it an ideal choice for environments requiring explosionproof and dust-ignitionproof fittings.

Key Features

• Flexible Design: Allows for movement and vibration, making it suitable for areas where rigid conduit is impractical.

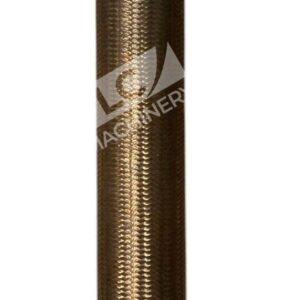

• Durable Materials: Constructed with bronze ends, a steel nipple, bronze braid, and a brass tube, ensuring longevity and resistance to corrosion.
• Threaded Connections: Equipped with two female threaded nipples, each furnished with a removable male nipple, facilitating easy installation and maintenance.
• Insulating Liner: Features an interior insulating liner to protect conductors from abrasion under vibrating conditions.
• Temperature Rating: Capable of withstanding temperatures up to 300°F, suitable for high-temperature applications.

Specifications

• Trade Size: 1-1/4 inch
• Length: 12 inches
• Material: Bronze ends, steel nipple, bronze braid, brass tube
• End Type: Two female threaded nipples

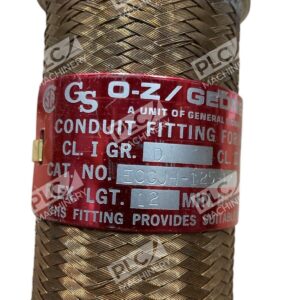

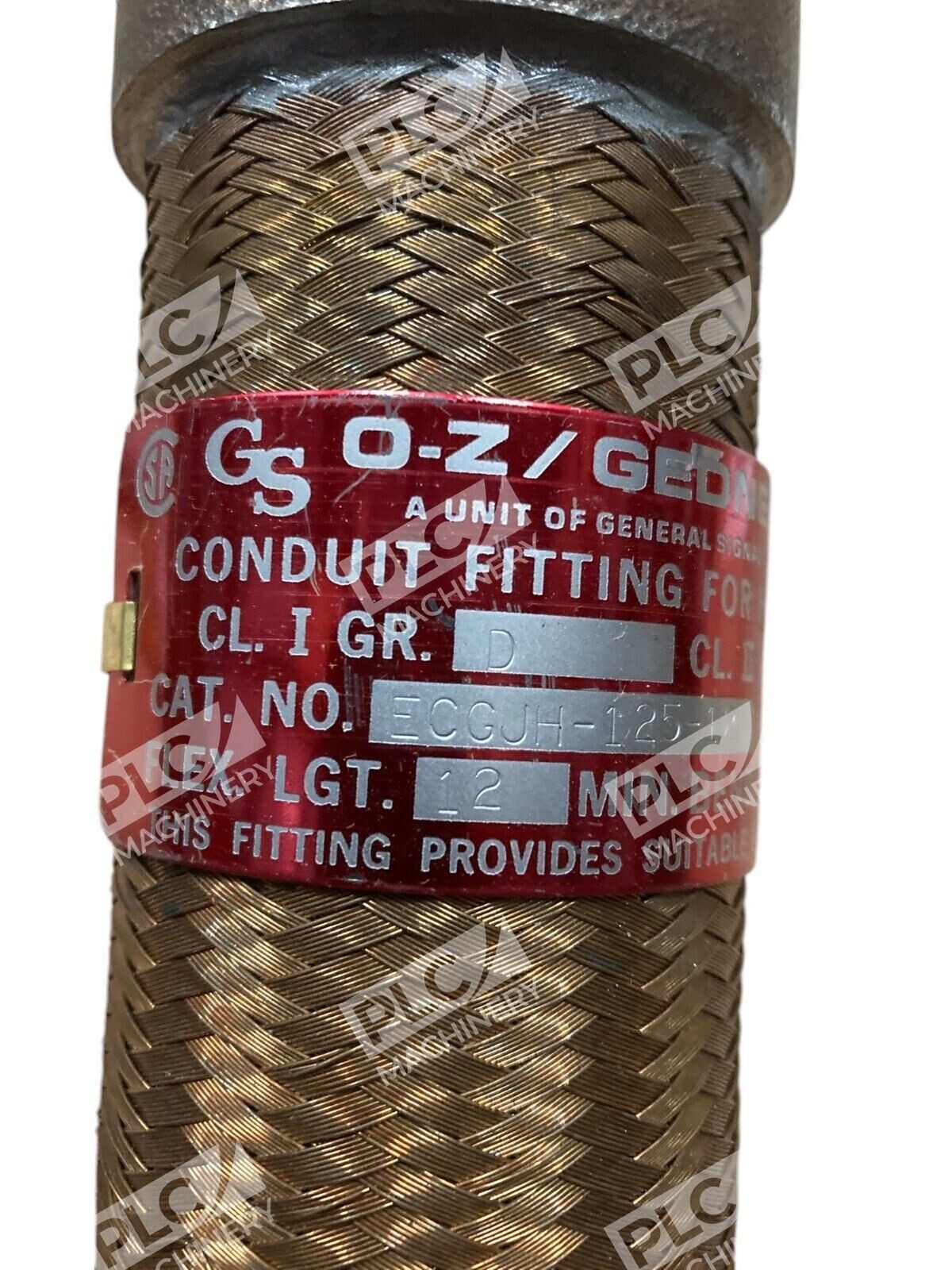

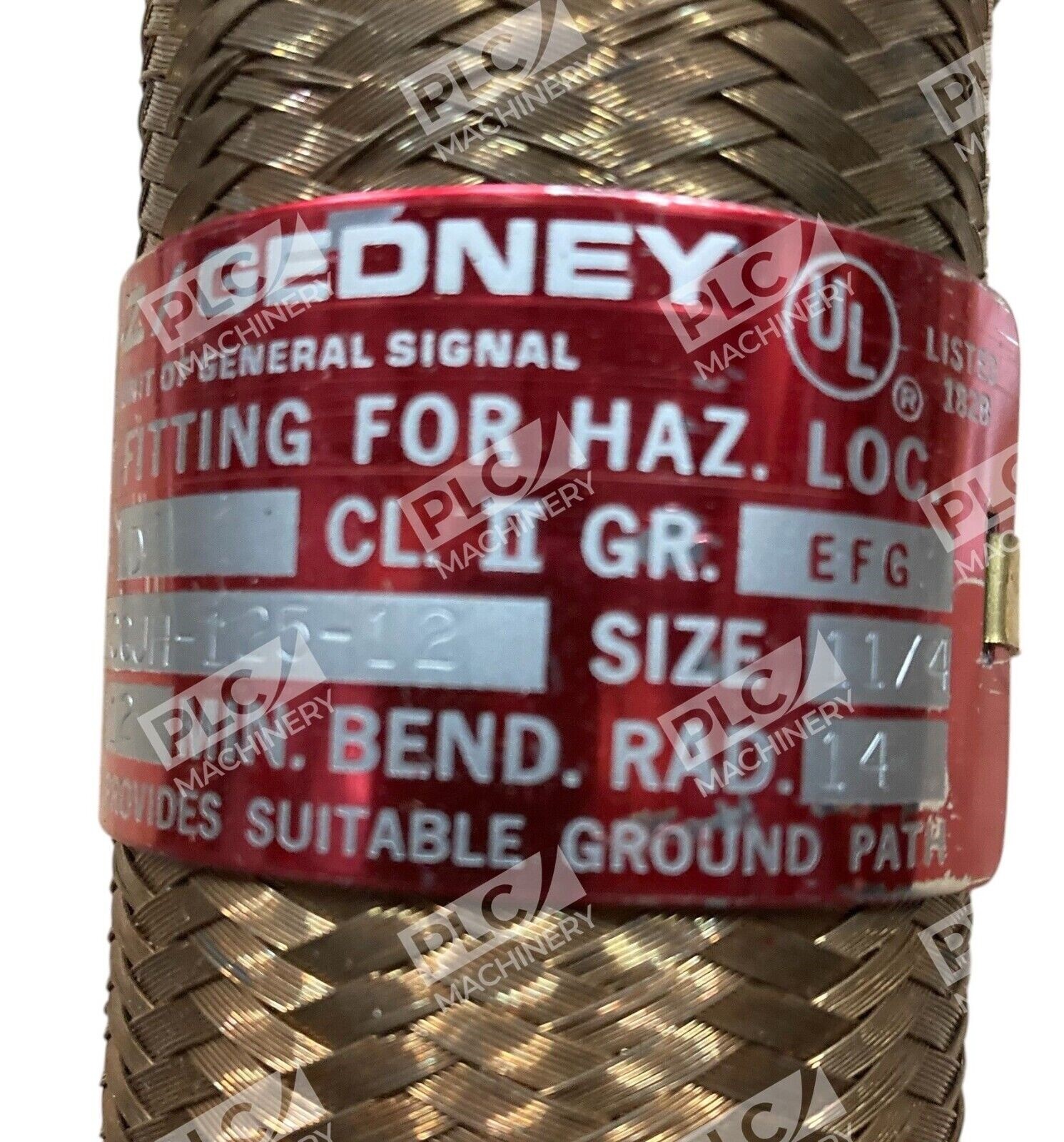

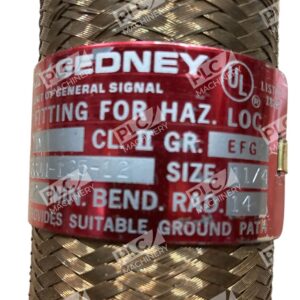

• Enclosure Ratings: Class I Division 1 and 2 Group D; Class I Zone 1 and 2 Group IIA; Class II Division 1 and 2 Group E, F, G; Class III
• Approvals: UL 886, CSA C22.2

Applications

The ECGJH-125-12 is designed for use in hazardous locations to isolate conduit systems from vibration and/or movement or to make difficult bends. It is suitable for use with IMC and threaded rigid metallic conduit in environments where explosionproof and dust-ignitionproof fittings are required.

Compliance and Standards

This conduit coupling meets the following standards and approvals:

• UL 886
• CSA C22.2
• NEC 500-503/505
• Class I Division 1 and 2 Group D
• Class I Zone 1 and 2 Group IIA
• Class II Division 1 and 2 Group E, F, G
• Class III

These certifications ensure the coupling’s suitability for use in hazardous and wet locations, providing safety and reliability in demanding applications.
