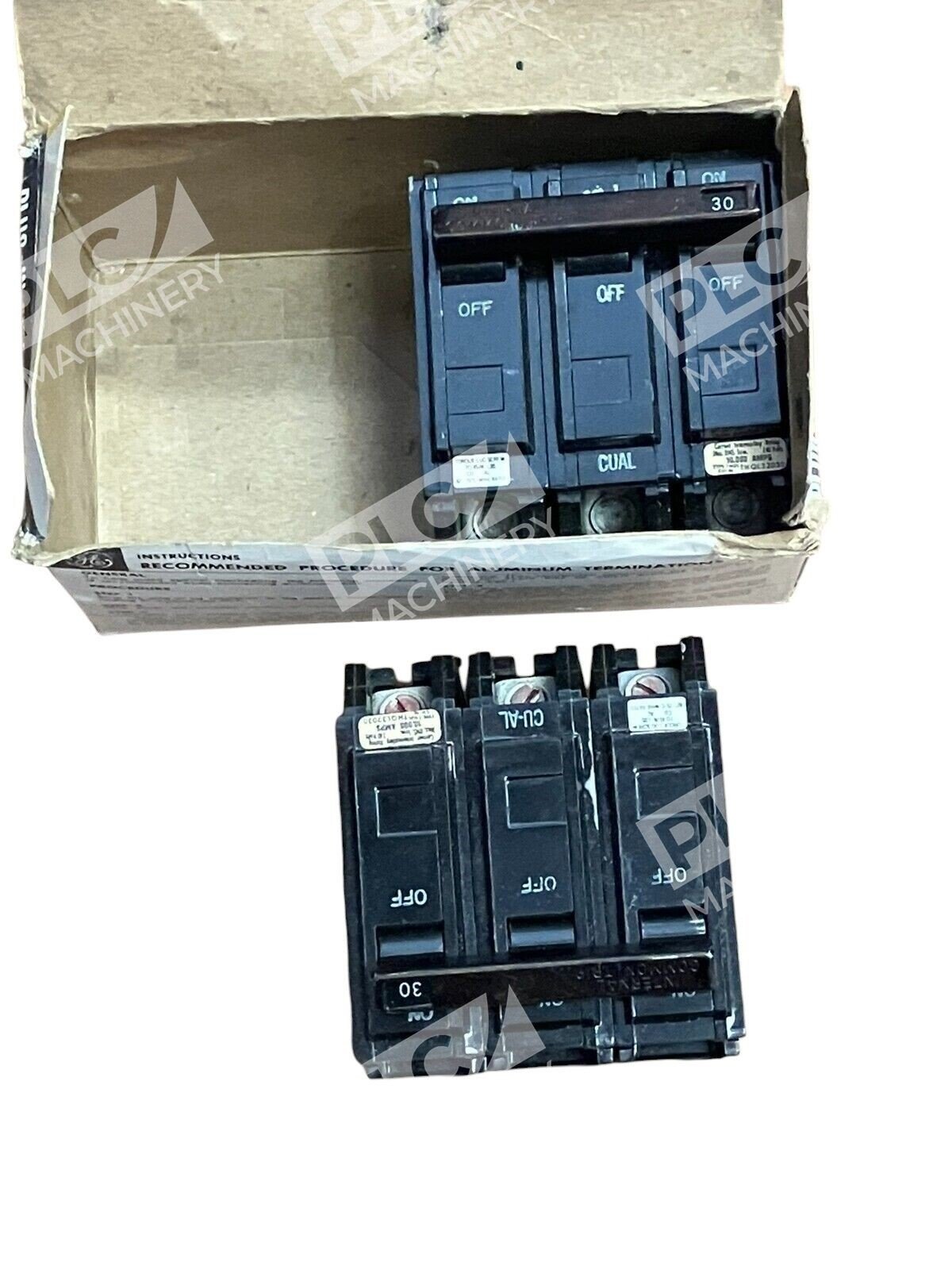

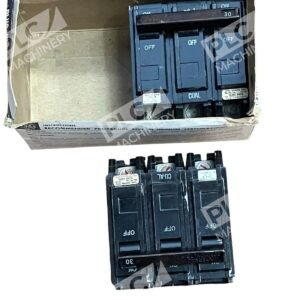

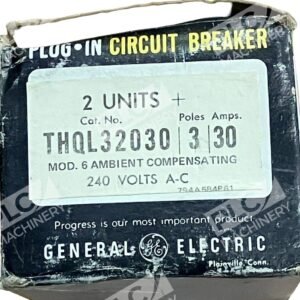

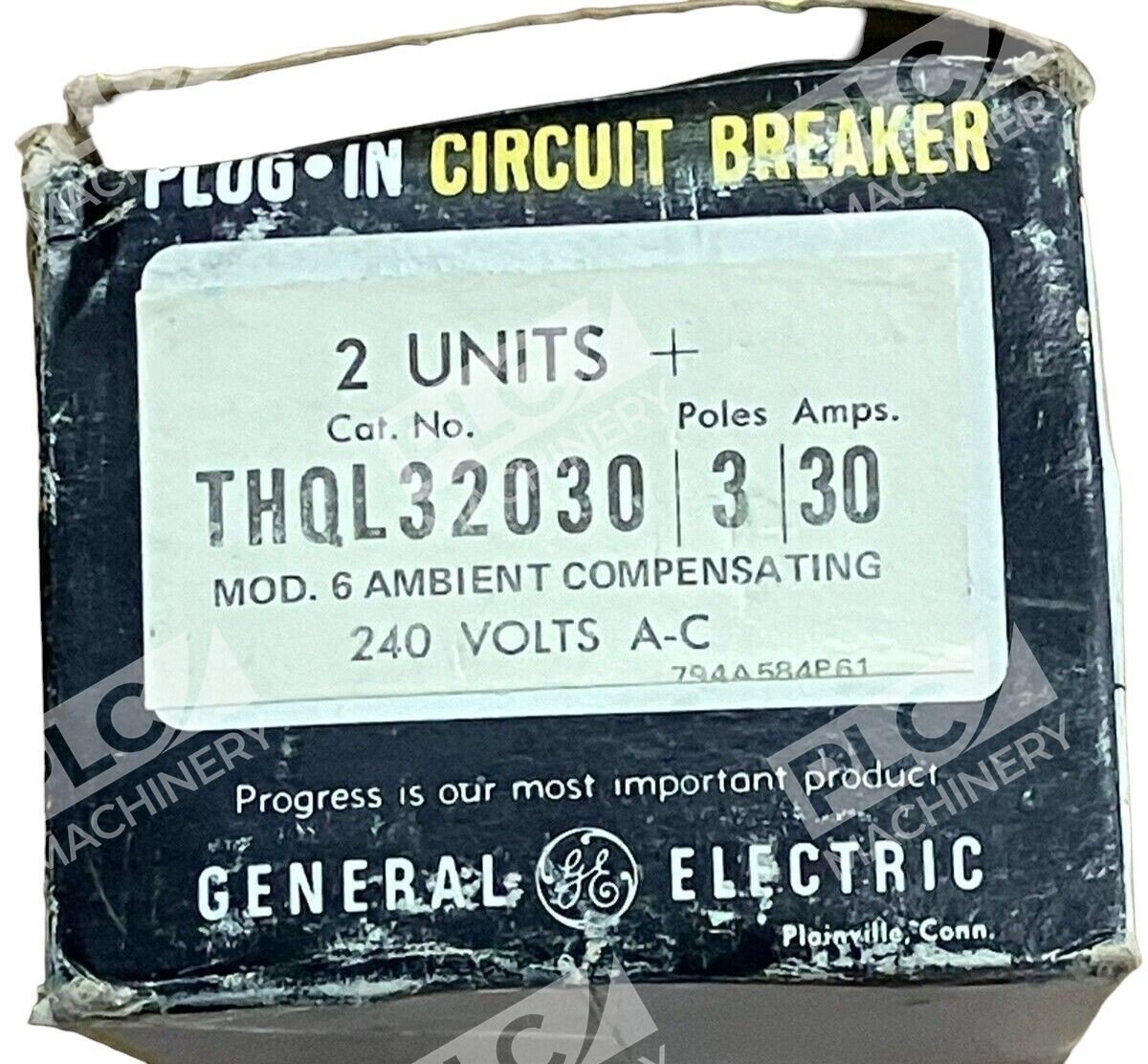

General Electric THQL32030 Plug-In Circuit Breaker 3-Pole (Box of 2)

General Electric THQL32030 Plug-In Circuit Breaker 3-Pole (Box of 2)

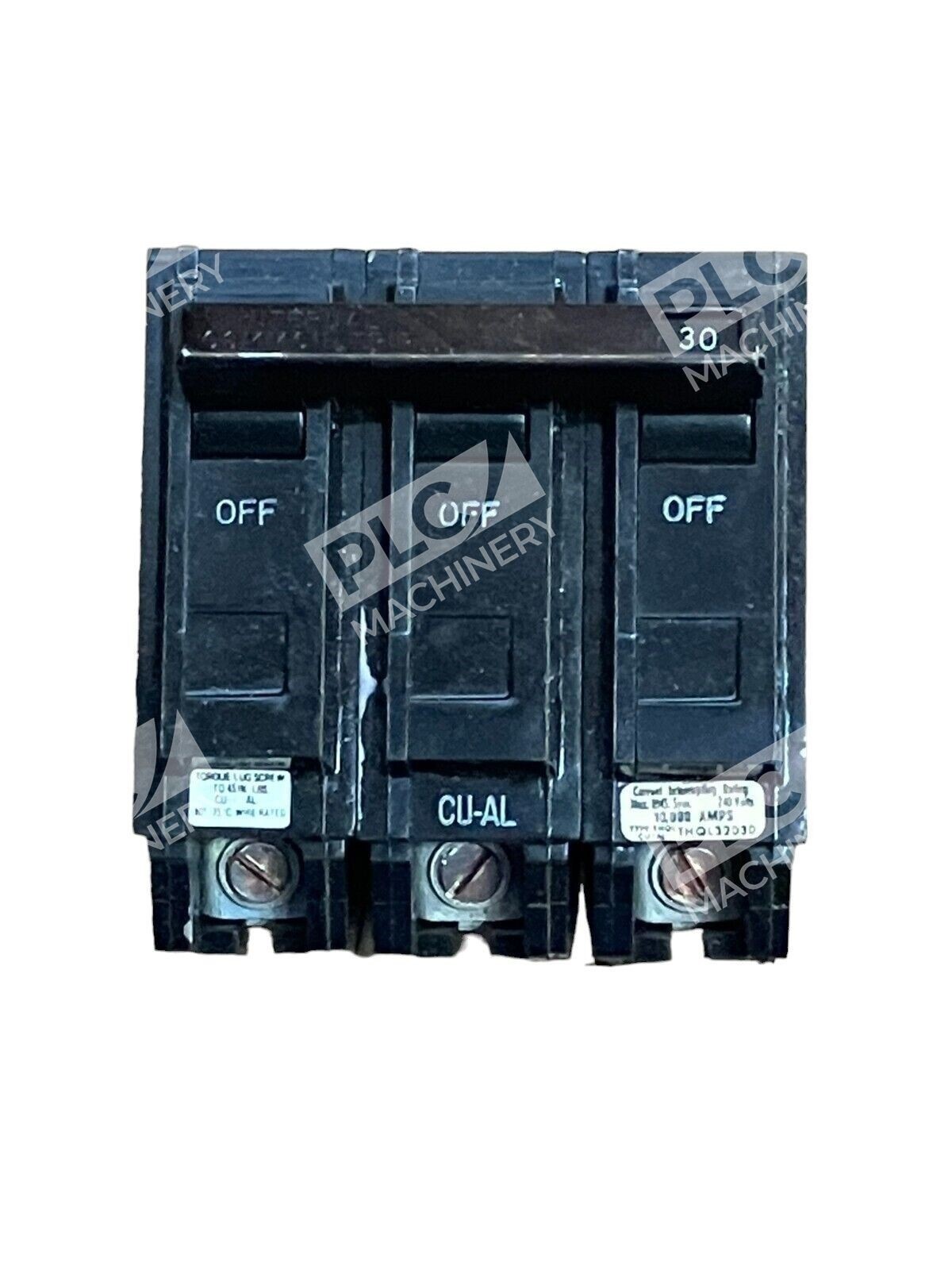

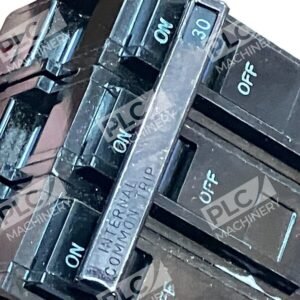

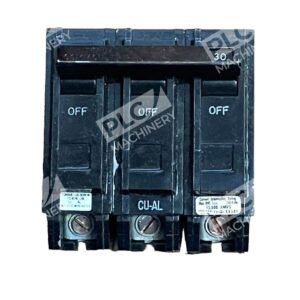

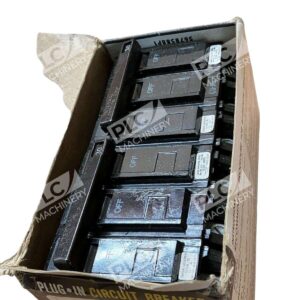

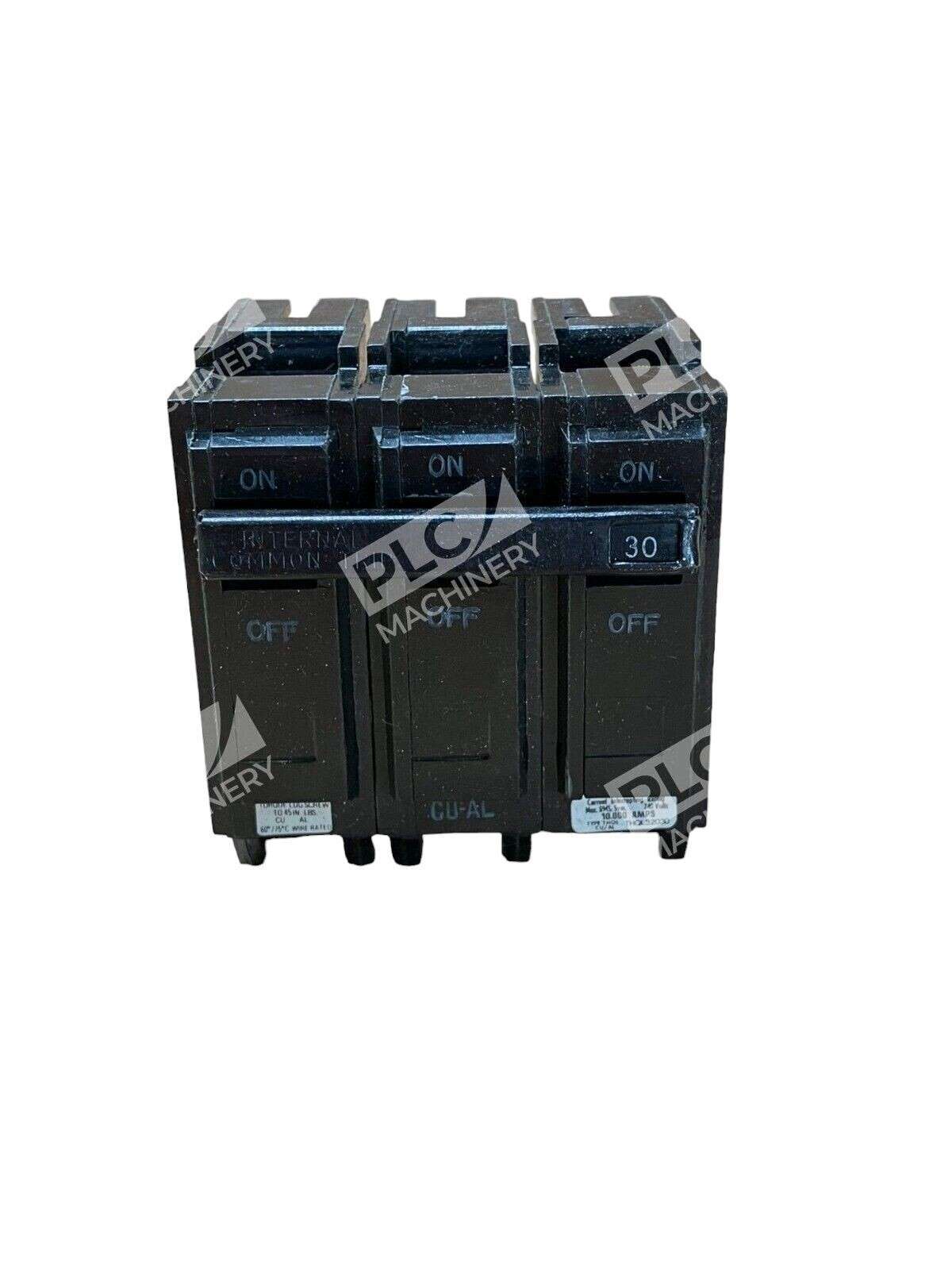

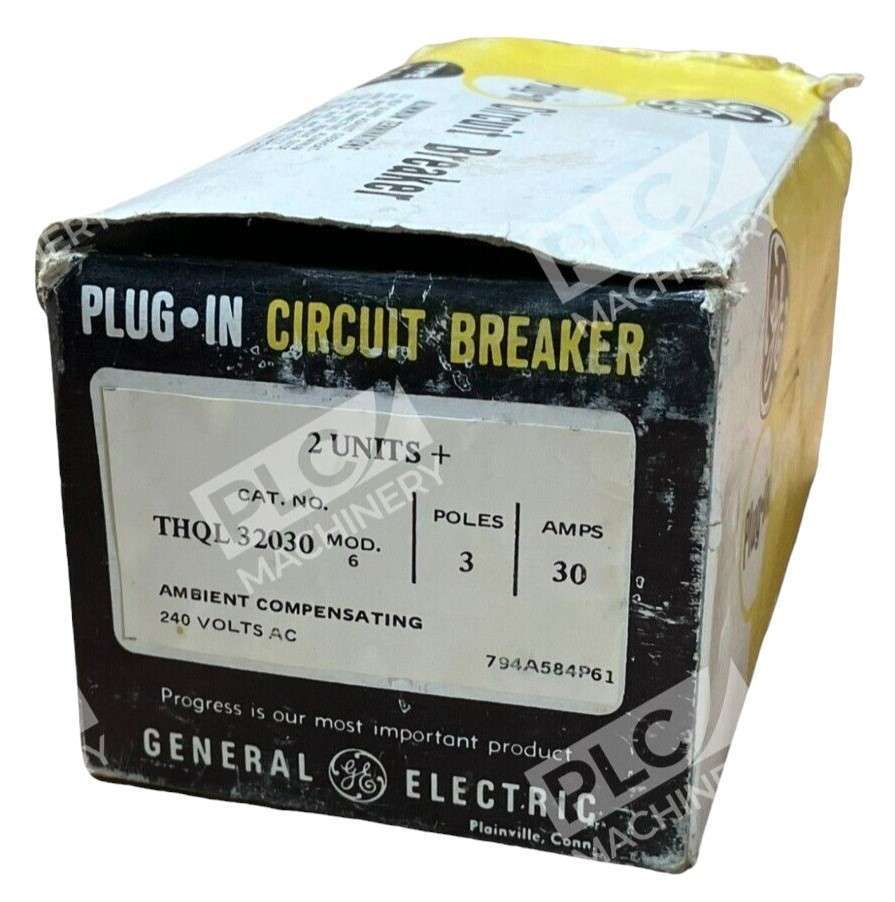

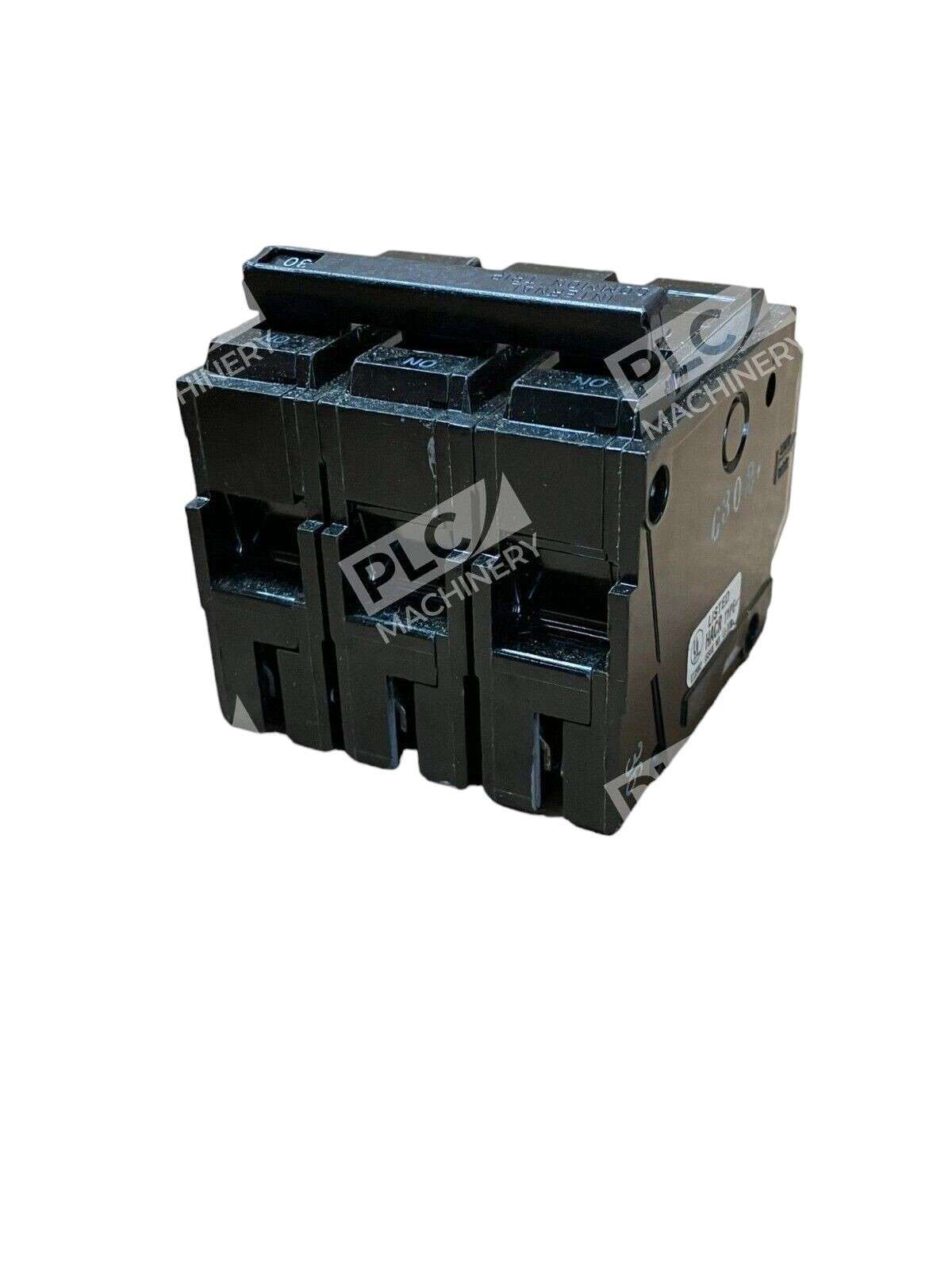

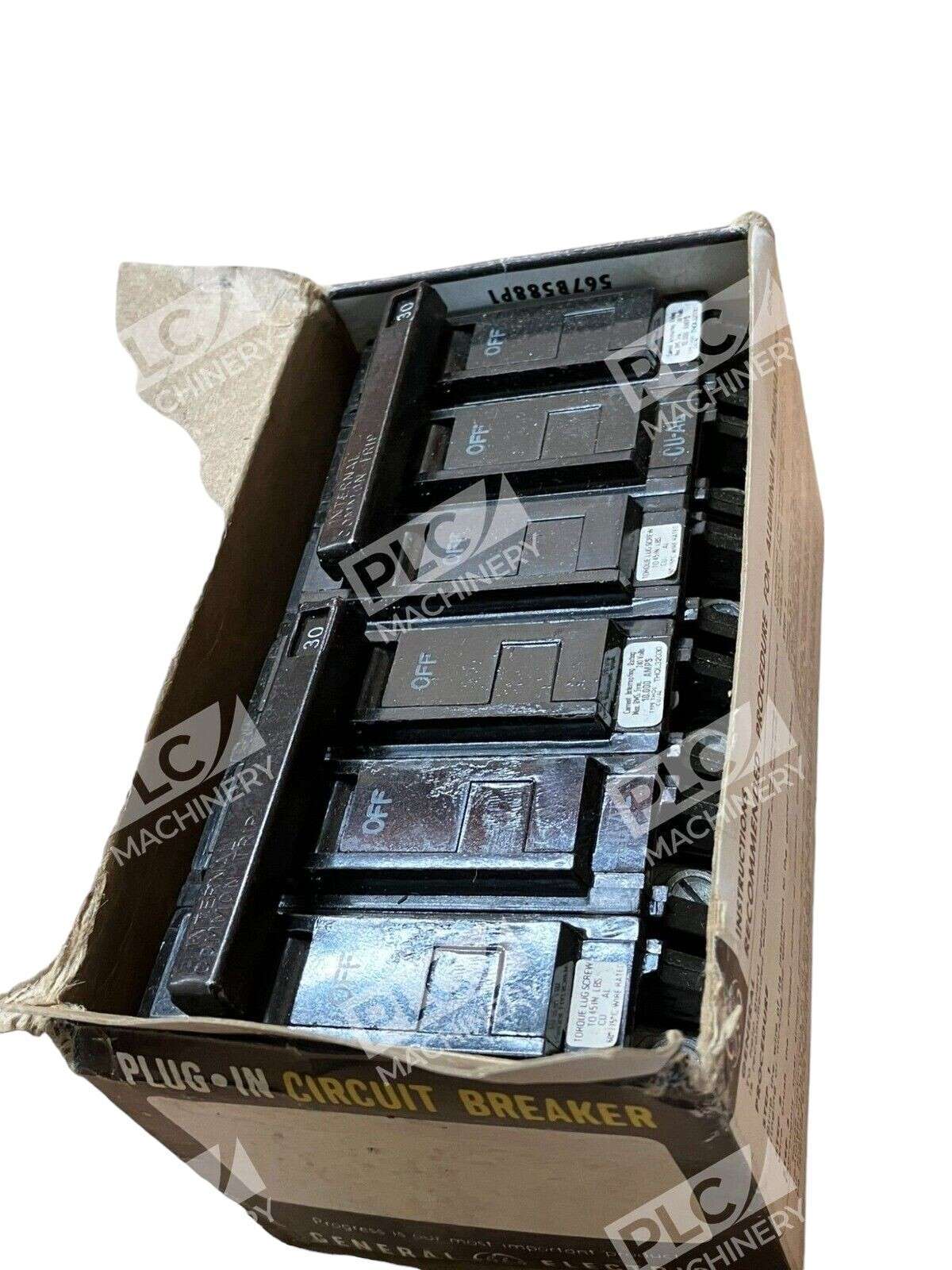

The General Electric THQL32030 is a 3-pole, 30-amp circuit breaker designed for residential and commercial applications. This box includes two units, each engineered to provide reliable overcurrent protection for electrical systems operating at 120/240 volts AC.

Key Features

• Compact Design: Each breaker measures 2-3/8 inches in length, 1 inch in width, and 3-9/32 inches in height, allowing for efficient use of panel space.

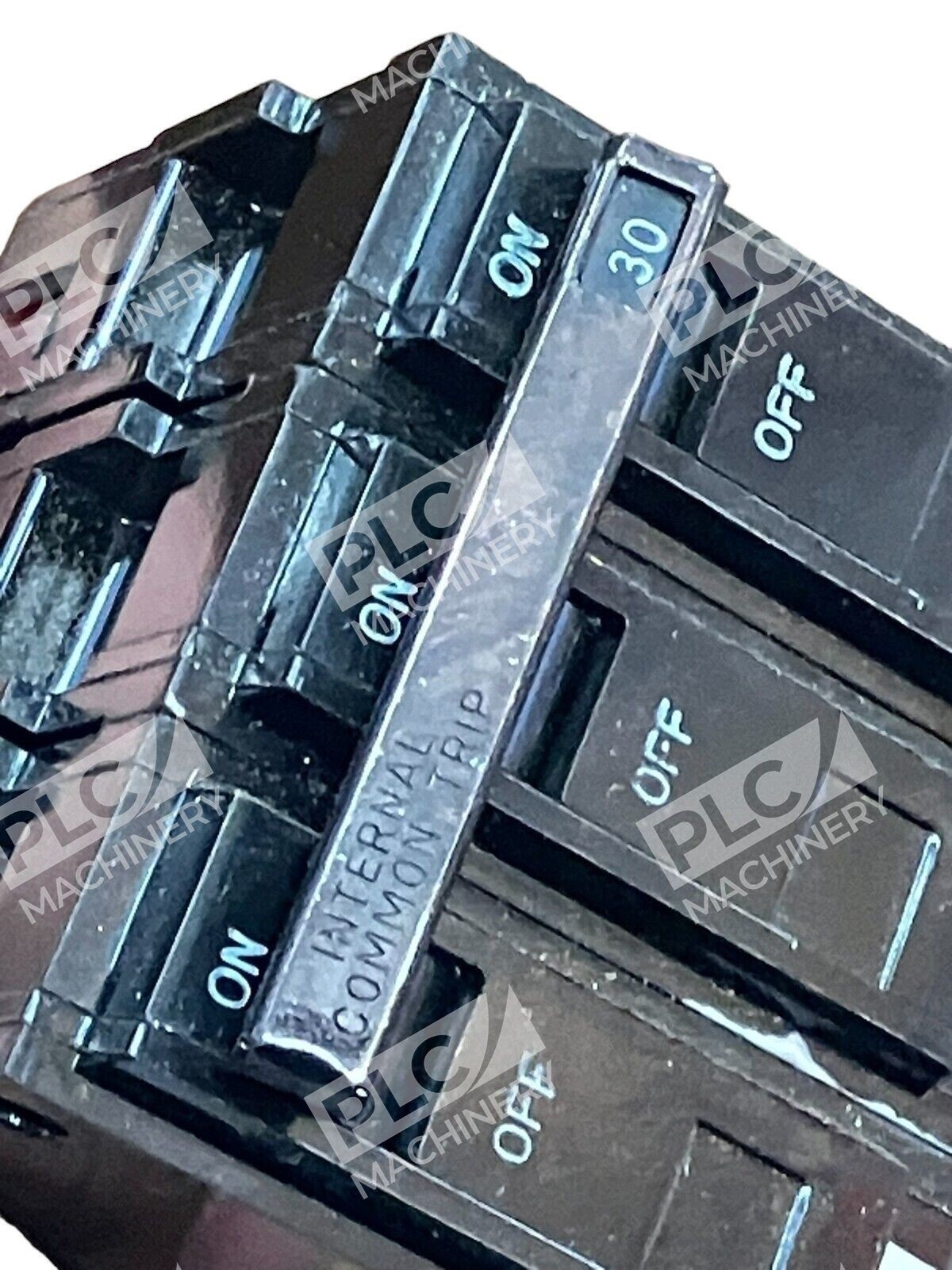

• Thermal-Magnetic Trip: Equipped with a fixed thermal-magnetic, non-interchangeable trip mechanism, ensuring consistent protection against overloads and short circuits.

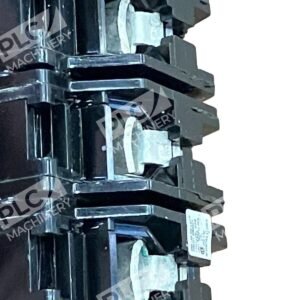

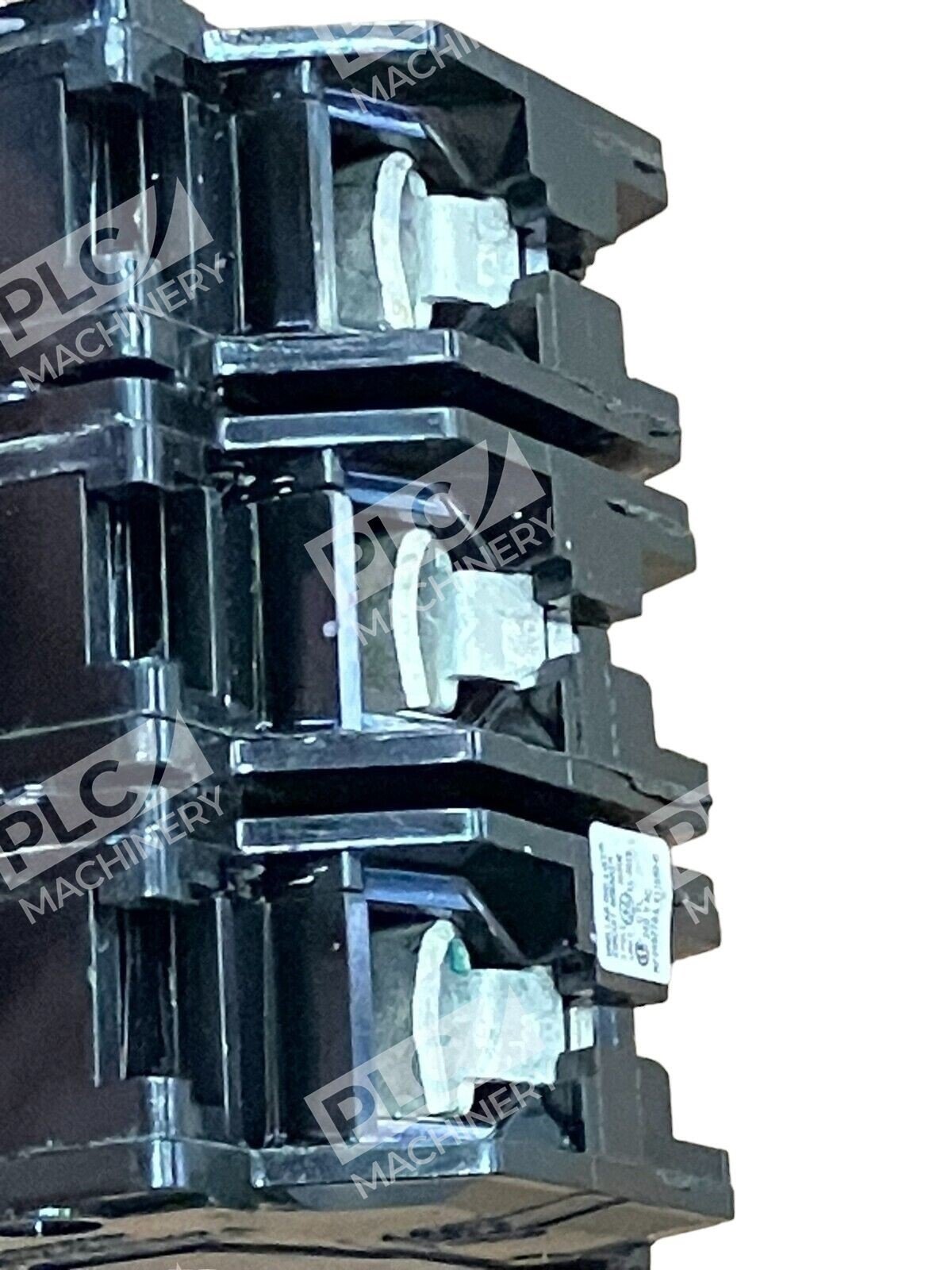

• Plug-In Mounting: Designed for easy installation with a 1-inch plug-in mounting configuration, compatible with AL Series panelboards.

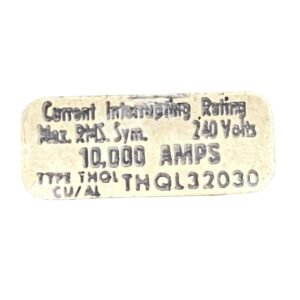

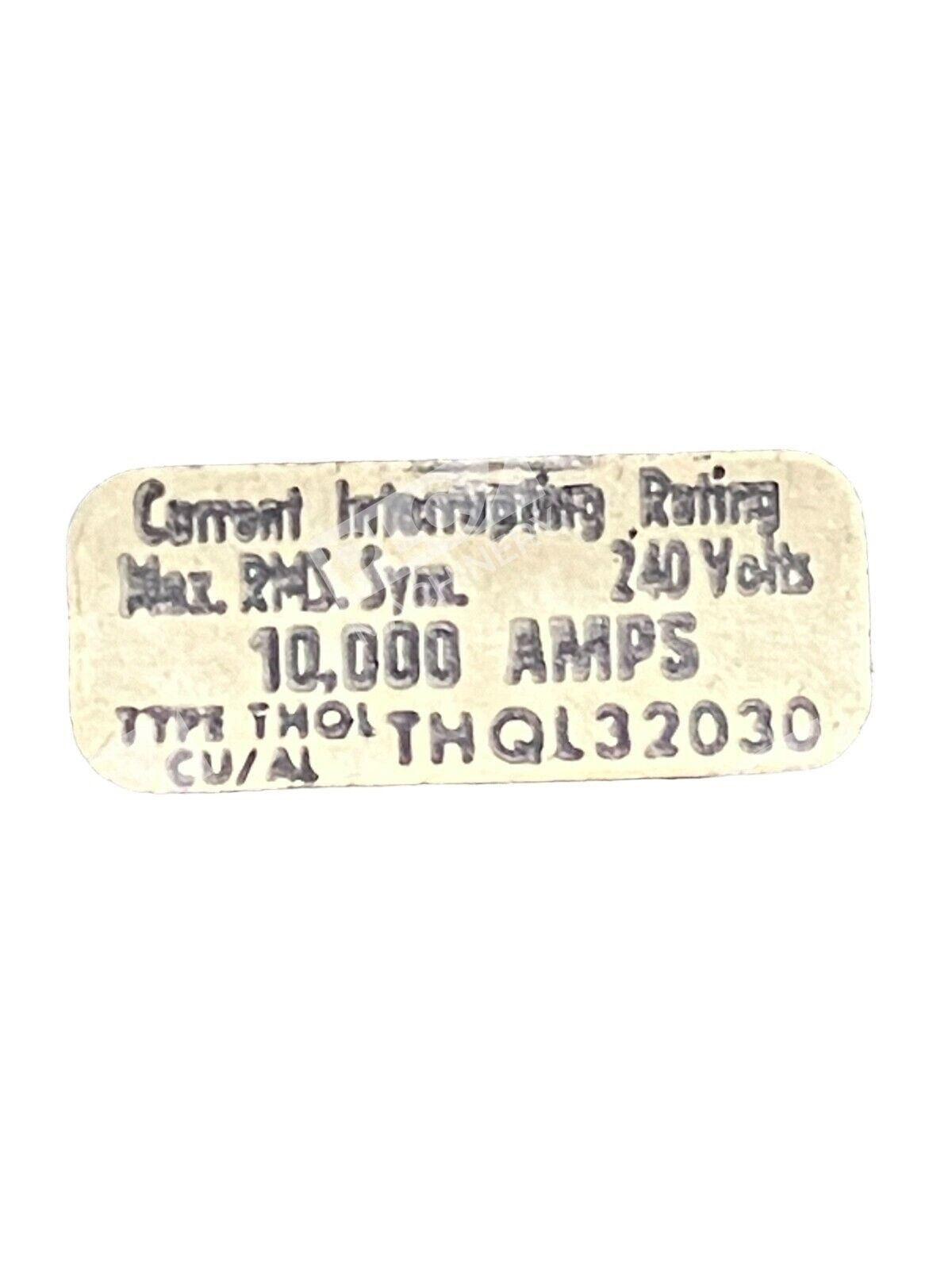

• High Interrupting Capacity: Offers a 10,000-ampere interrupting capacity at 240 volts AC, suitable for various electrical systems.

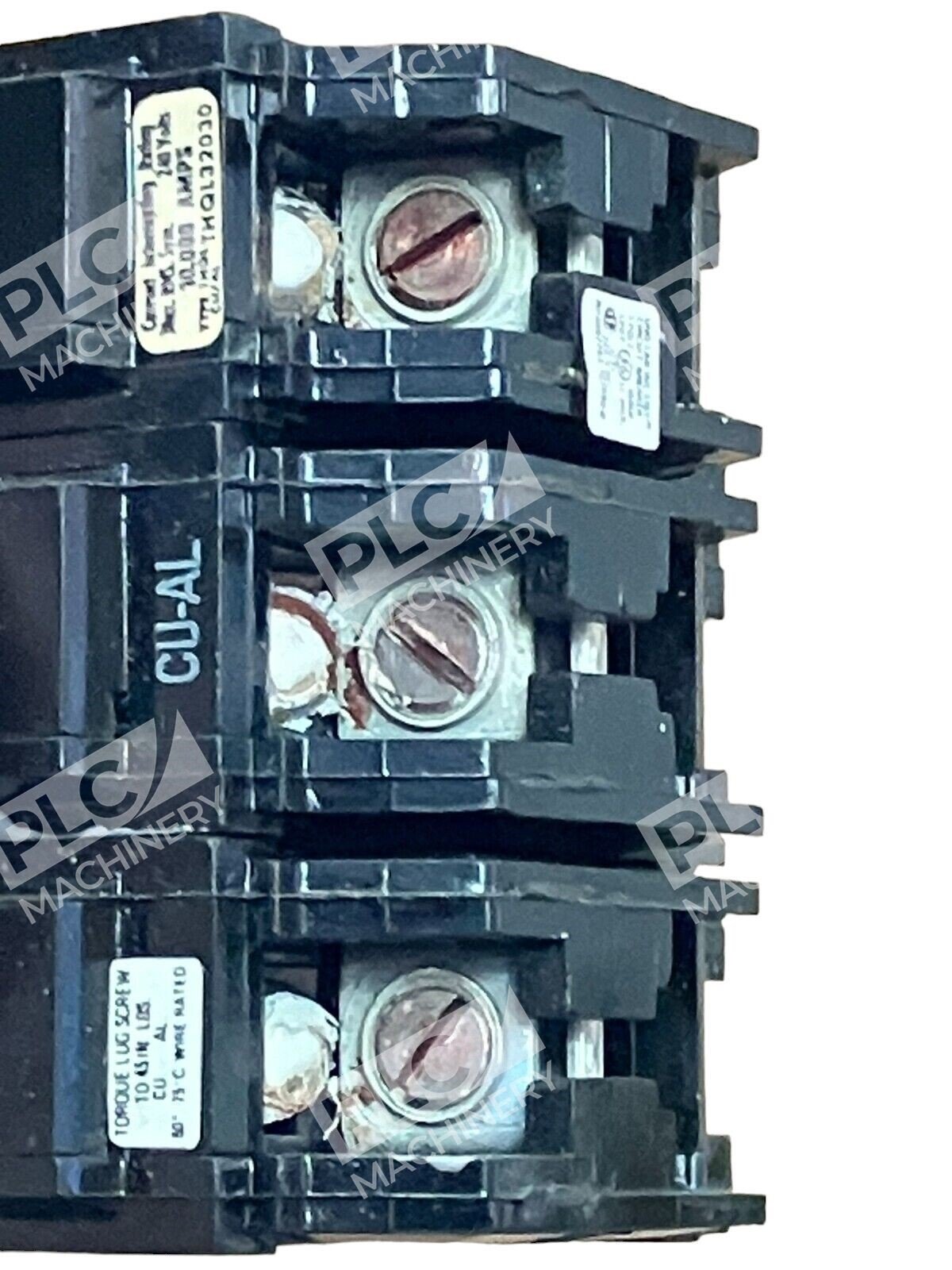

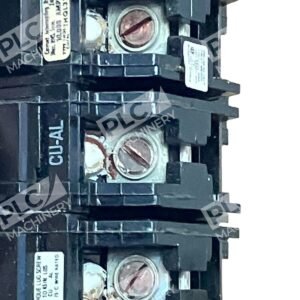

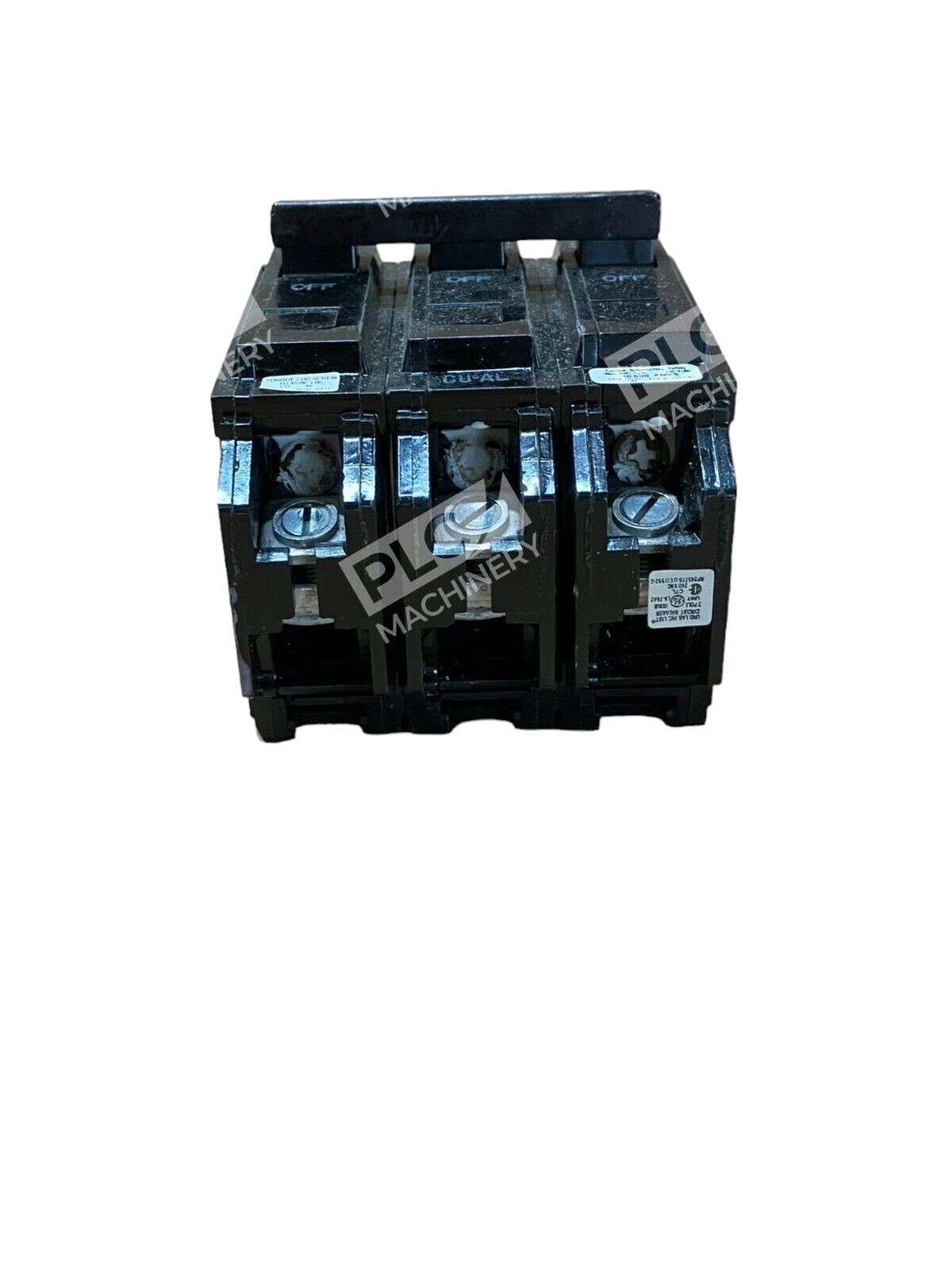

• Versatile Wire Compatibility: Accommodates copper wires ranging from 14 to 8 AWG and aluminum wires from 12 to 8 AWG, providing flexibility in wiring options.

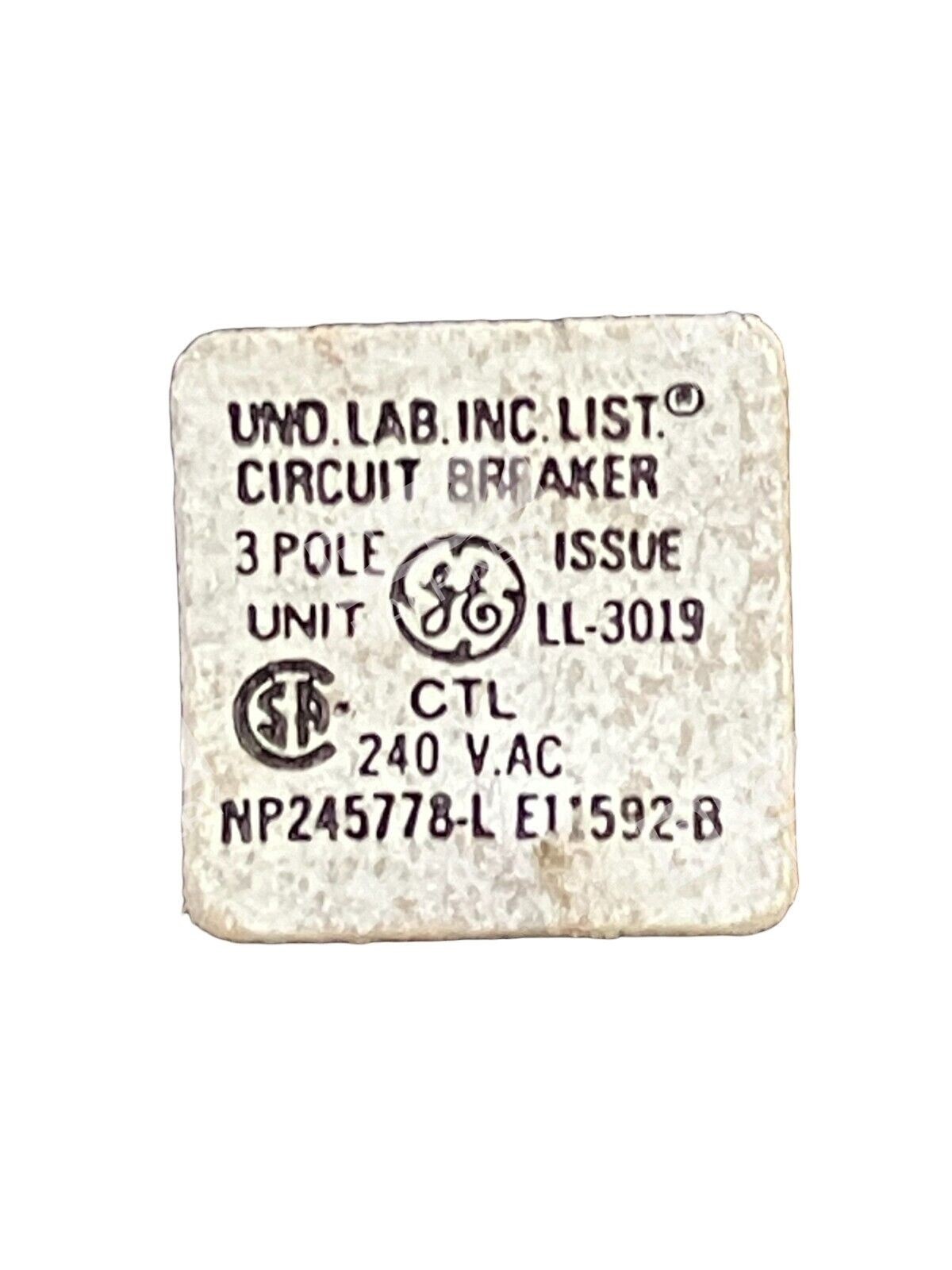

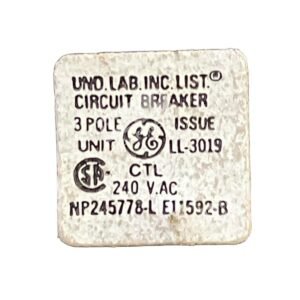

• UL Listed: Meets UL standards, ensuring compliance with safety and performance requirements.

Applications

Ideal for heating, air conditioning, and refrigeration systems, the THQL32030 circuit breakers are suitable for both residential and commercial settings, offering dependable protection for various electrical circuits.

Specifications

• Voltage Rating: 120/240 VAC
• Amperage Rating: 30 A
• Interrupting Rating: 10 kA
• Number of Poles: 3
• Mounting Type: Plug-In
• Wire Size: 14 to 8 AWG (Copper), 12 to 8 AWG (Aluminum)
• Dimensions: 2-3/8 in L x 1 in W x 3-9/32 in H

Ensure your electrical systems are safeguarded with the General Electric THQL32030 3-Pole Circuit Breakers, offering a blend of compact design, reliable performance, and ease of installation.
